SECTION 307-02 Transmission/Transaxle Cooling -
Vehicles With: 4-Speed Automatic Transmission
(AW81-40)
VEHICLE APPLICATION:2006.0 Fiesta
CONTENTS PAGE
SPECIFICATIONS
Specifications
........................................................................\
.............................................. 307-02-2
DESCRIPTION AND OPERATION
........................................................................\
..................................... Transaxle Cooling.. 307-02-3
........................................................................\
........................................... Cooling circuit.. 307-02-3
REMOVAL AND INSTALLATION
Transmission Fluid Cooler
........................................................................\
...... (1 7 834 0) 307-02-4
Transmission Fluid Cooler Tubes ............................................................. (1 7 857 0) 307-02-6
procarmanuals.com

TransmissionlTransaxle Cooling - Vehicles
With:
4S~eed Automatic Transmission
SPECIFICATIONS
Lubricants. Fluids. Sealers and Adhesives
For additional information, refer to: Health and Safety Precautions
(100-00 General Informa-
tion, Description and Operation).
See
- Transmission Fluids.
A WARN1NG:Refer to the Material Safety Data Sheets for the Automatic Transmission Fluid
E-AW. Failure to follow this instruction may result in personal injury. Certain Transmission
and Power Steering fluids supplied to Ford contain additives which may cause skin irritation
or other skin reactions after contact.
I Item I Specification I
(.
I Automatic transmission fluid I WSS-M2C924-A (
2006.0 Fiesta 1212006 G388008en
procarmanuals.com

Transmission/Transaxle Cooling - Vehicles
With: 4-Speed Automatic Transmission
307-0213 (AW81-40) 307-02-3
DESCRIPTION AND OPERATION
Transaxle Cooling
Cooling circuit
I I
Item Description
I 1 I Transmission fluid cooler I
11 To the transmission fluid cooler I
1 3 1 From the transmission fluid cooler I
ml~ed markings I
1 5 I Yellow markings I
1 7 1 Black markings I
The transmission fluid cooler is positioned in front item Description
of the radiator. I 1 I Quick-release coupling
The quick-release couplings are colour-coded to The
bumper needs to be disassembled in order to
prevent them from being mixed up. remove
the transmission fluid cooler.
It is
connected to the transmission by means of
two hose lines with quick-release couplings.
To release the quick-release couplings, first press
the quick-release coupling together and press it
towards the radiator or transmission connector and
then pull it back to release it.
2006.0 Fiesta IZIZOO~ G357356en
2
. -
Colour coding
procarmanuals.com

TransmissionlTransaxle Cooling - Vehicles
With: 4-Speed Automatic Transmission
307-0214 (AW81-40) 307-02-4
REMOVAL AND INSTALLATION
Transmission Fluid Cooler(l7 834 0)
Removal
A WARN1NG:Refer to the Material Safety Data
Sheets for the Automatic Transmission
Fluid E-AW. Failure to follow this
instruction. may result in personal injury.
Certain Transmission and Power Steering
fluids supplied to Ford contain additives
which may cause skin irritation or other
skin reactions after contact.
For additional information, refer to: Health
and Safety Precautions (1 00-00 General
4m AWARNING:~~~~ releasing the
transmission fluid, take care to prevent
scolding. Failure to follow this instruction
may result in personal injury.
A CAUTI0N:PIug the transmission fluid
cooler lines to prevent fluid loss or dirt
ingress.
For additional information, refer to: Health
and Safety Precautions (1 00-00 General
Information, Description and Operation).
See
- Transmission Fluids.
Information, and Operation)' NOTE:Mark the position of the feed and return See - Transmission Fluids. lines to aid installation.
1. Remove the front bumper cover.
Detach the transmission fluid lines from the
For additional information, refer to: Front
transmission fluid cooler.
Bumper Cover (501-19 Removal 1. Push the transmission fluid cooler line quick and Installation). release connector toward the transmission
2. Remove the radiator air deflector. fluid cooler.
3. Detach the power steering fluid line from the
radiator grille.
2. Press together the retaining tabs and detach
the transmission fluid line from the
transmission fluid cooler.
Allow the fluid to drain into a suitable
container.
For additional information, refer to: Health
and Safety Precautions
(1 00-00 General
Information, Description and Operation).
See
- Transmission Fluids.
2006.0 Fiesta 1~12006 G388009en
procarmanuals.com

Transmission/Transaxle Cooling - Vehicles
With: 4-Speed Automatic Transmission
(AW81-40)
REMOVAL AND INSTALLATION

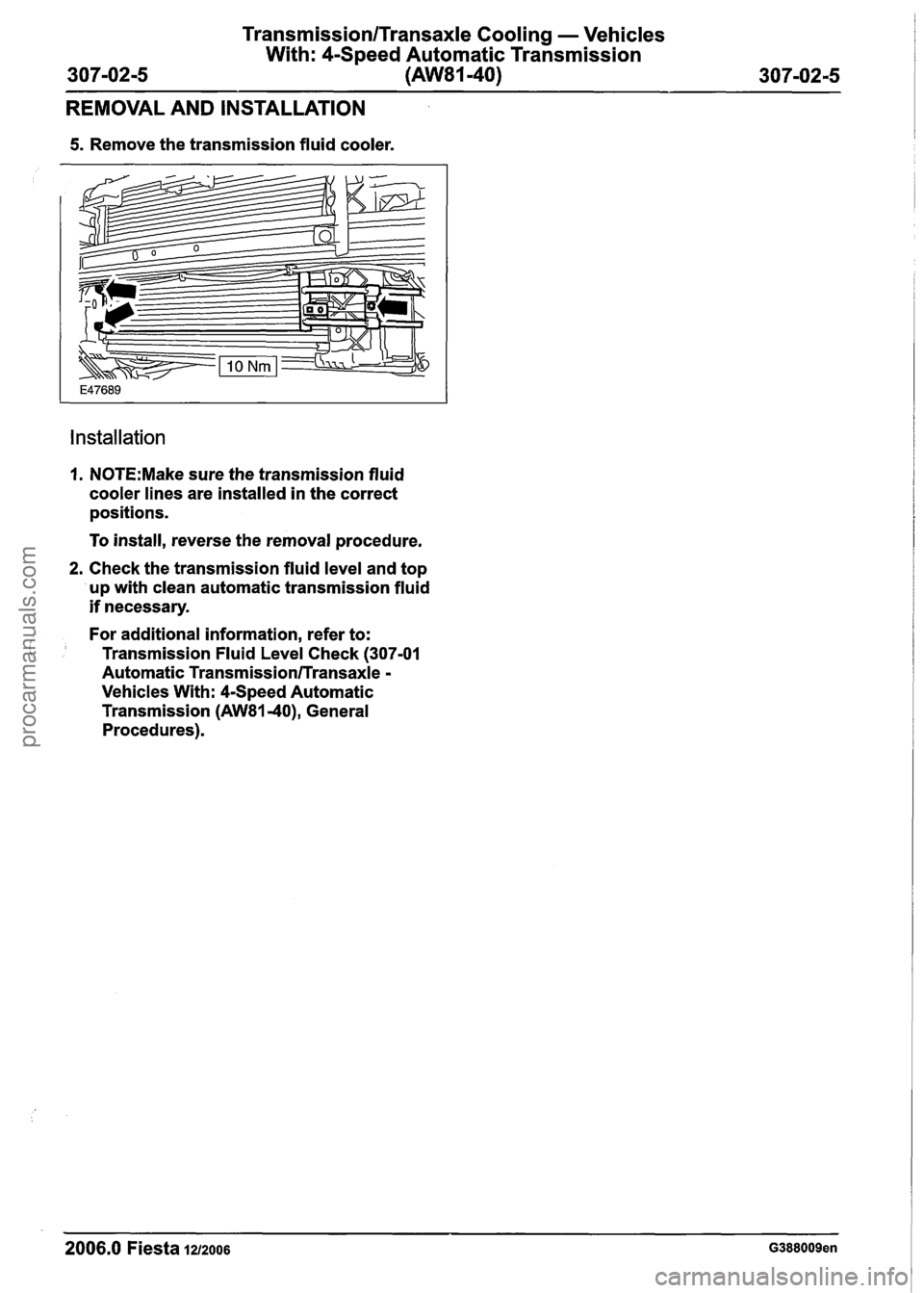

5. Remove the transmission fluid cooler.
Installation
I. N0TE:Make sure the transmission fluid
cooler lines are installed in the correct
positions.
To install, reverse the removal procedure.
2. Check the transmission fluid level and top
up with clean automatic transmission fluid
if necessary.
(
For additional information, refer to:
Transmission Fluid Level Check (307-01
Automatic
Transmission/Transaxle -
Vehicles With: 4-Speed Automatic
Transmission
(AW81-40), General
Procedures).
-- --
2006.0 Fiesta 1212006 G388009en
procarmanuals.com

TransmissionlTransaxle Cooling - Vehicles
With: 4-Speed Automatic Transmission
307-02-6 (AW81-40)
307-0216
REMOVAL AND INSTALLATION
Transmission Fluid Cooler Tubes(l7 857 0)
Removal See - Transmission Fluids.
A WARNING:Refer to the Material Safety Data
Sheets for the Automatic Transmission
Fluid
E-AW. Failure to follow this
instruction may result
in personal injury.
Certain Transmission and Power Steering
fluids supplied to Ford contain additives
which may cause skin irritation or other
skin reactions after contact.
For additional information, refer to: Health
and Safety Precautions (1
00-00 General
Information, Description and Operation).
See
- Transmission Fluids.
1. Raise and support the vehicle.
For additional information, refer to: Lifting
(1
00-02 Jacking and Lifting, Description
and Operation).
*' AWARNING:~~~~ releasing the
transmission fluid, take care to prevent
scolding. Failure to follow this instruction
may result
in personal injury.
A CAUTl0N:Plug the transmission fluid
cooler lines to prevent fluid loss or dirt
ingress.
For additional information, refer to: Health
and Safety Precautions (1
00-00 General
Information, Description and Operation).
See
- Transmission Fluids.
N0TE:Mark the position of the feed and return
lines to aid installation.
Detach the transmission fluid cooler lines
from the transmission.
I. Push the transmission fluid cooler line quick
release connector toward the transmission.
2. Press together the retaining tabs and detach
the transmission fluid cooler line from the
automatic transmission.
Allow the fluid to drain into a suitable
container.
For additional information, refer to: Health
and Safety Precautions
(1 00-00 General
Information, Description and Operation).
3m AWARNING:~~~~ releasing the
transmission fluid, take care to prevent
scolding. Failure to follow this instruction
may result
in personal injury.
A CAUTI0N:PIug the transmission fluid
cooler lines to prevent fluid loss or dirt
ingress.
For additional information, refer to: Health
and Safety Precautions (1
00-00 General
Information, Description and Operation).
See
- Transmission Fluids.
N0TE:Mark the position of the feed and return
lines to aid installation.
Remove the transmission fluid cooler lines.
1. Push the transmission fluid cooler line quick
release connector toward the transmission
fluid cooler.
2. Press together the retaining tabs and detach
the transmission fluid cooler line from the
transmission fluid cooler.
Allow the fluid to drain into a suitable
container.
For additional information, refer to: Health
and Safety Precautions
(1 00-00 General
Information, Description and Operation).
2006.0 Fiesta 1212006 G388010en
procarmanuals.com

Transmission/Transaxle Cooling - Vehicles
With: 4-Speed Automatic Transmission
307-02-7 (AW81-40) 307-02-7
REMOVAL AND INSTALLATION

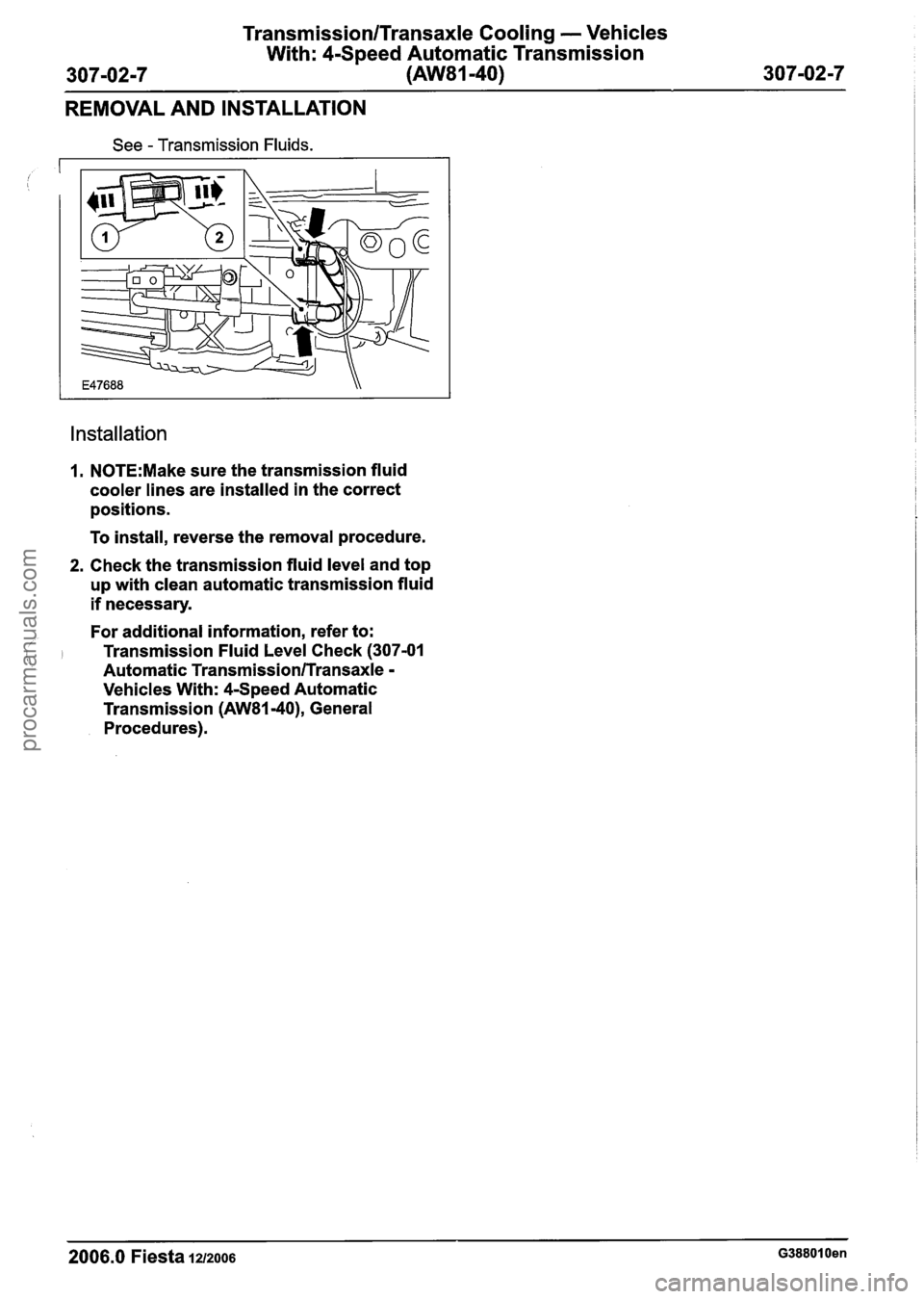

See - Transmission Fluids.
Installation
1. N0TE:Make sure the transmission fluid
cooler lines are installed in the correct
positions.
To install, reverse the removal procedure.
2. Check the transmission fluid level and top
up with clean automatic transmission fluid
if necessary.
For additional information, refer to:
Transmission Fluid Level Check
(307-01
Automatic TransmissionlTransaxle -
Vehicles With: 4-Speed Automatic
Transmission
(AW8140), General
Procedures).
2006.0 Fiesta 1212006 G388010en
procarmanuals.com
