2007 FORD FIESTA section 4

Manual Transmission/Transaxle External
308-06-8 Controls 308-06-8
REMOVAL AND INSTALLATION
Gearshift Cables(l6 575 0)
Removal 6. Remove the gearshift cables cover.
I. Remove the gearshift lever.
For additional information, refer to Gearshift
Lever in this section.
2. Remove the air cleaner. For additional
information, refer to Section
303-12 [Intake
Air Distribution and Filtering].
3. Raise and support the vehicle. For additional
information, refer to Section
100-02 [Jacking
and Lifting].
4. Remove the exhaust front hanger insulator.
5. Detach the exhaust heat shield from the floor
panel.
Slide the heat shield backwards.
7. Detach the gearshift cables from the
transaxle.
I. Detach the gearshift cable and the selector
cable from the selector levers.
2. Turn the abutment sleeves clockwise and
detach the cables from the bracket.
8. Detach the gearshift cables from the
retaining clip.
2006.0 Fiesta 1212006 GI 86745en
procarmanuals.com

Manual Transmission/Transaxle External
308-06-1 0 Controls 308-06-1 0
REMOVAL AND INSTALLATION
3. Raise and support the vehicle. For additional 7. Install the exhaust front hanger insulator.
information, refer to Section
100-02 [Jacking
and Lifting].
4. Attach the gearshift cables to the bracket
and turn the abutment sleeves
counterclockwise.
6. Attach the exhaust heat shield to the floor
panel.
Slide the heat shield forwards. 8.
Attach
the gearshift cables to the retaining
clip.
9. Attach the selector cable to the retaining clip.
10. Install the gearshift lever.
For additional information, refer to
Gearshift Lever in this section.
11. Install the air cleaner. For additional
information, refer to Section
303-12 [Intake (
Air Distribution and Filtering].
2006.0 Fiesta 1212006 GI 86745en
procarmanuals.com

Manual Transmission/Transaxle External
308-06-1 1 Controls 308-06-1 1
REMOVAL AND INSTALLATION
12. Adjust the gearshift cables. For additional
information, refer to Section
308-00
i ' [Manual Transmission/Transaxle and Clutch
- General Information].
-- -
2006.0 Fiesta 1212006 GI 86745en
procarmanuals.com

309-00-1 Exhaust System 309-00-1
SECTION 309-00 Exhaust System
VEHICLE APPLICATION:2006.0 Fiesta
CONTENTS PAGE
SPECIFICATIONS
Specifications ........................................................................\
.............................................. 309-00-2
DESCRIPTION AND
OPERATION
Exhaust System ........................................................................\
.......................................... 309-00-4
Exhaust system
- 1.31, 1.41 and 1.61 petrol engines and 1.41 diesel engines ...................... 309-00-4
REMOVAL AND INSTALLATION
Catalytic Converter - 2.OL Duratec-HE (M14) ................................................................... 309-00-6
Exhaust Flexible Pipe
- 2.OL Duratec-HE (M14) ............................................................... 309-00-8
procarmanuals.com

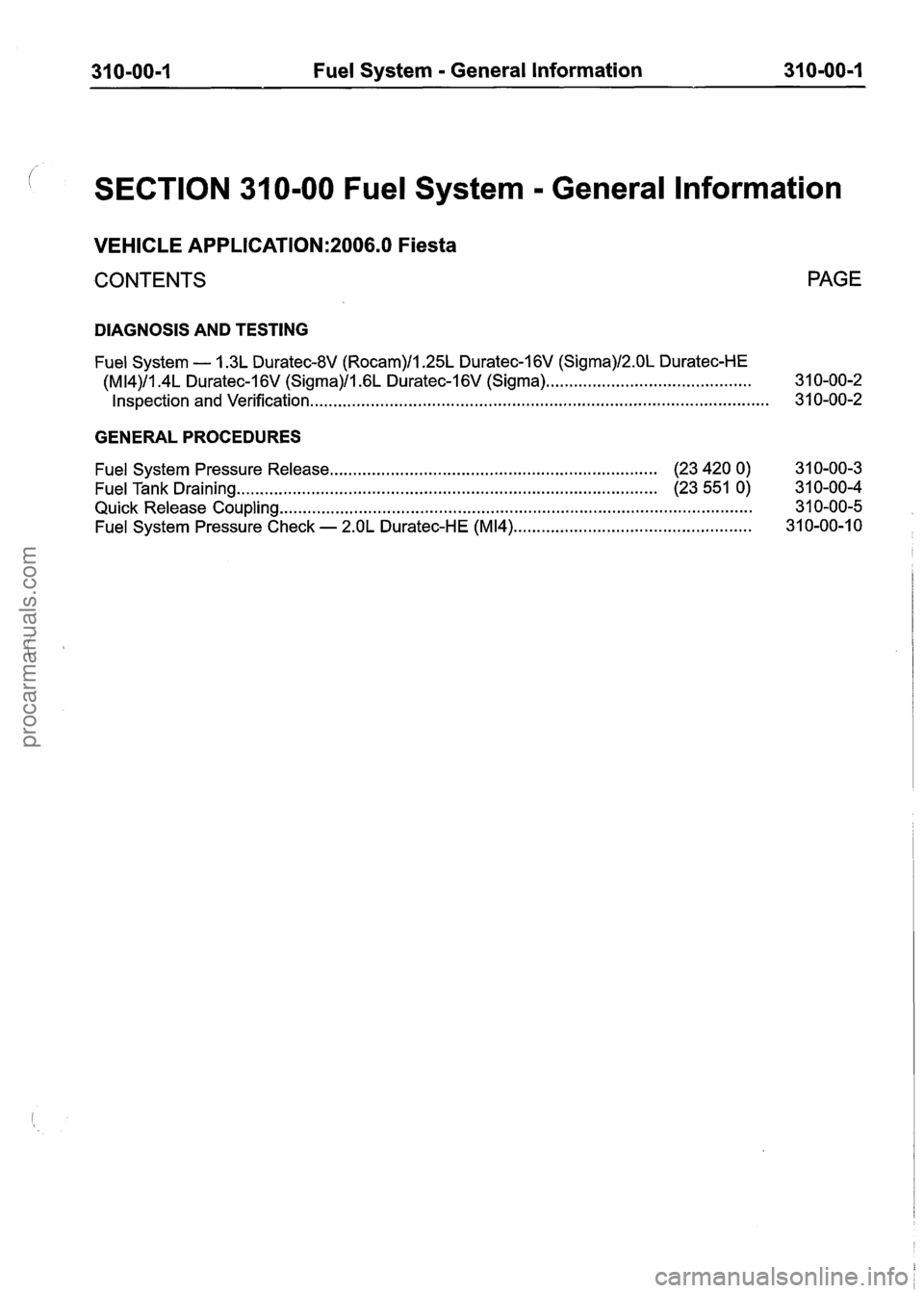

31 0-00-1 Fuel System - General Information 31 0-OO=l
SECTION 31 0-00 Fuel System - General lnformation
VEHICLE APPLICATION:2006.0 Fiesta
CONTENTS PAGE
DIAGNOSIS AND TESTING
Fuel System - 1.3L Duratec-8V (Rocam)ll.25L Duratec-I 6V (Sigma)/2.0L Duratec-HE
(M14)/1.4L Duratec-1 6V (Sigma)/l .6L
Duratec-1 6V (Sigma) ............................................ 3 1 0-00-2
........................................................................\
......................... Inspection and Verification. 3 1
0-00-2
GENERAL PROCEDURES
Fuel System Pressure Release .................................................................... (23 420 0) 3 1 0-00-3
Fuel Tank Draining
........................................................................\
.................. (23 551 0) 3 1 0-00-4
Quick Release Coupling
........................................................................\
............................. 3 1 0-00-5
................................................... Fuel System Pressure Check - 2.OL Duratec-HE (M14) 31 0-00-1 0
procarmanuals.com

31 0-00-4 Fuel System - General Information 31 0-00-4
GENERAL PROCEDURES
Fuel Tank Draining(23 551 0)
General Eaui~ment
I Fuel tank draining equipment I
Draining
WARNINGS:
A Do not smoke or carry lighted tobacco or
open flame of any type when working on
or near any fuel related components.
Highly flammable vapors are always
present and may ignite. Failure to follow
these instructions may result in personal
injury.
A The fuel system remains pressurized for a
long time after the ignition is switched off.
The fuel pressure must be relieved before
attempting any repairs. Failure to follow
these instructions may result in personal
injury.
I. Disconnect the battery ground cable. For
additional information, refer to
Section
414-01 [Battery, Mounting and
Cables].
2. Remove the fuel tank filler cap.
3. Using fuel tank draining equipment, drain
the fuel from the fuel tank using a
12.5mm
nylon drain tube.
2006.0 Fiesta 1212006 G210056en
procarmanuals.com

31 0-01 -1 Fuel Tank and Lines 31 0-01 -1
1 SECTION 31 0-01 Fuel Tank and Lines
VEHICLE APPLICATION:2006.0 Fiesta
CONTENTS
SPECIFICATIONS
Specifications.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PAGE
DESCRIPTION AND OPERATION
Fuel Tank and Lines - 1.25L Duratec-I 6V (Sigma)/l.4L Duratec-1 6V (Sigma)/l .6L
Duratec-I 6V (Sigma) ...... . . .. .. .... .. .... . . .... . . . . .... ...... .. .. . . . . ...... . . . . ........ .. .. .. .. . . . . . . . ... .. . . . . . . . . . . .. .... 31 0-01 -3
Overview..
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1 0-0 1 -3
DIAGNOSIS AND TESTING
. Fuel Tank and Lines ........................................................................\
....................................
REMOVAL AND INSTALLATION
Fuel Tank ..... . . ...... . . . ... . . ...... .... .. . . . . . . . . . . . . . . . . . . . . . . . . . ...... . . . . . . . . . . . . . . . . . . . (23 554 0)
31 0-01 -6
Fuel Pump Module. ........................................................................\
........ . (23 534 0)
31 0-01 -1 1
Fuel Tank Filler Pipe ........................................................................\
............... (23 572 0) 31 0-01-12
Fuel Level Sensor ..... . . . . . . . . . .. .... .. .. .... .. .. . . .. .. .. . . . . . . . . . . . . .. ...... .. . . .. .... . . .. . . . . .. . . .. .... . ... .. .. .. . . .. . . . . . . .. . 31 0-01 -1 4
Fuel Level Resistor Card ..... . . . . .. .. . . .. . . . . .. . . . . .. ...... . . . . . . . ..... . . . ..... . . . . . . . . . . . . . . . . . . . . . . 31 0-01 -1 5
procarmanuals.com

31 0-01 -6 Fuel Tank and Lines 31 0-01 -6
REMOVAL AND INSTALLATION
Fuel Tank(23 554 0)
Special Tool(s)
I I Wrench, Sender Unit, Fuel
General Equipment
I Transmission jack I
Removal
All vehicles
WARNINGS:
A Do not smoke or carry lighted tobacco or
open flame of any type when working on
or near fuel related components. Highly
flammable vapors are always present and
may ignite. Failure to follow these
instructions may result in personal injury.
A This procedure involves fuel handling. Be
prepared for fuel spillage at all times and
always observe fuel handling precautions.
Failure to follow these instructions may
4. Remove the floor panel crossmember. (
5. Detach the exhaust system from the center
exhaust hanger insulator.
result in personal injury.
I
1. Release the fuel system pressure. For 6. N0TE:When detaching the exhaust system
additional information, refer to
allow the system to be supported by the rear
Section
31 0-00 [Fuel System - General
suspension assembly.
Information].
. Detach the exhaust system from the rear 2. Drain the fuel tank. For additional
exhaust hanger insulator.
information, refer to Section
31 0-00 [Fuel
System
- General Information].
3. Raise and support the vehicle. For additional
information, refer to Section
100-02 [Jacking
and Lifting].
2006.0 Fiesta 1212006 GI 89084en
procarmanuals.com
