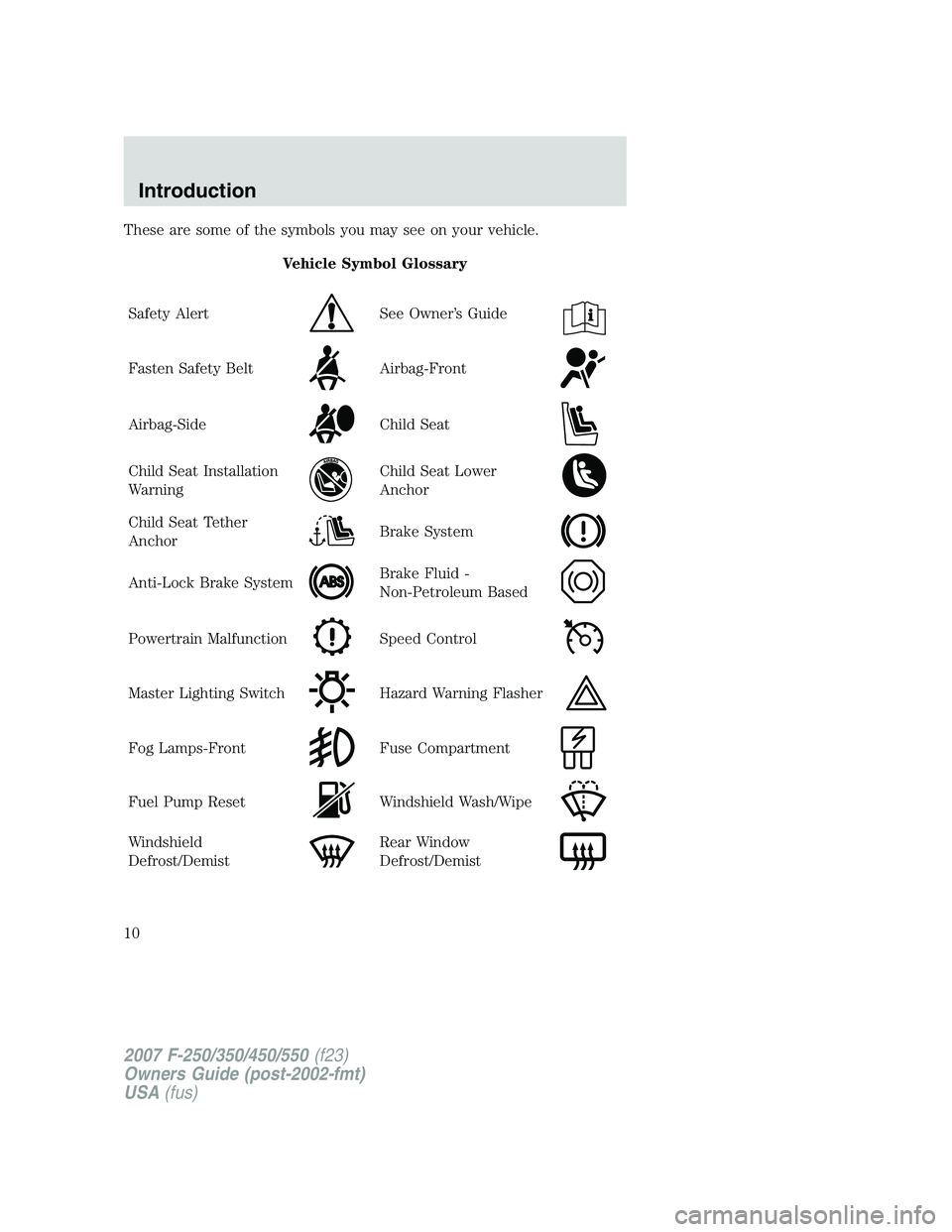

These are some of the symbols you may see on your vehicle.
Vehicle Symbol Glossary
Safety Alert
See Owner’s Guide
Fasten Safety BeltAirbag-Front
Airbag-SideChild Seat
Child Seat Installation
WarningChild Seat Lower
Anchor
Child Seat Tether
AnchorBrake System
Anti-Lock Brake SystemBrake Fluid -
Non-Petroleum Based
Powertrain MalfunctionSpeed Control
Master Lighting SwitchHazard Warning Flasher
Fog Lamps-FrontFuse Compartment
Fuel Pump ResetWindshield Wash/Wipe
Windshield
Defrost/DemistRear Window
Defrost/Demist
2007 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Introduction
10

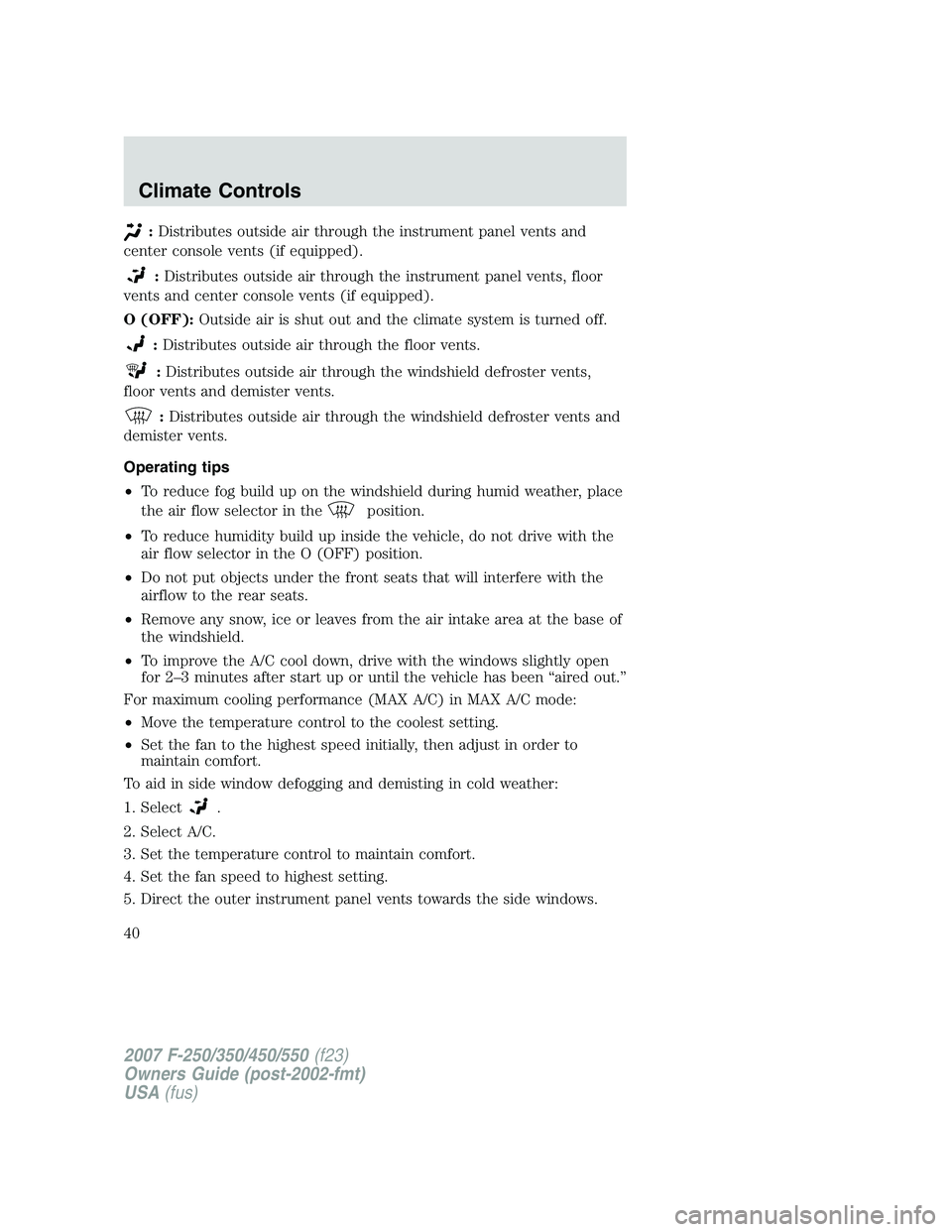

:Distributes outside air through the instrument panel vents and
center console vents (if equipped).
:Distributes outside air through the instrument panel vents, floor
vents and center console vents (if equipped).
O (OFF):Outside air is shut out and the climate system is turned off.
:Distributes outside air through the floor vents.
:Distributes outside air through the windshield defroster vents,
floor vents and demister vents.
:Distributes outside air through the windshield defroster vents and
demister vents.
Operating tips
•To reduce fog build up on the windshield during humid weather, place
the air flow selector in the
position.
•To reduce humidity build up inside the vehicle, do not drive with the
air flow selector in the O (OFF) position.
•Do not put objects under the front seats that will interfere with the
airflow to the rear seats.
•Remove any snow, ice or leaves from the air intake area at the base of
the windshield.
•To improve the A/C cool down, drive with the windows slightly open
for 2–3 minutes after start up or until the vehicle has been “aired out.”
For maximum cooling performance (MAX A/C) in MAX A/C mode:
•Move the temperature control to the coolest setting.
•Set the fan to the highest speed initially, then adjust in order to
maintain comfort.
To aid in side window defogging and demisting in cold weather:
1. Select
.
2. Select A/C.
3. Set the temperature control to maintain comfort.
4. Set the fan speed to highest setting.
5. Direct the outer instrument panel vents towards the side windows.
2007 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Climate Controls
40

Operating tips
•To reduce fog build up on the windshield during humid weather, place
the air flow selector in the
position.
•To reduce humidity build up inside the vehicle, do not drive with the
air flow selector in OFF or with recirculated air engaged.
•Do not put objects under the front seats that will interfere with the
airflow to the rear seats.
•Remove any snow, ice or leaves from the air intake area at the base of
the windshield.
•To improve the A/C cool down, drive with the windows slightly open
for 2–3 minutes after start up or until the vehicle has been “aired out.”
For maximum cooling performance in AUTO mode:
•Press AUTO control and set to desired temperature.
For maximum cooling performance using manual override modes:
•Press
(panel), A/C, with recirculated air. Set the temperature to
60°F (16°C) and the fan to the highest setting.
To aid in side window defogging and demisting in cold weather:
1. Select
.
2. Select A/C.
3. Set the temperature control to maintain comfort.
4. Set the fan speed to highest setting.
5. Direct the outer instrument panel vents towards the side windows. To
increase airflow to the outer instrument panel vents, close the vents
located in the middle of the instrument panel.
To increase airflow to the outer instrument panel vents, close the vents
located in the middle of the instrument panel.
Do not place objects on top of the instrument panel as these
objects may become projectiles in a collision or sudden stop.
2007 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Climate Controls
43

Foglamp control (if equipped)
The headlamp control also operates
the foglamps. The foglamps can be
turned on only when the headlamp
control is in the
,or
position and the high beams are not
turned on.
In autolamp mode, the foglamps
won’t be operational until lighting
conditions warrant the activation of the headlamp/parklamp lighting.
Pull headlamp control towards you to turn foglamps on. The foglamp
indicator light
will illuminate when the switch is pulled and the
parklamps are on.
Daytime running lamps (DRL) (if equipped)
Turns the headlamps on with a reduced output.
To activate:
•the ignition must be in the ON position,
•the headlamp control is in the OFF or parking lamp position and
•the parking brake must be disengaged.
Always remember to turn on your headlamps at dusk or during
inclement weather. The Daytime Running Lamp (DRL) system
does not activate the tail lamps and generally may not provide
adequate lighting during these conditions. Failure to activate your
headlamps under these conditions may result in a collision.
2007 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
45

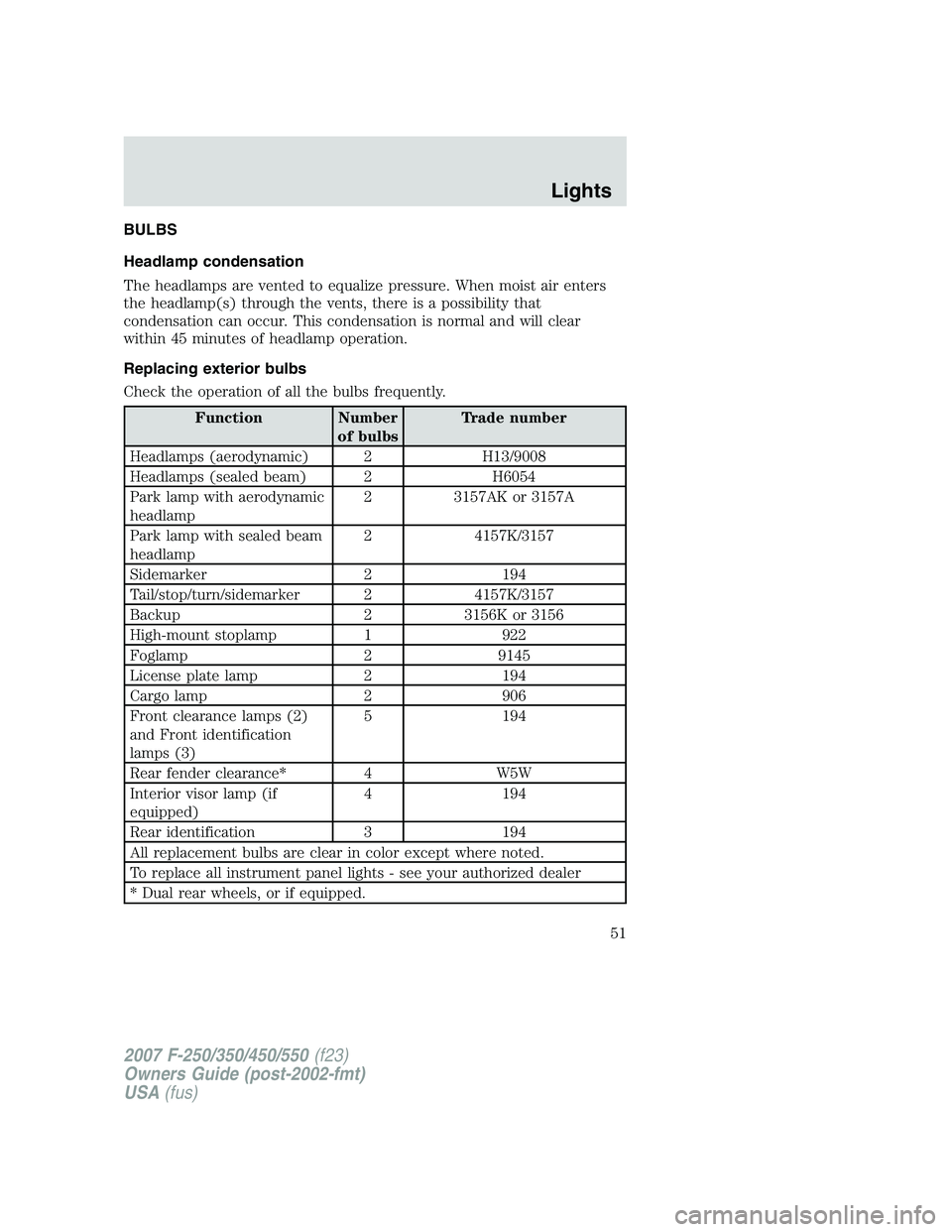

BULBS
Headlamp condensation
The headlamps are vented to equalize pressure. When moist air enters
the headlamp(s) through the vents, there is a possibility that
condensation can occur. This condensation is normal and will clear
within 45 minutes of headlamp operation.
Replacing exterior bulbs
Check the operation of all the bulbs frequently.
Function Number
of bulbsTrade number
Headlamps (aerodynamic) 2 H13/9008
Headlamps (sealed beam) 2 H6054
Park lamp with aerodynamic
headlamp2 3157AK or 3157A
Park lamp with sealed beam
headlamp2 4157K/3157
Sidemarker 2 194
Tail/stop/turn/sidemarker 2 4157K/3157
Backup 2 3156K or 3156
High-mount stoplamp 1 922
Foglamp 2 9145
License plate lamp 2 194
Cargo lamp 2 906
Front clearance lamps (2)
and Front identification
lamps (3)5 194
Rear fender clearance* 4 W5W
Interior visor lamp (if
equipped)4 194
Rear identification 3 194
All replacement bulbs are clear in color except where noted.
To replace all instrument panel lights - see your authorized dealer
* Dual rear wheels, or if equipped.
2007 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
51

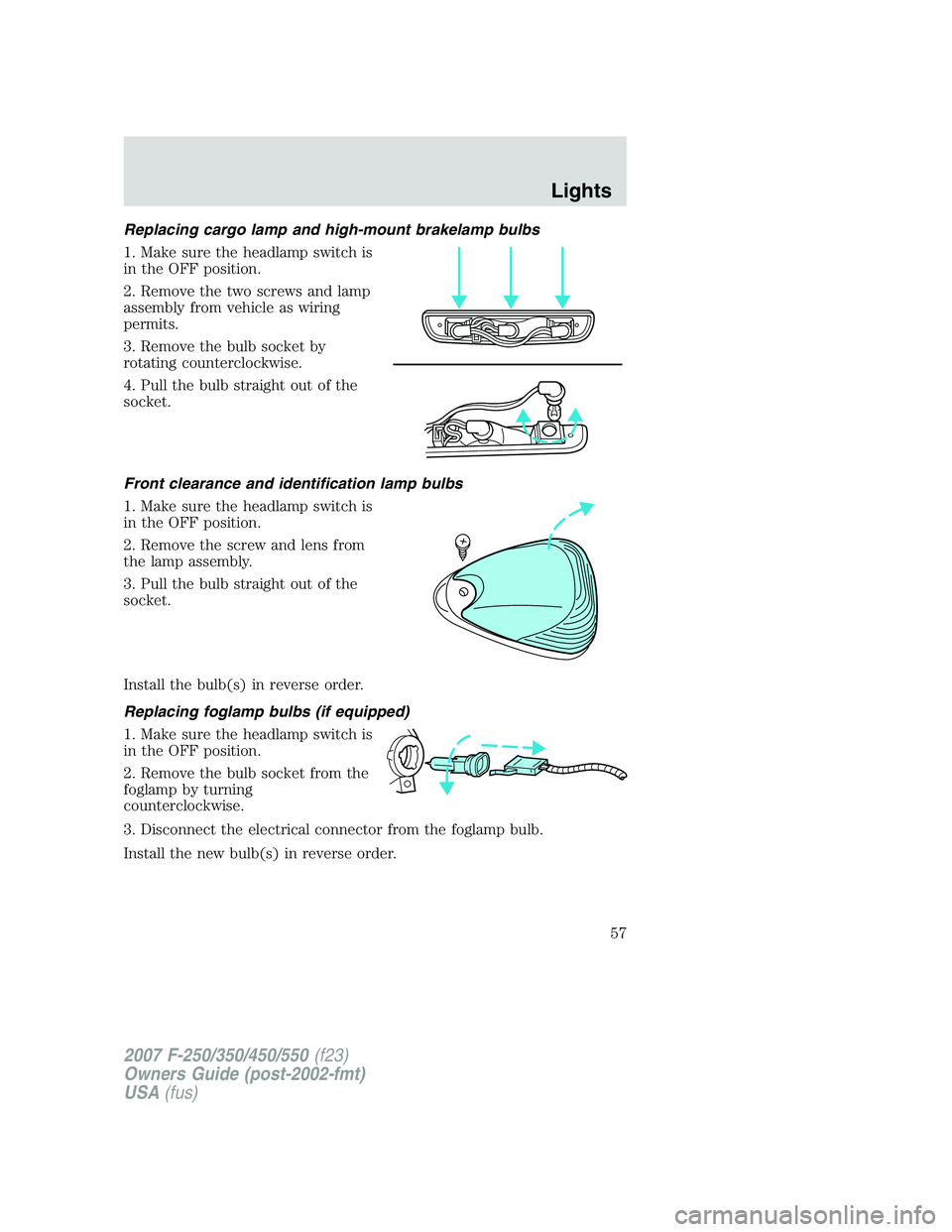

Replacing cargo lamp and high-mount brakelamp bulbs
1. Make sure the headlamp switch is
in the OFF position.
2. Remove the two screws and lamp
assembly from vehicle as wiring
permits.
3. Remove the bulb socket by
rotating counterclockwise.
4. Pull the bulb straight out of the
socket.
Front clearance and identification lamp bulbs
1. Make sure the headlamp switch is
in the OFF position.
2. Remove the screw and lens from
the lamp assembly.
3. Pull the bulb straight out of the
socket.
Install the bulb(s) in reverse order.
Replacing foglamp bulbs (if equipped)
1. Make sure the headlamp switch is
in the OFF position.
2. Remove the bulb socket from the
foglamp by turning
counterclockwise.
3. Disconnect the electrical connector from the foglamp bulb.
Install the new bulb(s) in reverse order.
2007 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
57

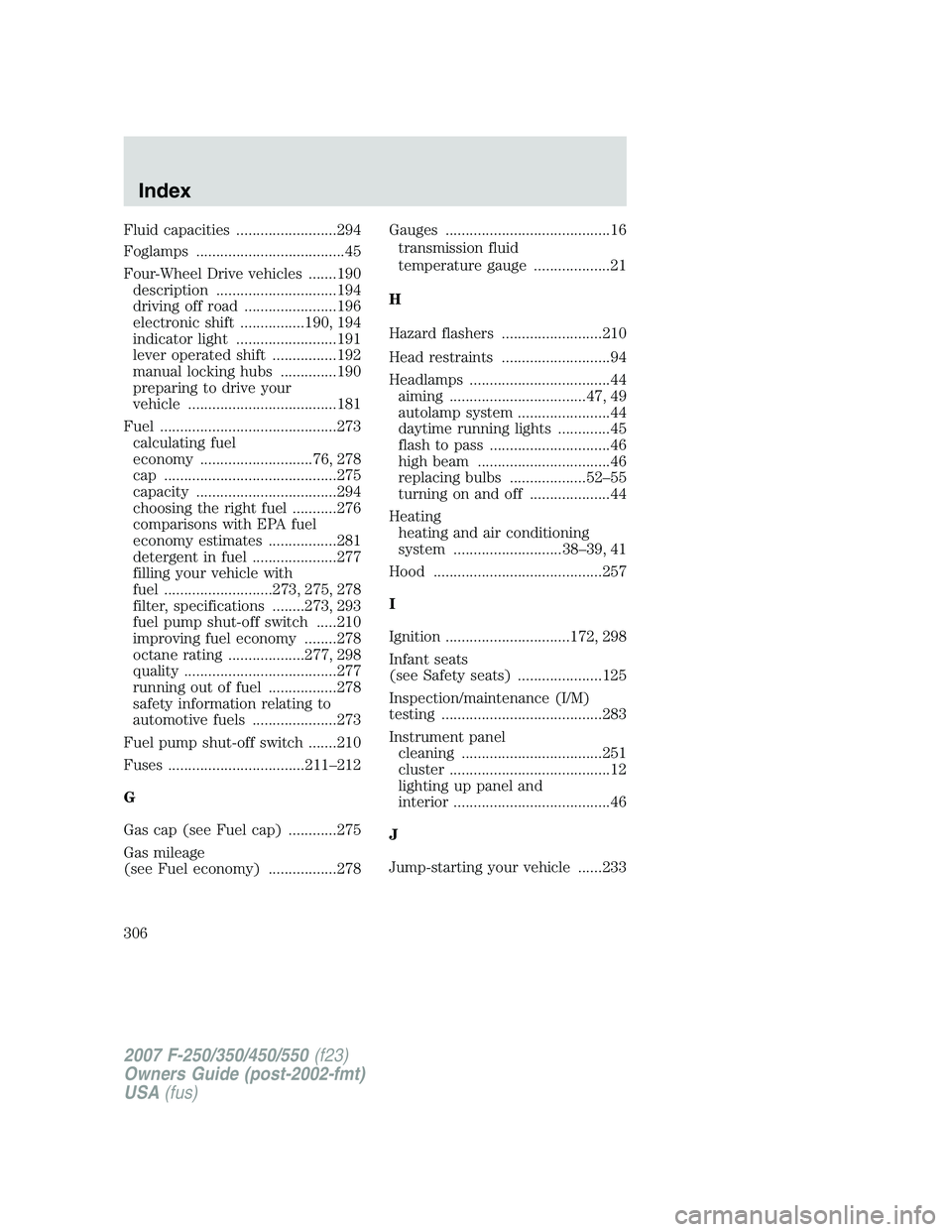

Fluid capacities .........................294
Foglamps .....................................45
Four-Wheel Drive vehicles .......190
description ..............................194
driving off road .......................196
electronic shift ................190, 194
indicator light .........................191
lever operated shift ................192
manual locking hubs ..............190
preparing to drive your
vehicle .....................................181
Fuel ............................................273
calculating fuel
economy ............................76, 278
cap ...........................................275
capacity ...................................294
choosing the right fuel ...........276
comparisons with EPA fuel
economy estimates .................281
detergent in fuel .....................277
filling your vehicle with
fuel ...........................273, 275, 278
filter, specifications ........273, 293
fuel pump shut-off switch .....210
improving fuel economy ........278
octane rating ...................277, 298
quality ......................................277
running out of fuel .................278
safety information relating to
automotive fuels .....................273
Fuel pump shut-off switch .......210
Fuses ..................................211–212
G
Gas cap (see Fuel cap) ............275
Gas mileage
(see Fuel economy) .................278Gauges .........................................16
transmission fluid
temperature gauge ...................21
H
Hazard flashers .........................210
Head restraints ...........................94
Headlamps ...................................44
aiming ..................................47, 49
autolamp system .......................44
daytime running lights .............45
flash to pass ..............................46
high beam .................................46
replacing bulbs ...................52–55
turning on and off ....................44
Heating
heating and air conditioning
system ...........................38–39, 41
Hood ..........................................257
I
Ignition ...............................172, 298
Infant seats
(see Safety seats) .....................125
Inspection/maintenance (I/M)
testing ........................................283
Instrument panel
cleaning ...................................251
cluster ........................................12
lighting up panel and
interior .......................................46
J
Jump-starting your vehicle ......233
2007 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Index
306

K
Keyless entry system .................92
Keys
positions of the ignition .........172
L
Lamps
autolamp system .......................44
daytime running light ...............45
fog lamps ...................................45
headlamps .................................44
headlamps, flash to pass ..........46
instrument panel, dimming .....46
interior lamps ...........................50
replacing bulbs ...................51–58
Lane change indicator
(see Turn signal) ........................50
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........178
speed control ............................68
Load limits .................................153
Loading instructions .................159
Locks
childproof ..................................87
Lug nuts ....................................232
Lumbar support, seats ...............99
M
Manual transmission .................185
fluid capacities ........................294
reverse .....................................187
Message center ...............72, 74–75
english/metric button ...............79
system check button ................78warning messages .....................80
Mirrors .........................................60
automatic dimming rearview
mirror ........................................63
fold away ...................................65
heated ........................................64
side view mirrors (power) .......64
signal .........................................65
Moon roof ....................................71
Motorcraft parts ................273, 293
O
Octane rating ............................277
Oil (see Engine oil) ..................261
Overdrive .....................................60
P
Parking brake ............................179
Parts (see Motorcraft parts) ....293
Pedals (see Power adjustable
foot pedals) .................................66
Power adjustable foot pedals .....66
Power distribution box
(see Fuses) ...............................217
Power door locks ........................85
Power mirrors .............................64
Power point .................................61
Power steering ..........................180
fluid, checking and adding ....283
fluid, refill capacity ................294
Power Windows ...........................62
Preparing to drive your
vehicle ........................................181
2007 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Index
307
