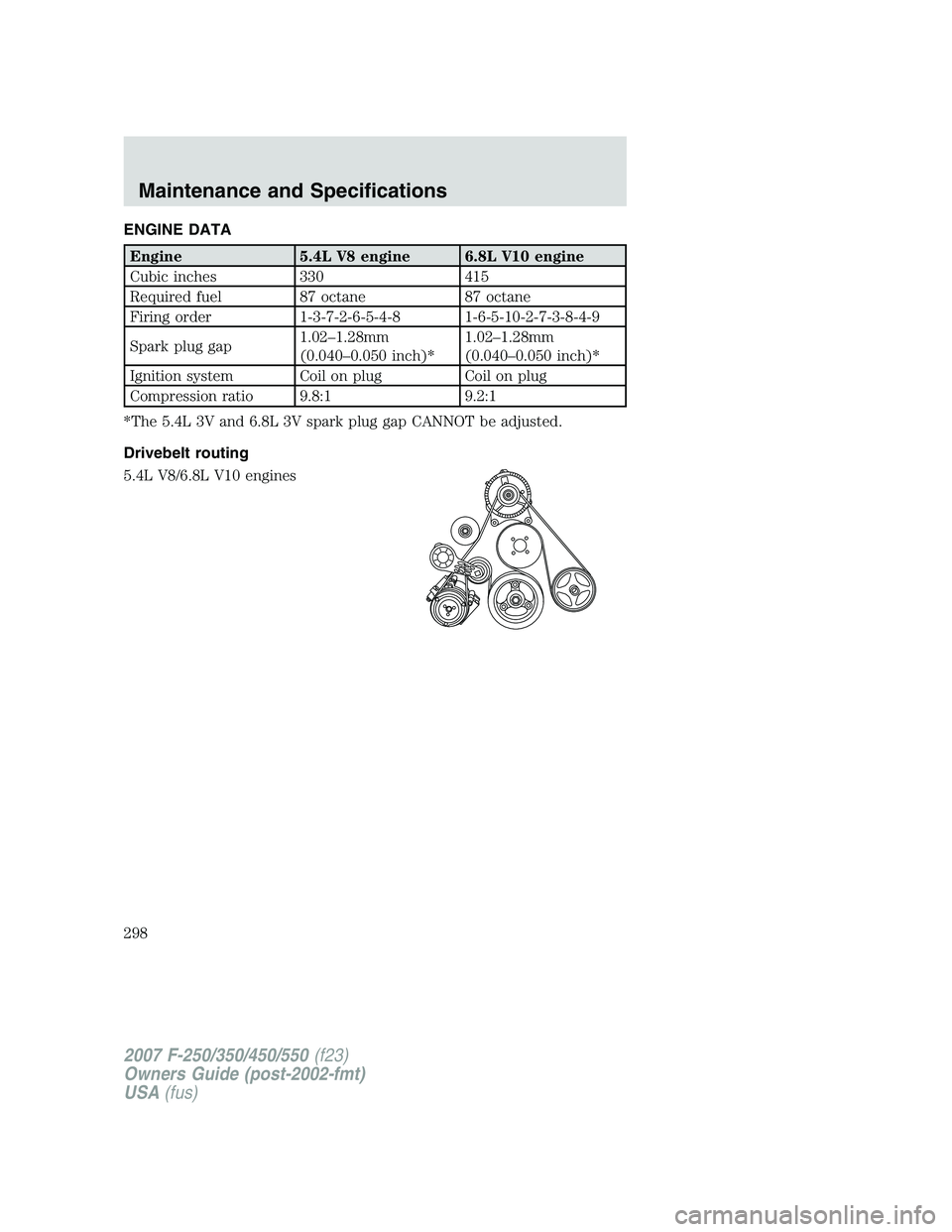

ENGINE DATA
Engine 5.4L V8 engine 6.8L V10 engine
Cubic inches 330 415
Required fuel 87 octane 87 octane
Firing order 1-3-7-2-6-5-4-8 1-6-5-10-2-7-3-8-4-9
Spark plug gap1.02–1.28mm
(0.040–0.050 inch)*1.02–1.28mm
(0.040–0.050 inch)*
Ignition system Coil on plug Coil on plug
Compression ratio 9.8:1 9.2:1
*The 5.4L 3V and 6.8L 3V spark plug gap CANNOT be adjusted.
Drivebelt routing
5.4L V8/6.8L V10 engines
2007 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
298
