2007 FORD F250 Owners Manual

MERCON
, MERCON
V and MERCON
SP are not interchangeable. DO NOT mix
MERCON
, MERCON
V and MERCON
SP. Use of dual usage fluids in an automatic
transmission application requiring MERCON
SP may cause transmission damage. Use of
a transmission fluid other than the recommended fluid may cause transmission damage.4Service refill capacity is determined by filling the transmission to the bottom of the filler hole with
the vehicle on a level surface. The 6–speed manual transmission is equipped with an in-tank cooler.
Verify the fluid level after operating vehicle to ensure correct fluid level.5Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler. The amount of transmission fluid and fluid level should be set
by the indication on the dipstick’s normal operating range.6Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.
2007 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
297

ENGINE DATA
Engine 5.4L V8 engine 6.8L V10 engine
Cubic inches 330 415
Required fuel 87 octane 87 octane
Firing order 1-3-7-2-6-5-4-8 1-6-5-10-2-7-3-8-4-9
Spark plug gap1.02–1.28mm
(0.040–0.050 inch)*1.02–1.28mm
(0.040–0.050 inch)*
Ignition system Coil on plug Coil on plug
Compression ratio 9.8:1 9.2:1
*The 5.4L 3V and 6.8L 3V spark plug gap CANNOT be adjusted.
Drivebelt routing
5.4L V8/6.8L V10 engines
2007 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
298

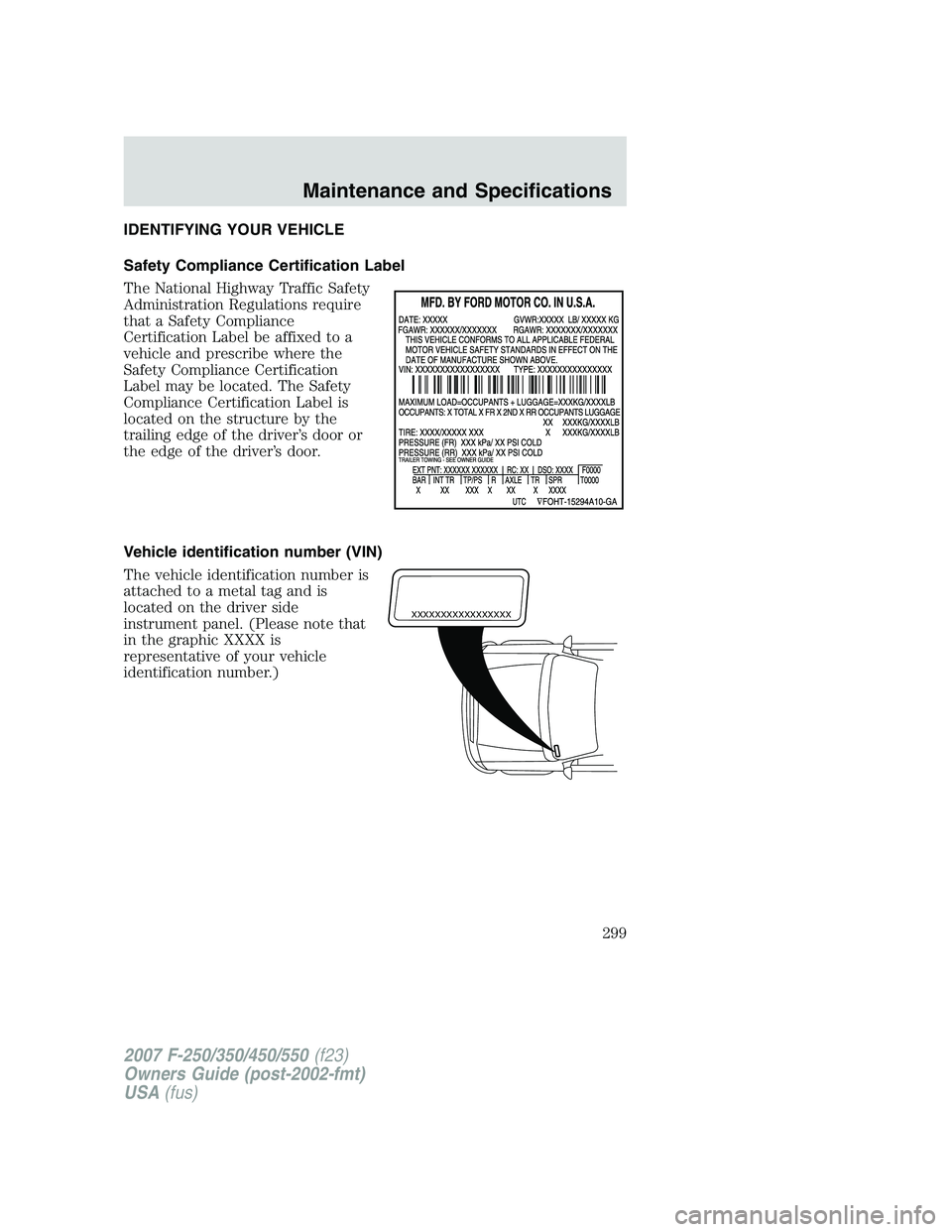

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure by the
trailing edge of the driver’s door or
the edge of the driver’s door.
Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
XXXXXXXXXXXXXXXXX
2007 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
299

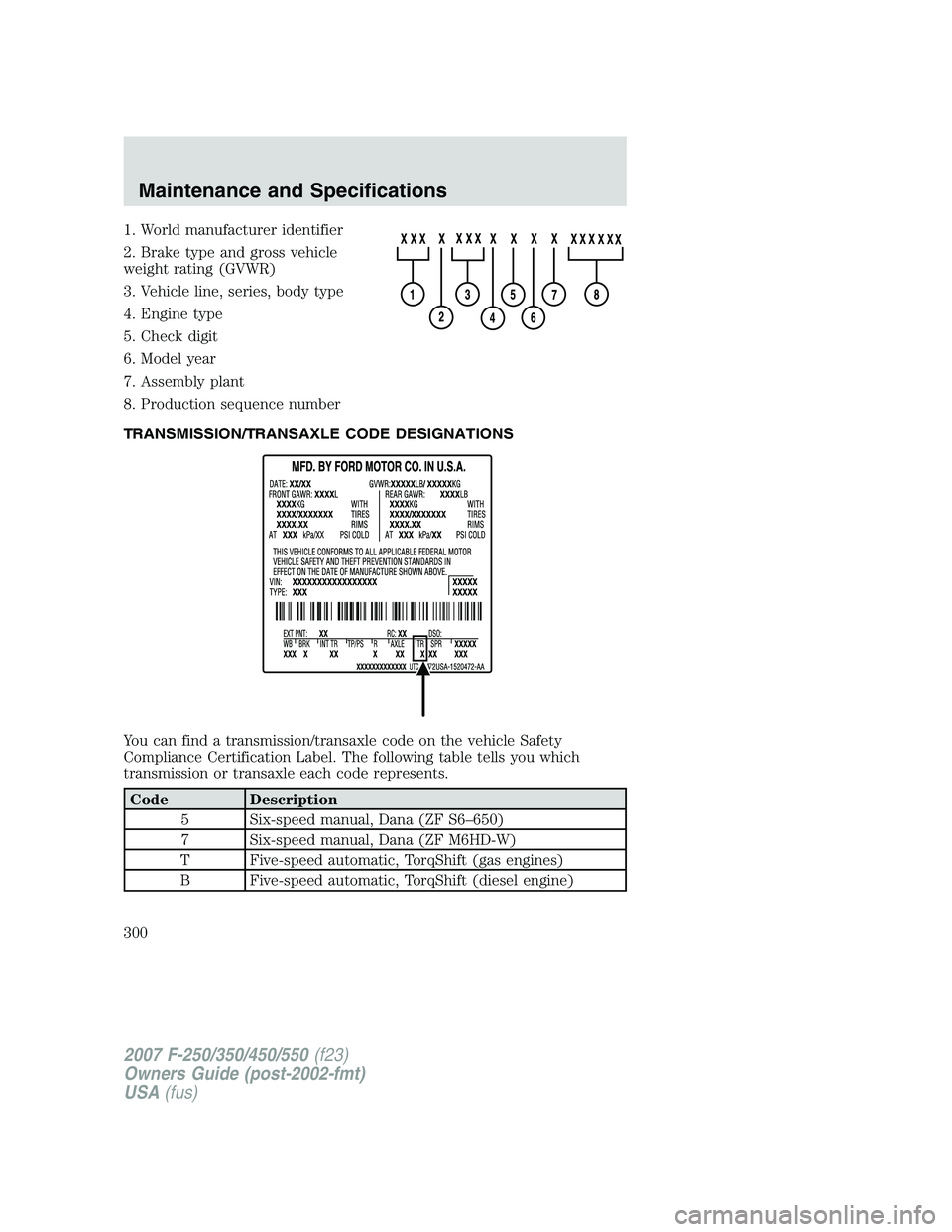

1. World manufacturer identifier
2. Brake type and gross vehicle
weight rating (GVWR)
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a transmission/transaxle code on the vehicle Safety
Compliance Certification Label. The following table tells you which
transmission or transaxle each code represents.
Code Description
5 Six-speed manual, Dana (ZF S6–650)
7 Six-speed manual, Dana (ZF M6HD-W)
T Five-speed automatic, TorqShift (gas engines)
B Five-speed automatic, TorqShift (diesel engine)
2007 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
300

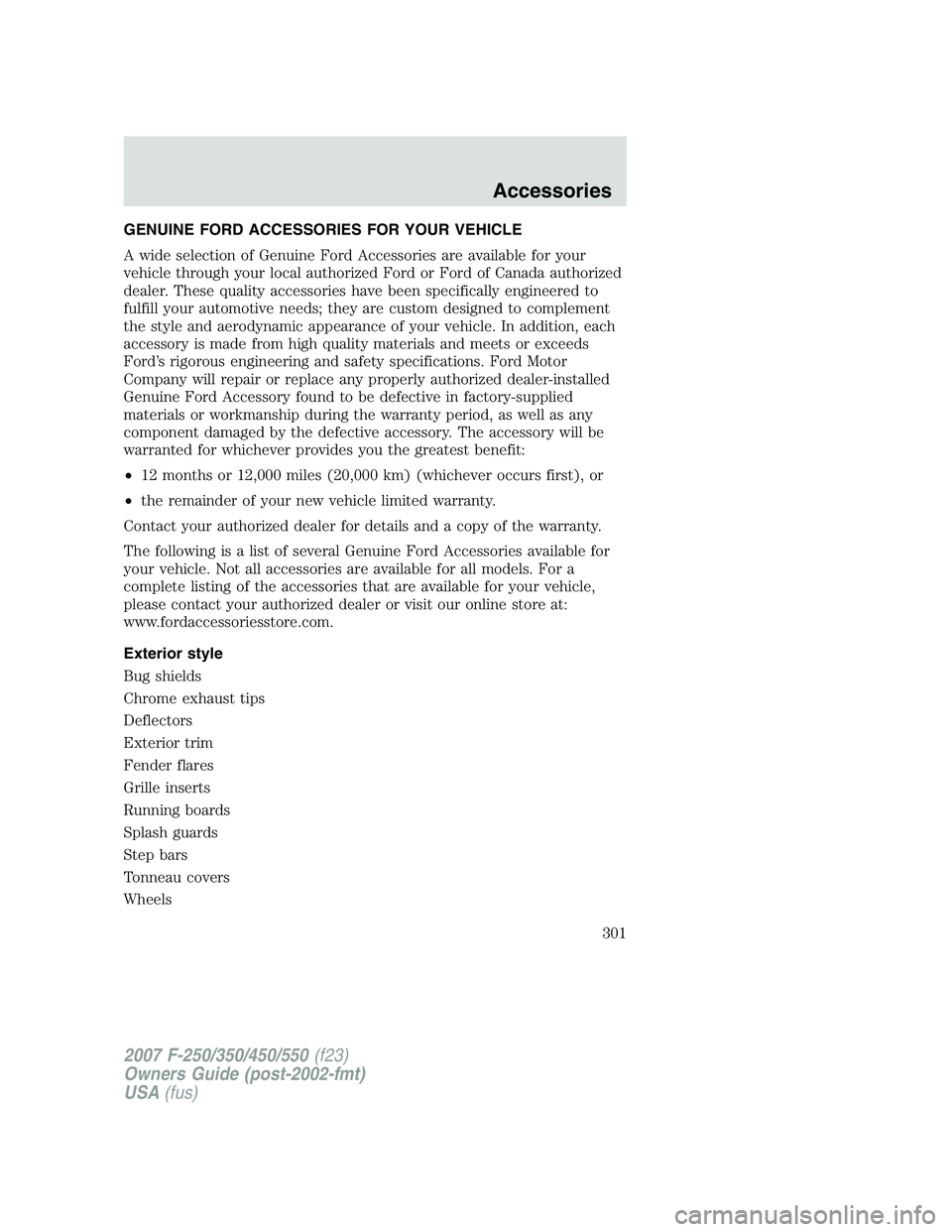

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local authorized Ford or Ford of Canada authorized
dealer. These quality accessories have been specifically engineered to
fulfill your automotive needs; they are custom designed to complement
the style and aerodynamic appearance of your vehicle. In addition, each
accessory is made from high quality materials and meets or exceeds
Ford’s rigorous engineering and safety specifications. Ford Motor
Company will repair or replace any properly authorized dealer-installed
Genuine Ford Accessory found to be defective in factory-supplied
materials or workmanship during the warranty period, as well as any
component damaged by the defective accessory. The accessory will be
warranted for whichever provides you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
• the remainder of your new vehicle limited warranty.
Contact your authorized dealer for details and a copy of the warranty.
The following is a list of several Genuine Ford Accessories available for
your vehicle. Not all accessories are available for all models. For a
complete listing of the accessories that are available for your vehicle,
please contact your authorized dealer or visit our online store at:
www.fordaccessoriesstore.com.
Exterior style
Bug shields
Chrome exhaust tips
Deflectors
Exterior trim
Fender flares
Grille inserts
Running boards
Splash guards
Step bars
Tonneau covers
Wheels
2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)
Accessories
301

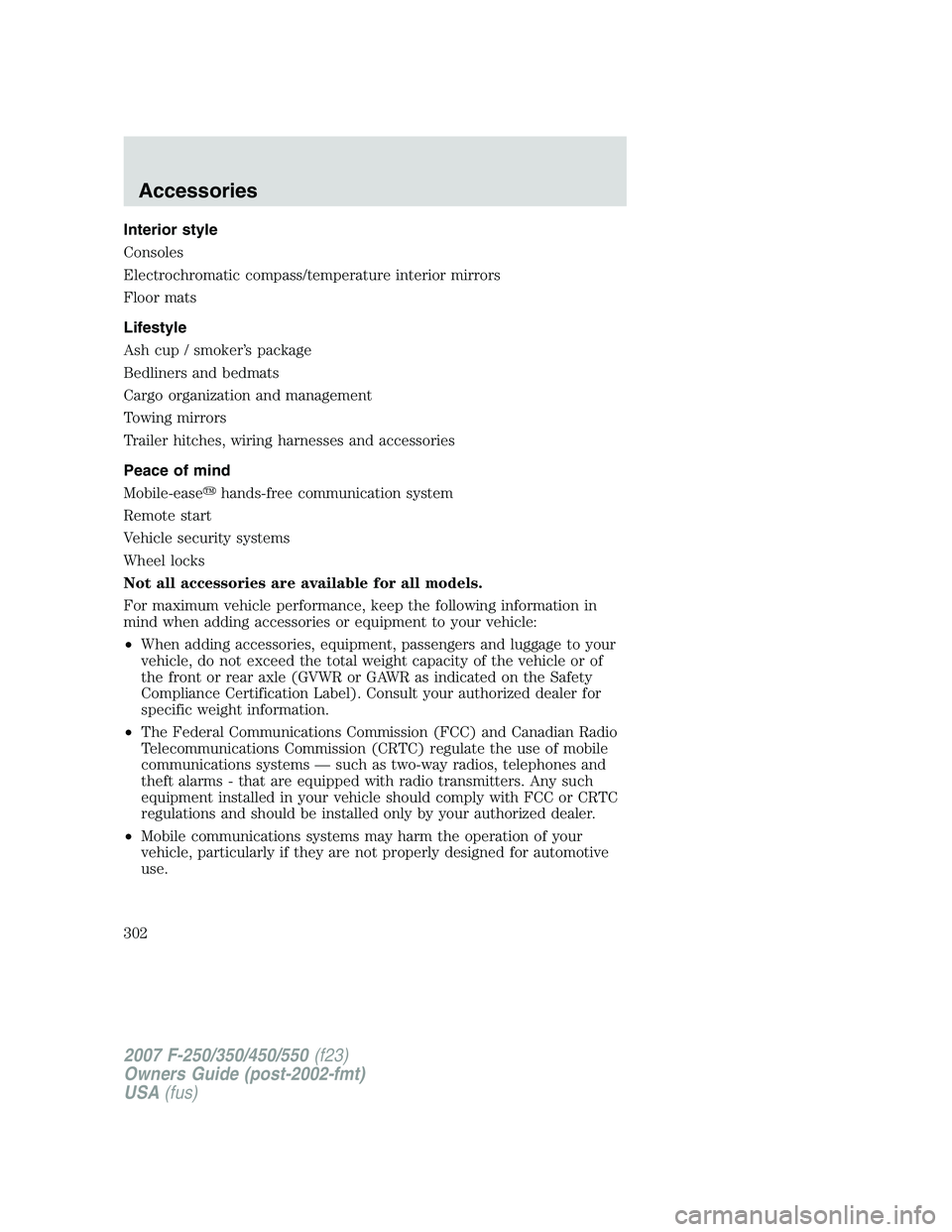

Interior style
Consoles
Electrochromatic compass/temperature interior mirrors
Floor mats
Lifestyle
Ash cup / smoker’s package
Bedliners and bedmats
Cargo organization and management
Towing mirrors
Trailer hitches, wiring harnesses and accessories
Peace of mind
Mobile-easehands-free communication system
Remote start
Vehicle security systems
Wheel locks
Not all accessories are available for all models.
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification Label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by your authorized dealer.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
2007 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
302

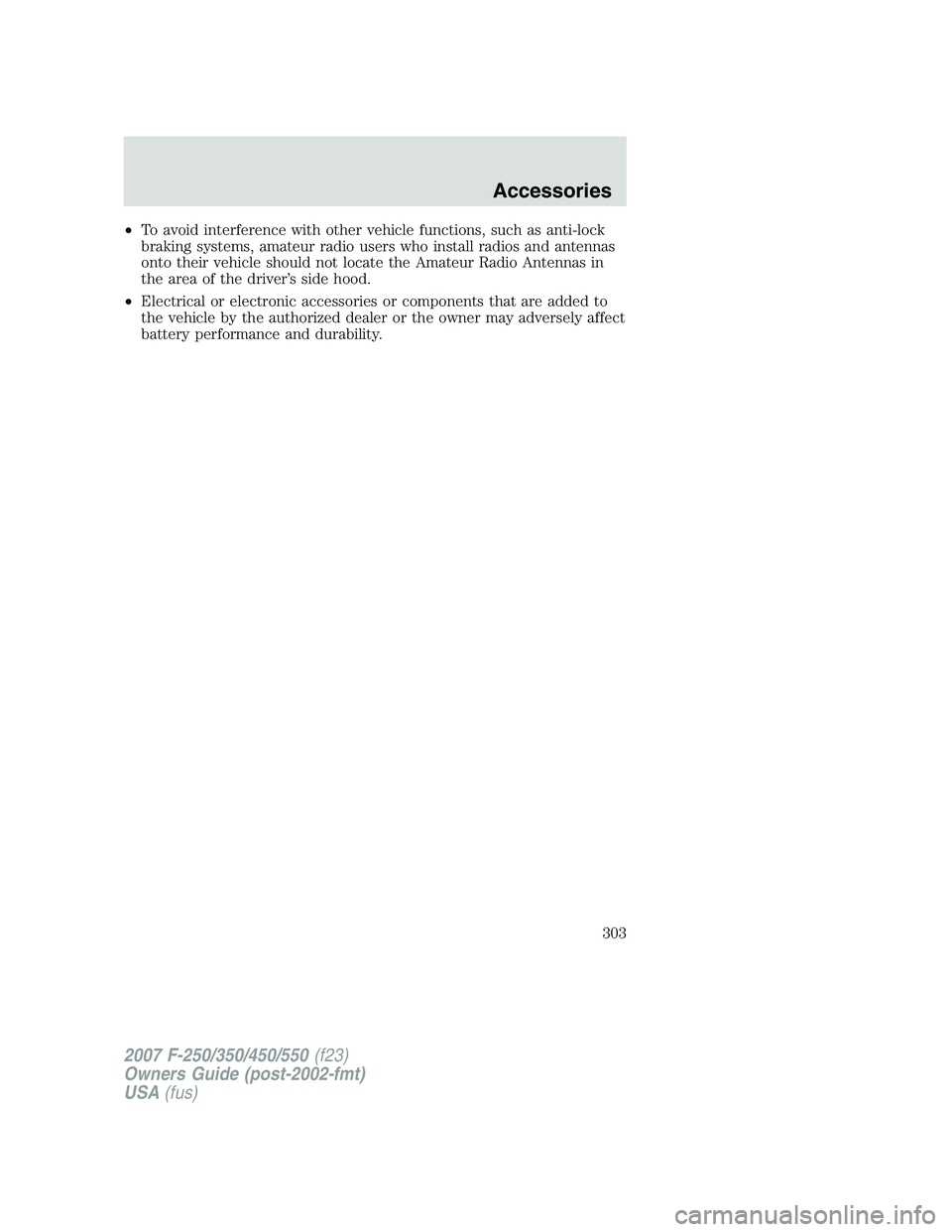

•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
2007 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
303

A
Accessory delay ..........................63
Air cleaner filter .......290–291, 293
Air conditioning ..........................41
Airbag supplemental restraint
system ........................................113
and child safety seats ............114
description ..............................113
disposal ....................................117
driver airbag ............................115
indicator light .........................116
operation .................................115
passenger airbag .....................115
passenger deactivation
switch ......................................117
Ambulance packages ....................8
Antifreeze
(see Engine coolant) ................267
Anti-lock brake system
(see Brakes) ..............................178
Audio system
(see Radio) ......................21, 23, 28
Automatic transmission ............182
driving an automatic
overdrive .................................183
fluid, adding ............................286
fluid, checking ........................286
fluid, refill capacities ..............294
Auxiliary power point .................61
Axle
refill capacities ........................294
traction lok ..............................181
B
Battery .......................................265
acid, treating emergencies .....265
jumping a disabled battery ....233maintenance-free ....................265
replacement, specifications ...293
servicing ..................................265
BeltMinder
...............................108
Brakes ........................................177
anti-lock ...................................178
anti-lock brake system (ABS)
warning light ...........................178
fluid, checking and adding ....285
fluid, refill capacities ..............294
parking ....................................179
shift interlock ..........................182
trailer .......................................164
Break-in period .............................5
Bulbs ............................................51
C
Capacities for refilling fluids ....294
Cassette tape player .............21, 23
Cell phone use ..............................7
Child safety restraints ..............122
child safety belts ....................122
Child safety seats ......................125
attaching with tether straps ..129
in front seat ............................126
in rear seat ..............................126
Cleaning your vehicle
engine compartment ..............249
instrument panel ....................251
interior .....................................252
interior trim ............................252
plastic parts ............................250
safety belts ..............................252
washing ....................................248
waxing .....................................248
wheels ......................................249
wiper blades ............................251
