2007 FORD F150 Owners Manual

5. Remove the bulb by turning it
counterclockwise, then pull it
straight out.
Handle a halogen headlamp bulb carefully and keep out of
children’s reach. Grasp the bulb only by its plastic base and do
not touch the glass. The oil from your hand could cause the bulb to
break the next time the headlamps are operated.
Install the new bulb in reverse order.
Replacing front parking lamp/turn signal/sidemarker bulbs
1. Make sure the headlamp control
is in the OFF position and open the
hood.
2. At the top and inboard side of the
headlamp, peel the protective cover
back from the lower screws and
loosen the three retaining screws.
3. Once the three retaining screws
have been removed, disengage the
tab at the top center of the
headlamp assembly by lifting it up.
2007 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
65

4. Slide the headlamp assembly
forward disconnecting the snap
attachment at the fender.
5. Remove bulb socket from the
lamp assembly by turning it
counterclockwise and then pull the
bulb straight out.
Install the new bulb(s) in reverse order.
Replacing tail/brake/turn signal/backup lamp bulbs
1. Make sure the headlamp control
is in the OFF position.
2. Open the tailgate to expose the
lamp assembly screws and remove
the two screws from the tail lamp
assembly.
3. Carefully pull the lamp assembly
straight rearward from the tailgate
pillar to disengage two hidden
snap-in retainers. (Flare side tail
lamps are not equipped with snap-in
retainers.)
4. Remove bulb socket from the
lamp assembly by turning it
counterclockwise.
5. Pull bulb straight out of socket
and press in the new bulb.
Install the new bulb(s) in reverse order.
2007 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
66

Replacing high-mount brake and cargo lamp bulbs
Make sure the headlamp control is
in the OFF position.
1. Remove the two screws and move
the lamp assembly away from the
vehicle to expose the bulb sockets.
2. Remove the bulb socket by
rotating counterclockwise and
pulling it out of the lamp assembly.
3. Pull the bulb straight out of the socket and push in the new bulb.
Install the new bulbs in reverse order.
Replacing foglamp bulbs (if equipped)
1. Make sure the headlamp control
is in the OFF position.
2. Remove the bulb socket from the
foglamp by turning
counterclockwise.
3. Disconnect the electrical
connector from the foglamp bulb.
Install the new bulb in reverse order.
Replacing exterior mounted mirror turn signal indicator lamp bulbs
For bulb replacement, see your authorized dealer.
Replacing license plate lamp bulbs
The license plate bulbs are located
behind the rear bumper. To change
the license plate lamp bulbs:
1. Reach behind the rear bumper to
locate the bulb.
2. Twist the bulb socket
counterclockwise and carefully pull
to remove it from the lamp
assembly.
3. Pull out the old bulb from the
socket and push in the new bulb.
4. Install the bulb socket in lamp assembly by turning it clockwise.
2007 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
67

MULTI-FUNCTION LEVER
Windshield wiper:Rotate the end
of the control away from you to
increase the speed of the wipers;
rotate towards you to decrease the
speed of the wipers.
Windshield washer:Push the end
of the stalk:
•briefly: causes a single swipe of
the wipers without washer fluid.
•a quick push and hold: the wipers
will swipe three times with
washer fluid.
•a long push and hold: the wipers and washer fluid will be activated for
up to ten seconds.
Note:Do not operate the washer when the washer reservoir is empty.
This may cause the washer pump to overheat. Check the washer fluid
level frequently. Do not operate the wipers when the windshield is dry.
This may scratch the glass, damage the wiper blades and cause the wiper
motor to burn out. Before operating the wiper on a dry windshield,
always use the windshield washer. In freezing weather, be sure the wiper
blades are not frozen to the windshield before operating the wipers.
TILT STEERING WHEEL (IF EQUIPPED)
Pull the lever down to unlock the
steering column. While the lever is
in the down position, tilt the
steering column to its desired
orientation.
2007 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
68

While holding the steering column,
pull the lever up to its original
position to lock the steering column.
Never adjust the steering
column when the vehicle is
moving.
ILLUMINATED VISOR MIRROR
(IF EQUIPPED)
Lift the mirror cover to turn on the
visor mirror lamps.
CENTER CONSOLE (IF EQUIPPED)
The center console offers several useful storage features. These include:
1. Cupholders
2. Tissue holder in lid
3. Power point
4. Large utility compartment has
Coin holder slots, PalmPilot/PDA
holder, and Pen holder
Use only soft cups in the cupholder. Hard objects can injure you
in a collision.
12
34
2007 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
69

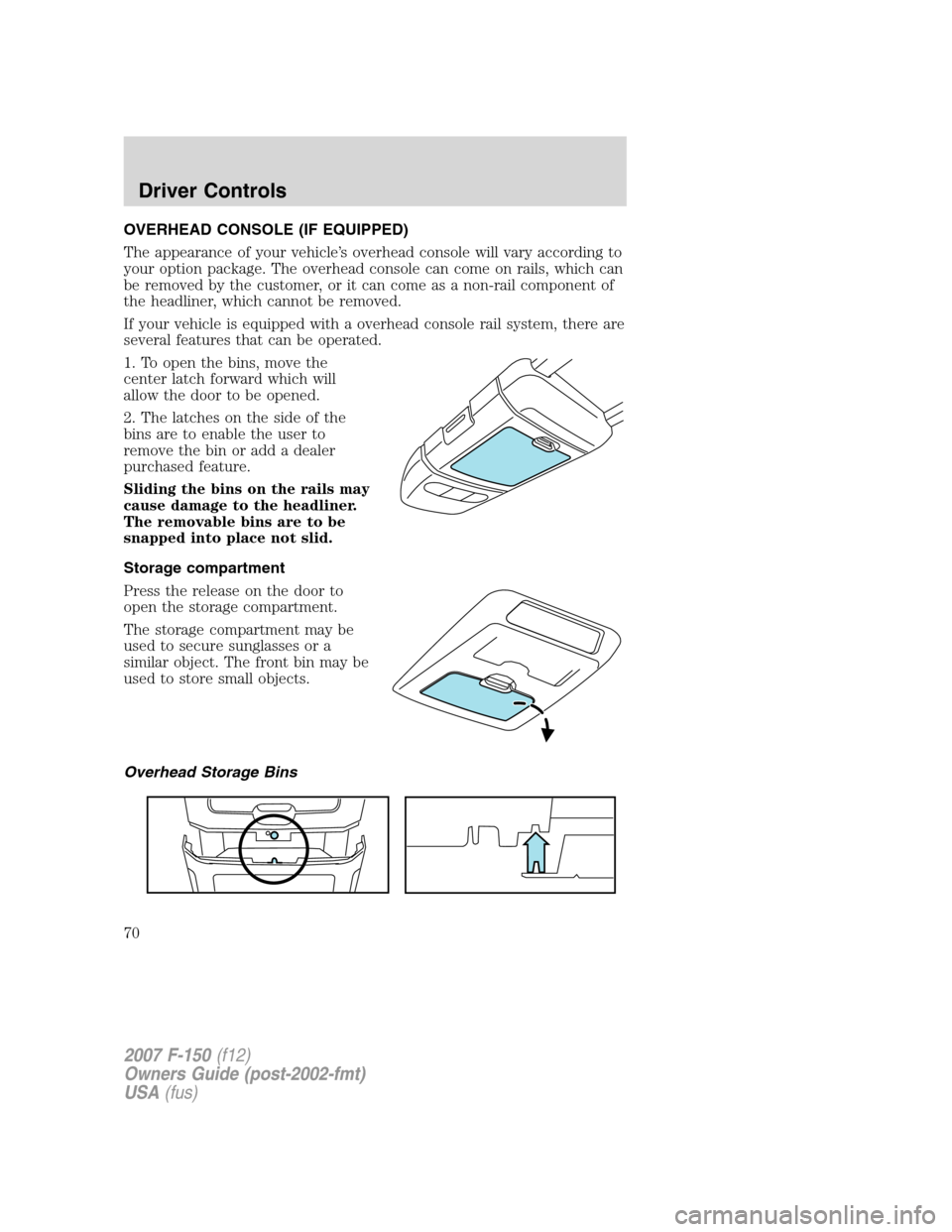

OVERHEAD CONSOLE (IF EQUIPPED)
The appearance of your vehicle’s overhead console will vary according to
your option package. The overhead console can come on rails, which can
be removed by the customer, or it can come as a non-rail component of
the headliner, which cannot be removed.
If your vehicle is equipped with a overhead console rail system, there are
several features that can be operated.
1. To open the bins, move the
center latch forward which will
allow the door to be opened.
2. The latches on the side of the
bins are to enable the user to
remove the bin or add a dealer
purchased feature.
Sliding the bins on the rails may
cause damage to the headliner.
The removable bins are to be
snapped into place not slid.
Storage compartment
Press the release on the door to
open the storage compartment.
The storage compartment may be
used to secure sunglasses or a
similar object. The front bin may be
used to store small objects.
Overhead Storage Bins
2007 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
70

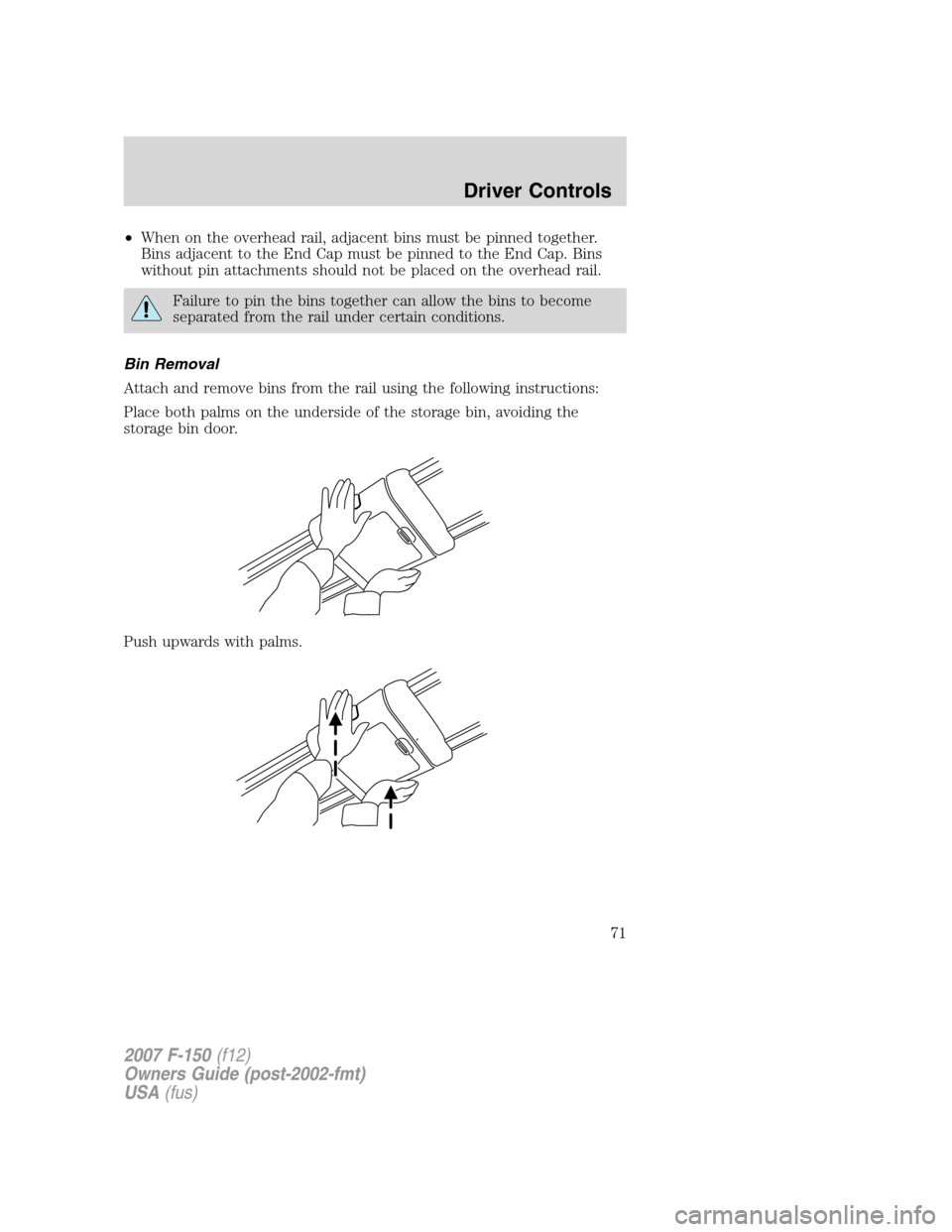

•When on the overhead rail, adjacent bins must be pinned together.
Bins adjacent to the End Cap must be pinned to the End Cap. Bins
without pin attachments should not be placed on the overhead rail.
Failure to pin the bins together can allow the bins to become
separated from the rail under certain conditions.
Bin Removal
Attach and remove bins from the rail using the following instructions:
Place both palms on the underside of the storage bin, avoiding the
storage bin door.
Push upwards with palms.
2007 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
71

While pushing upwards with palms, grip the side latches with fingers and
squeeze.
With pressure applied with palms and side latches squeezed down, pull
downward on the entire storage bin and remove.
AUXILIARY POWER POINT (12VDC)
Power outlets are designed for accessory plugs only. Do not insert
any other object in the power outlet as this will damage the
outlet and blow the fuse. Do not hang any type of accessory or
accessory bracket from the plug. Improper use of the power
outlet can cause damage not covered by your warranty.
2007 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
72
