2007 FORD F150 Owners Manual

•4.6L V8 Engine and 5.4L V8 Engine

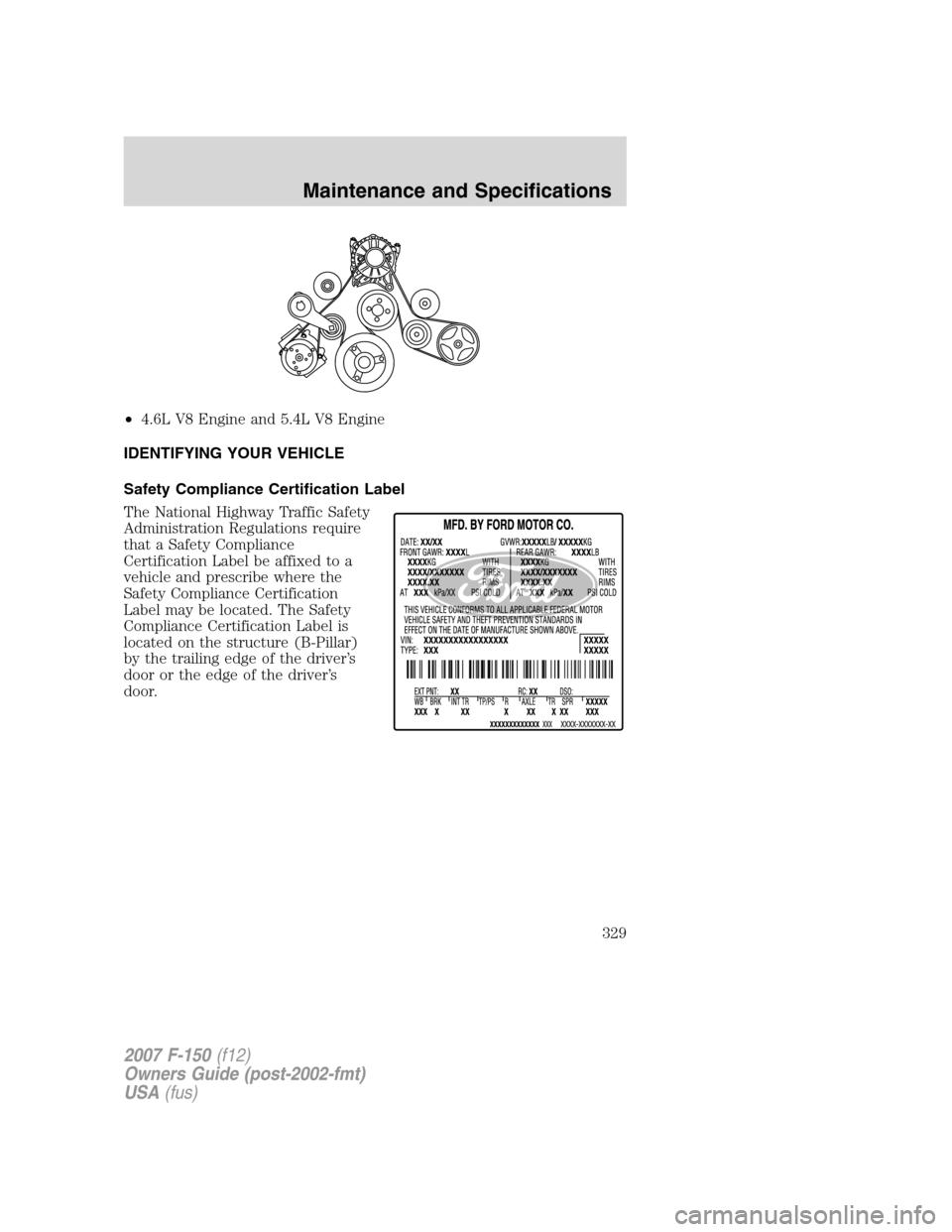

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
2007 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
329

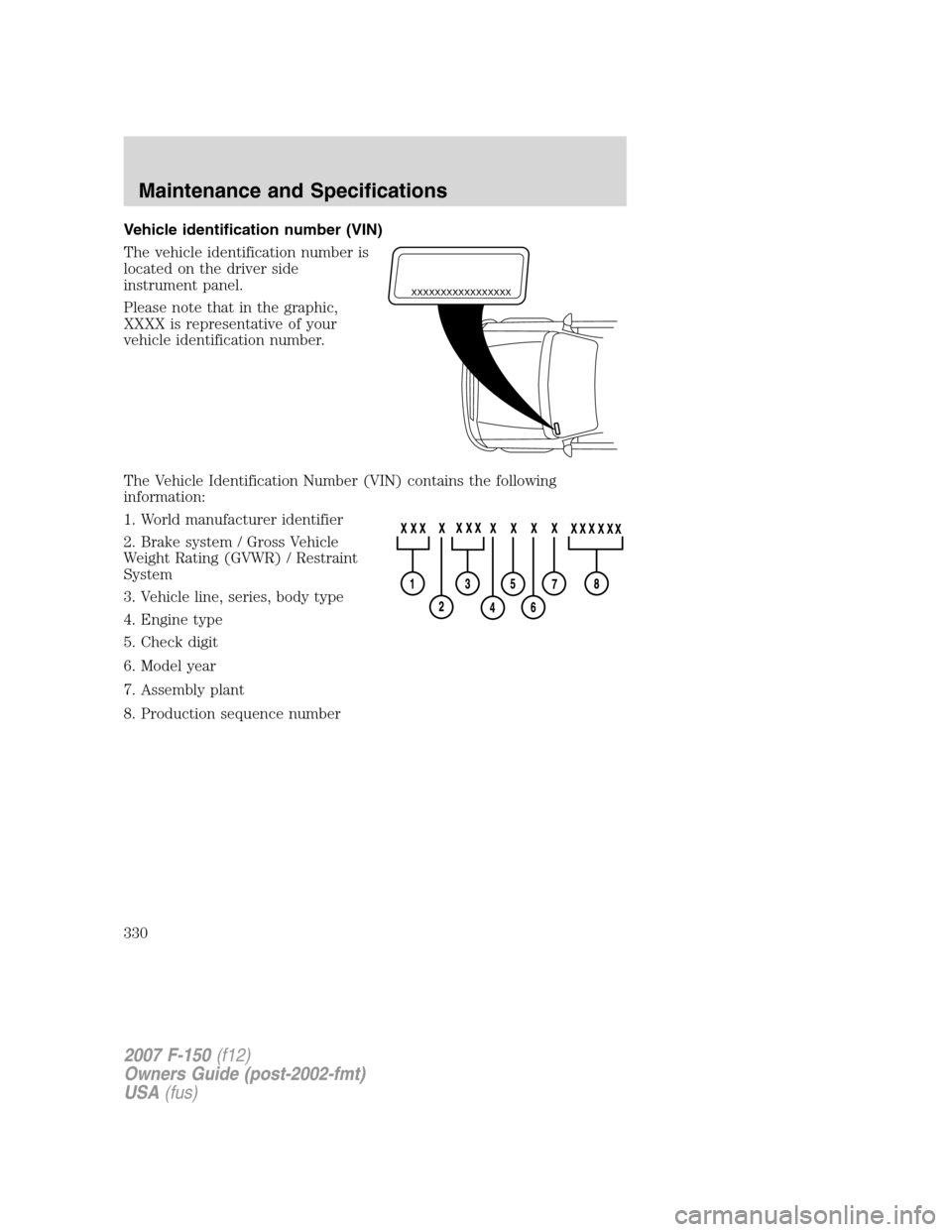

Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
XXXXXXXXXXXXXXXXX
2007 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
330

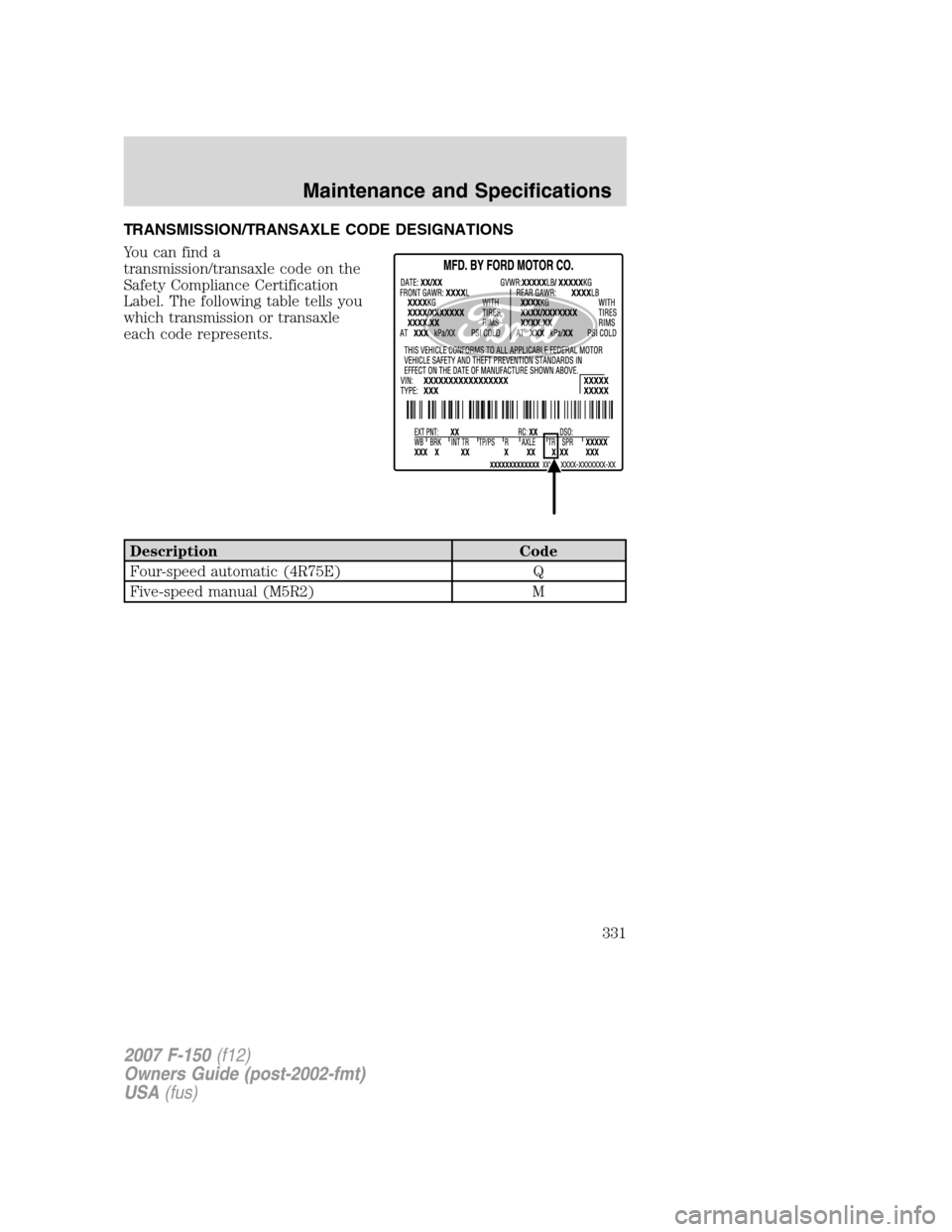

TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a
transmission/transaxle code on the
Safety Compliance Certification
Label. The following table tells you
which transmission or transaxle
each code represents.
Description Code
Four-speed automatic (4R75E) Q
Five-speed manual (M5R2) M
2007 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
331

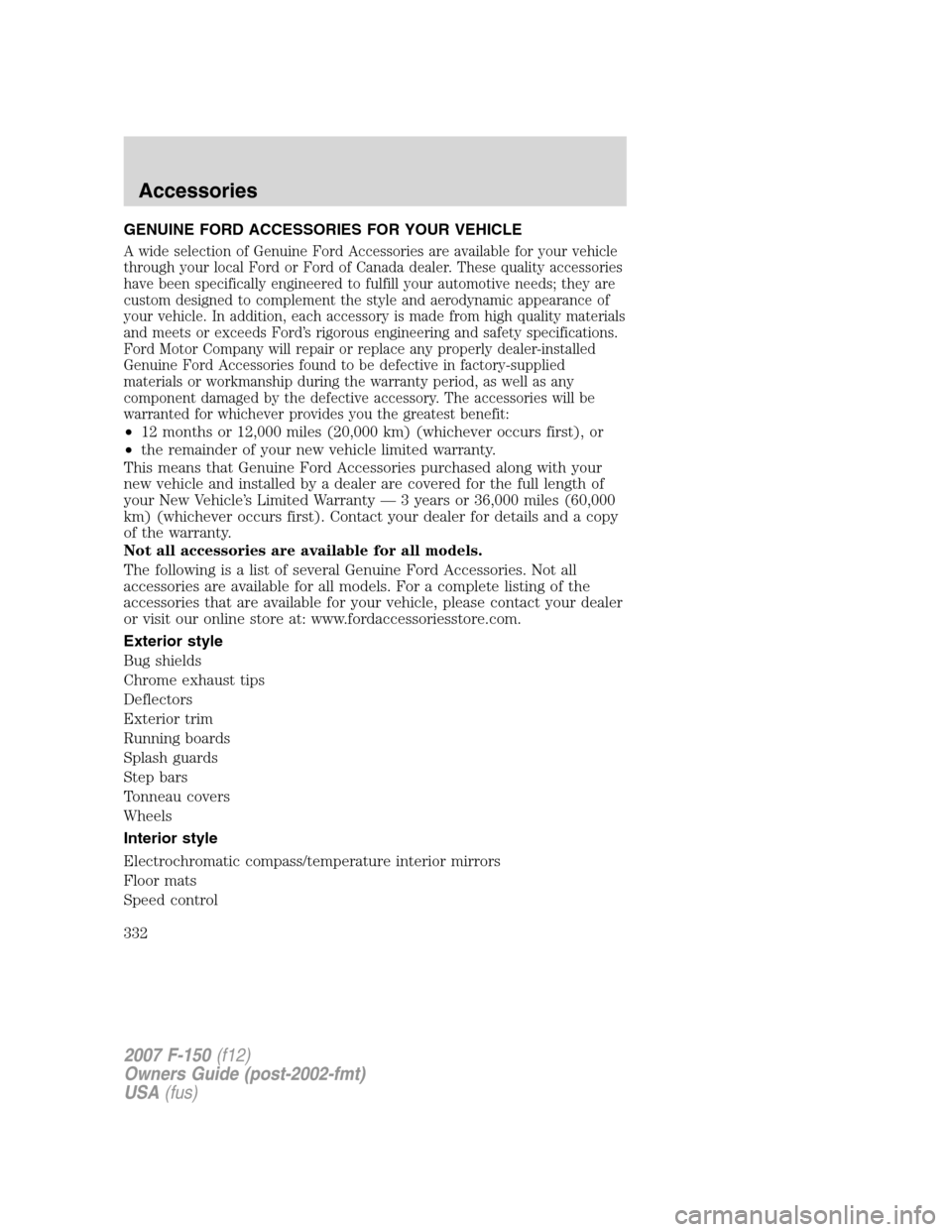

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your vehicle
through your local Ford or Ford of Canada dealer. These quality accessories
have been specifically engineered to fulfill your automotive needs; they are
custom designed to complement the style and aerodynamic appearance of
your vehicle. In addition, each accessory is made from high quality materials
and meets or exceeds Ford’s rigorous engineering and safety specifications.
Ford Motor Company will repair or replace any properly dealer-installed
Genuine Ford Accessories found to be defective in factory-supplied
materials or workmanship during the warranty period, as well as any
component damaged by the defective accessory. The accessories will be
warranted for whichever provides you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
This means that Genuine Ford Accessories purchased along with your
new vehicle and installed by a dealer are covered for the full length of
your New Vehicle’s Limited Warranty — 3 years or 36,000 miles (60,000
km) (whichever occurs first). Contact your dealer for details and a copy
of the warranty.
Not all accessories are available for all models.
The following is a list of several Genuine Ford Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at: www.fordaccessoriesstore.com.
Exterior style
Bug shields
Chrome exhaust tips
Deflectors
Exterior trim
Running boards
Splash guards
Step bars
Tonneau covers
Wheels
Interior style
Electrochromatic compass/temperature interior mirrors
Floor mats
Speed control
2007 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
332

Lifestyle
Ash cup / smoker’s package
Bedliners and bedmats
Cargo organization and management
Towing mirrors
Trailer hitches, wiring harnesses and accessories
Peace of mind
Mobile-easehands-free communication system
Remote start
Vehicle security systems
Wheel locks
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
2007 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
333

A
Accessory delay ..........................76
Air cleaner filter ...............320–322
Air conditioning ....................51, 54
Airbag supplemental restraint
system ................................140–141
and child safety seats ............143
description ..............................141
disposal ....................................145
driver airbag ....................141, 144
indicator light .........................145
operation .........................141, 144
passenger airbag .............141, 144
Ambulance packages ....................8
Antifreeze
(see Engine coolant) ................295
Anti-lock brake system
(see Brakes) ..............................213
Anti-theft system ......................112
arming the system ..................113
Armrests ....................................117
Audio system
(see Radio) ......................26, 28, 34
Automatic transmission
driving an automatic
overdrive .................................220
fluid, adding ............................316
fluid, checking ........................316
fluid, refill capacities ..............324
fluid, specification ..................324
Auxiliary Input Jack ...................41
Axle
lubricant specifications ..........324
refill capacities ........................324
traction lok ..............................216
B
Battery .......................................293acid, treating emergencies .....293
jumping a disabled battery ....259
maintenance-free ....................293
replacement, specifications ...322
servicing ..................................293
BeltMinder...............................135
deactivating/activating the
BeltMinder............................138
Brakes ........................................212
anti-lock ...................................213
anti-lock brake system (ABS)
warning light ...........................213
fluid, checking and adding ....314
fluid, refill capacities ..............324
fluid, specifications .................324
lubricant specifications ..........324
parking ....................................214
shift interlock ..................217–218
Bulbs ............................................63
C
Capacities for refilling fluids ....324
Cargo cage ...................................99
Cell phone use ..............................9
Changing a tire .........................252
Child safety restraints ..............149
child safety belts ....................149
Child safety seats ......................153
attaching with tether straps ..160
in front seat ....................154, 157
in rear seat ..............154, 157, 160
Cleaning your vehicle
engine compartment ..............275
instrument panel ....................277
interior .....................................279
interior trim ............................279
plastic parts ............................276
safety belts ..............................279
2007 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Index
334

washing ....................................273
waxing .....................................273
wheels ......................................274
wiper blades ............................276
Climate control
(see Air conditioning or
Heating) ...........................48, 51, 54
Clock adjust
6-CD in dash .............................35
AM/FM Stereo ...........................27
AM/FM/CD .................................29
Clutch
fluid ..........................................315
operation while driving ..........223
recommended shift speeds ....224
Compass, electronic ..............87, 89
calibration .................................89
set zone adjustment ...........89–90
Console ........................................69
overhead ....................................70
Controls
power seat ...............................117
steering column ........................81
Coolant
checking and adding ..............295
refill capacities ................298, 324
specifications ..........................324
Cruise control
(see Speed control) ....................79
Customer Assistance ................241
Ford Extended Service
Plan ..........................................270
Getting assistance outside the
U.S. and Canada .....................271
Getting roadside assistance ...241
Getting the service you
need .........................................266
Ordering additional owner’s
literature .................................272Utilizing the
Mediation/Arbitration
Program ...................................270
D
Daytime running lamps
(see Lamps) ................................59
Dipstick
automatic transmission
fluid ..........................................316
engine oil .................................289
Driveline universal joint and
slip yoke ....................................320
Driving under special
conditions ..................223, 232, 236
sand .........................................234
snow and ice ...........................237
through water .................235, 238
DVD system .................................47
E
Electronic message center .........89
Emergencies, roadside
jump-starting ..........................259
Emergency Flashers .................243
Emission control system ..........311
Engine ........................................328
cleaning ...................................275
coolant .....................................295
fail-safe cooling .......................299
idle speed control ...................293
lubrication specifications .......324
refill capacities ........................324
service points ..................285–287
starting after a collision .........243
Engine block heater .................212
Engine oil ..................................289
2007 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Index
335

checking and adding ..............289
dipstick ....................................289
filter, specifications ........292, 322
recommendations ...................292
refill capacities ........................324
specifications ..........................324
Exhaust fumes ..........................212
F
Fail safe cooling ........................299
Flexible Fuel Vehicle (FFV) ....301
Floor mats ...................................97
Fluid capacities .........................324
Foglamps .....................................59
Four-Wheel Drive vehicles .......227
driving off road .......................231
electronic shift ................229–230
indicator light .........................227
lever operated shift ................228
preparing to drive your
vehicle .....................................217
Fuel ............................................301
calculating fuel
economy ............................92, 308
cap ...........................................304
capacity ...................................324
choosing the right fuel ...........305
comparisons with EPA fuel
economy estimates .................311
detergent in fuel .....................306
filling your vehicle with
fuel ...........................301, 304, 308
filter, specifications ........301, 322
fuel pump shut-off switch .....243
improving fuel economy ........308
octane rating ...................306, 328
quality ......................................307
running out of fuel .................307safety information relating to
automotive fuels .....................301
Fuel - flex fuel vehicle
(FFV) .........................301, 305–306
Fuel pump shut-off switch .......243
Fuses ..................................244–245
G
Gas cap (see Fuel cap) ............304
Gas mileage
(see Fuel economy) .................308
Gauges .........................................19
H
Hazard flashers .........................243
Head restraints .................115, 119
Headlamps ...................................58
aiming ........................................60
autolamp system .......................58
bulb specifications ....................63
daytime running lights .............59
flash to pass ..............................59
high beam .................................59
replacing bulbs .........................64
turning on and off ....................58
Heating
heater only system ...................48
heating and air conditioning
system ...........................49, 51, 54
Homelink wireless control
system ..........................................83
Hood ..........................................284
How to get going ........................22
I
Ignition ...............................208, 328
2007 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Index
336
