2007 FORD E-250 Owners Manual

4Automatic transmissions that require MERCON
V should only use MERCON
V fluid or fluid that
is specified dual usage MERCON
/MERCON
V. Refer toscheduled maintenance informationto
determine the correct service interval. Use of any fluid other than the recommended fluid may
cause transmission damage.
Automatic transmissions that require MERCON
SP should only use MERCON
SP fluid. Use of a
dual usage fluid in an automatic transmission requiring MERCON
SP may cause transmission
damage. Refer toscheduled maintenance informationto determine the correct service interval.
Use of any fluid other than the recommended fluid may cause transmission damage.5Dana limited-slip axle (M60) requires 8 oz. (228 ml) of Additive Friction Modifier XL-3 or
equivalent meeting Ford specification EST-M2C118-A.6If your vehicle’s rear axle is filled with a synthetic rear axle lubricant it is considered lubricated
for life. These lubricants do not need to be checked or changed unless a leak is suspected, service
is required or the axle assembly has been submerged in water. The axle lubricant should be
changed any time the rear axle has been submerged in water.7Fill Dana rear axles to 1/4 inch to 9/16 inch (6 mm to 14 mm) below bottom of fill hole.8Optional fuel tank 55.0 gallons (208.0L).
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
249
ProCarManuals.com

ENGINE DATA
Engine*4.6L V8 engine 5.4L V8 engine 6.8L V10 engine
Cubic inches 281 330 415
Required fuel 87 octane 87 octane 87 octane
Firing order 1-3-7-2-6-5-4-8 1-3-7-2-6-5-4-8 1-6-5-10-2-7-3-8-4-9
Ignition
systemCoil on plug Coil on plug Coil on plug
Spark plug
gap0.052–0.056 inch
(1.32–1.42mm)0.052–0.056 inch
(1.32–1.42mm)0.052–0.056 inch
(1.32–1.42mm)
Compression
ratio9.4:1 9.0:1 9.0:1
*Refer to thePower Stroke Direct Injection Turbo Diesel Owner’s
Guide Supplementfor diesel engine information.
Engine drivebelt routing
•4.6L V8 and 5.4L V8 Engines without A/C
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
250
ProCarManuals.com

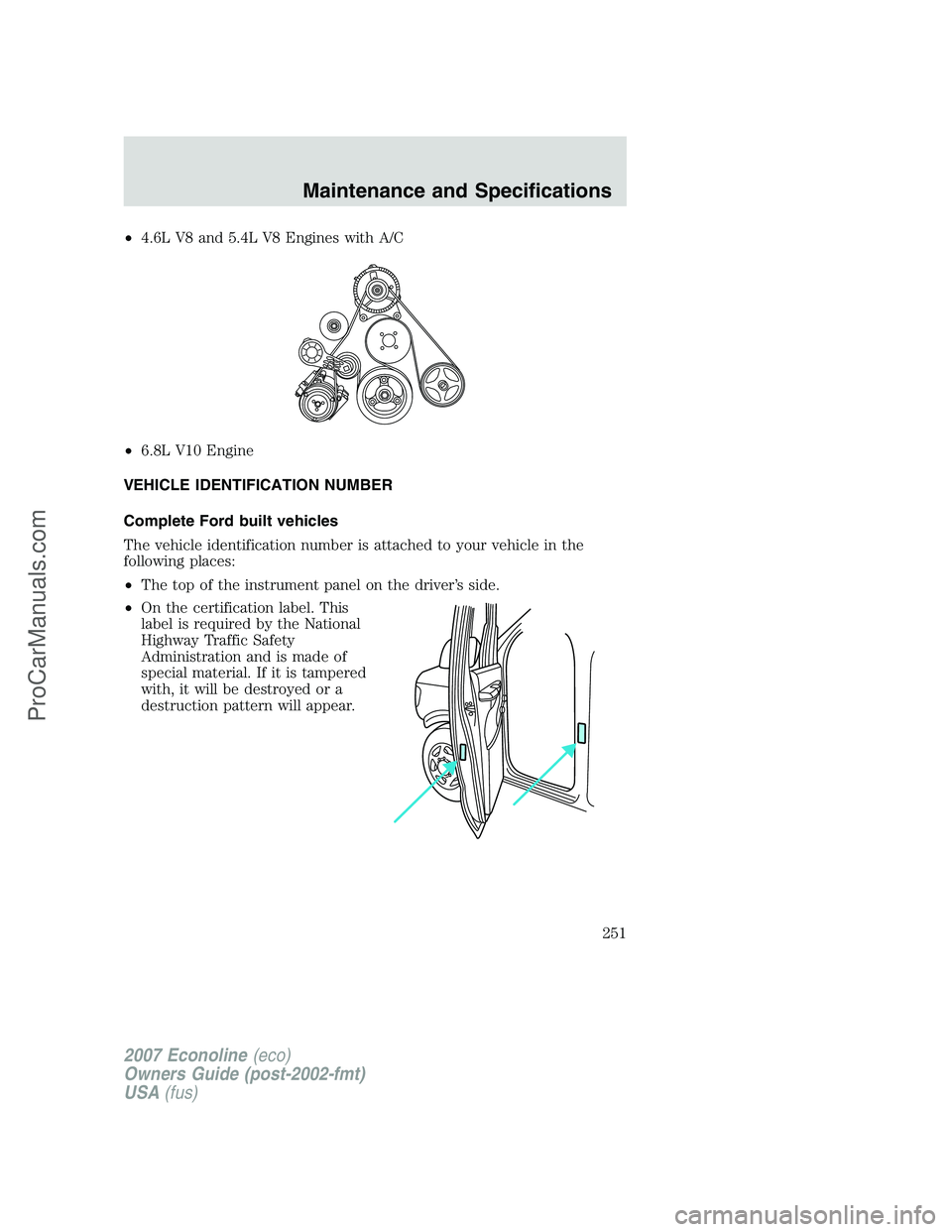

•4.6L V8 and 5.4L V8 Engines with A/C
•6.8L V10 Engine
VEHICLE IDENTIFICATION NUMBER
Complete Ford built vehicles
The vehicle identification number is attached to your vehicle in the
following places:
•The top of the instrument panel on the driver’s side.
•On the certification label. This
label is required by the National
Highway Traffic Safety
Administration and is made of
special material. If it is tampered
with, it will be destroyed or a
destruction pattern will appear.
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
251
ProCarManuals.com

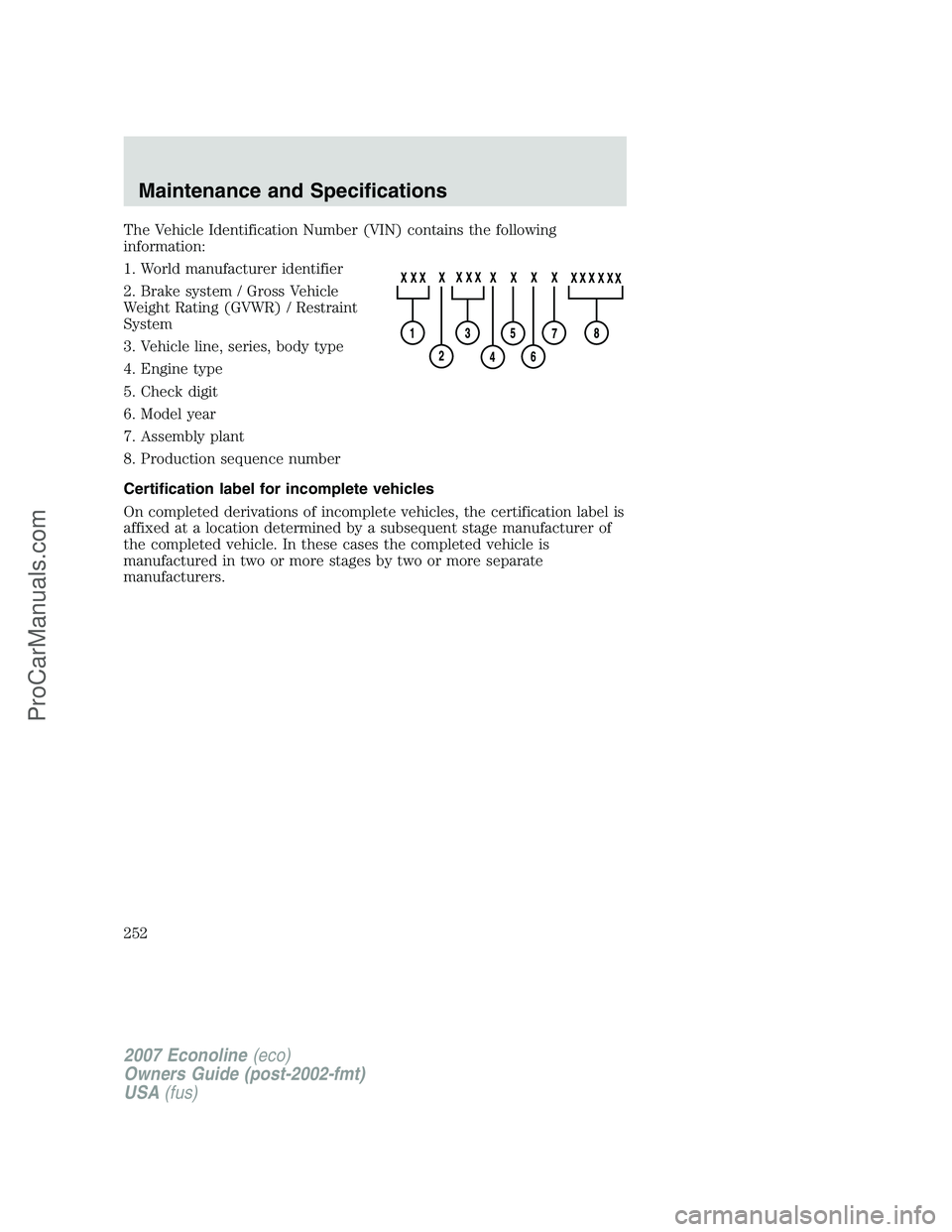

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
Certification label for incomplete vehicles
On completed derivations of incomplete vehicles, the certification label is
affixed at a location determined by a subsequent stage manufacturer of
the completed vehicle. In these cases the completed vehicle is
manufactured in two or more stages by two or more separate
manufacturers.
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
252
ProCarManuals.com

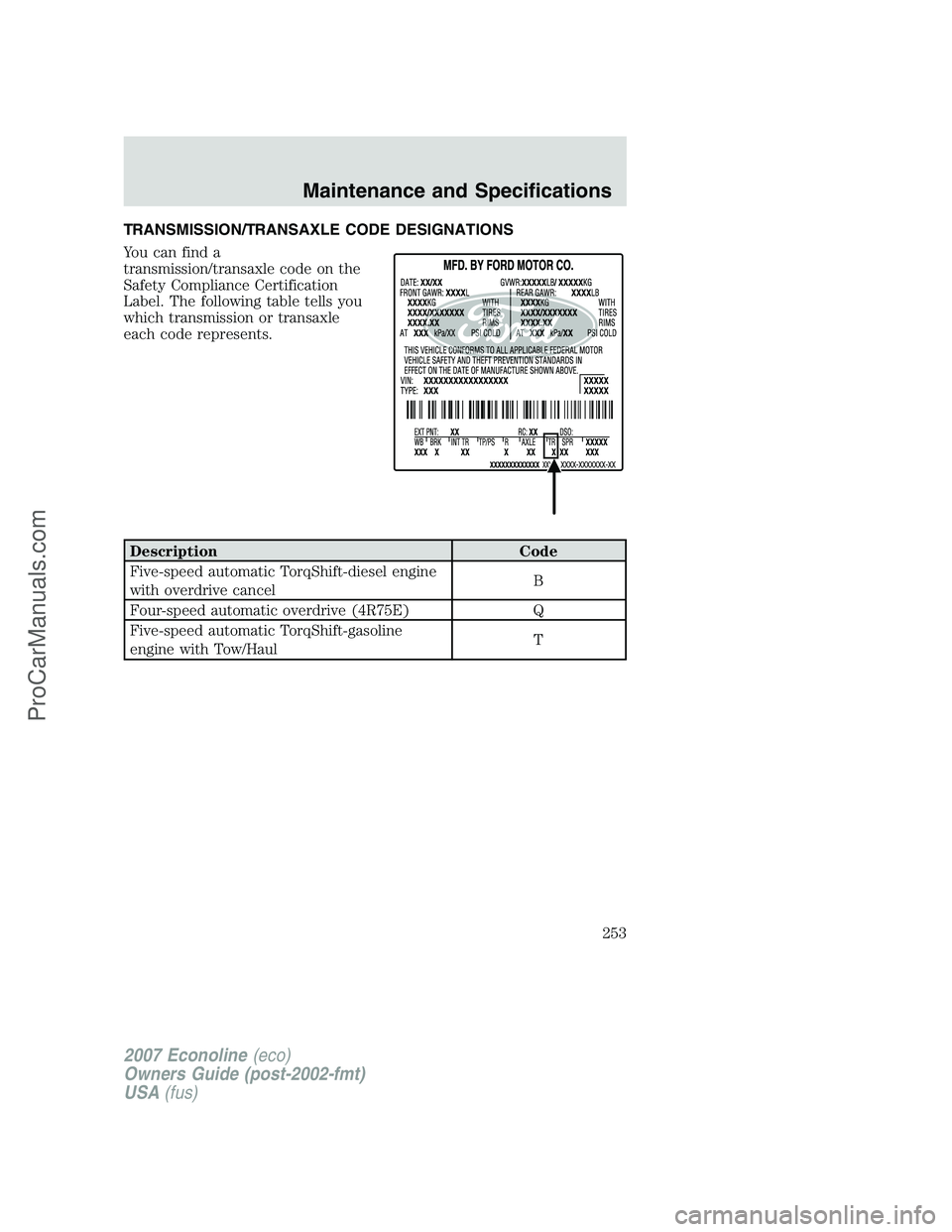

TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a
transmission/transaxle code on the
Safety Compliance Certification
Label. The following table tells you
which transmission or transaxle
each code represents.
Description Code
Five-speed automatic TorqShift-diesel engine
with overdrive cancelB
Four-speed automatic overdrive (4R75E) Q
Five-speed automatic TorqShift-gasoline
engine with Tow/HaulT
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
253
ProCarManuals.com

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and
aerodynamic appearance of your vehicle. In addition, each accessory is
made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Genuine Ford Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessories. The accessories will be warranted for whichever provides
you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
The following is a list of several Genuine Ford Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at: www.fordaccessoriesstore.com.
Exterior style
Bug shields
Deflectors
Door edge guards
Front end covers
Headlamps, fog lights and Daytime Running Lamps (DRLs)
Running boards
Splash guards
Interior style
Electrochromatic compass/temperature interior mirrors
Floor mats
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
254
ProCarManuals.com

Lifestyle
Cargo organization and management
Speed control
Trailer hitches, wiring harnesses and accessories
Peace of mind
Mobile-Easehands-free communication system
Remote start
Vehicle security systems
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
255
ProCarManuals.com

A
Accessory delay ..........................49
AdvanceTrac ..............................148
Air cleaner filter ...............240–242
Airbag supplemental restraint
system ....................................78–79
and child safety seats ..............80
description ................................79
disposal ......................................82
driver airbag ..............................81
indicator light ...........................82
operation ...................................81
passenger airbag .......................81
passenger deactivation
switch ........................................83
Ambulance packages ....................8
Antifreeze
(see Engine coolant) ................218
Anti-lock brake system
(see Brakes) ..............................147
Audio system
(see Radio) ......................19, 21, 25
Automatic transmission
driving an automatic
overdrive .................155, 158, 160
fluid, adding ............................237
fluid, checking ........................237
fluid, refill capacities ..............244
fluid, specification ..................244
Auxiliary power point .................48
Axle
lubricant specifications ..........244
refill capacities ........................244
traction lok ..............................152
B
Battery .......................................216acid, treating emergencies .....216
battery saver .............................34
jumping a disabled battery ....188
maintenance-free ....................216
replacement, specifications ...242
servicing ..................................216
Belt-Minder
...............................74
Booster seats ...............................89
Brakes ........................................146
anti-lock ...................................147
anti-lock brake system (ABS)
warning light ...........................147
fluid, checking and adding ....237
fluid, refill capacities ..............244
fluid, specifications .................244
lubricant specifications ..........244
parking ....................................148
shift interlock ..........................154
Break-in period .............................5
Bulbs ............................................39
C
Capacities for refilling fluids ....244
Cell phone use ..............................9
Child safety restraints ................88
child safety belts ......................88
Child safety seats ........................92
in front seat ..............................93
in rear seat ................................93
tether anchorage hardware .....96
Child safety seats - booster
seats .............................................89
Cleaning your vehicle
engine compartment ..............204
exterior ....................................207
instrument panel ....................206
interior .....................................206
plastic parts ............................205
