109
AUDIO SYSTEMS
❒Driving on extremely bumpy roads
which cause severe vibrations may
cause sound to skip.
❒This unit uses a precision mechanism.
Even in the event that trouble arises,
never open the case, disassemble the
unit, or lubricate the rotating parts.
Please bring the unit to an authorized
Fiat Dealership. MAINTENANCE
If you do not use the air conditioner for
a long period, such as during winter, it may
not give the best performance when you
start using it again. To help maintain op-
timum performance and durability of your
air conditioner, it needs to be run peri-
odically. Operate the air conditioner at
least once a month for one minute with
the engine idling. This circulates the re-
frigerant and oil and helps protect the in-
ternal components.
NOTE Your vehicle uses the air condi-
tioning refrigerant HFC-134a, commonly
called “R-134a”. R-134a replaced R-12
around 1993 for automotive applications.
Other refrigerants are available, including
recycled R-12, but only R-134a should be
used in your vehicle.
IMPORTANT Using the wrong refriger-
ant may damage your air conditioning sys-
tem. Use R-134a only. Do not mix or re-
place the R-134a with other refrigerants.
79J188
Too high a volume when dri-
ving can put the driver’s life
at risk and that of other people.
Therefore the volume should always
be adjusted in such a way that it is al-
ways possible to hear the noises of
the surrounding environment (e.g.:
horns, ambulance, police sirens, etc.).
WARNING
FM/MW/LW CD PLAYER WITH
CD CHANGER CONTROL
PRECAUTIONS
❒When the inside of the vehicle is very
cold and the player is used soon after
switching on the heater, moisture may
form on the disc or the optical parts
of the player and proper playback may
not be possible. If moisture forms on
the disc, wipe it off with a soft cloth. If
moisture forms on the optical parts of
the player, do not use the player for
about one hour, this will allow the con-
densation to disappear normally.
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 109

116

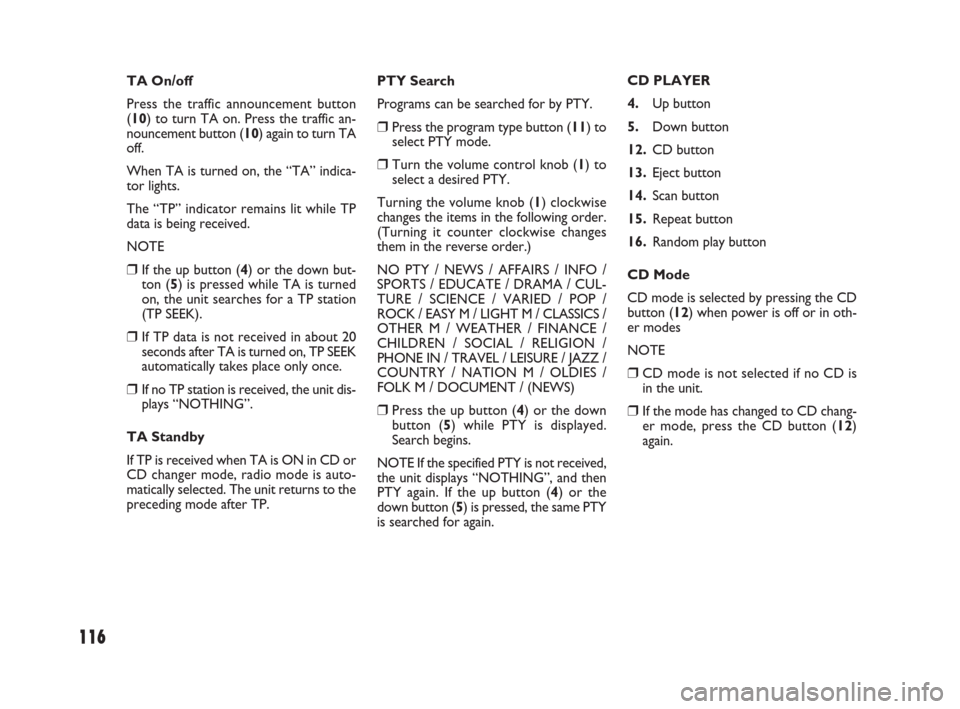

PTY Search
Programs can be searched for by PTY.
❒Press the program type button (11) to
select PTY mode.
❒Turn the volume control knob (1) to
select a desired PTY.
Turning the volume knob (1) clockwise
changes the items in the following order.
(Turning it counter clockwise changes
them in the reverse order.)
NO PTY / NEWS / AFFAIRS / INFO /
SPORTS / EDUCATE / DRAMA / CUL-
TURE / SCIENCE / VARIED / POP /
ROCK / EASY M / LIGHT M / CLASSICS /
OTHER M / WEATHER / FINANCE /
CHILDREN / SOCIAL / RELIGION /
PHONE IN / TRAVEL / LEISURE / JAZZ /
COUNTRY / NATION M / OLDIES /
FOLK M / DOCUMENT / (NEWS)
❒Press the up button (4) or the down
button (5) while PTY is displayed.
Search begins.
NOTE If the specified PTY is not received,
the unit displays “NOTHING”, and then
PTY again. If the up button (4) or the
down button (5) is pressed, the same PTY
is searched for again.CD PLAYER
4.Up button
5.Down button
12.CD button
13.Eject button
14.Scan button
15.Repeat button
16.Random play button
CD Mode
CD mode is selected by pressing the CD
button (12) when power is off or in oth-
er modes
NOTE
❒CD mode is not selected if no CD is
in the unit.
❒If the mode has changed to CD chang-
er mode, press the CD button (12)
again. TA On/off
Press the traffic announcement button
(10) to turn TA on. Press the traffic an-
nouncement button (10) again to turn TA
off.
When TA is turned on, the “TA” indica-
tor lights.
The “TP” indicator remains lit while TP
data is being received.
NOTE
❒If the up button (4) or the down but-
ton (5) is pressed while TA is turned
on, the unit searches for a TP station
(TP SEEK).
❒If TP data is not received in about 20
seconds after TA is turned on, TP SEEK
automatically takes place only once.
❒If no TP station is received, the unit dis-
plays “NOTHING”.
TA Standby
If TP is received when TA is ON in CD or
CD changer mode, radio mode is auto-
matically selected. The unit returns to the
preceding mode after TP.
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 116

120
MP3/WMA Player
(if equipped)
4.File up button
5.File down button
12.CD button
13.Eject button
15.Repeat button
16.Random play button
17.Folder up button
18.Folder down button
20.Text display button
What is MP3/WMA?
MP3 (MPEG1/2 Audio Layer-II/III) and
WMA (Windows MediaTM Audio) are
the compression formats of digital audio.
The former is developed by MPEG (Mo-
tion Picture Experts Group), and the lat-
ter is developed by Microsoft Corpora-
tion. Using these compression formats,
you can record the contents of about 10
music CDs on a single CD media (This fig-
ures refer to data recorded on a 650 MB
CD-R or CD-RW at a fixed bit rate of 128
kbps and a sampling frequency of 44.1
kHz).
79J194
Points to remember when making
MP3/WMA files
Common
❒High bit rate and high sampling fre-
quency are recommended for high
quality sounds.
❒Selecting VBR (Variable Bit Rate) is not
recommended because playing time is
not displayed properly and sound may
be skipped.
❒The playback sound quality differs de-
pending on the encoding circumstances.
For details, refer to the user manual of
your own encoding software and writing
software.
MP3
❒It is recommended to set the bit rate
to “128 kbps or more” and “fixed”.WMA
❒It is recommended to set the bit rate
to “64 kbps or more” and “fixed”.
❒Do not set the copy protect attribute
on the WMA file to enable this unit to
play back.
NOTE:
Never assign the “.mp3”, or “.wma” file
name extension to a file that is not in the
MP3/WMA format. This may not only
produce noise from the speaker damage,
but also damage your hearing.
Recording MP3/WMA
files on a CD-media
❒You are recommended to minimize the
chances of making a disc that contains
both CD-DA files and MP3/WMA files.
❒If CD-DA files are on the same disc as
MP3 or WMA files, the songs may not
play in the intended order, or some
songs may not play at all.
❒When storing MP3 data and WMA da-
ta on the same disc, use different fold-
ers for each data.
❒Do not record files other than
MP3/WMA files and unnecessary fold-
er on a disc.
❒The name of an MP3/WMA file should
be added by rules as shown in the fol-
lowing descriptions and also comply
with the rules of each file system.
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 120

125

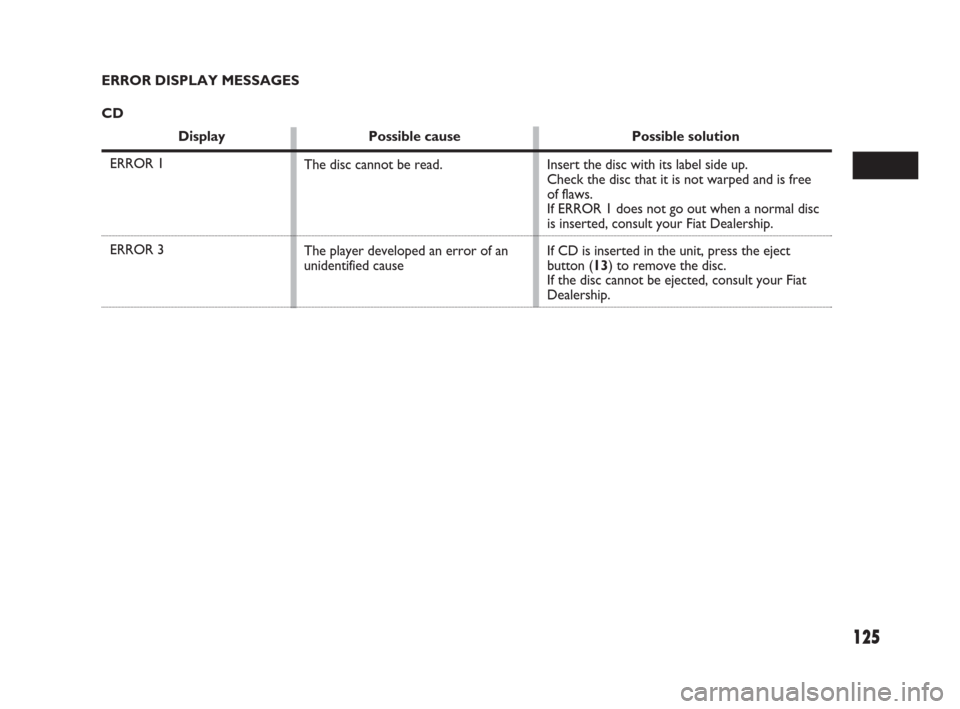

ERROR DISPLAY MESSAGES
CD
Display Possible cause Possible solution
ERROR 1
ERROR 3
Insert the disc with its label side up.
Check the disc that it is not warped and is free
of flaws.
If ERROR 1 does not go out when a normal disc
is inserted, consult your Fiat Dealership.
If CD is inserted in the unit, press the eject
button (13) to remove the disc.
If the disc cannot be ejected, consult your Fiat
Dealership. The disc cannot be read.
The player developed an error of an
unidentified cause
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 125

127

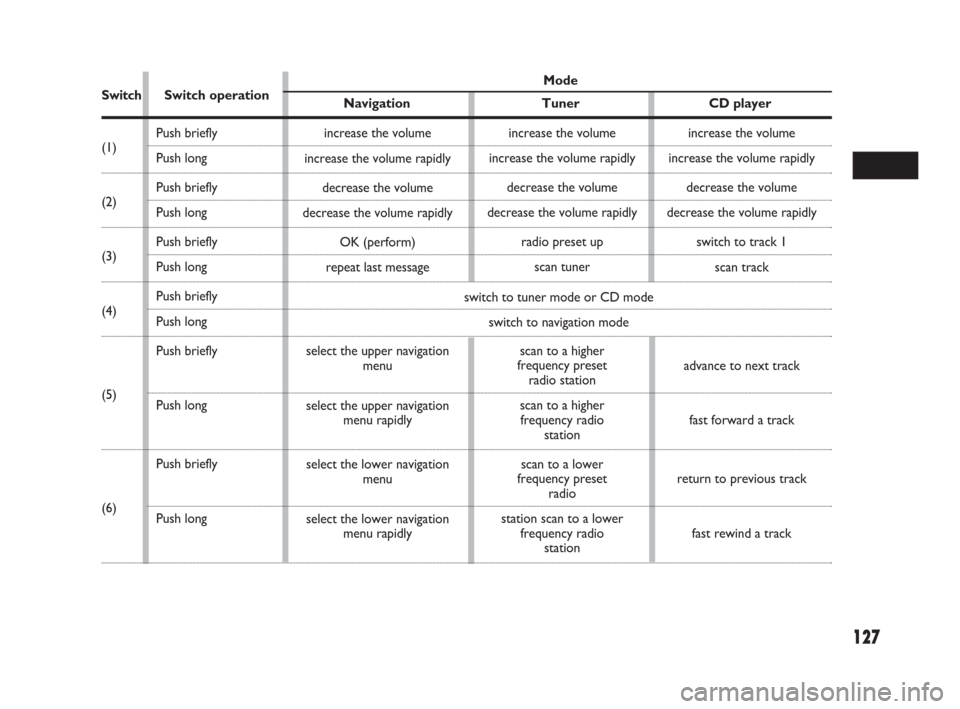

ModeSwitchSwitch operation
Navigation Tuner CD player
(1)
(2)
(3)
(4)
(5)
(6)
Push briefly
Push long
Push briefly
Push long
Push briefly
Push long
Push briefly
Push long
Push briefly
Push long
Push briefly
Push longincrease the volume
increase the volume rapidly
decrease the volume
decrease the volume rapidly
OK (perform)
repeat last message
select the upper navigation
menu
select the upper navigation
menu rapidly
select the lower navigation
menu
select the lower navigation
menu rapidlyswitch to tuner mode or CD mode
switch to navigation modeincrease the volume
increase the volume rapidly
decrease the volume
decrease the volume rapidly
radio preset up
scan tuner
scan to a higher
frequency preset
radio station
scan to a higher
frequency radio
station
scan to a lower
frequency preset
radio
station scan to a lower
frequency radio
stationincrease the volume
increase the volume rapidly
decrease the volume
decrease the volume rapidly
switch to track 1
scan track
advance to next track
fast forward a track
return to previous track
fast rewind a track
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 127

257
Battery .......................................210-245
Before driving.................................. 9
Bodywork care................................ 233
Brake fluid ............................................ 202
Brake system ....................................... 159
Brakes
– Brake fluid ..................................... 202
– Brake pedal .............................131-203
– Brake system ................................ 246
– Parking brake lever ...............130-204
– Vacuum brake ............................... 160
Bulbs
– Replacement ................................. 217
– Type ................................................ 245
Can holder .......................................... 142
Capacities ......................................10-248
Catalytic converter ............................ 165
Child-proof locks ................................ 22
Children
– Child-proof locks ......................... 22
– Child restraint systems ............... 37
– Installation with Isofix
type anchorages ........................... 42
– Installation with lap-shoulder
seat belts ........................................ 42
Cigar lighter ......................................... 90Clock ..................................................... 98
Clutch .............................................131-205
CO
2emissions .................................... 241
Cup holder ........................................... 142
Daily inspection checklist ................ 150
Dimensions .......................................... 247
Dipped beam headlights .................... 63
– Bulb replacement ......................... 218
Doors
– Central door locking
system ........................................13-19
– Child-proof locks ......................... 22
– Dead lock ...................................... 14
– Keyless Start ................................. 15
– Opening/closing ............................ 12
Drive belt (servicing) ......................... 189
Driving tips....................................... 167
– Driving on hills ............................. 168
– Driving on slippery roads ........... 169
– Highway driving ............................ 168
Emergency service....................... 225
Engine
– Air cleaner ..................................... 198
– Engine coolant .............................. 195
– Engine oil and filter ...................... 189
– If the engine is flooded ............... 230
ABS ...................................................... 160
Air bags ................................................. 47
– Front ............................................... 48
– How the system works .............. 52
– Servicing ......................................... 54
– Side ................................................. 50
Air cleaner ........................................... 198
Air conditioning ...........................99-223
Ashtray ................................................. 90
Assist grips ........................................... 140
Audio systems
– Antenna ...................................112-147
– Anti-theft system ......................... 121
– Cautions on handling .................. 110
– CD Changer ................................. 118
– CD player ...................................... 116
– Error display messages ............... 125
– General .......................................... 112
– Radio .............................................. 113
– RDS (Radio Data System) .......... 115
– Steering wheel controls ............. 126
– System ............................................ 109
– Troubleshooting .......................... 123
Automatic heating and air
conditioning system ......................... 104
– Maintenance ...........................109-223
I I
N N
D D
E E
X X
14
257-264 Fiat16 New GB 27-11-2007 11:55 Pagina 257

259
– Switch ............................................. 66
Rear window wiper
– Blades.............................................. 223
– Control .......................................... 66
Recirculated air.............................102-105
Refuelling/Capacities.....................10-248
Roof rails or roof rack anchors ....... 147
Running-in ............................................ 165
Seat back pocket................................ 145
Seat belts
– Height adjuster ............................. 36
– Pretensioners ............................... 45
– Seat belt hangers .......................... 36
– Seat belt inspection ..................... 37
– Seat belt reminder (S.B.R.) ........ 35
– Use .................................................. 33
– Warnings ....................................... 31
Seats
– Folding rear seats ......................... 145
– Front (adjustment) ...................... 29
– Front seat heater ......................... 139
– Seat back pocket .......................... 145
Service station guide .......................... 3
Snow chains ......................................... 169
Spare tire .......................................144-208
Spark plugs ....................................199-245
Speedometer........................................ 81
Spot light................................................ 138Starting the engine............................... 152
Steering...........................................204-246
Steering column controls.......... 57
Steering wheel
– Adjustment .............................67-204
– Audio controls........................68-126
Sun visors ............................................. 137
Supplement...................................... 249
Suspensions .......................................... 246
Symbols ................................................. 4
Tachometer ........................................ 83
Tailgate .................................................. 23
Technical specifications.............. 243
Theft deterrent light .......................... 93
Thermometer ...................................... 92
Tools ..................................................... 144
Towing the vehicle
– Frame hooks ................................. 135
– Instructions ............................177-229
Trailer towing ...................................... 172
Trailer hitch ......................................... 172
Transaxle
– Gear oil .......................................... 194
– Gear oil change .....................194-248
– Gearshift lever .............................. 132
– Using the transaxle ...................... 156
Transmission ........................................ 246
Trip meter ........................................... 81 Luggage restraint loops ..................... 145
Main beam headlights........................ 63
– Bulb replacement ......................... 219
Manual heating and air
conditioning system.......................... 100
– Maintenance............................104-223
Mirrors
– Defroster ....................................... 88
– Electric mirrors ............................ 28
– Inside rearview mirror ............... 27
– Outside rearview mirror ........... 27
MP3/WMA Player................................ 120
Odometer ........................................... 81
– Illumination cancel switch .......... 89
Operating your vehicle............... 149
Original spare parts ........................... 2
Other controls
and equipment............................. 129
Parking brake lever ........................... 130
Parking lights ........................................ 63
Pedals .................................................... 131
Performance ........................................ 248
Pretensioners for seat belts ............. 45
Radio antenna...............................112-147
Rear door.............................................. 23
Rear fog light......................................... 64
Rear window washer
257-264 Fiat16 New GB 27-11-2007 11:55 Pagina 259
