2007 FIAT SEDICI light

74
Check the oil level and add oil if necessary.
If there is enough oil, the lubrication sys-
tem should be inspected by your Fiat Deal-
ership before you drive the vehicle again.
For Diesel Engine Model
If this light blinks when the engine is run-
ning, you should change the engine oil. For
details, ask your Fiat Dealership.
If warning light vflash-
es, contact Fiat Dealership
immediately to have oil changed and
instrument panel warning light turned
off.
WARNING
IMPORTANT
❒If you operate the engine with this light
on, severe engine damage can result.
❒Do not rely on the Oil Pressure Light
to indicate the need to add oil. Be
sure to periodically check the engine
oil level.
50G051A
66J031
66J032
This light comes on when the ignition
switch is turned to the “ON” position, and
goes out when the engine is started. The
light will come on and remain on if there
is insufficient oil pressure. When the ignition switch is turned to the
“ON” position, the light comes on briefly
so you can check that the light is working.
If the light stays on, or comes on when dri-
ving, there may be something wrong with
the ESP
®systems (other than ABS). You
should have the system inspected by an
authorized FIAT dealer.
For details of the ESP
®systems, refer to
“Electronic Stability Program (ESP®)” in the
“OPERATING YOUR VEHICLE” section.
“ESP OFF” INDICATOR LIGHT
(if equipped)
If the warning light vturns on when the vehicle is
travelling stop the engine immedi-
ately and contact a Fiat Dealership.
WARNING
OIL PRESSURE LIGHT
“ESP” WARNING LIGHT
(if equipped)
(Electronic Stability Program) When the ignition switch is turned to the
“ON” position, this light comes on briefly
so you can check that the light is working.
When the “ESP OFF” switch is pushed to
turn off the ESP
®systems (other than
ABS), the “ESP OFF” light comes on and
stays on.
For details of the ESP
®systems, refer to
“Electronic Stability Program (ESP®)” in
the “OPERATING YOUR VEHICLE” sec-
tion.
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 74

75
MALFUNCTION INDICATOR
LIGHT
SEAT BELT REMINDER LIGHT
(if equipped)
60G049
When the driver doesn’t buckle his or her
seat belt, this light will come on.
63J030
This light blinks or comes on for several
seconds when the ignition switch is turned
to the “ON” position so you can check if
the light is working.
The light will come on and stay on if there
is a problem in the air bag system or the
seat belt pretensioner system (if equipped).
If the “AIR BAG” light does
not blink or come on briefly
when the ignition switch is turned to
the “ON” position, stays on for more
than 10 seconds, or comes on while
driving, the air bag system or the seat
belt pretensioner system (if equipped)
may not work properly. Have both sys-
tems inspected by an authorized Fiat
Dealership.
WARNING
65D530
Your vehicle has a computer-controlled
emission control system. A malfunction in-
dicator light is provided on the instrument
cluster to indicate when it is necessary to
have the emission control system serviced.
The malfunction indicator light comes on
when the ignition switch is turned to
“ON” or “START” and goes out when the
engine is started. CHARGING LIGHT
50G052A
This light comes on when the ignition
switch is turned to the “ON” position, and
goes out when the engine is started. The
light will come on and remain on if there
is something wrong with the battery charg-
ing system. If the light comes on when the
engine is running, the charging system
should be inspected immediately by your
Fiat Dealership.For details about the seat belt reminder,
refer to “Seat Belts and Child Restraint
Systems” in the “BEFORE DRIVING” sec-
tion.
“AIR BAG” LIGHT (if equipped)
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 75

76
If the malfunction indicator light comes on
when the engine is running, there is a
problem with the emission control sys-
tem. Bring the vehicle to your Fiat Deal-
ership to have the problem corrected.
IMPORTANT Continuing to drive the ve-
hicle when the malfunction indicator light
is on can cause permanent damage to the
vehicle’s emission control system, and can
affect fuel economy and driveability.
Service Vehicle Soon (SVS) Light
(only for Diesel versions)
84E034
When the ignition switch is turned to the
“ON” position, this light comes on briefly
to let you know the light is working.
If this light blinks with the ignition switch
turned “ON”, the engine will not start.
NOTE
If this light blinks, turn the ignition switch to
the “LOCK” position, then turn it back to
the “ON” position. If the light still blinks
with the ignition switch turned to the “ON”
position, there may be something wrong
with the immobilizer system. Ask to you
Fiat Dealership to inspect the system.FIAT CODE SYSTEM LIGHT
(IMMOBILIZER) (if equipped)
(only for petrol versions)
65D239
When the ignition switch is turned to the
“ON” position, this light comes on to let
you know the light is working. If this light
blinks with the ignition switch turned to
“ON”, there may be something wrong
with the immobilizer system.
If this light blinks with the ignition switch
turned to “ON”, the engine will not start.
NOTE
If this light blinks, turn the ignition switch
to the “LOCK” position, then turn it back
to the “ON” position. If the light still blinks
with the ignition switch turned to the
“ON” position, there may be something
wrong with the immobilizer system.
Ask to you Fiat Dealership to inspect the
system.
54G345
OVERHEAT INDICATOR LIGHT
(only for Diesel versions)
If this light comes on while driving, it may
mean engine overheat. Refer to “Tem-
perature Gauge/Overheat Indicator Light”
section.
GLOW PLUG INDICATOR LIGHT
(only for Diesel versions)
60A534
If the coolant temperature is cool enough,
this light comes on when the ignition
switch is turned on and goes out when the
glow plug is heated enough for engine
starting.
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 76

77
LOW FUEL WARNING LIGHT
54G391
This light remains on until all doors (in-
cluding the rear door) are completely
closed.
54G343
If this light comes on, fill the fuel tank im-
mediately.
NOTE The activation point of this light
varies depending on road conditions (for
example, slope or curve) and driving con-
ditions because of fuel moving in the tank. OPEN DOOR WARNING LIGHT FUEL FILTER WARNING LIGHT
(for Diesel Engine Model)DIESEL PARTICULATE FILTER
WARNING LIGHT
(for Diesel Engine Model)
60A541
64J244If the light comes on when driving, there
is a possibility to have water in the fuel
filter. Drain water as soon as possible. For
details of draining water, refer to “Fuel Fil-
ter” in the “INSPECTION AND MAIN-
TENANCE” section.
IMPORTANT The presence of water in
the fuel circuit may cause serious damage
to the entire injection system and cause
irregular engine operation. If the warning
light turns on contact Fiat Dealership as
soon as possible to have the system re-
lieved. If the above indications come on
immediately after refuelling, water has
probably been poured into the tank: turn
the engine off immediately and contact Fi-
at Dealership.If the light comes on when driving, the
diesel particulate filter is nearly clogged.
To regenerate the diesel particulate filter,
we recommend that you drive the vehicle
until the light goes out, at an average speed
of 50 km/h (31 mph) for about 5 minutes.
When the regeneration of the diesel par-
ticulate filter is completed by your driving,
this warning light will go out.
For details, refer to “Diesel Particulate Fil-
ter” in the “OPERATING YOUR VEHI-
CLE” section.
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 77

78
79J039
This light comes on when the ignition
switch is turned to the “ON” position, and
goes out when the engine is started.
If this light comes on while driving, the
power steering system may not work
properly. Have the system inspected by
your Fiat Dealership.
NOTE If the power steering system does
not work properly, you will feel heavier
to steer but you still will be able to steer. ELECTRIC POWER STEERING
LIGHT (if equipped)KEYLESS START SYSTEM
INDICATOR LIGHT (if equipped)
62J041
When you push the ignition switch for ve-
hicle with the keyless start system, this
light will come on in blue or red. If this
light comes on in blue, you can turn the
ignition switch without using an ignition
key. If this light comes on in red, you can
not turn the ignition switch without us-
ing an ignition key. For details, refer to “Ig-
nition Switch” in the “STEERING COL-
UMN CONTROLS” section.
If this light blinks in red, it reminds you that
the remote controller is not in the vehi-
cle. For details, refer to “Keyless Start Sys-
tem” in the “BEFORE DRIVING” section.REAR FOG LIGHT INDICATOR
LIGHT (if equipped)
54G491
The rear fog light indicator light comes on
when the rear fog light operates.
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 78

79

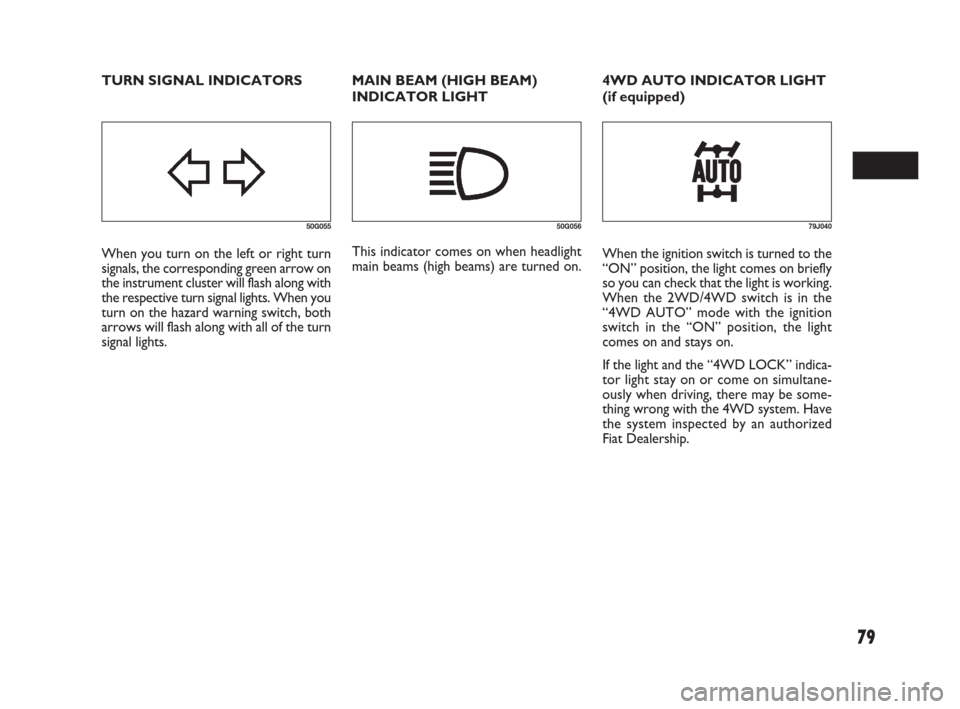

MAIN BEAM (HIGH BEAM)
INDICATOR LIGHT
50G055
When you turn on the left or right turn
signals, the corresponding green arrow on
the instrument cluster will flash along with
the respective turn signal lights. When you
turn on the hazard warning switch, both
arrows will flash along with all of the turn
signal lights.
50G056
This indicator comes on when headlight
main beams (high beams) are turned on.
79J040
When the ignition switch is turned to the
“ON” position, the light comes on briefly
so you can check that the light is working.
When the 2WD/4WD switch is in the
“4WD AUTO” mode with the ignition
switch in the “ON” position, the light
comes on and stays on.
If the light and the “4WD LOCK” indica-
tor light stay on or come on simultane-
ously when driving, there may be some-
thing wrong with the 4WD system. Have
the system inspected by an authorized
Fiat Dealership. TURN SIGNAL INDICATORS 4WD AUTO INDICATOR LIGHT
(if equipped)
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 79

80
4WD LOCK INDICATOR LIGHT
(if equipped)NOTE
❒When the vehicle speed is increased,
the “4WD LOCK” mode will be
changed to the “4WD AUTO” mode
automatically. The “4WD AUTO” in-
dicator light will come on and stay on.
❒When the ignition switch is turned to
the “OFF” position, the “4WD LOCK”
mode is canceled.
For details of the “4WD LOCK” mode,
refer to “Using the 2WD/4WD Switch”
in the “OPERATING YOUR VEHICLE”
section.
IMPORTANT Do not operate your vehi-
cle in “4WD LOCK” mode on dry hard
surfaces. If the oil temperature of the parts for
4WD system is high, this light will blink.
The “4WD AUTO” or “4WD LOCK”
mode will be changed to the “2WD”
mode automatically to prevent a damage
of the parts for 4WD system.
For details, refer to “Using the 2WD/
4WD Switch” in the “OPERATING
YOUR VEHICLE” section.
NOTE If you restart the engine, the light
will stop blinking temporarily.
NOTE When the vehicle speed is in-
creased, the “4WD LOCK” mode will be
changed to the “4WD AUTO” mode au-
tomatically. The “4WD AUTO” indicator
light will come on and stay on.
79J100
When the ignition switch is turned to the
“ON” position, this light comes on briefly
so you can check that the light is working.
The light comes on when the 2WD/4WD
switch is changed to the “4WD LOCK”
mode from the “4WD AUTO” mode.
If the light and the “4WD AUTO” indi-
cator light stay on or come on simultane-
ously when driving, there may be some-
thing wrong with the 4WD system. Have
the system inspected by an authorized
Fiat Dealership.
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 80

82

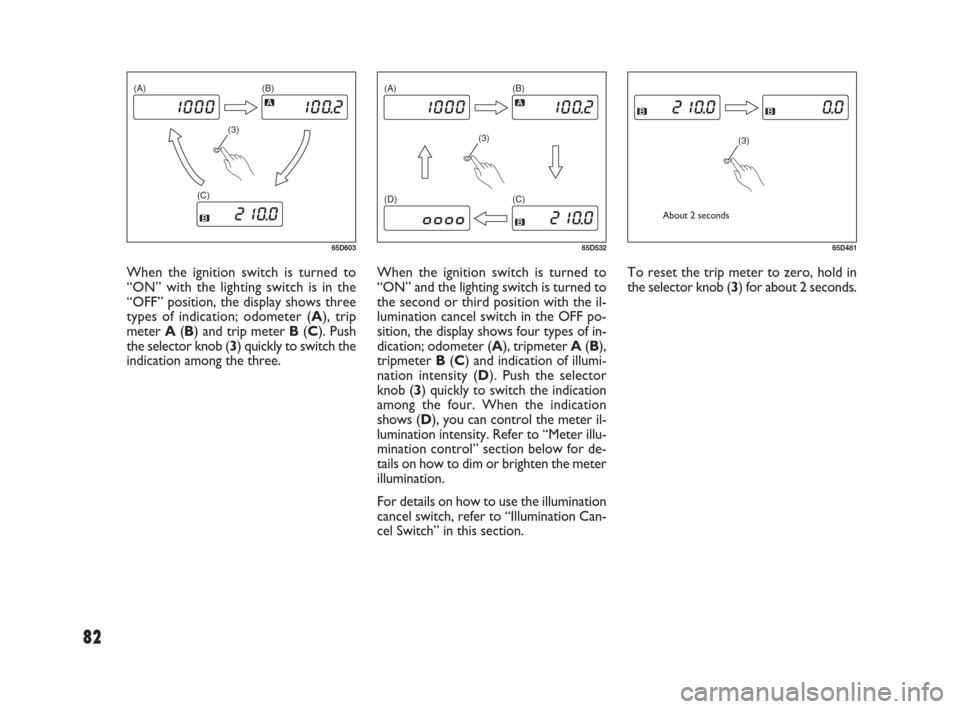

When the ignition switch is turned to
“ON” and the lighting switch is turned to
the second or third position with the il-
lumination cancel switch in the OFF po-
sition, the display shows four types of in-
dication; odometer (A), tripmeter A(B),
tripmeter B(C) and indication of illumi-
nation intensity (D). Push the selector
knob (3) quickly to switch the indication
among the four. When the indication
shows (D), you can control the meter il-
lumination intensity. Refer to “Meter illu-
mination control” section below for de-
tails on how to dim or brighten the meter
illumination.
For details on how to use the illumination
cancel switch, refer to “Illumination Can-
cel Switch” in this section.To reset the trip meter to zero, hold in
the selector knob (3) for about 2 seconds. When the ignition switch is turned to
“ON” with the lighting switch is in the
“OFF” position, the display shows three
types of indication; odometer (A), trip
meter A(B) and trip meter B(C). Push
the selector knob (3) quickly to switch the
indication among the three.
(3) (A) (B)
(C)
65D603
(3) (A) (B)
(C) (D)
65D532
(3)
65D481
About 2 seconds
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 82
