2007 FIAT SEDICI engine

88

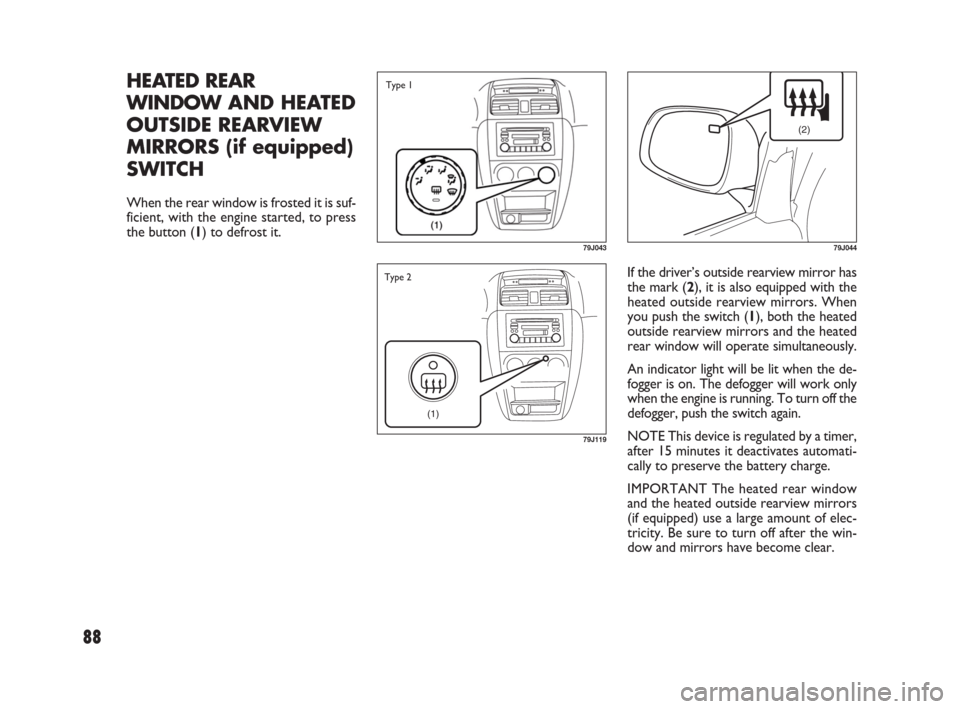

If the driver’s outside rearview mirror has
the mark (2), it is also equipped with the
heated outside rearview mirrors. When
you push the switch (1), both the heated
outside rearview mirrors and the heated
rear window will operate simultaneously.
An indicator light will be lit when the de-
fogger is on. The defogger will work only
when the engine is running. To turn off the
defogger, push the switch again.
NOTE This device is regulated by a timer,
after 15 minutes it deactivates automati-
cally to preserve the battery charge.
IMPORTANT The heated rear window
and the heated outside rearview mirrors
(if equipped) use a large amount of elec-
tricity. Be sure to turn off after the win-
dow and mirrors have become clear.
HEATED REAR
WINDOWAND HEATED
OUTSIDE REARVIEW
MIRRORS (if equipped)
SWITCH
When the rear window is frosted it is suf-
ficient, with the engine started, to press
the button (1) to defrost it.
79J043
(1)
79J119
Type 1
Type 2
(2)
79J044
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 88

94
CLOCK (1)
The clock is shown when the ignition
switch is in the “ACC” or “ON” position.
To set the clock, follow the instructions
below.
❒To set the hour display, push the “H”
knob (a) repeatedly to advance the
hour display. To advance the hour dis-
play quickly, hold in the “H” knob (a)
for about 1 second and continue hold-
ing.
❒To set the minute display, push the “M”
knob (b) repeatedly to advance the
minute display. To advance the minute
display quickly, hold in the “M” knob
(b) for about 1 second and continue
holding.
62J136
Type A (For Gasoline Engine Model)
62J137
Type B (For Diesel Engine Model)
INFORMATION
DISPLAY (Type II)
(if equipped)
1.Clock
2.Thermometer
3.Fuel consumption
4.Theft deterrent light
a.“H” knob
b.“M” knob
c.“DISP” knob
d.Freezing mark
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 94

95

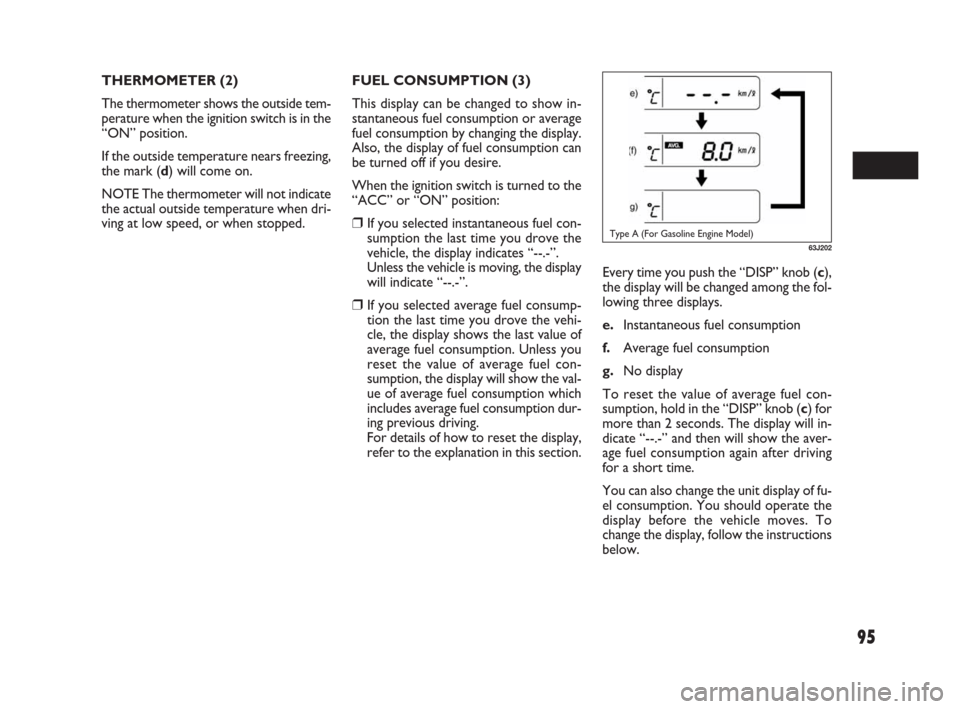

THERMOMETER (2)
The thermometer shows the outside tem-
perature when the ignition switch is in the
“ON” position.
If the outside temperature nears freezing,
the mark (d) will come on.
NOTE The thermometer will not indicate
the actual outside temperature when dri-
ving at low speed, or when stopped.FUEL CONSUMPTION (3)
This display can be changed to show in-
stantaneous fuel consumption or average
fuel consumption by changing the display.
Also, the display of fuel consumption can
be turned off if you desire.
When the ignition switch is turned to the
“ACC” or “ON” position:
❒If you selected instantaneous fuel con-
sumption the last time you drove the
vehicle, the display indicates “--.-”.
Unless the vehicle is moving, the display
will indicate “--.-”.
❒If you selected average fuel consump-
tion the last time you drove the vehi-
cle, the display shows the last value of
average fuel consumption. Unless you
reset the value of average fuel con-
sumption, the display will show the val-
ue of average fuel consumption which
includes average fuel consumption dur-
ing previous driving.
For details of how to reset the display,
refer to the explanation in this section.
63J202Type A (For Gasoline Engine Model)
Every time you push the “DISP” knob (c),
the display will be changed among the fol-
lowing three displays.
e.Instantaneous fuel consumption
f.Average fuel consumption
g.No display
To reset the value of average fuel con-
sumption, hold in the “DISP” knob (c) for
more than 2 seconds. The display will in-
dicate “--.-” and then will show the aver-
age fuel consumption again after driving
for a short time.
You can also change the unit display of fu-
el consumption. You should operate the
display before the vehicle moves. To
change the display, follow the instructions
below.
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 95

96
62J143Type B (For Diesel Engine Model)

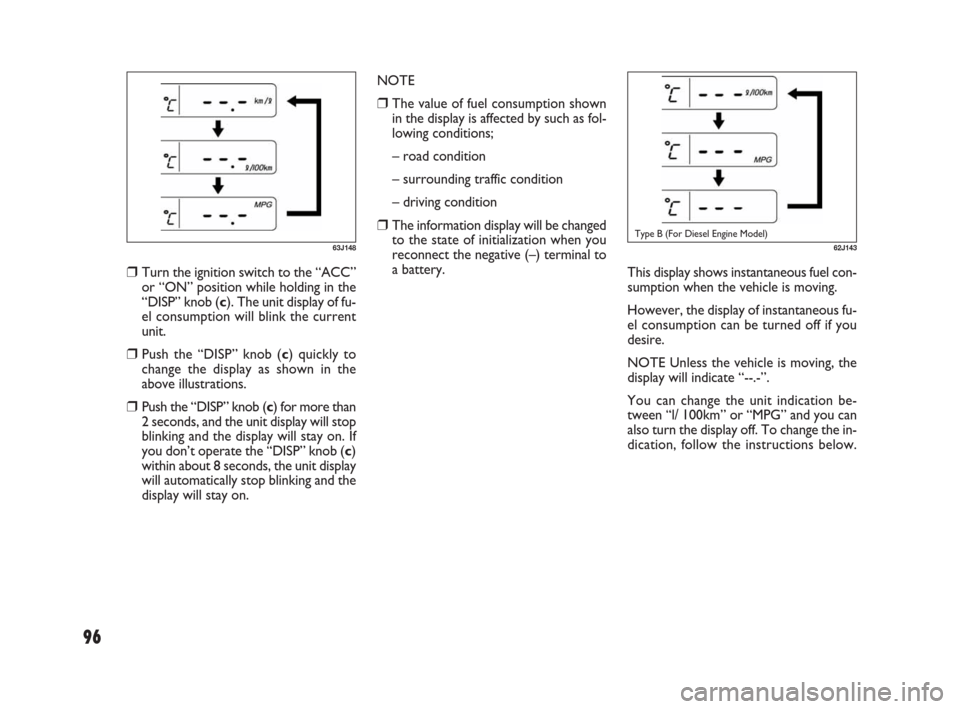

This display shows instantaneous fuel con-
sumption when the vehicle is moving.
However, the display of instantaneous fu-
el consumption can be turned off if you
desire.
NOTE Unless the vehicle is moving, the
display will indicate “--.-”.
You can change the unit indication be-
tween “l/ 100km” or “MPG” and you can
also turn the display off. To change the in-
dication, follow the instructions below. NOTE
❒The value of fuel consumption shown
in the display is affected by such as fol-
lowing conditions;
– road condition
– surrounding traffic condition
– driving condition
❒The information display will be changed
to the state of initialization when you
reconnect the negative (–) terminal to
a battery.
63J148
❒Turn the ignition switch to the “ACC”
or “ON” position while holding in the
“DISP” knob (c). The unit display of fu-
el consumption will blink the current
unit.
❒Push the “DISP” knob (c) quickly to
change the display as shown in the
above illustrations.
❒Push the “DISP” knob (c) for more than
2 seconds, and the unit display will stop
blinking and the display will stay on. If
you don’t operate the “DISP” knob (c)
within about 8 seconds, the unit display
will automatically stop blinking and the
display will stay on.
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 96

102

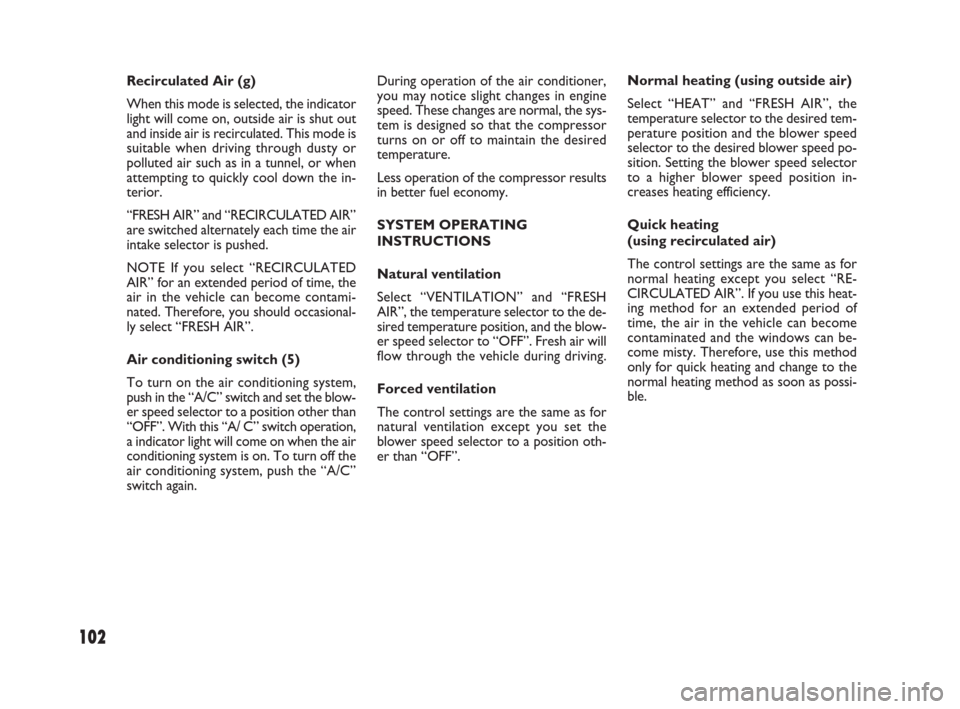

During operation of the air conditioner,
you may notice slight changes in engine
speed. These changes are normal, the sys-
tem is designed so that the compressor
turns on or off to maintain the desired
temperature.
Less operation of the compressor results
in better fuel economy.
SYSTEM OPERATING
INSTRUCTIONS
Natural ventilation
Select “VENTILATION” and “FRESH
AIR”, the temperature selector to the de-
sired temperature position, and the blow-
er speed selector to “OFF”. Fresh air will
flow through the vehicle during driving.
Forced ventilation
The control settings are the same as for
natural ventilation except you set the
blower speed selector to a position oth-
er than “OFF”.Normal heating (using outside air)
Select “HEAT” and “FRESH AIR”, the
temperature selector to the desired tem-
perature position and the blower speed
selector to the desired blower speed po-
sition. Setting the blower speed selector
to a higher blower speed position in-
creases heating efficiency.
Quick heating
(using recirculated air)
The control settings are the same as for
normal heating except you select “RE-
CIRCULATED AIR”. If you use this heat-
ing method for an extended period of
time, the air in the vehicle can become
contaminated and the windows can be-
come misty. Therefore, use this method
only for quick heating and change to the
normal heating method as soon as possi-
ble. Recirculated Air (g)
When this mode is selected, the indicator
light will come on, outside air is shut out
and inside air is recirculated. This mode is
suitable when driving through dusty or
polluted air such as in a tunnel, or when
attempting to quickly cool down the in-
terior.
“FRESH AIR” and “RECIRCULATED AIR”
are switched alternately each time the air
intake selector is pushed.
NOTE If you select “RECIRCULATED
AIR” for an extended period of time, the
air in the vehicle can become contami-
nated. Therefore, you should occasional-
ly select “FRESH AIR”.
Air conditioning switch (5)
To turn on the air conditioning system,
push in the “A/C” switch and set the blow-
er speed selector to a position other than
“OFF”. With this “A/ C” switch operation,
a indicator light will come on when the air
conditioning system is on. To turn off the
air conditioning system, push the “A/C”
switch again.
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 102

104
NOTE Your vehicle uses the air condi-
tioning refrigerant HFC-134a, commonly
called “R-134a”. R-134a replaced R-12
around 1993 for automotive applications.
Other refrigerants are available, including
recycled R-12, but only R-134a should be
used in your vehicle.
IMPORTANT Using the wrong refriger-
ant may damage your air conditioning sys-
tem. Use R-134a only. Do not mix or re-
place the R-134a with other refrigerants.AUTOMATIC HEATING
AND AIR
CONDITIONING
SYSTEM
(Climate Control)
DESCRIPTION OF CONTROLS
Temperature selector/ Air
conditioning switch (1)
This is used to select the temperature by
turning the selector.
Also, this is used to turn on and off the
air conditioning system by pushing the
switch. To turn on the air conditioning
system, push in the switch and the indi-
cator light will come on. To turn off the
air conditioning system, push in the
switch again and the indicator light will
go off. MAINTENANCE
If you do not use the air conditioner for
a long period, such as during winter, it may
not give the best performance when you
start using it again. To help maintain op-
timum performance and durability of your
air conditioner, it needs to be run peri-
odically. Operate the air conditioner at
least once a month for one minute with
the engine idling. This circulates the re-
frigerant and oil and helps protect the in-
ternal components.
Your air conditioner is equipped with air
filters. Clean or replace them as specified
in the “Maintenance Schedule” in the “IN-
SPECTION AND MAINTENANCE” sec-
tion. Have this job done by your Fiat Deal-
ership as the lower glove box must be
lowered for this job.
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 104

109
AUDIO SYSTEMS
❒Driving on extremely bumpy roads
which cause severe vibrations may
cause sound to skip.
❒This unit uses a precision mechanism.
Even in the event that trouble arises,
never open the case, disassemble the
unit, or lubricate the rotating parts.
Please bring the unit to an authorized
Fiat Dealership. MAINTENANCE
If you do not use the air conditioner for
a long period, such as during winter, it may
not give the best performance when you
start using it again. To help maintain op-
timum performance and durability of your
air conditioner, it needs to be run peri-
odically. Operate the air conditioner at
least once a month for one minute with
the engine idling. This circulates the re-
frigerant and oil and helps protect the in-
ternal components.
NOTE Your vehicle uses the air condi-
tioning refrigerant HFC-134a, commonly
called “R-134a”. R-134a replaced R-12
around 1993 for automotive applications.
Other refrigerants are available, including
recycled R-12, but only R-134a should be
used in your vehicle.
IMPORTANT Using the wrong refriger-
ant may damage your air conditioning sys-
tem. Use R-134a only. Do not mix or re-
place the R-134a with other refrigerants.
79J188
Too high a volume when dri-
ving can put the driver’s life
at risk and that of other people.
Therefore the volume should always
be adjusted in such a way that it is al-
ways possible to hear the noises of
the surrounding environment (e.g.:
horns, ambulance, police sirens, etc.).
WARNING
FM/MW/LW CD PLAYER WITH
CD CHANGER CONTROL
PRECAUTIONS
❒When the inside of the vehicle is very
cold and the player is used soon after
switching on the heater, moisture may
form on the disc or the optical parts
of the player and proper playback may
not be possible. If moisture forms on
the disc, wipe it off with a soft cloth. If
moisture forms on the optical parts of
the player, do not use the player for
about one hour, this will allow the con-
densation to disappear normally.
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 109

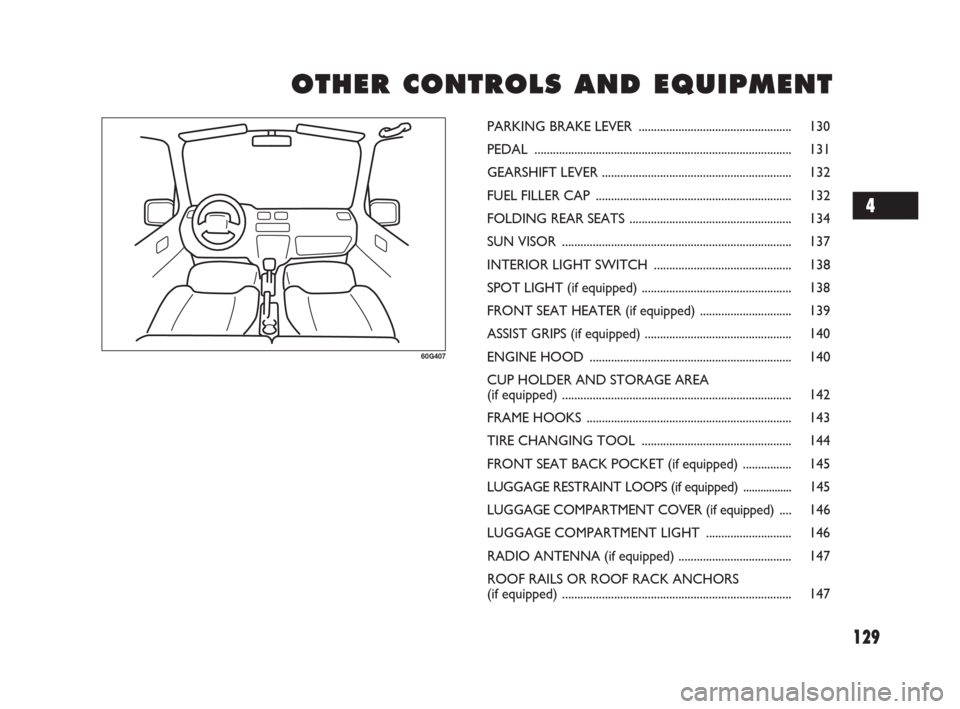

129
O O
T T
H H
E E
R R
C C
O O
N N
T T
R R
O O
L L
S S
A A
N N
D D
E E
Q Q
U U
I I
P P
M M
E E E
N N
T T
60G407
PARKING BRAKE LEVER .................................................. 130
PEDAL .................................................................................... 131
GEARSHIFT LEVER .............................................................. 132
FUEL FILLER CAP ................................................................ 132
FOLDING REAR SEATS ..................................................... 134
SUN VISOR ........................................................................... 137
INTERIOR LIGHT SWITCH ............................................. 138
SPOT LIGHT (if equipped) ................................................. 138
FRONT SEAT HEATER (if equipped) .............................. 139
ASSIST GRIPS (if equipped) ................................................ 140
ENGINE HOOD .................................................................. 140
CUP HOLDER AND STORAGE AREA
(if equipped) ........................................................................... 142
FRAME HOOKS ................................................................... 143
TIRE CHANGING TOOL ................................................. 144
FRONT SEAT BACK POCKET (if equipped) ................ 145
LUGGAGE RESTRAINT LOOPS (if equipped)................. 145
LUGGAGE COMPARTMENT COVER (if equipped).... 146
LUGGAGE COMPARTMENT LIGHT ............................ 146
RADIO ANTENNA (if equipped) ..................................... 147
ROOF RAILS OR ROOF RACK ANCHORS
(if equipped)........................................................................... 147
4
129-148 Fiat16 New GB 27-11-2007 11:27 Pagina 129
