2007 FIAT PANDA ECU

46
RADIO WITH
COMPACT DISC PLAYER
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
TAPES PLAYER
Display information
When the CD Changer is working, the display shows
the following information which means:
❒“T05”: shows the number of the track on the CD;
❒“03:42”: shows the time elapsed since the start of
the track (if the corresponding Menu function is on);
❒“CD 04”: the number of the CD in the loader.
Choosing the CD
Press button 8 (
N) to select the next CD and button
10 (
O) to select the previous CD. If in the menu the
CD time display function was selected, this will be
replaced for about 2 seconds by the CD number.
If the loader does not contain a disc in the position
selected, the display briefly shows the wording “NO
CD”, and the next CD is played automatically.Select track (forward/backward)
Briefly press button 9 (
˜) to play the next track of
the CD chosen and button 12 (
÷) to play the
previous one. Tracks are played in sequence: after the
last track, the first one will be played and vice versa.
To select tracks continuously, keep the button
pressed.
If playing the track started more than 3 seconds ago,
pressing button 12 (
÷) the track is played again
from the start.
In this case if wanting to play the previous track, press
the button twice consecutively.
001-050 ING 21-06-2007 15:48 Pagina 46

57
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
TAPES PLAYER
RADIO WITH
COMPACT DISC PLAYER

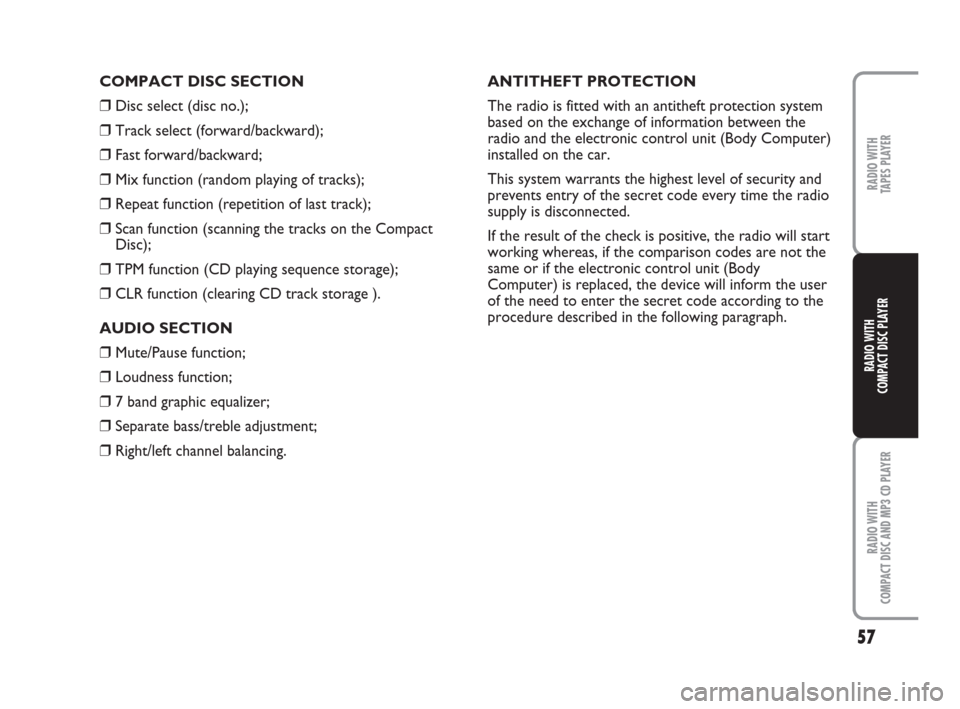

COMPACT DISC SECTION
❒Disc select (disc no.);
❒Track select (forward/backward);
❒Fast forward/backward;
❒Mix function (random playing of tracks);
❒Repeat function (repetition of last track);
❒Scan function (scanning the tracks on the Compact
Disc);
❒TPM function (CD playing sequence storage);
❒CLR function (clearing CD track storage ).
AUDIO SECTION
❒Mute/Pause function;
❒Loudness function;
❒7 band graphic equalizer;
❒Separate bass/treble adjustment;
❒Right/left channel balancing.ANTITHEFT PROTECTION
The radio is fitted with an antitheft protection system
based on the exchange of information between the
radio and the electronic control unit (Body Computer)
installed on the car.
This system warrants the highest level of security and
prevents entry of the secret code every time the radio
supply is disconnected.
If the result of the check is positive, the radio will start
working whereas, if the comparison codes are not the
same or if the electronic control unit (Body
Computer) is replaced, the device will inform the user
of the need to enter the secret code according to the
procedure described in the following paragraph.
051-098 ING 21-06-2007 15:49 Pagina 57

88
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
TAPES PLAYER
RADIO WITH
COMPACT DISC PLAYER
Inserting/ejecting a CD
To insert the CD set it gently in place to activate the
powered loading system, which will position it
correctly.
Press button 4 (
˚), with the device on, to operate the
powered CD eject system. After ejection, the source
heard before playing the CD will return (only if the
device is on).
If CD is not ejected, the device will reload it
automatically after about 20 seconds and then will set
to Tuner (Radio).
CD cannot be ejected if the device is off.
Inserting the ejected CD without fully removing it
from the slot will set the device to Tuner (Radio).
Possible error messages
If the CD inserted is illegible (e.g.: CD-ROM inserted,
CD not inserted properly or reading error), the
display will show the wording “CD ERROR” for about
2 seconds.
The CD is then ejected and the previous source
before CD was selected returns.Display information
When the CD player is working, the display shows the
following information which means:
“T05”: shows the number of the track on the CD;
“03:42”: shows the time elapsed since the start of the
track (if the corresponding Menu function is on);
“XXXXXXX”: shows the name allocated to the CD.
If the CD Name function is selected and no CD name
is stored, the display will show the track time.
Select track (forward/backward)
Briefly press button 5 (
÷) >) to play the previous
track and button 5 (
˜) to play the next one. Tracks
are played in sequence: after the last track, the first
one will be played and vice versa.
If playing the track started more than 3 seconds ago,
pressing briefly button 5 (
÷) the track is played
again from the start. In this case if wanting to play the
previous track, press the button twice consecutively.
051-098 ING 21-06-2007 15:49 Pagina 88

93
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
TAPES PLAYER
RADIO WITH
COMPACT DISC PLAYER
Display information
When the CD Changer is working, the display shows
the following information which means:
❒“T05”: shows the number of the track on the CD;
❒“03:42”: shows the time elapsed since the start of
the track (if the corresponding Menu function is on);
❒“CD 04”: the number of the CD in the loader.
❒“XXXXXXX”: shows the name allocated to the
CD.
Choosing the CD
Press button 6 (
N) to select the next CD and button
6 (
O) to select the previous CD. If in the menu the
CD time display function was selected, this will be
replaced for about 2 seconds by the CD number.
If the loader does not contain a disc in the position
selected, the display briefly shows the wording “NO
CD”, and the next CD is played automatically.Select track (forward/backward)
Briefly press button 5 (
÷) to play the previous track
of the CD chosen and button 5 (
˜) to play the next
one. Tracks are played in sequence: after the last
track, the first one will be played and vice versa.
To select tracks continuously, keep the button
pressed.
If playing the track started more than 3 seconds ago,
pressing briefly button 5 (÷) the track is played again
from the start. In this case if wanting to play the
previous track, press the button twice consecutively.
Fast forward/backward
Keep button 5 (
÷) pressed to move the track
selected backward at high speed and keep button 5
(
˜) pressed to move it quickly forward. Fast
forward/backward is stopped once the button is
released.
If the CD number or CD name display function was
selected in the menu, this will be replaced for about 2
seconds by the CD time display function.
051-098 ING 21-06-2007 15:49 Pagina 93

108
RADIO WITH
TAPES PLAYER
RADIO WITH
COMPACT DISC PLAYER
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
Display information
When a MP3 CD is inserted the display shows “MP3”
and the following information which means:
❒“T05”: shows the number of the track on the MP3
CD;
❒“BEST OF”: shows the name given to the directory
(if the relevant menu function is active);
❒“XXXXX”: shows the track name (if the relevant
menu function is active);
❒“03:42”: shows the time elapsed since the start of
the track (if the corresponding Menu function is
on);
❒“BEST 01”: shows the MP3 CD name (if the corre-
sponding Menu function is on).
If the CD Name function is selected and no CD name
is stored, the display will show the track time.Select track (forward/backward)
Briefly press button 5 (
÷) to play the previous
track and button 5 (
˜) to play the next one. Tracks
are played in sequence: after the last track, the first
one will be played and vice versa.
If no other directory/track is selected in the following
2 seconds, the first track in the new directory will be
played.
If playing the track started more than 3 seconds ago,
pressing briefly button 5 (
÷) the track is played
again from the start. In this case if wanting to play the
previous track, press the button twice consecutively.
Fast forward/backward
Keep button 5 (
˜) pressed to move the track
selected forward at high speed and keep button
5 (
÷) pressed to move it quickly backward. Fast
forward/backward is stopped once the button is
released.
If the directory display function or CD or track name
display function was selected in the menu, this will be
replaced for about 2 seconds by the CD time display
function.
099-120 ING 21-06-2007 15:51 Pagina 108
