2007 FIAT IDEA technical specifications

76
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
HEAD RESTRAINTS
FRONT SEATS
Head restraints are adjustable in height.
To adjust the head restraint height: pull it upwards or press button (A)
and push it downwards. Make sure it is properly locked in place.
Head restraint removal
To extract the head restraint press button (B).
F0H0052m
F0H0237m
WARNING
If side-bags are fitted, the use of seat covers
not purchased at Lineaccessori Fiat is
dangerous. REAR SIDE AND CENTRAL HEAD RESTRAINTS (where
provided)
Head restraints are adjustable in height.
To raise the head restraints, move them upwards until the locking click is
heard.
Press button (C) to lower them.
Press button (D) to extract them (although this is not required for
normal configurations).
F0H0053m

77
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
WARNINGRemember that the head restraints should be adjusted to support the back of your
head and not your neck. Only in this position do they exert their protective action.
WARNINGTravelling without head restraints is dangerous.
WARNINGWhen refitting the head restraint, check for proper positioning and locking.
WARNINGSaddle-shaped rear head restraints optimise visibility and shall always be set in the
position of use by rear passengers.
To optimise head restraint protective action, adjust the seat back upright and
keep your head as close as possible to the head restraint.WARNING

78
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
REARVIEW MIRRORS
DRIVING MIRROR
The mirror is fitted with a safety device that causes it to be released in
the event of a violent crash.
Use lever (A) to move it to two different positions: normal or antiglare.
F0H0056m
CHILD’S WATCH MIRROR (where provided)
It is located on roof longitudinal console, near the front ceiling light to
give the driver and front passenger a wide view of rear seats and
therefore to watch rear passengers (children).
To use this mirror, move it from retracted position (B) to position (C) as
shown in the figure.
F0H0057m

DOOR MIRRORS
Manual adjustment
Use knob (A) to adjust the mirror
Electric adjustment
This operation can be only performed with ignition key to MAR.
Proceed as follows:
❒use switch (B) to select the mirror required (left or right);
❒to adjust the mirror move the switch (C) in the four directions.
Adjust mirrors with car stationary and handbrake on.
Mirror defrosting, where provided, starts automatically when switching
the heated rear window on.
Folding
When required (for example when the mirror causes difficulty in narrow
spaces) it is possible to fold mirrors moving them from position (1) to
position (2).
79
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
F0H0058m
F0H0059m
When driving the mirrors shall always be in position (1).
As the driver’s door mirror is curved, it may slightly alter
the perception of distance.
F0H0244m

HEATING/CLIMATE CONTROL SYSTEM
80
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

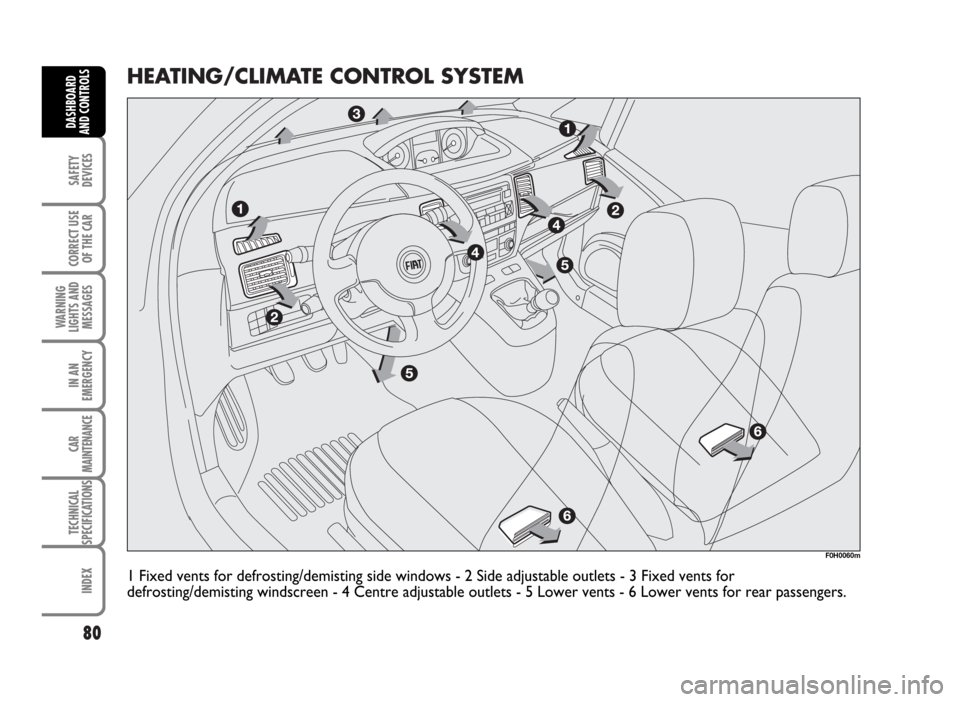

1 Fixed vents for defrosting/demisting side windows - 2 Side adjustable outlets - 3 Fixed vents for
defrosting/demisting windscreen - 4 Centre adjustable outlets - 5 Lower vents - 6 Lower vents for rear passengers.
F0H0060m

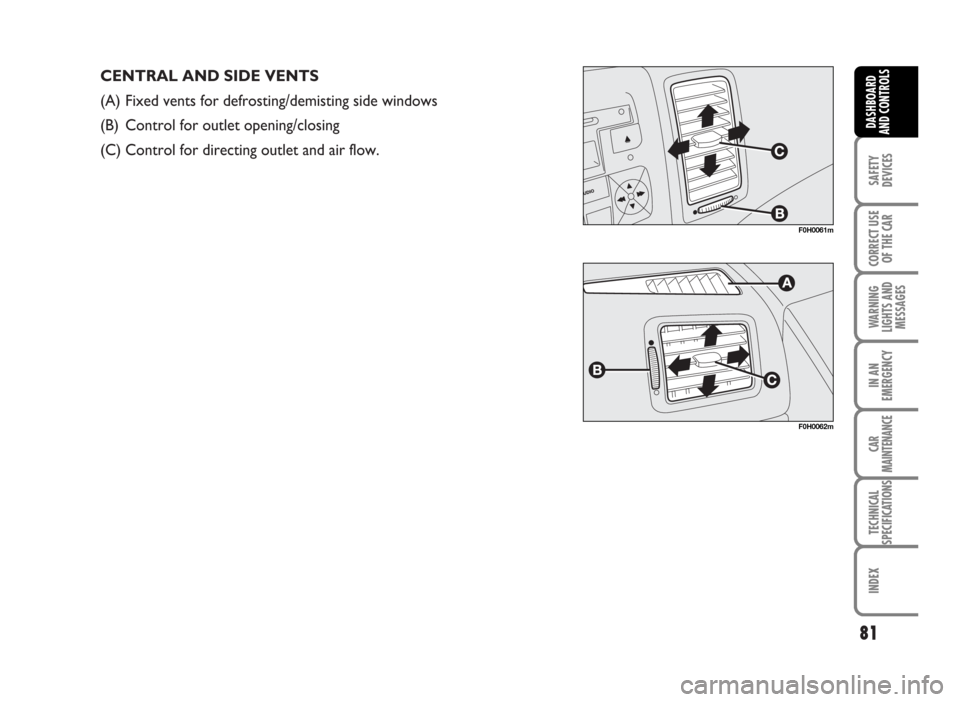

CENTRAL AND SIDE VENTS
(A) Fixed vents for defrosting/demisting side windows
(B) Control for outlet opening/closing
(C) Control for directing outlet and air flow.
81
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
F0H0061m
F0H0062m

CONTROLS
(A) fan activation and speed control knob
(B) air temperature knob (mixing hot and cold
air)
(C) heated rear window on/off button
(D) air distribution knob
(E) air recirculation on/off button.
AIR DISTRIBUTION
Using knob (D) it is possible to choose
manually 5 of the possible air distributions to
the passenger compartment:
«air flow from centre and side vents (2) and
(4);
Δair flow from centre and side vents (2) and
(4) and downwards (5) and (6) (bilevel
function);
≈air flow downwards (5) and (6);
HEATING AND VENTILATION
ƒair flow downwards (5) and (6) and also to the windscreen (3);
-to demist and defrost windscreen (3) and front side windows
(1).
TEMPERATURE ADJUSTMENT
Proceed as follows:
Turn knob (B) clockwise (pointer to red sector) to increase
temperature or turn it counter-clockwise to decrease
temperature;
82
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
F0H0063m

FAN SPEED ADJUSTMENT
Proceed as follows:
❒open completely central (4) and side (2) vents;
❒turn knob (B) to the blue sector;
❒set (A) to the required speed;
❒set knob (D) to «;
❒set knob (E) to Úto turn air recirculation offRECIRCULATION
Set knob (E) to ….
This function is particularly useful when the outside air
is heavily polluted (in a traffic jam, tunnel, etc.).
However, it is better not to use it for long periods,
especially if there are several people in the car to
prevent window steaming up.
IMPORTANT The inside air recirculation system
makes it possible to reach the required “heating” or
“cooling” conditions faster. Do not use the air
recirculation function on rainy/cold days as it would
considerably increase the possibility of the windows
misting inside.
83
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
