REMOVING THE REAR
WINDOW SHELF
(Combi versions)
The rear window shelf fig. 80consists of
two parts. To remove it proceed as fol-
lows:
❒open the rear swing-doors;
❒lift the front part A-fig. 81by releasing
the pin A-fig. 82from its housing;
❒lift the rear part B-fig. 81by releasing
pins Band C-fig. 82from their hous-
ings.If the seat is completely folded, remove
the rear window shelf as described above
and position it between the backrests of
the front seats and the tipped rear seat.
The rear window shelf is fit back into place
by carrying out the operations described
above in reverse order.
fig. 80F0T0061mfig. 81
A
A
F0T0062mfig. 82
AAA
F0T0063m
Under no circumstances
should the rear seat be used
with the backrest tipped for carrying
cargos or luggage. The cargo may
crash against the backrest of the front
seats, thus causing serious injury to
passengers.
WARNING

69
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

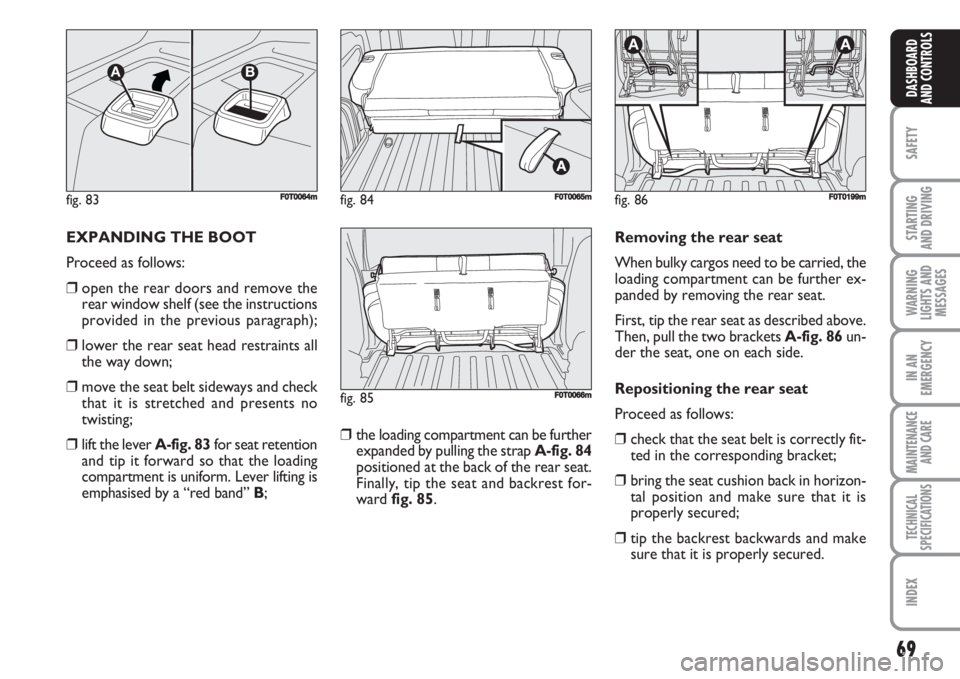

EXPANDING THE BOOT
Proceed as follows:
❒open the rear doors and remove the
rear window shelf (see the instructions
provided in the previous paragraph);
❒lower the rear seat head restraints all
the way down;
❒move the seat belt sideways and check
that it is stretched and presents no
twisting;
❒lift the lever A-fig. 83for seat retention
and tip it forward so that the loading
compartment is uniform. Lever lifting is
emphasised by a “red band” B;❒the loading compartment can be further
expanded by pulling the strap A-fig. 84
positioned at the back of the rear seat.
Finally, tip the seat and backrest for-
ward fig. 85.Removing the rear seat
When bulky cargos need to be carried, the
loading compartment can be further ex-
panded by removing the rear seat.
First, tip the rear seat as described above.
Then, pull the two brackets A-fig. 86un-
der the seat, one on each side.
Repositioning the rear seat
Proceed as follows:
❒check that the seat belt is correctly fit-
ted in the corresponding bracket;
❒bring the seat cushion back in horizon-
tal position and make sure that it is
properly secured;
❒tip the backrest backwards and make
sure that it is properly secured.
fig. 83
AB
F0T0064mfig. 84F0T0065m
fig. 85F0T0066m
fig. 86
AA
F0T0199m

70
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
fig. 89FF0T0045m
fig. 90F0T0067m
Before lifting the bonnet,
check that windscreen wiper
arm is not lifted from the windscreen.
WARNING
ANCHORING THE CARGO
For easier cargo fastening, eyebolts have
been supplied on the boot floor (varying
in number according to versions):
fig. 87: Cargo versions;
fig. 88: Combi versions.
BONNET
OPENING THE BONNET
Proceed as follows:
❒pull lever A-fig. 89in the direction in-
dicated by the arrow;
❒pull the lever B-fig. 90and lift the bon-
net;
❒lift the engine hood;
❒lift the engine hood support lever A-
fig. 91and accompany it until it snaps
into position.
fig. 87F0T0057m
fig. 88F0T0058m
fig. 91
A
F0T0216m

71
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
CLOSING THE BONNET
Proceed as follows:
❒lift the hood with one hand and with the
other pull toward you the device A-fig.
92and then lower the lever B;
❒lower the hood to approximately 20
centimetres from the engine compart-
ment, then let it drop, ensuring, trying
to lift it, that it is fully closed, not just
hooked in safety position. In the latter
case do not press on the hood, lift it
again and repeat the operation.IMPORTANT A label with a description
of the above engine hood opening/clos-
ing operations is located under the engine
hood (see fig. 92a).
The bonnet must always be
perfectly closed during trav-
el for safety reasons. Make sure that
the bonnet is perfectly closed and
that the lock is engaged. If you dis-
cover that the bonnet is not perfect-
ly closed during travel, stop immedi-
ately and close the bonnet in the cor-
rect manner.
WARNING
fig. 92
A
B
F0T0217mfig. 92a
F0Q0603m
12
CLACK
=
OK
PUSH TO OPEN12
PULL TO CLOSE
F0T0215m

72
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
ROOF RACK/SKI RACK
PREPARING THE
ATTACHMENTS
Attachments are located in points A,B,
C-fig. 93.
LONGITUDINAL BARS
fig. 94 (where provided)
Some versions of the vehicle feature two
longitudinal bars that can be used for car-
rying different types of objects (e.g. skis,
windsurf, etc…) with the addition of spe-
cific accessories.
fig. 93F0T0154m
fig. 94F0T0176m
Strictly adhere to the laws in
force concerning maximum
clearance.
WARNING
Check that the attachment
fastening screws are correct-
ly positioned after a few kilometres.
WARNING
Divide the cargo uniformly and
consider higher vehicle sensi-
tivity to side wind during trav-
el.
Do not exceed the maximum
loads allowed in the boot (see
section “Technical Specifica-
tions”).

73
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
HEADLIGHTS
DIRECTING THE BEAM
Correct direction of the headlights is es-
sential for the comfort and safety of the
driver and the other road users. To en-
sure the best visibility conditions during
travel with the headlights on the vehicle
must have beams aimed correctly. Con-
tact the Fiat Dealership to have the head-
lights checked and properly adjusted.
HEADLIGHT AIMING DEVICE
This device works with the key at MAR
and the dipped beam headlights on.
The vehicle slants backwards when it is
loaded, raising the beam. The beams must
therefore be directed again in this case.Headlight aiming device regulation
To adjust, press buttons Òand
fig. 95
on the control panel.
The display located on the instrument pan-
el provides a visual indication of the posi-
tions during adjustment operations.
Position 0 - one or two passengers on
front seats.
Position 1 - five passengers.
Position 2 - five passengers + loaded
boot.
Position 3 - driver + maximum admitted
cargo in the boot.
IMPORTANT Check beam aiming when-
ever the weight of the load carried
changes.FOG LIGHT AIMING DEVICE
(where provided)
Contact the Fiat Dealership to have the
fog lights checked and properly adjusted.
REGULATING THE BEAMS
ABROAD
Dipped beams factory adjustment depends
on the country where the vehicle is pur-
chased. In countries driving on the left, the
beams are aimed by affixing a purposeful-
ly studied adhesive film in order not to
dazzle the vehicles travelling in the oppo-
site direction. This adhesive film is pro-
vided in Lineaccessori Fiat and is available
at the Fiat Dealership.
fig. 95F0T0037m

74
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
ABS SYSTEM
The vehicle is fitted with an ABS braking
system, which prevents the wheels from
locking when braking, makes the most of
road grip and gives the best control when
emergency braking under difficult road
conditions.
The system is completed by EBD (Elec-
tronic Braking Force Distribution), which
distributes the braking action between
front and rear wheels.
IMPORTANT To achieve maximum effi-
ciency of the braking system, a running-
in period of about 500 km is required.
During this time, avoid sudden, repeated
and prolonged braking.ABS SYSTEM INTERVENTION
Intervention of the ABS is detected by a
slight pulsing of the brake pedal accompa-
nied by noise: such an event indicates that
you need to adjust your speed to the type
of road on which you are travelling.
When the ABS cuts in, and
you feel the brake pedal pul-
sating, do not remove your foot, but
keep it pressed; in doing so you will
stop in the shortest amount of space
possible depending on the current
road conditions.
WARNING
When the ABS trips, it means
that you are approaching
the grip limit between tyres and road:
slow down to exploit all the available
grip.
WARNING
The ABS system exploits the
tyre-road grip at best, but it
cannot improve it. Therefore, you
should take great care when driving
on slippery surfaces without taking
unnecessary risks.
WARNING

75
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
FAILURE INDICATIONS
ABS failure
ABS failure is indicated by the turning on
of warning light
>on the instrument pan-
el (together with the dedicated message
on the display in some versions) (see sec-
tion “Warning lights and messages”).
In the case, the braking system preserves
its efficiency, but cannot rely on the ex-
tra potentials offered by the ABS system.
Drive carefully to the nearest Fiat Deal-
ership to have the system checked.EBD failure
EBD failure is indicated by the turning on
of warning lights
>and xon the instru-
ment panel (together with the dedicated
message on the display in some versions)
(see section “Warning lights and mes-
sages”).
In this case, the rear wheels may sudden-
ly lock and the vehicle may swerve. Dri-
ve carefully to the nearest Fiat Dealership
to have the system checked.If warning light xonly lights
up on the instrument panel
(with a message on the display in
some versions), immediately stop the
vehicle and go to the nearest Fiat
Dealership. Leakage of hydraulic flu-
id from the braking system jeopardis-
es the functionality of the braking sys-
tem, either of the conventional type
or with ABS.
WARNING
