SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
PARTITIONS
(where provided)
CARGO VERSIONS
Fixed partition fig. 28
It is used to separate the front part of the
passenger compartment from the loading
compartment.
Fixed glass partition fig. 29
It is supplied with a central glass panel that
enables inspecting the cargo stability.
Fixed net partition fig. 30
It is used to separate the front part of the
passenger compartment from the loading
compartment. It is supplied with a metal
mesh that enables inspecting the cargo sta-
bility.
fig. 28F0T0179m
Rotating articulated partition
fig. 31
If bulky loads need to be carried, the par-
tition can be opened as follows.
❒Fold the passenger’s seat all the way
down so that it recesses (see instruc-
tions in previous pages);
❒from the loading compartment release
the pin A-fig. 32installed on the back
of the partition and slide it into the
housing B on the backrest of the fold-
ed seat.
fig. 29F0T0167m
fig. 31F0T0196m
fig. 30F0T0059m

37
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
fig. 33FF0T0177m
The partition is fitted back into place by
carrying out the operations described
above in reverse order.DRIVER’S SAFETY LADDER
(where provided) fig. 33
Some versions feature a stationary ladder
which protects the driver if the cargo is
unstable and enables further expansion of
the cargo space on the passenger’s side.
fig. 32F0T0210m
fig. 34F0T0195m
COMBI VERSIONS
Fixed partition (where provided)
fig. 34
It is installed behind the backrest of the
rear seats.

38
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
HEAD RESTRAINTS
FRONT fig. 35
Head restraints are adjustable in height
and they lock automatically in the required
position.
❒Upward adjustment Raise the head re-
straint until you hear it click in position.
❒Downward adjustment Press button A
and lower the head restraint.
fig. 35F0T0053m
Perform these adjustments
only when the vehicle is sta-
tionary and the engine is not running.
The head restraints must be adjust-
ed so that they support your neck and
not your head. Only in this way they
fullfill their protective action.
To optimise the protective action of
head restraints, adjust the backrest
upright and keep your head as close
as possible to the head restraint.
WARNINGREAR HEAD RESTRAINTS
(where provided) fig. 36
Lift the rear head restraints to use them.
To bring the head restraint back to its
non-use position, press buttons Aand
push the head restraint down into the
backrest.
To extract the head restraint, raise it un-
til hearing the click (position of use) indi-
cating that it has come all the way out.
IMPORTANT During travel rear seat pas-
sengers must always set the head re-
straints in the “all the way out” position.
fig. 36F0T0054m

39
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Perform these adjustments
only when the vehicle is sta-
tionary and the engine is not running.
WARNING
Under no circumstances
should aftermarket opera-
tions involving steering system or
steering column modifications (e.g.:
installation of anti-theft device) be
carried out that could badly affect
performance and safety. This also
causes the warranty to become null
and void and results in vehicle non-
compliance with type-approval re-
quirements.
WARNING
fig. 37FF0T0040m
STEERING WHEEL
In some versions the steering wheel po-
sition can be adjusted both axially and in
height.
Proceed as follows:
❒release the lever A-fig. 37pushing it
forwards (position 1);
❒adjust the steering wheel as required;
❒lock the lever Apulling it towards the
steering wheel (position 2).
REARVIEW MIRRORS
INTERAL MIRROR
(where provided) fig. 38
The mirror is fitted with a safety device
that causes its release in the event of a vi-
olent crash.
It can be moved using lever Ato two dif-
ferent positions: normal or antiglare.
DOOR MIRRORS
Manual mirror folding
When required (for example when the
mirror becomes an obstacle in narrow
spaces) it is possible to fold the mirror
moving it from position A-fig. 39to po-
sition B.
Rear door mirrors are curved
and slightly alter the percep-
tion of distance.
WARNING

40
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
fig. 38FF0T0027m
fig. 39F0T0042m
During vehicle travel the mir-
rors must always be posi-
tioned as shown in A-fig. 39.
WARNING
fig. 40F0T0194mfig. 41
B
C
D
F0T0041m
Manual regulation
From the vehicle inside pull the lever A-
fig. 40.Electrical regulation
(where provided)
Door mirrors are regulated electrically
only if the ignition key is in position MAR.
Proceed as follows:
❒use the diverter A-fig. 41to select the
desired mirror (right or left hand):
❒move the diverter Ain position Band
direct the left-hand side rear door mir-
ror;
❒move the diverter Ain position Dand
direct the right-hand side rear door
mirror.
After this regulation, reposition the di-
verter Ain the intermediate lock position
C.

41
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
HEATING AND CLIMATE CONTROL SYSTEM
fig. 42F0T0148m
1.Upper fixed vent - 2.Adjustable central vents - 3.Fixed side vent - 4.Adjustable side vents - 5.Vents in feet area

42
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
fig. 44FF0T0030mfig. 43F0T0031m
To use vents Aand Coperate the rele-
vant lever to turn them in the desired po-
sition. CENTRAL AND SIDE VENTS
fig. 43-44
A- Adjustable side vent.
B- Fixed vent for side windows.
C- Adjustable central vents.

43
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

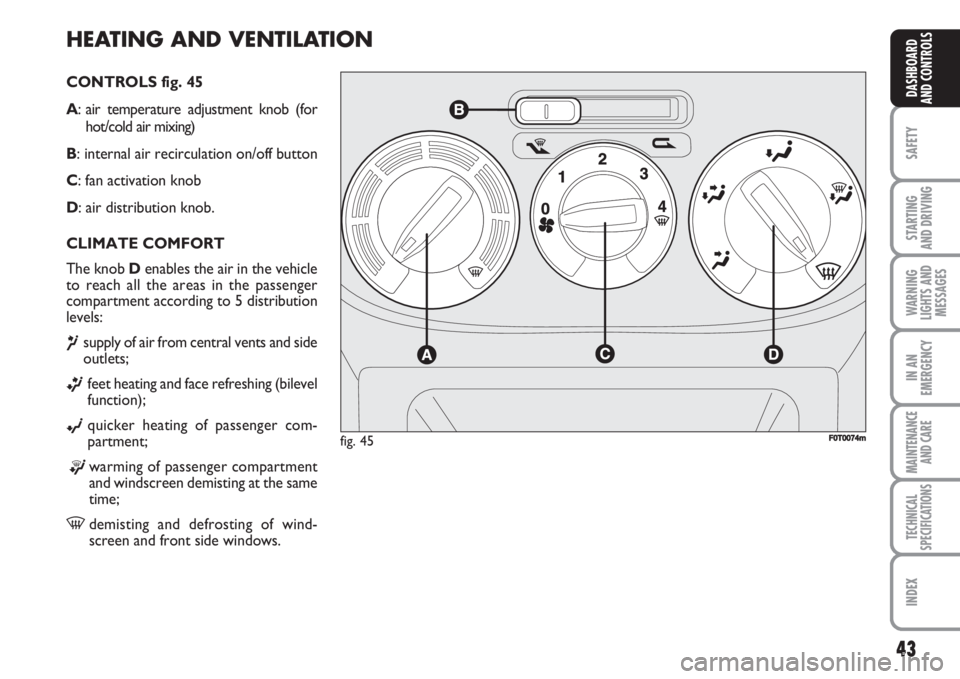

HEATING AND VENTILATION
CONTROLS fig. 45
A: air temperature adjustment knob (for
hot/cold air mixing)
B: internal air recirculation on/off button
C: fan activation knob
D: air distribution knob.
CLIMATE COMFORT
The knob Denables the air in the vehicle
to reach all the areas in the passenger
compartment according to 5 distribution
levels:
¶supply of air from central vents and side
outlets;
ßfeet heating and face refreshing (bilevel
function);
©quicker heating of passenger com-
partment;
®warming of passenger compartment
and windscreen demisting at the same
time;
-demisting and defrosting of wind-
screen and front side windows.
fig. 45FF0T0074m
