2007 FIAT DOBLO service

127Nero603 83 540 Connect DOBLO GB
CONNECT Nav
127

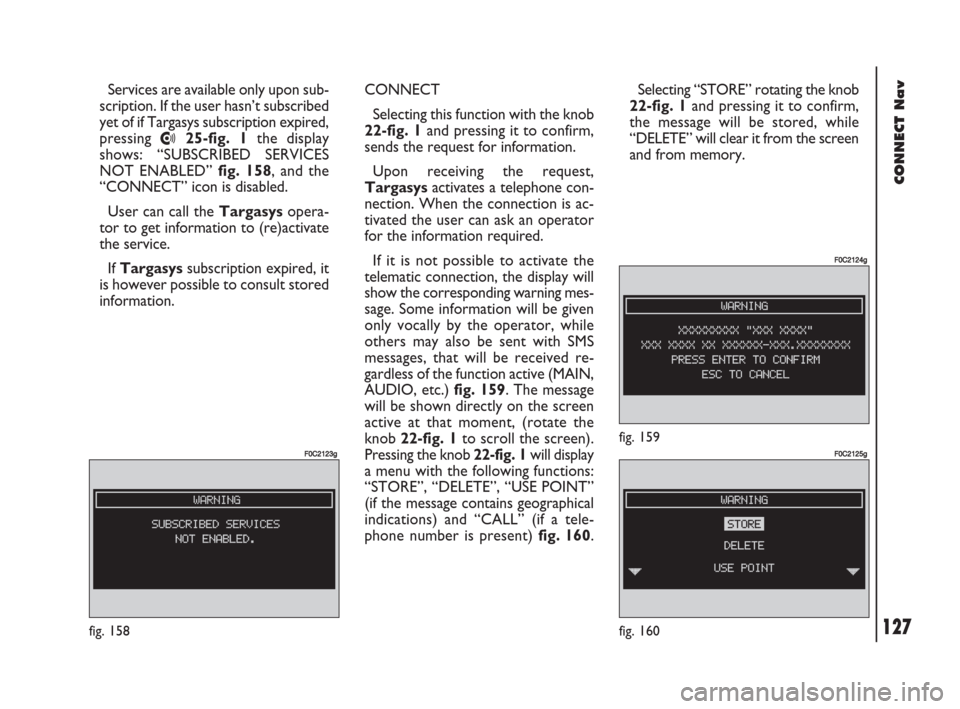

Services are available only upon sub-
scription. If the user hasn’t subscribed
yet of if Targasys subscription expired,
pressing
•25-fig. 1the display
shows: “SUBSCRIBED SERVICES
NOT ENABLED” fig. 158, and the
“CONNECT” icon is disabled.
User can call the Targasysopera-
tor to get information to (re)activate
the service.
If Targasyssubscription expired, it
is however possible to consult stored
information.
fig. 158
F0C2123g
CONNECT
Selecting this function with the knob
22-fig. 1and pressing it to confirm,
sends the request for information.
Upon receiving the request,
Targasysactivates a telephone con-
nection. When the connection is ac-
tivated the user can ask an operator
for the information required.
If it is not possible to activate the
telematic connection, the display will
show the corresponding warning mes-
sage. Some information will be given
only vocally by the operator, while
others may also be sent with SMS
messages, that will be received re-
gardless of the function active (MAIN,
AUDIO, etc.) fig. 159. The message
will be shown directly on the screen
active at that moment, (rotate the
knob 22-fig. 1to scroll the screen).
Pressing the knob 22-fig. 1 will display
a menu with the following functions:
“STORE”, “DELETE”, “USE POINT”
(if the message contains geographical
indications) and “CALL” (if a tele-
phone number is present) fig. 160. Selecting “STORE” rotating the knob
22-fig. 1and pressing it to confirm,
the message will be stored, while
“DELETE” will clear it from the screen
and from memory.
fig. 159
F0C2124g
fig. 160
F0C2125g
126-133 Doblo Connect GB 15-06-2007 10:35 Pagina 127

131Nero603 83 540 Connect DOBLO GB
CONNECT Nav
131fig. 169
F0C2148g
IMPORTANTThe roadside assis-
tance centre number cannot be set by
the user.
For both Roadside Assistance
and Medical Advice calls, if trans-
mission of the telematic call is not
successful, the screen shown in
fig. 168 will be displayed.“PERSONAL NUMBER”
FUNCTION
Selecting the “PERSONAL NUM-
BER” function on the “SOS” menu
main page using the knob 22-fig. 1and
pressing it to confirm, automatically
sends a phone call to a number set
previously by the user.
The procedure for setting this num-
ber is described in the “SETTINGS”
paragraph that follows.
“EMERGENCY 112”
FUNCTION
Selecting this function on the “SOS”
menu main page using the knob 22-fig.
1and pressing it to confirm, directly
sends a call to the police force.IMPORTANT“112” is the emer-
gency call service for all the countries
in which the public service is available.
The “Emergency 112” call can always
be activated, even if the telephone
card is not inserted in the slot 27-
fig. 1.
“SETTINGS” FUNCTION
Selecting this function on the “SOS”
menu main page using the knob 22-
fig. 1and pressing it to confirm, opens
a new screen with the “MEDICAL
ADVICE”, “PERSONAL NUMBER”
and “CONNECT CODE” functions,
fig. 169.
fig. 168
F0C2147g
126-133 Doblo Connect GB 15-06-2007 10:35 Pagina 131

133Nero603 83 540 Connect DOBLO GB
CONNECT Nav
133
When entering the phone number,
briefly press “ESC” 23-fig. 1to
delete the last entered digit and
press it longer to delete the entire
string.
CONNECT CODE
This allows to view the system ter-
minal identification code fig. 172: this
code shall be communicated to the
Targasyscentre when activating ser-
vices. During subscription you will be
given the activation and deactivation
procedures of the Telematic Services
offered by Targasys.CALLS FOR MEDICAL
ADVICE OR ROADSIDE
ASSISTANCE
During the forwarding of a call for as-
sistance to the operating centre, any
other operations activated are inter-
rupted and the volume of any audio
sources (except the phone) is muted.
These conditions will be maintained as
long as the call for assistance is active,
with the corresponding screen on the
display.
If a phone call is received while for-
warding a request for assistance, the
corresponding alert will not be shown
on the display but the ringer will ring.
If the user decides to accept the call
and briefly presses the ò13-fig. 1
key, the assistance call screen goes off
the display.
IMPORTANTThe call for assis-
tance is always forwarded; however, if
you accept the incoming call, the
Targasysoperator might have diffi-
culty in contacting you since the num-
ber could be busy. When the call has been sent, the dis-
play shows the corresponding call for-
warded message for about 4 seconds.
If for any reason the call for assis-
tance cannot be sent, the display
shows a warning message and the user
is then asked if he/she wants to acti-
vate a phone call in any case (*) to the
operating centre to avail of the service
required, even if in this case the op-
erating centre will no longer be able
to locate the vehicle.
(*) The call is normally made using the toll-
free number, while it is at the user’s expense
if it is made in roaming conditions.
fig. 172
F0C2151g
126-133 Doblo Connect GB 15-06-2007 10:35 Pagina 133

CONNECT Nav+
139Nero603 83 540 Connect DOBLO Livello 4 GB
139
Frequent numbers function ............................................ 182
Directory function ........................................................... 183
Last calls received function ............................................ 184
Last numbers called function ......................................... 184
Messages function ............................................................. 185
Network operator function ........................................... 186
PIN function ....................................................................... 186
Settings function ............................................................... 187
Information function ........................................................ 188
NAVIGATOR (NAV)................................................. 189
GENERAL INFORMATION .......................................... 189
SCREEN OPTIONS AND FUNCTIONS ................... 191
GRAPHIC INSTRUCTIONS ......................................... 191
VOICE INSTRUCTIONS ............................................... 192
NAVIGATION CD-ROM PLAYER .............................. 192
Navigation system menu ................................................. 193
Address – destination entry ........................................... 194
Points of interest – useful services files ....................... 199Last destinations ............................................................... 200
Destination directory ...................................................... 201
RDS TMC – information of general interest .............. 201
Atlas – destination entry in the map ............................ 204
Cahange display – information on display ................... 205
Alternative route .............................................................. 206
Delete destinations .......................................................... 206
Enable route calculation .................................................. 206
Map options ....................................................................... 207
Route options ................................................................... 208
ON-BOARD COMPUTER (TRIP)....................... 209
GENERAL INFORMATION .......................................... 209
Average speed ................................................................... 209
Distance traveled .............................................................. 209
Trip time ............................................................................ 209
Distance to destination ................................................... 209
E.A.T. ................................................................................... 209
VOICE RECOGNITION.......................................... 210
137-151 Doblo Connect GB 15-06-2007 10:36 Pagina 139

140Nero603 83 540 Connect DOBLO Livello 4 GB
CONNECT Nav+
140
GENERAL INFORMATION .......................................... 210
VOICE COMMANDS ..................................................... 211
Keywords – summary ..................................................... 211
VOICE COMMAND EXAMPLES ................................. 217
INFO AND ASSISTANCE SERVICES.............. 223
Infomobility function ........................................................ 224
Medical advice function ................................................... 226
Roadside assistance function .......................................... 227
Personal number function .............................................. 227
Emergency 112 function ................................................. 228
Settings functions .............................................................. 228
Calls for medical advice or
roadside assistance ........................................................... 229
137-151 Doblo Connect GB 15-06-2007 10:36 Pagina 140

146Nero603 83 540 Connect DOBLO Livello 4 GB
CONNECT Nav+
146
Legend Short push function Long push function (less than 1 second) (more than 1 second)
15 - SRCOperating mode choice: –
FM1-FM2-FM3-LW-MW-CD
16System on/off (pressing the knob) –
Volume control (turning the knob)
17 - MAIN/DARKSelecting main screen Darkening monitor (stand-by)
18 - AUDIO/OFFSelecting radio screen. Turning radio on Turning radio off
19 - TEL/OFFSelecting phone screen. Turning telephone on Turning telephone off
20 - NAV/MUTESelecting navigation function Excluding navigator voice messages
(NAV/MUTE function)
Reset voice messages
21 - TRIPSelecting computer screen –
22Selecting functions (turning the knob). Confirming selected –
function (pressing the knob). Drop-down menu
on (pressing the knob with MAIN or navigation screen)
23 - ESCExit screen selected. Return to higher level –
of menu, deleting functions that have not been confirmed
24 - RPTRepetition of last navigator voice instruction –
25 -•Display of Information and Assistance Services menu –
26 -˚Eject navigator CD-ROM or Audio CD –
27Slot for SIM telephone card –
28Slot for navigator CD-ROM and Audio CD –
137-151 Doblo Connect GB 15-06-2007 10:36 Pagina 146

CONNECT Nav+
147Nero603 83 540 Connect DOBLO Livello 4 GB
147
GENERAL
INFORMATION
IMPORTANT NOTES FOR
USE AND ROAD SAFETY
To avoid creating dangerous situa-
tions for yourself and others in use of
the system, please pay attention to the
following points:
– the CONNECT Nav+ must be
used keeping full control of the vehi-
cle; in the case of doubt in the use of
the functions, it is necessary to stop
before performing the various opera-
tions;
– use of the cell phone is prohibited
near explosive substances.
The navigation system allows you to
reach your destination, indicating each
route change stored on the navigation
CD-ROM. In fact, in calculating the
route, the system takes into account
of all the information stored concern-ing the roads, advising the best route.
However it cannot take account of the
traffic, sudden interruptions or any
other inconvenience.In carrying out any manoeuvre it is
always necessary to follow the rules of
the road, regardless of the advice giv-
en by the navigation system. If you
leave the suggested route, the naviga-
tion system will calculate a new one
and suggest it to you.
GENERAL INFORMATION
The CONNECT Nav+ controls and
provides information for the following
systems and functions:
– Radio with CD-ROM or Audio CD
player
– GSM Dual Band cell phone with
voice commands
– Navigation system
– On-board computer
– Information and assistance services.
The interface is the multifunction in-
formation display for all the integrat-
ed components.
The navigation system
helps the driver while dri-
ving by suggesting, vocally and
graphically, the best route to be fol-
lowed to reach the preset destina-
tion. The suggestions given by the
navigation system do not exempt
the driver from full responsibility
due to driving behaviour and com-
pliance with road and other traffic
regulations. The responsibility for
road safety always and anyway lies
with the vehicle’s driver.
WARNING
137-151 Doblo Connect GB 15-06-2007 10:36 Pagina 147

158Nero603 83 540 Connect DOBLO Livello 4 GB
CONNECT Nav+
158
Operation requirements
The “Fleet management” function is
operational if the following condi-
tions are present:
– “Fleet management” function
active;
– service centre telephone number
entered;
– vehicle ID entered;
– frequency set (timeor route);
– CONNECT Nav+ on;
– SIM card inserted;
– sufficient credit;
– GSM coverage.Failing message sending
Should one or more of the following
conditions - e.g.: CONNECT Nav+
off, SIM card not inserted or disabled,
insufficient GSM coverage - take place
when sending SMS messages, their reg-
ular transmission will be impaired.
In this case the system will store the
messages and send them later (max.
10 messages) when normal operating
conditions are restored.
IMPORTANTMore particularly,
the condition of CONNECT Nav+ off
will store the messages with incorrect
position, since the first position pre-
sent at system switching on will be de-
tected.SPEED LIMIT ALARM
When the preset vehicle speed lim-
it threshold is overcome, the CON-
NECT Nav+ will warn the driver by
a buzzer and a warning message on the
display. The “Speed limit warning” has
priority on whatever message and
stays on for 3 seconds from the mo-
ment in which the speed limit is over-
come.
To activate this function, proceed as
follows:
– press the “MAIN” button 17-fig. 1
to display the main screen;
– press knob 22-fig. 1and turn it to
select “Setup” then press again to con-
firm; the display will show the “Com-
mands&Set” menu;
fig. 14
F0D1088g
152-162 Doblo Connect GB 15-06-2007 10:37 Pagina 158
