2007 FIAT 600 ESP

1
Dear New Car Owner
Thank you for selecting Fiat and congratulations on your choice of a Fiat 600.
We have written this handbook to help you get to know all your new Fiat 600 features and use it in the best pos-
sible way.
You should read it right through before taking the road for the first time. You will find information, tips and im-
portant warnings regarding the driving of your car to help you derive the maximum from your Fiat 600’s techno-
logical features.
You are recommended to read carefully the warnings and indications, marked with the respective symbols:
personal safety;
the car’s wellbeing;
environmental protection.
The enclosed Fiat Warranty Booklet list the services that Fiat offers its Customers:
• the Warranty Certificate with terms and conditions for maintaining its validity
• the range of additional services available to Fiat Customers.
Best regards and good motoring.
This Owner Handbook describes all the Fiat 600 versions. As a consequence, you should consider only
the information which is related to the engine and bodywork version of the car you purchased.
001-069 Seicento GB 22-11-2007 10:49 Pagina 1

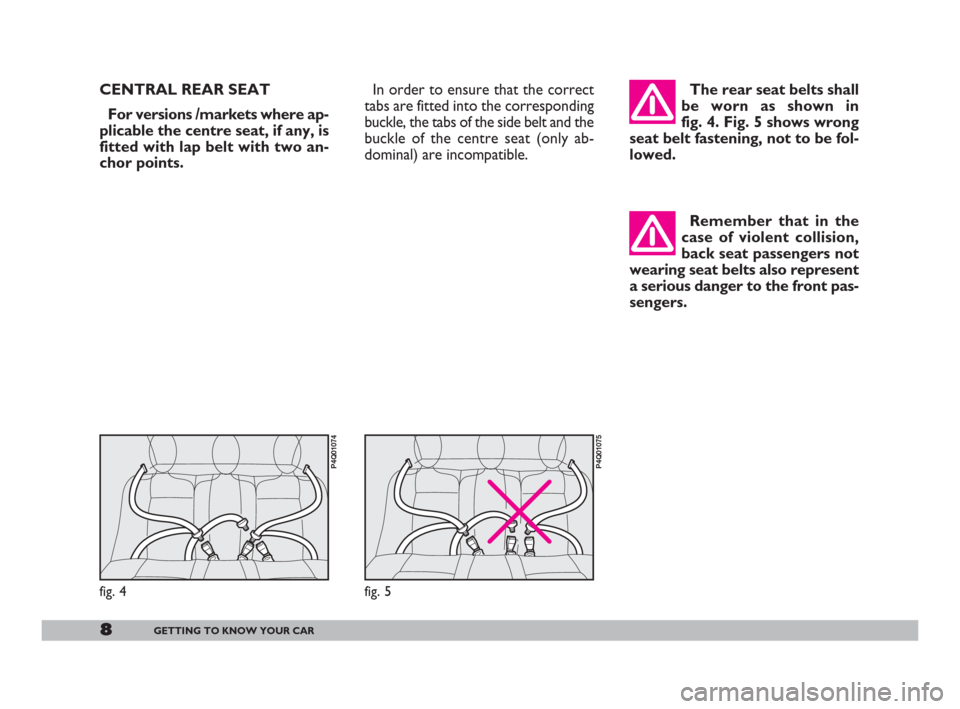

The rear seat belts shall
be worn as shown in
fig. 4. Fig. 5 shows wrong
seat belt fastening, not to be fol-
lowed.
Remember that in the
case of violent collision,
back seat passengers not
wearing seat belts also represent
a serious danger to the front pas-
sengers.In order to ensure that the correct
tabs are fitted into the corresponding
buckle, the tabs of the side belt and the
buckle of the centre seat (only ab-
dominal) are incompatible.
8GETTING TO KNOW YOUR CAR
CENTRAL REAR SEAT
For versions /markets where ap-
plicable the centre seat, if any, is
fitted with lap belt with two an-
chor points.
fig. 4
P4Q01074
fig. 5
P4Q01075
001-069 Seicento GB 22-11-2007 10:49 Pagina 8

33GETTING TO KNOW YOUR CAR
DIRECTIONAL AND
ADJUSTABLE AIR VENTS
fig. 33
The vents can be rotated upwards
or downwards.
A- Control for adjusting air flow:
turned to ¥vent open.
turned to çvent closed.
B- Control for directing air flow.
C- Fixed vent for side windows.CONTROLS fig. 34
A- Air temperature knob (mixing
hot and cold air).
B- Fan knob .
C- Air distribution knob.
D- Air recirculation slider. This pre-
vents air from being taken in from the
outside.HEATING
1)Air temperature knob A-fig. 34:
pointer in the red sector.
2)Fan knob B: pointer at required
speed.
3)Air distribution knob C: pointer at:
≤to warm the feet and demist the
windscreen at the same time;
¥to direct air to the central and
side vents;
μto warm the feet and keep the
face cool (intermediate position);
wto heat when the outside tem-
perature is especially low: to send
most air to the footwell, close the
central and side vents;
-to rapidly demist the windscreen.
fig. 33
P4Q00047
fig. 34
P4Q00019
001-069 Seicento GB 22-11-2007 10:49 Pagina 33

35GETTING TO KNOW YOUR CAR
VENTILATION
1)Central and side vents: com-
pletely open.
2)Air temperature knob A-fig. 34:
pointer in the blue sector.
3)Slider Dat
U.
4)Fan knob B: pointer at required
speed.
5)Air distribution knob C: pointer
at ¥.
RECIRCULATION
When the slider Dis in position
Tonly air already inside the pas-
senger compartment is recirculated.
IMPORTANTThis function is par-
ticularly useful when the outside air is
heavily polluted (in a traffic jam, tun-
nel etc.). You are advised against us-
ing this function for long periods how-
ever, especially if there are a lot of
people in the car. Do not use the re-
circulation function during cold/wet
weather as this will increase the like-
lihood of the windows misting up.
MANUAL CLIMATE
CONTROL SYSTEM
The climate control system is ad-
justed manually.
CONTROLS fig. 35
Switch E automatically sets the fan
to the 1
stspeed.
A- Air temperature knob (mixing
hot and cold air).
B- Fan knob.
C- Air distribution knob.
D- Air recirculation slider. IMPORTANTWhen the outside
temperature is very high, the air will
be cooled more quickly if the air re-
circulation function is turned on. This
function is also particularly useful
when the outside air is heavily pol-
luted (in a traffic jam, tunnel etc.). You
are advised against using this function
for long periods however, especially if
there are a lot of people in the car.
E- Climate control on/off switch.
The system uses refrig-
erating fluid R134a which
will not pollute the envi-
ronment if it accidentally leaks.
Under no circumstances should
fluid R12 be used as this is in-
compatible with the system’s
component parts.
fig. 35
P4Q00020
001-069 Seicento GB 22-11-2007 10:49 Pagina 35

40GETTING TO KNOW YOUR CAR
The use of the hazard
lights is governed by the
traffic regulations of the
country the car is driven in.
These laws should be complied
with.
SWITCHES AND CONTROL
BUTTONS fig. 47
The buttons are located under the
central air vents.
The controls can only be operated
when the ignition key is at MAR.
The LED in the button will light up
when the respective function is on.CONTROLS
HAZARD LIGHTS
These come on when switch A-
fig. 46, is pressed regardless of the
position of the ignition key.
When these lights are on, the sym-
bol on the switch flashes.
Press the switch again to switch the
lights off.
fig. 46
P4Q00013
A - Front foglight on/off button. The
external lights must be on to switch
the front foglights on.
B- Rear foglight on/off button. The
external lights or the front foglights
must be on to switch the rear fog-
lights on. The rear foglights will be
switched off when the ignition key is
turned to STOP. If required, switch
the rear foglights back on when you
start the engine again.
C- Heated rear window on/off but-
ton.
D- Climate control system on/off
button.
fig. 47
P4Q00205
001-069 Seicento GB 22-11-2007 10:49 Pagina 40

55GETTING TO KNOW YOUR CAR
The ABS exploits the
road hold available as
much as possible but can-
not increase it. You should al-
ways drive carefully on slippery
surfaces and avoid any unneces-
sary risks.Braking while cornering always re-
quires extreme care even when using
ABS.
The most important advice to follow
is this:
If the ABS intervenes, it
means that the grip be-
tween the type and the
road is reduced with respect to
the normal conditions. Reduce
speed immediately to match the
poor road conditions.
If there is a fault in the
system and the instru-
ment panel warning light
>comes on, drive you car
slowly to a Fiat Dealership, to
have the system checked and put
right.When the ABS cuts in,
and you feel the brake
pedal pulsating, do not
remove your foot, but keep it
pressed. In doing so you will stop
in the shortest amount of space
possible under the current road
conditions.
If you follow these tips you will be
able to brake better in any situation.
IMPORTANTCars with ABS may
only be fitted with wheel rims, tyres
and brake pads of the make and
model approved by the manufacturer.The system is completed with an
electronic brake force distributor
called EBD which improves braking
system performance by means of the
ABSsystem control unit and sensors.
The car is fitted with an
electronic braking device
(EBD). The >and x
warning light will come on at the
same time when the engine is
running to indicate that there is
an EBD system failure. In this
case violent braking may be ac-
companied by early rear wheel
locking with the possibility of
skidding. Drive the car extremely
carefully to the nearest Fiat Deal-
ership to have the system
checked.
001-069 Seicento GB 22-11-2007 10:49 Pagina 55

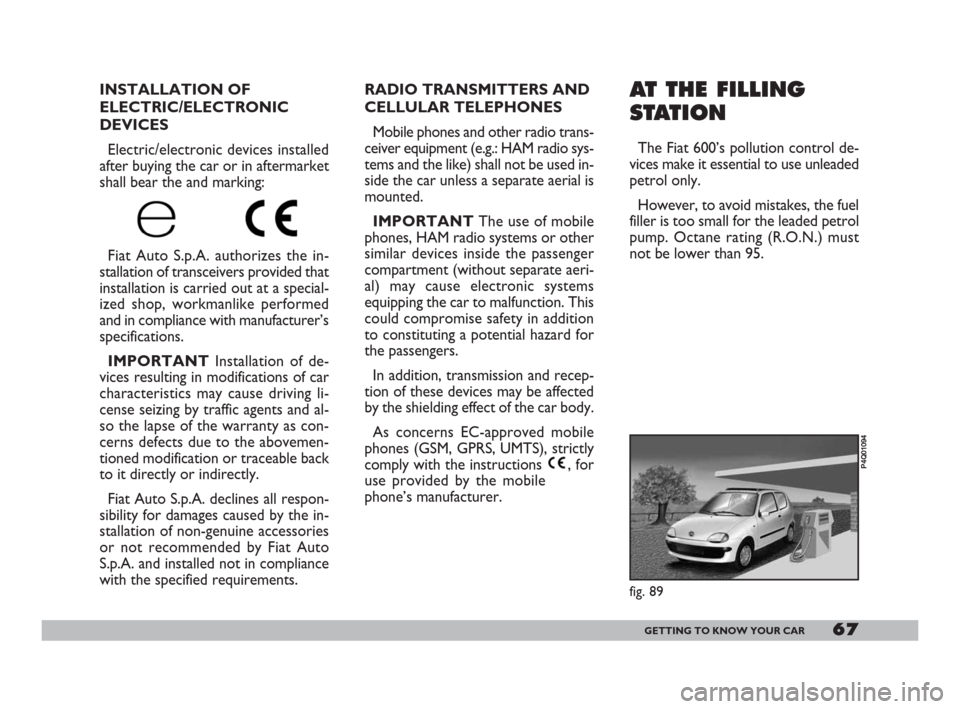

67GETTING TO KNOW YOUR CAR
AT THE FILLING
STATION
The Fiat 600’s pollution control de-
vices make it essential to use unleaded
petrol only.
However, to avoid mistakes, the fuel
filler is too small for the leaded petrol
pump. Octane rating (R.O.N.) must
not be lower than 95.
fig. 89
P4Q01094
INSTALLATION OF
ELECTRIC/ELECTRONIC
DEVICES
Electric/electronic devices installed
after buying the car or in aftermarket
shall bear the and marking:
Fiat Auto S.p.A. authorizes the in-
stallation of transceivers provided that
installation is carried out at a special-
ized shop, workmanlike performed
and in compliance with manufacturer’s
specifications.
IMPORTANTInstallation of de-
vices resulting in modifications of car
characteristics may cause driving li-
cense seizing by traffic agents and al-
so the lapse of the warranty as con-
cerns defects due to the abovemen-
tioned modification or traceable back
to it directly or indirectly.
Fiat Auto S.p.A. declines all respon-
sibility for damages caused by the in-
stallation of non-genuine accessories
or not recommended by Fiat Auto
S.p.A. and installed not in compliance
with the specified requirements. RADIO TRANSMITTERS AND
CELLULAR TELEPHONES
Mobile phones and other radio trans-
ceiver equipment (e.g.: HAM radio sys-
tems and the like) shall not be used in-
side the car unless a separate aerial is
mounted.
IMPORTANTThe use of mobile
phones, HAM radio systems or other
similar devices inside the passenger
compartment (without separate aeri-
al) may cause electronic systems
equipping the car to malfunction. This
could compromise safety in addition
to constituting a potential hazard for
the passengers.
In addition, transmission and recep-
tion of these devices may be affected
by the shielding effect of the car body.
As concerns EC-approved mobile
phones (GSM, GPRS, UMTS), strictly
comply with the instructions , for
use provided by the mobile
phone’s manufacturer.
001-069 Seicento GB 22-11-2007 10:50 Pagina 67

75DRIVING YOUR CAR
Top speed
As speed increases, so does the fuel
consumption: note that passing from
90 to 120 km/h increases consump-
tion by about +30%. Keep your speed
as steady as possible and avoid un-
necessary braking and accelerations
that cost fuel and increase emissions
considerably. It is better to drive
“smoothly” trying to foresee the ma-
noeuvres to avoid imminent dangers
and always respect the safety distance
to avoid the need to slow down sud-
denly.
Acceleration
Sudden and sharp accelerations
revving up the engine increase con-
sumption and emissions; accelerate
gradually and do not exceed the max-
imum torque.USE
Cold start
Short journeys and frequent cold
start-ups do not allow the engine to
reach the best running temperature.
As a result, consumption rises (from
+15 to +30% in town) and so do the
harmful emissions.
Traffic situations and road
conditions
Consumption rises in heavy traffic, in
traffic jams where it is constantly nec-
essary to shift to low gears or in big
cities with many traffic lights.
Also twisting roads, mountain roads
and rough road surfaces pay a heavy
toll on consumption.
Hold-ups in traffic
During hold-ups (e.g.: level crossings)
switch off the engine.CHEAP RUNNING
THAT RESPECTS
THE ENVIRONMENT
Environmental protection has been
one of the guiding principles in the
production of Fiat 600. It is no acci-
dent that its pollution control equip-
ment is much more effective than that
required by current legislation.
Nonetheless, the environment can-
not get by without a concerted effort
from everyone.
By following a few simple rules you
can avoid harming the environment
and often cut down fuel consumption
at the same time.
On this subject, a few useful tips
have been given below to supplement
those marked by symbol #, at various
points of the handbook.
You are asked to read both the for-
mer and the latter carefully.
070-082 Seicento GB 22-11-2007 10:50 Pagina 75
