65GETTING TO KNOW YOUR CAR
WIRING DIAGRAM AND ADDITIONAL BRANCHES fig. 86
A- Aerial
B- Radio receiver unit connection
C- Speaker on right dashboard
panel
D- Speaker on left dashboard panel
E- Power supply fuses
F- Power supply with extra fuse for
amplifier installation only (for systems
with 20 + 20W output or higher).
Wire colour coding:
A=light blue - BN=white/black - N=black -
NZ=black/purple - RN=red/black -
RV=red/green - SN=pink/black
F
E
DC
B
B
A
15
ST EQ NL CR
CARD1 2 3 4 5 6 SEARCH SCAN.
22
RN
BNNZ
SN
N RV
A
fig. 86
P4Q00181
001-069 Seicento GB 22-11-2007 10:50 Pagina 65

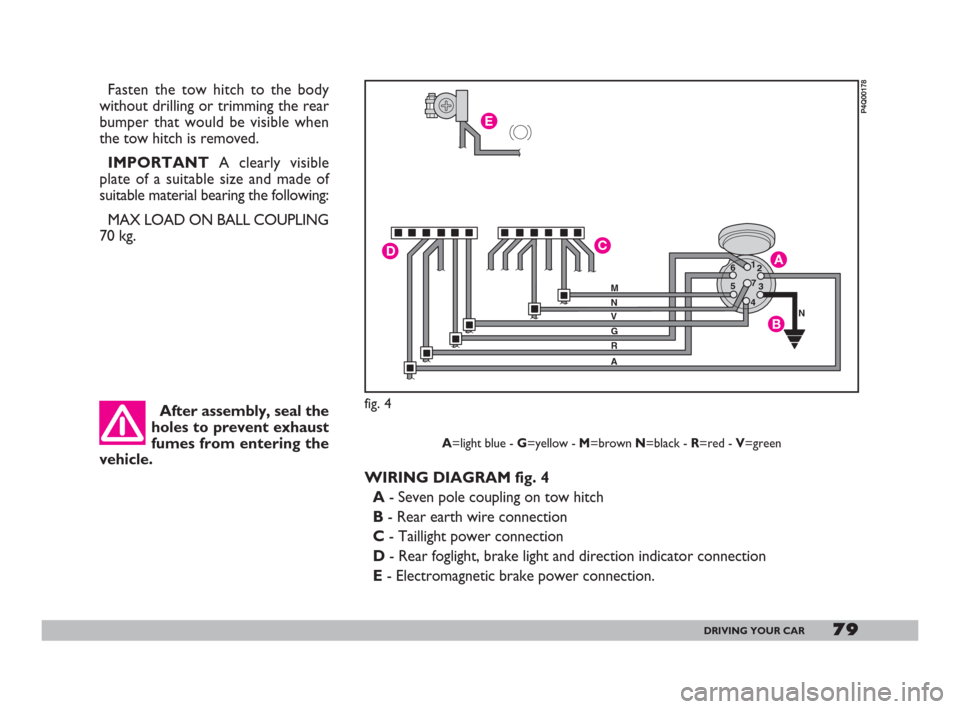

79DRIVING YOUR CAR
Fasten the tow hitch to the body
without drilling or trimming the rear
bumper that would be visible when
the tow hitch is removed.
IMPORTANT A clearly visible
plate of a suitable size and made of
suitable material bearing the following:
MAX LOAD ON BALL COUPLING
70 kg.
After assembly, seal the
holes to prevent exhaust
fumes from entering the
vehicle.
E
DCA
B
1
2
3
4 5 6
7
M
N
V
G
R
AN
fig. 4
P4Q00178
A=light blue - G=yellow - M=brown N=black - R=red - V=green
WIRING DIAGRAM fig. 4
A- Seven pole coupling on tow hitch
B- Rear earth wire connection
C- Taillight power connection
D- Rear foglight, brake light and direction indicator connection
E- Electromagnetic brake power connection.
070-082 Seicento GB 22-11-2007 10:50 Pagina 79
