2007 CITROEN C3 PLURIEL DAG Owners Manual

VII
130

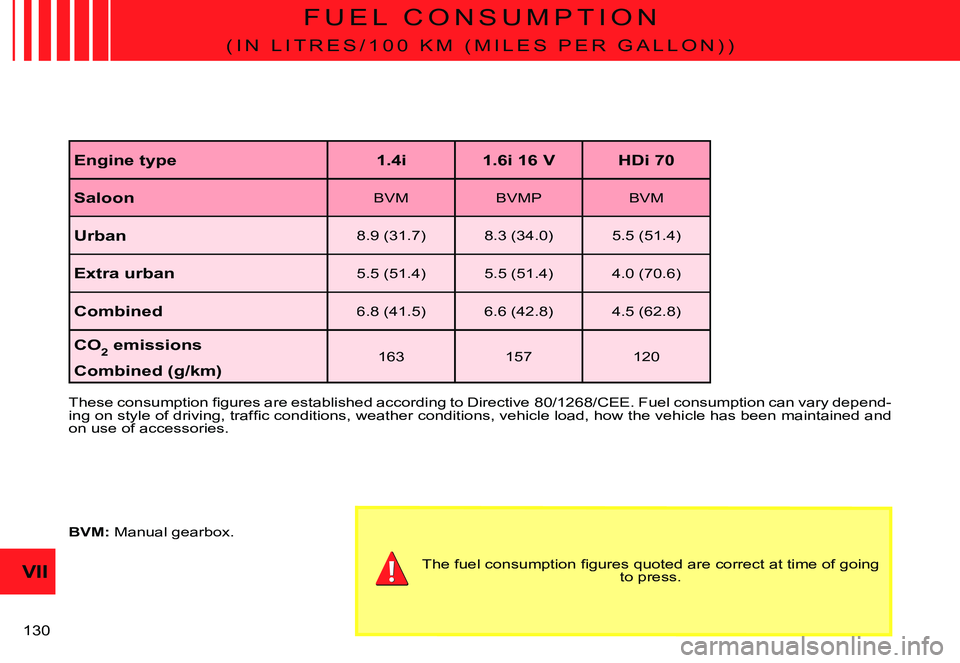

F U E L C O N S U M P T I O N
( I N L I T R E S / 1 0 0 K M ( M I L E S P E R G A L L O N ) )
These consumption fi gures are established according to Directive 80/1268/CEE. Fuel consumption can vary depend-ing on style of driving, traffi c conditions, weather conditions, vehicle load, how the vehicle has been maintained and on use of accessories.
Engine type1.4i1.6i 16 VHDi 70
SaloonBVMBVMPBVM
Urban8.9 (31.7)8.3 (34.0)5.5 (51.4)
Extra urban5.5 (51.4)5.5 (51.4)4.0 (70.6)
Combined6.8 (41.5)6.6 (42.8)4.5 (62.8)
CO2 emissions
Combined (g/km)163157120
The fuel consumption fi gures quoted are correct at time of goi ng to press.
BVM: Manual gearbox.

A
A
B
D
1
C
VII
131

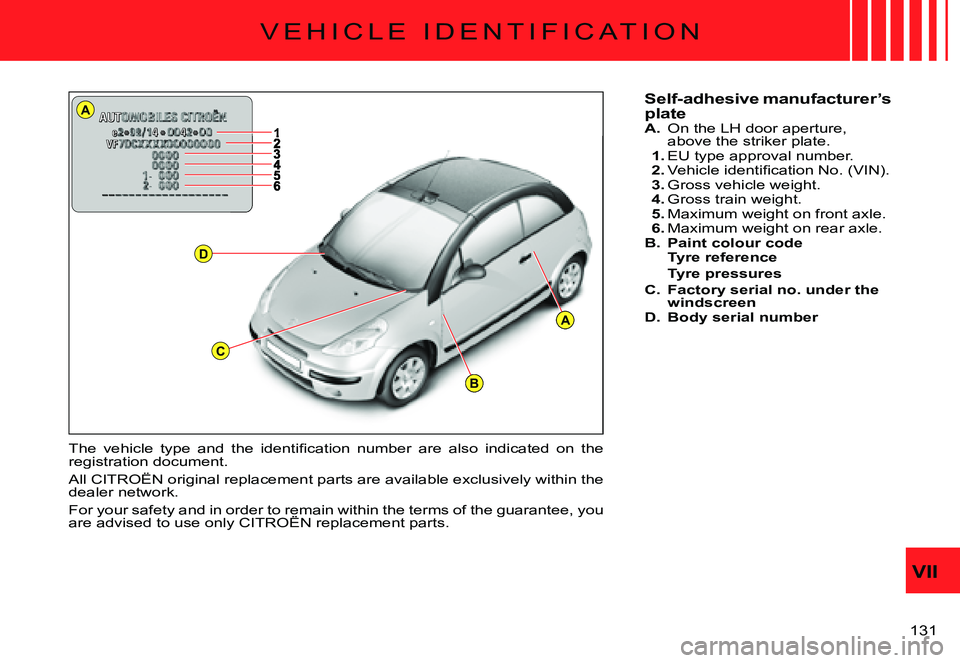

V E H I C L E I D E N T I F I C A T I O N
Self-adhesive manufacturer’s plateA. On the LH door aperture, above the striker plate.1. EU type approval number.2. Vehicle identifi cation No. (VIN).3. Gross vehicle weight.4. Gross train weight.5. Maximum weight on front axle.6. Maximum weight on rear axle.B. Paint colour codeTyre reference
Tyre pressures
C. Factory serial no. under the windscreenD. Body serial number
The vehicle type and the identifi cation number are also indicated on the registration document.
All CITROËN original replacement parts are available exclusively w ithin the dealer network.
For your safety and in order to remain within the terms of the guarantee, you are advised to use only CITROËN replacement parts.For your safety and in order to remain within the terms of order to remain

ABCDEFGHIJK
NPMROQL
1
4
6
2
3
5S

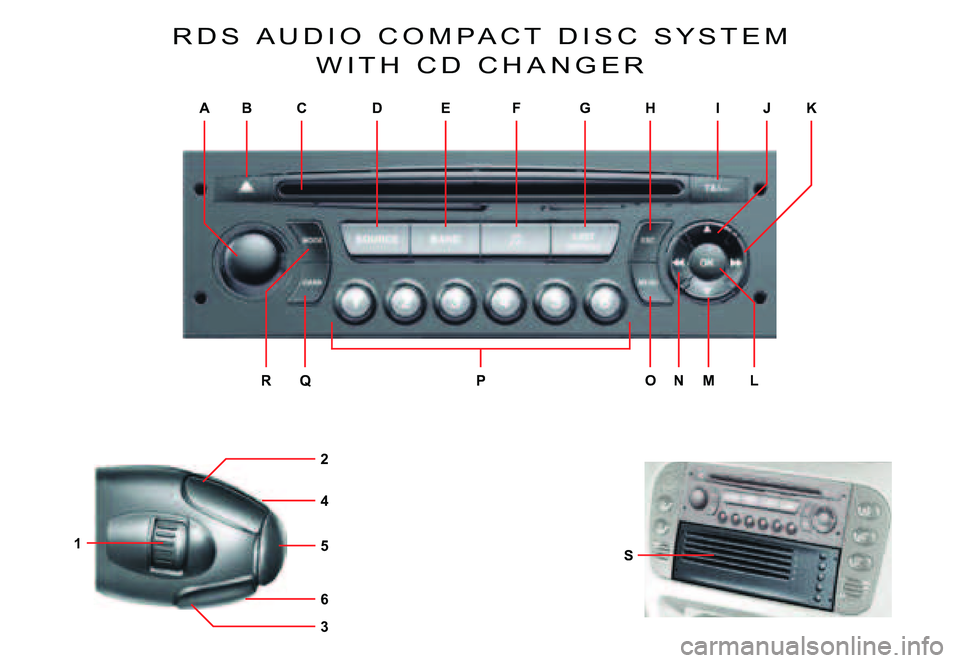

R D S A U D I O C O M P A C T D I S C S Y S T E M
W I T H C D C H A N G E R

2
AOn / Off.Volume adjust.
BCD eject.
CCD aper ture.
DSOURCESelection of sound source (Radio, CD, CD changer).
EBAND/AST
Shor t press : Selection of frequency bands and memor y banks.Long press : Automatic pre-set function (Autostore).
FCall-up of audio adjustments :Sound ambiences, bass, treble, loudness, fade, balance, speed-sensitive volume.
GLIST
Radio source :Short press : Display of the list of radio stations available (30 maximum).Long press : Update of list of stations.CD source : Display of list of tracks of the CD.

ABCDEFGHIJK
NPMROQL
1
4
6
2
3
5S
R D S A U D I O C O M P A C T D I S C S Y S T E M
W I T H C D C H A N G E R

3
1
Radio source :Scrolling of pre-set stations.Within a menu, selection of a choice.CD changer source :Selection of CD.

4
ON / O FFWith the key in Drive position M, press on control A to switch the radio on or off.
Note :If the radio was on the last time you switched of f the ignition, it will resume automatically when you switch on the ignition again. You will not have to press on control A.After switching off the ignition, you can still operate the audio system even without the ignition key being present. Simply press on button A. The system will turn itself off after approx.30minutes.
ANTI -THEFT SYSTEMThis radio is c oded in such a way as to function only on your par ticular vehicle. It would be unusable if installed on any other vehicle.
Note :T he ant i - t hef t system i s auto m at i c an d requires no action on your part.

5
NOTES ON RADIO RECEPTIONYour radio will be subject to certain phenom-ena that are not encountered by domestic systems.The reception of AM and FM signals may suf fer from inter ference, which is caused by the nature and propagation of the signals and does not refl ect on the quality of your radio installation.In AM, the reception may be affected when passing under power lines or bridges, or when travelling through tunnels.In FM mode, the reception may be affected by the distance from the station transmit-ter, the refl ecting of signals of f obstacles (mountains, hills, tower blocks) and radio blackspots (no coverage from the station transmitter).
S ELECTION OF RADIO SOURCEPress button D to select the source.You can also do this by means of control 5at the steering wheel.
S E L EC T I O N O F FR EQ U E N C I E S A N D MEMORY BANKSPress button E successively to go through the memor y banks FM1, FM 2 and FM 3, fo r t he FM waveband, and t he m em o r y banks MW/LW, for the AM waveband.
R A D I O S O U R C E
M ANUAL SEARCHManual seearch is via buttons J or M.By keeping button J or M pressed, you will be able to scroll through the waveband. Scrolling will stop as soon as you release the button. The radio will remain tuned to the frequency that is displayed.
T UNING SENSITIVITYAutomat ic searc hes c an be c ar r ied out according to two levels of sensitivity :To capture the most power ful transmit-ters, choose the local search mode “LO” (default option).To capture the weakest or most distant transmitters, choose the sensitive search mode “DX”.Search for a station is done fi rst in “LO” (loc al) sensitivit y, then in “DX” (dist ant) sensitivity.To commence a search in sensitivity “DX” (distant) immediately , press twice in succes-sion on one of the buttons K or N.
