2007 CHEVROLET HHR service

This schedule is for vehicles that:
carry passengers and cargo within
recommended limits. You will nd these limits
on the Tire and Loading Information label.
SeeLoading Your Vehicle on page 269.
are driven on reasonable road surfaces within
legal driving limits.
use the recommended fuel. SeeGasoline
Octane on page 291.
The services inScheduled Maintenance on
page 393should be performed when indicated.
SeeAdditional Required Services on page 396and
Maintenance Footnotes on page 397for further
information.
{CAUTION:
Performing maintenance work on a vehicle
can be dangerous. In trying to do some
jobs, you can be seriously injured. Do your
own maintenance work only if you have the
required know-how and the proper tools
and equipment for the job. If you have any
doubt, see your GM Goodwrench
®dealer to
have a qualied technician do the work.
Some maintenance services can be complex. So,
unless you are technically qualied and have
the necessary equipment, you should have your
GM Goodwrench
®dealer do these jobs.
When you go to your GM Goodwrench
®dealer for
your service needs, you will know that GM-trained
and supported service technicians will perform
the work using genuine GM parts.
392

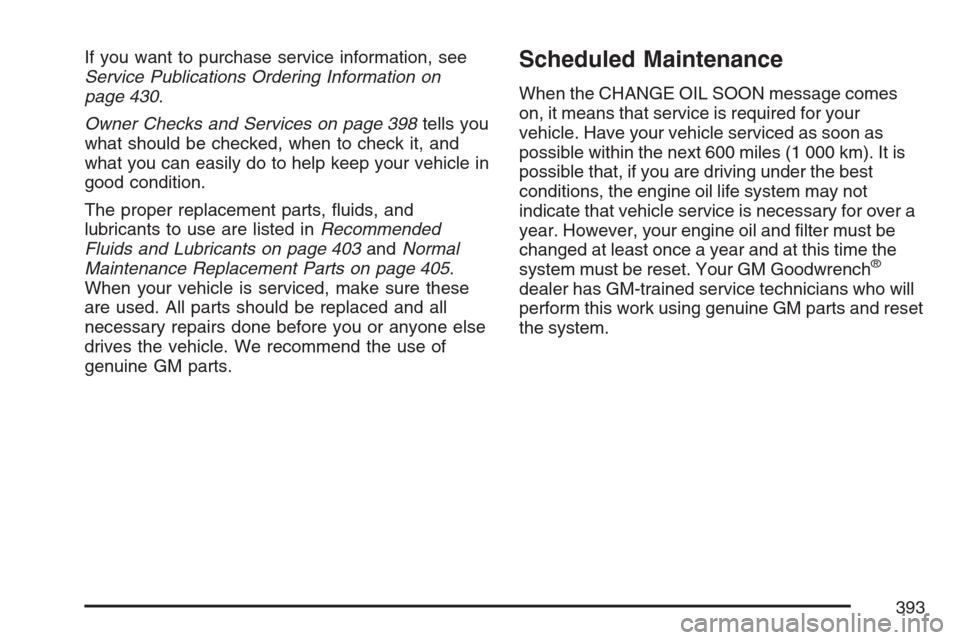

If you want to purchase service information, see
Service Publications Ordering Information on
page 430.
Owner Checks and Services on page 398tells you
what should be checked, when to check it, and
what you can easily do to help keep your vehicle in
good condition.
The proper replacement parts, uids, and
lubricants to use are listed inRecommended
Fluids and Lubricants on page 403andNormal
Maintenance Replacement Parts on page 405.
When your vehicle is serviced, make sure these
are used. All parts should be replaced and all
necessary repairs done before you or anyone else
drives the vehicle. We recommend the use of
genuine GM parts.Scheduled Maintenance
When the CHANGE OIL SOON message comes
on, it means that service is required for your
vehicle. Have your vehicle serviced as soon as
possible within the next 600 miles (1 000 km). It is
possible that, if you are driving under the best
conditions, the engine oil life system may not
indicate that vehicle service is necessary for over a
year. However, your engine oil and lter must be
changed at least once a year and at this time the
system must be reset. Your GM Goodwrench
®
dealer has GM-trained service technicians who will
perform this work using genuine GM parts and reset
the system.
393

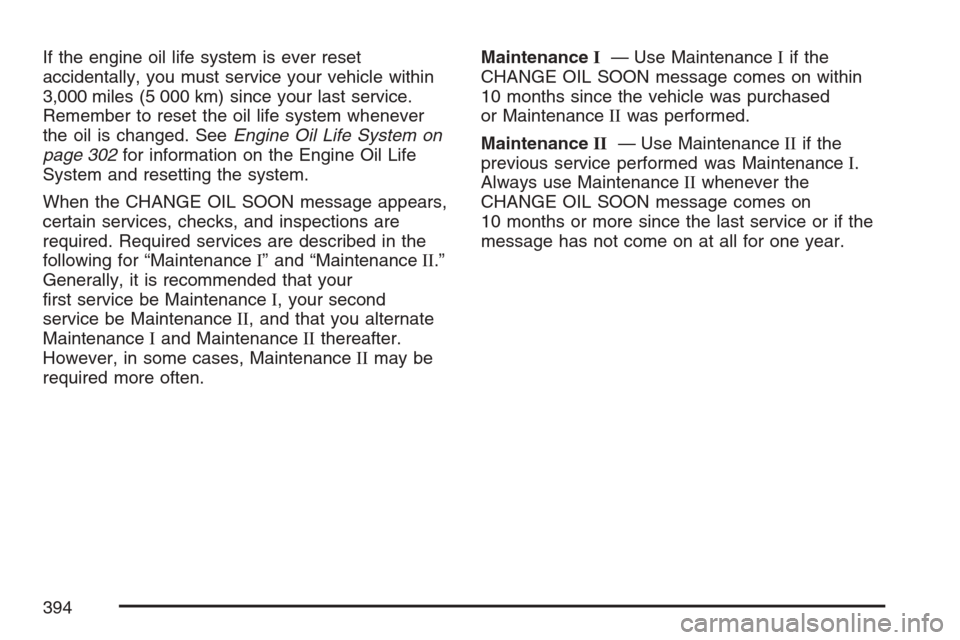

If the engine oil life system is ever reset
accidentally, you must service your vehicle within
3,000 miles (5 000 km) since your last service.
Remember to reset the oil life system whenever
the oil is changed. SeeEngine Oil Life System on
page 302for information on the Engine Oil Life
System and resetting the system.
When the CHANGE OIL SOON message appears,
certain services, checks, and inspections are
required. Required services are described in the
following for “MaintenanceI” and “MaintenanceII.”
Generally, it is recommended that your
rst service be MaintenanceI, your second
service be MaintenanceII, and that you alternate
MaintenanceIand MaintenanceIIthereafter.
However, in some cases, MaintenanceIImay be
required more often.MaintenanceI— Use MaintenanceIif the
CHANGE OIL SOON message comes on within
10 months since the vehicle was purchased
or MaintenanceIIwas performed.
MaintenanceII— Use MaintenanceIIif the
previous service performed was MaintenanceI.
Always use MaintenanceIIwhenever the
CHANGE OIL SOON message comes on
10 months or more since the last service or if the
message has not come on at all for one year.
394

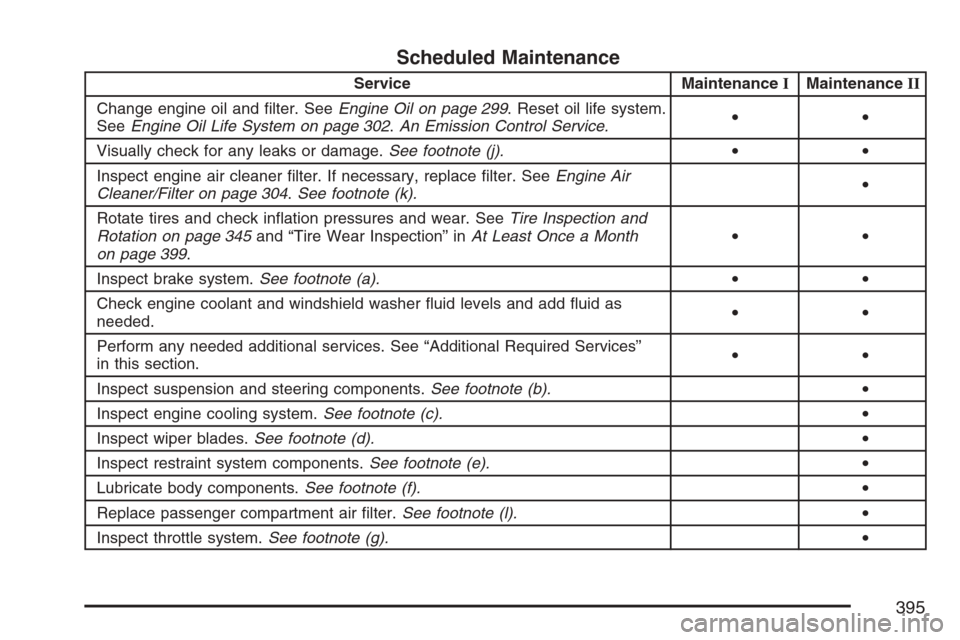

Scheduled Maintenance
Service MaintenanceIMaintenanceII
Change engine oil and lter. SeeEngine Oil on page 299. Reset oil life system.
SeeEngine Oil Life System on page 302.An Emission Control Service.••
Visually check for any leaks or damage.See footnote (j).••
Inspect engine air cleaner lter. If necessary, replace lter. SeeEngine Air
Cleaner/Filter on page 304.See footnote (k).•
Rotate tires and check ination pressures and wear. SeeTire Inspection and
Rotation on page 345and “Tire Wear Inspection” inAt Least Once a Month
on page 399.••
Inspect brake system.See footnote (a).••
Check engine coolant and windshield washer uid levels and add uid as
needed.••
Perform any needed additional services. See “Additional Required Services”
in this section.••
Inspect suspension and steering components.See footnote (b).•
Inspect engine cooling system.See footnote (c).•
Inspect wiper blades.See footnote (d).•
Inspect restraint system components.See footnote (e).•
Lubricate body components.See footnote (f).•
Replace passenger compartment air lter.See footnote (l).•
Inspect throttle system.See footnote (g).•
395

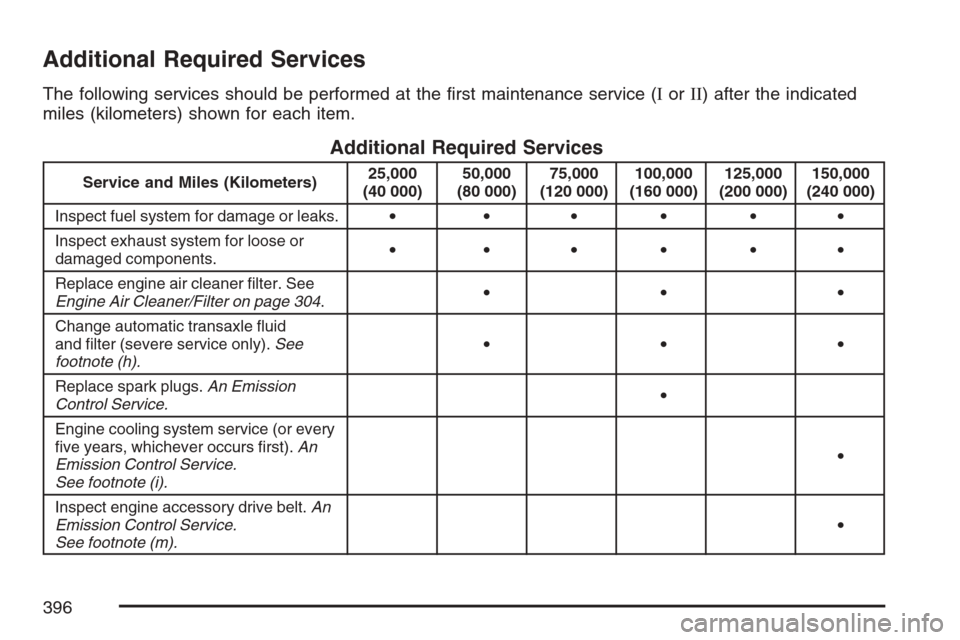

Additional Required Services
The following services should be performed at the rst maintenance service (IorII) after the indicated
miles (kilometers) shown for each item.
Additional Required Services
Service and Miles (Kilometers)25,000
(40 000)50,000
(80 000)75,000
(120 000)100,000
(160 000)125,000
(200 000)150,000
(240 000)
Inspect fuel system for damage or leaks.• •••••
Inspect exhaust system for loose or
damaged components.• •••••
Replace engine air cleaner lter. See
Engine Air Cleaner/Filter on page 304.•••
Change automatic transaxle uid
and lter (severe service only).See
footnote (h).•••
Replace spark plugs.An Emission
Control Service.•
Engine cooling system service (or every
ve years, whichever occurs rst).An
Emission Control Service.
See footnote (i).•
Inspect engine accessory drive belt.An
Emission Control Service.
See footnote (m).•
396

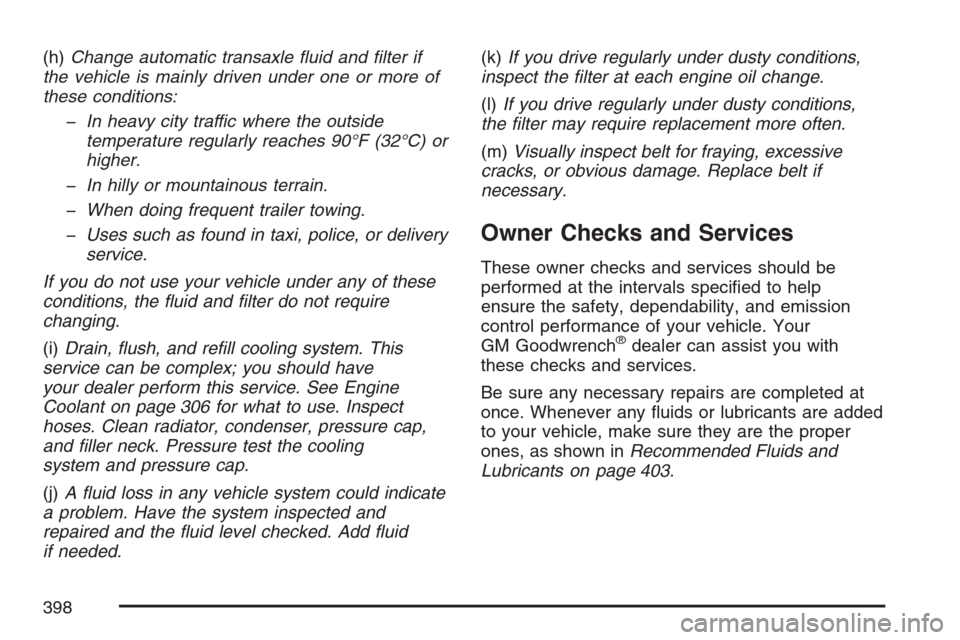

(h)Change automatic transaxle fluid and filter if
the vehicle is mainly driven under one or more of
these conditions:
In heavy city traffic where the outside
temperature regularly reaches 90°F (32°C) or
higher.
In hilly or mountainous terrain.
When doing frequent trailer towing.
Uses such as found in taxi, police, or delivery
service.
If you do not use your vehicle under any of these
conditions, the fluid and filter do not require
changing.
(i)Drain, flush, and refill cooling system. This
service can be complex; you should have
your dealer perform this service. See Engine
Coolant on page 306 for what to use. Inspect
hoses. Clean radiator, condenser, pressure cap,
and filler neck. Pressure test the cooling
system and pressure cap.
(j)A fluid loss in any vehicle system could indicate
a problem. Have the system inspected and
repaired and the fluid level checked. Add fluid
if needed.(k)If you drive regularly under dusty conditions,
inspect the filter at each engine oil change.
(l)If you drive regularly under dusty conditions,
the filter may require replacement more often.
(m)Visually inspect belt for fraying, excessive
cracks, or obvious damage. Replace belt if
necessary.
Owner Checks and Services
These owner checks and services should be
performed at the intervals specied to help
ensure the safety, dependability, and emission
control performance of your vehicle. Your
GM Goodwrench
®dealer can assist you with
these checks and services.
Be sure any necessary repairs are completed at
once. Whenever any uids or lubricants are added
to your vehicle, make sure they are the proper
ones, as shown inRecommended Fluids and
Lubricants on page 403.
398

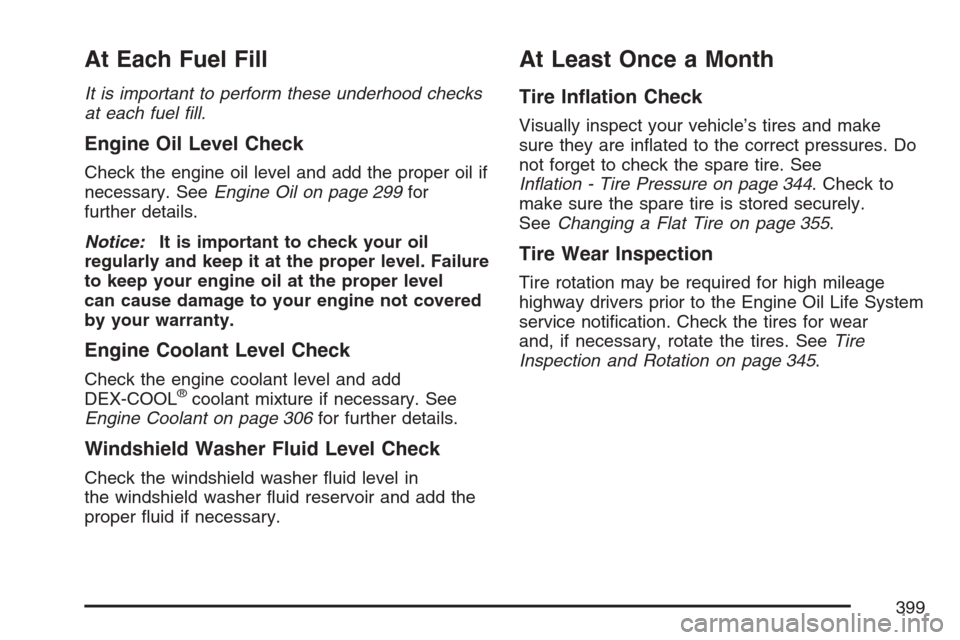

At Each Fuel Fill
It is important to perform these underhood checks
at each fuel fill.
Engine Oil Level Check
Check the engine oil level and add the proper oil if
necessary. SeeEngine Oil on page 299for
further details.
Notice:It is important to check your oil
regularly and keep it at the proper level. Failure
to keep your engine oil at the proper level
can cause damage to your engine not covered
by your warranty.
Engine Coolant Level Check
Check the engine coolant level and add
DEX-COOL®coolant mixture if necessary. See
Engine Coolant on page 306for further details.
Windshield Washer Fluid Level Check
Check the windshield washer uid level in
the windshield washer uid reservoir and add the
proper uid if necessary.
At Least Once a Month
Tire Ination Check
Visually inspect your vehicle’s tires and make
sure they are inated to the correct pressures. Do
not forget to check the spare tire. See
Inflation - Tire Pressure on page 344. Check to
make sure the spare tire is stored securely.
SeeChanging a Flat Tire on page 355.
Tire Wear Inspection
Tire rotation may be required for high mileage
highway drivers prior to the Engine Oil Life System
service notication. Check the tires for wear
and, if necessary, rotate the tires. SeeTire
Inspection and Rotation on page 345.
399

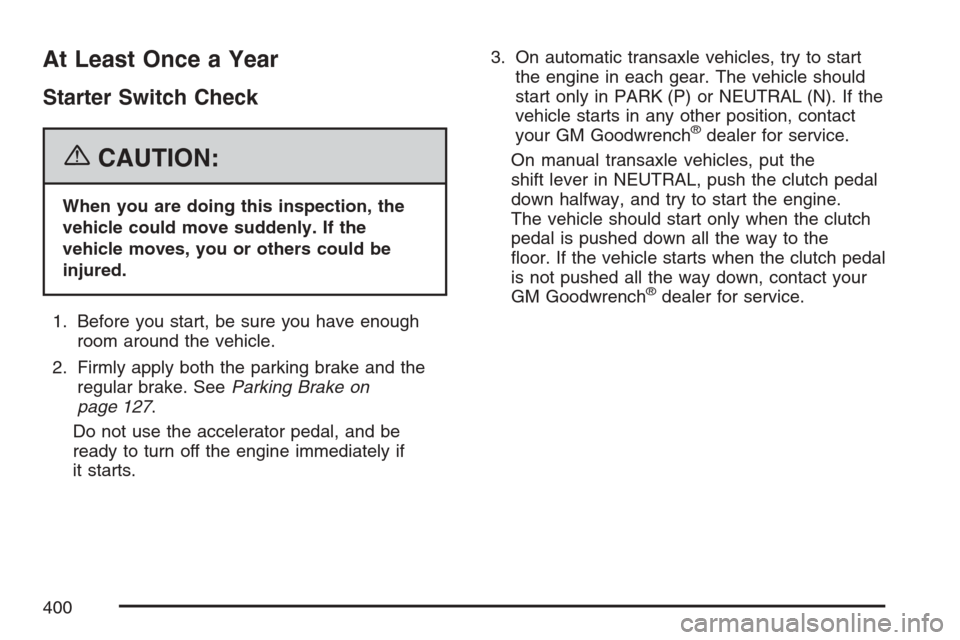

At Least Once a Year
Starter Switch Check
{CAUTION:
When you are doing this inspection, the
vehicle could move suddenly. If the
vehicle moves, you or others could be
injured.
1. Before you start, be sure you have enough
room around the vehicle.
2. Firmly apply both the parking brake and the
regular brake. SeeParking Brake on
page 127.
Do not use the accelerator pedal, and be
ready to turn off the engine immediately if
it starts.3. On automatic transaxle vehicles, try to start
the engine in each gear. The vehicle should
start only in PARK (P) or NEUTRAL (N). If the
vehicle starts in any other position, contact
your GM Goodwrench
®dealer for service.
On manual transaxle vehicles, put the
shift lever in NEUTRAL, push the clutch pedal
down halfway, and try to start the engine.
The vehicle should start only when the clutch
pedal is pushed down all the way to the
oor. If the vehicle starts when the clutch pedal
is not pushed all the way down, contact your
GM Goodwrench
®dealer for service.
400
