2007 CHEVROLET CORVETTE key

According to the American Medical Association, a
180 lb (82 kg) person who drinks three 12 ounce
(355 ml) bottles of beer in an hour will end up with
a BAC of about 0.06 percent. The person would
reach the same BAC by drinking three 4 ounce
(120 ml) glasses of wine or three mixed drinks if
each had 1-1/2 ounces (45 ml) of liquors like
whiskey, gin, or vodka.
It is the amount of alcohol that counts. For
example, if the same person drank three double
martinis (3 ounces or 90 ml of liquor each)within an hour, the person’s BAC would be close
to 0.12 percent. A person who consumes food
just before or during drinking will have a somewhat
lower BAC level.
There is a gender difference, too. Women
generally have a lower relative percentage of body
water than men. Since alcohol is carried in body
water, this means that a woman generally will
reach a higher BAC level than a man of her same
body weight will when each has the same
number of drinks.
The law in most U.S. states, and throughout
Canada, sets the legal limit at 0.08 percent.
In some other countries, the limit is even lower.
For example, it is 0.05 percent in both France
and Germany. The BAC limit for all commercial
drivers in the United States is 0.04 percent.
The BAC will be over 0.10 percent after three to
six drinks (in one hour). Of course, as we have
seen, it depends on how much alcohol is in the
drinks, and how quickly the person drinks them.
276

Fuse Usage
5 Stoplamps/Back-Up Lamps
6 02 Sensor
7 Battery Main 5
8 Park Lamps
9Powertrain Relay Input/
Electronic Throttle Control
10 Manual Transmission Solenoids
11Engine Control Module/
Transmission Control Module/
Easy Key Module
12 Odd Numbered Fuel Injectors
13Electronic Suspension Control
(Option)
14Canister Purge Solenoid,
Mass Air Flow Sensor
15 Air Conditioner Compressor
16 Even Numbered Fuel Injectors
17 Windshield Washer
18 Headlamp Washer
19Passenger Side Low-Beam
HeadlampFuse Usage
20 Fuel Pump
21 Driver Side Low-Beam Headlamp
22 Front Fog Lamp
23Passenger Side High-Beam
Headlamp
24 Driver Side High-Beam Headlamp
J-Style Fuses Usage
25 Cooling Fan
26 Battery Main 3
27 Anti-lock Brake System
28Heating/Ventilation/
Air Conditioning Blower
29 Battery Main 2
30 Starter
31 Audio Amplier
32 Blank
33 Battery Main 1
424

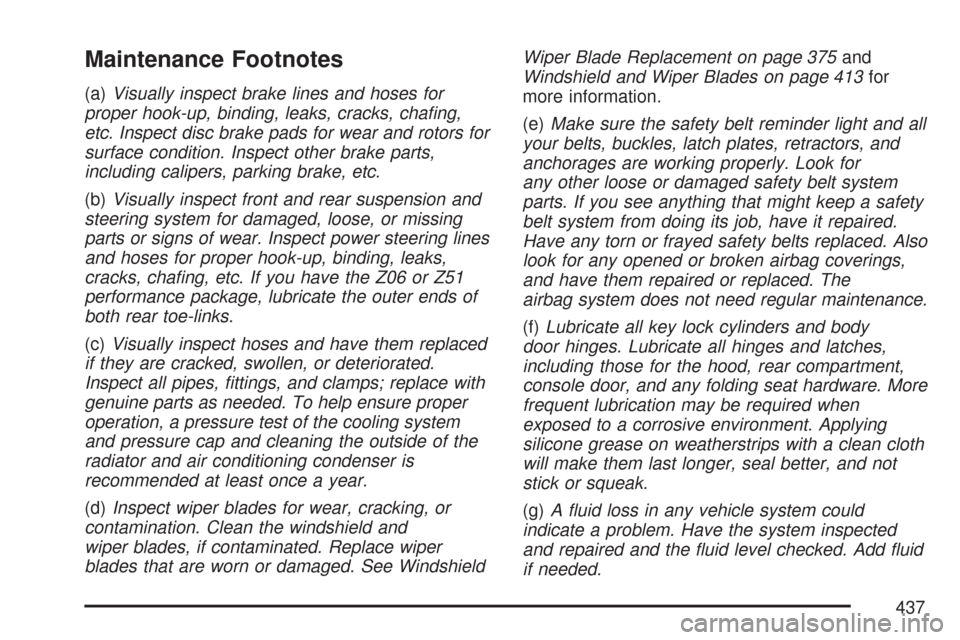

Maintenance Footnotes
(a)Visually inspect brake lines and hoses for
proper hook-up, binding, leaks, cracks, chang,
etc. Inspect disc brake pads for wear and rotors for
surface condition. Inspect other brake parts,
including calipers, parking brake, etc.
(b)Visually inspect front and rear suspension and
steering system for damaged, loose, or missing
parts or signs of wear. Inspect power steering lines
and hoses for proper hook-up, binding, leaks,
cracks, chang, etc. If you have the Z06 or Z51
performance package, lubricate the outer ends of
both rear toe-links.
(c)Visually inspect hoses and have them replaced
if they are cracked, swollen, or deteriorated.
Inspect all pipes, ttings, and clamps; replace with
genuine parts as needed. To help ensure proper
operation, a pressure test of the cooling system
and pressure cap and cleaning the outside of the
radiator and air conditioning condenser is
recommended at least once a year.
(d)Inspect wiper blades for wear, cracking, or
contamination. Clean the windshield and
wiper blades, if contaminated. Replace wiper
blades that are worn or damaged. See WindshieldWiper Blade Replacement on page 375and
Windshield and Wiper Blades on page 413for
more information.
(e)Make sure the safety belt reminder light and all
your belts, buckles, latch plates, retractors, and
anchorages are working properly. Look for
any other loose or damaged safety belt system
parts. If you see anything that might keep a safety
belt system from doing its job, have it repaired.
Have any torn or frayed safety belts replaced. Also
look for any opened or broken airbag coverings,
and have them repaired or replaced. The
airbag system does not need regular maintenance.
(f)Lubricate all key lock cylinders and body
door hinges. Lubricate all hinges and latches,
including those for the hood, rear compartment,
console door, and any folding seat hardware. More
frequent lubrication may be required when
exposed to a corrosive environment. Applying
silicone grease on weatherstrips with a clean cloth
will make them last longer, seal better, and not
stick or squeak.
(g)A uid loss in any vehicle system could
indicate a problem. Have the system inspected
and repaired and the uid level checked. Add uid
if needed.
437

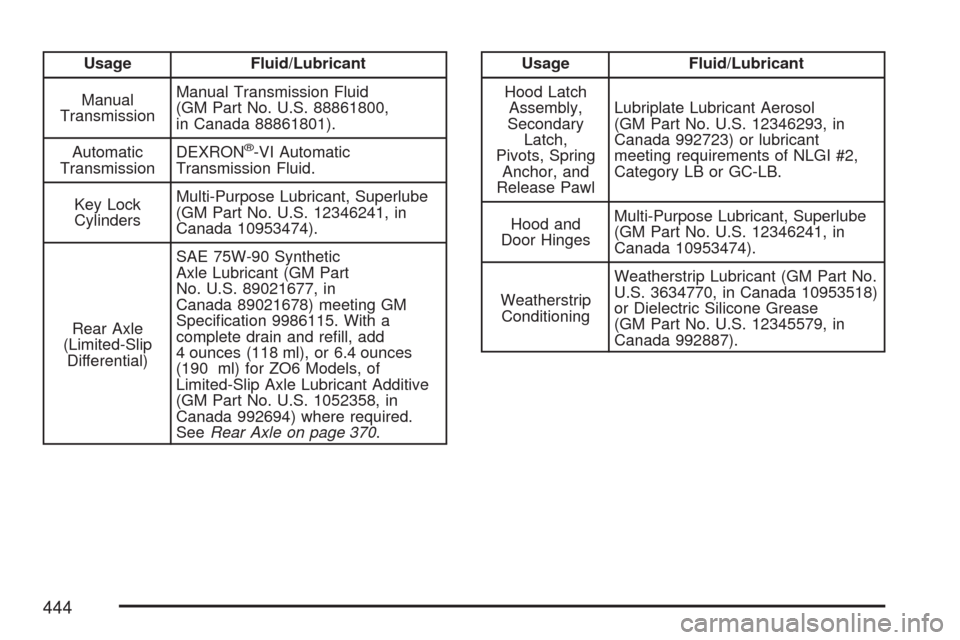

Usage Fluid/Lubricant
Manual
TransmissionManual Transmission Fluid
(GM Part No. U.S. 88861800,
in Canada 88861801).
Automatic
TransmissionDEXRON
®-VI Automatic
Transmission Fluid.
Key Lock
CylindersMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241, in
Canada 10953474).
Rear Axle
(Limited-Slip
Differential)SAE 75W-90 Synthetic
Axle Lubricant (GM Part
No. U.S. 89021677, in
Canada 89021678) meeting GM
Specication 9986115. With a
complete drain and rell, add
4 ounces (118 ml), or 6.4 ounces
(190 ml) for ZO6 Models, of
Limited-Slip Axle Lubricant Additive
(GM Part No. U.S. 1052358, in
Canada 992694) where required.
SeeRear Axle on page 370.
Usage Fluid/Lubricant
Hood Latch
Assembly,
Secondary
Latch,
Pivots, Spring
Anchor, and
Release PawlLubriplate Lubricant Aerosol
(GM Part No. U.S. 12346293, in
Canada 992723) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Hood and
Door HingesMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241, in
Canada 10953474).
Weatherstrip
ConditioningWeatherstrip Lubricant (GM Part No.
U.S. 3634770, in Canada 10953518)
or Dielectric Silicone Grease
(GM Part No. U.S. 12345579, in
Canada 992887).
444

Data that GM collects or receives may also be
used for GM research needs or may be made
available to others for research purposes, where a
need is shown and the data is not tied to a
specic vehicle or vehicle owner.
Others may be able to retrieve this data if they
have access to the vehicle and have the special
equipment necessary to download the data.
OnStar
If your vehicle has OnStar®and you subscribe to
the OnStar®services, please refer to the
OnStar®Terms and Conditions for information on
data collection and use. See alsoOnStar®
System on page 114for more information.
Navigation System
If your vehicle has anavigation system,use of
the system may result in the storage of
destinations, addresses, telephone numbers,
and other trip information.Please refer to
the navigation system operating manual for
information on stored data and for deletion
instructions.
Radio Frequency
Identication (RFID)
RFIDtechnology is used in some vehicles for
functions such as tire pressure monitoring
and ignition system security, as well as in
connection with conveniences such as key fobs
for remote door locking/unlocking and starting, and
in-vehicle transmitters for garage door openers.
RFID technology in GM vehicles does not
use or record personal information or link with any
other GM system containing personal information.
471

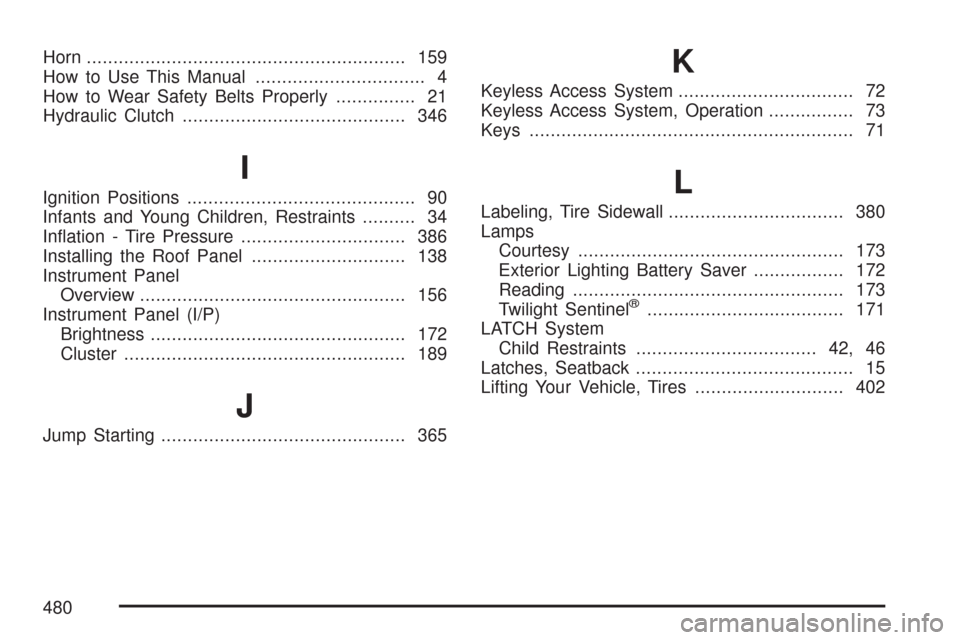

Horn............................................................ 159
How to Use This Manual................................ 4
How to Wear Safety Belts Properly............... 21
Hydraulic Clutch.......................................... 346
I
Ignition Positions........................................... 90
Infants and Young Children, Restraints.......... 34
Ination - Tire Pressure............................... 386
Installing the Roof Panel............................. 138
Instrument Panel
Overview.................................................. 156
Instrument Panel (I/P)
Brightness................................................ 172
Cluster..................................................... 189
J
Jump Starting.............................................. 365
K
Keyless Access System................................. 72
Keyless Access System, Operation................ 73
Keys............................................................. 71
L
Labeling, Tire Sidewall................................. 380
Lamps
Courtesy.................................................. 173
Exterior Lighting Battery Saver................. 172
Reading................................................... 173
Twilight Sentinel
®..................................... 171
LATCH System
Child Restraints.................................. 42, 46
Latches, Seatback......................................... 15
Lifting Your Vehicle, Tires............................ 402
480

Privacy........................................................ 470
Event Data Recorders.............................. 470
Navigation System................................... 471
OnStar..................................................... 471
Radio Frequency Identication.................. 471
Programmable Automatic Door Unlock........... 81
Q
Questions and Answers About Safety Belts ... 20
R
Racing or Other Competitive Driving............ 292
Radio Frequency Identication (RFID),
Privacy..................................................... 471
Radios........................................................ 244
Care of Your CD Player........................... 272
Care of Your CDs.................................... 271
Navigation/Radio System,
see Navigation Manual......................... 269
Radio with CD......................................... 246
Setting the Time...................................... 245
Theft-Deterrent......................................... 269
Understanding Reception......................... 270
Reading Lamps........................................... 173Rear Axle.................................................... 370
Limited-Slip.............................................. 285
Rear Storage Area...................................... 131
Rearview Mirror, Automatic Dimming
with Compass.......................................... 110
Rearview Mirror, Automatic Dimming
with OnStar
®and Compass..................... 108
Rearview Mirrors......................................... 108
Reclining Seatbacks...................................... 13
Recommended Fluids and Lubricants.......... 443
Recreational Vehicle Towing........................ 315
Remote, Keyless Access System................... 72
Removing the Roof Panel........................... 134
Replacement Bulbs..................................... 374
Replacement, Windshield............................. 375
Reporting Safety Defects
Canadian Government............................. 467
General Motors........................................ 468
United States Government....................... 467
Restraint System Check
Checking the Restraint Systems................. 66
Replacing Restraint System Parts
After a Crash......................................... 67
Retained Accessory Power (RAP)................. 91
Roadside
Assistance Program................................. 458
Rocking Your Vehicle to Get it Out.............. 309
484
