{CAUTION:
Using the wrong replacement wheels,
wheel bolts, or wheel nuts on your vehicle
can be dangerous. It could affect the
braking and handling of your vehicle,
make your tires lose air and make you
lose control. You could have a collision
in which you or others could be injured.
Always use the correct wheel, wheel bolts,
and wheel nuts for replacement.
Notice:The wrong wheel can also cause
problems with bearing life, brake cooling,
speedometer or odometer calibration,
headlamp aim, bumper height, vehicle ground
clearance, and tire clearance to the body
and chassis.
{CAUTION:
Rust or dirt on a wheel, or on the parts to
which it is fastened, can make wheel nuts
become loose after a time. The wheel could
come off and cause a crash. When you
change a wheel, remove any rust or dirt
from places where the wheel attaches to
the vehicle. In an emergency, you can use
a cloth or a paper towel to do this; but be
sure to use a scraper or wire brush later,
if you need to, to get all the rust or dirt off.
{CAUTION:
Never use oil or grease on studs or the
threads of the wheel nuts. If you do, the
wheel nuts might come loose and the
wheel could fall off, causing a crash.
399

Headlamp Wiring
The headlamp wiring is protected by fuses in the
fuse block. An electrical overload will cause
the lamps to turn off. If this happens, have your
headlamp wiring checked right away.
Windshield Wiper Fuses
The windshield wiper motor is protected by a
fuse and an internal circuit breaker. If the motor
overheats due to heavy snow, etc., the wiper will
stop until the motor cools. If the overload is caused
by some electrical problem and not snow, etc.,
be sure to get it xed.
Power Windows and Other
Power Options
Circuit breakers protect the power seats, power
windows, and other power accessories. When the
current load is too heavy, the circuit breaker opens
and closes, protecting the circuit until the problem
is xed or goes away.
Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of J-Case fuses,
mini-fuses and circuit breakers. This greatly reduces
the chance of res caused by electrical problems.
Look at the silver-colored band inside the fuse.
If the band is broken or melted, replace the
fuse. Be sure you replace a bad fuse with a
new one of the identical size and rating.
If you ever have a problem on the road and do not
have a spare fuse, you can borrow one that has the
same amperage. Just pick some feature of your
vehicle that you can get along without — like
the radio or cigarette lighter — and use its fuse,
if it is the correct amperage. Replace it as soon
as you can.
Instrument Panel Fuse Block
The instrument panel fuse block is located on
the passenger’s side of the vehicle, under
the instrument panel and under the toe-board.
419

Fuse Usage
5 Stoplamps/Back-Up Lamps
6 02 Sensor
7 Battery Main 5
8 Park Lamps
9Powertrain Relay Input/
Electronic Throttle Control
10 Manual Transmission Solenoids
11Engine Control Module/
Transmission Control Module/
Easy Key Module
12 Odd Numbered Fuel Injectors
13Electronic Suspension Control
(Option)
14Canister Purge Solenoid,
Mass Air Flow Sensor
15 Air Conditioner Compressor
16 Even Numbered Fuel Injectors
17 Windshield Washer
18 Headlamp Washer
19Passenger Side Low-Beam
HeadlampFuse Usage
20 Fuel Pump
21 Driver Side Low-Beam Headlamp
22 Front Fog Lamp
23Passenger Side High-Beam
Headlamp
24 Driver Side High-Beam Headlamp
J-Style Fuses Usage
25 Cooling Fan
26 Battery Main 3
27 Anti-lock Brake System
28Heating/Ventilation/
Air Conditioning Blower
29 Battery Main 2
30 Starter
31 Audio Amplier
32 Blank
33 Battery Main 1
424

Micro-Relays Usage
34 Horn
35 Air Conditioning Compressor
36 Windshield Washer
37 Park, Position Lamps
38 Front Fog Lamp
39 High-Beam Headlamp
46 Headlamp Washer
55 Fuel Pump
Mini-Relays Usage
40 Rear Defog
41 Windshield Wiper High/Low
42 Windshield Wiper Run/Accessory
43 Crank
44 Powertrain Ignition 1
45 Windshield Wiper On/Off
47 Low-Beam Headlamp
Spare Fuses Usage
48 Spare
49 Spare
50 Spare
51 Spare
52 Spare
53 Spare
54 Fuse Puller
Diodes Usage
§Diode 1
§Wiper
§Diode 2
425

Appearance Care (cont.)
Weatherstrips........................................... 411
Windshield and Wiper Blades................... 413
Ashtray....................................................... 179
Audio System.............................................. 244
Audio Steering Wheel Controls................. 269
Care of Your CD Player........................... 272
Care of Your CDs.................................... 271
Diversity Antenna System......................... 272
Navigation/Radio System,
see Navigation Manual......................... 269
Radio with CD......................................... 246
Setting the Time...................................... 245
Theft-Deterrent Feature............................ 269
Understanding Radio Reception............... 270
XM™ Satellite Radio Antenna System...... 272
Automatic Door Lock..................................... 81
Automatic Transmission
Fluid........................................................ 345
Operation................................................... 95B
Battery........................................................ 364
Exterior Lighting Battery Saver................. 172
Run-Down Protection............................... 173
Before Leaving on a Long Trip.................... 300
Brake
Emergencies............................................ 281
Parking.................................................... 102
Brakes........................................................ 361
System Warning Light.............................. 196
Braking....................................................... 278
Braking in Emergencies............................... 281
Break-In, New Vehicle................................... 89
Bulb Replacement....................................... 371
Halogen Bulbs......................................... 372
Headlamps, Front Turn Signal, and
Parking Lamps..................................... 372
High Intensity Discharge (HID) Lighting.... 371
Replacement Bulbs.................................. 374
Taillamps, Turn Signal, and Stoplamps..... 374
Buying New Tires........................................ 394
474

D
Daytime Running Lamps............................. 169
Defensive Driving........................................ 274
Disc, MP3................................................... 261
Diversity Antenna System............................ 272
Doing Your Own Service Work.................... 320
Door
Automatic Door Lock................................. 81
Locks......................................................... 78
Power Door Locks..................................... 80
Programmable Automatic Door Unlock....... 81
Driver
Position, Safety Belt................................... 22
Driver Information Center (DIC)................... 207
DIC Controls and Displays....................... 208
DIC Vehicle Personalization..................... 234
DIC Warnings and Messages................... 214
Other Messages....................................... 232Driving
At Night................................................... 293
City.......................................................... 297
Defensive................................................. 274
Drunken................................................... 275
Freeway................................................... 298
Hill and Mountain Roads.......................... 302
In Rain and on Wet Roads...................... 295
Rocking Your Vehicle to Get it Out.......... 309
Winter...................................................... 304
Dual Automatic Climate Control System....... 179
E
EDR ............................................................ 470
Electrical System
Add-On Equipment................................... 418
Engine Compartment Fuse Block............. 422
Fuses and Circuit Breakers...................... 419
Headlamp Wiring..................................... 419
Instrument Panel Fuse Block................... 419
Power Windows and Other
Power Options...................................... 419
Windshield Wiper Fuses........................... 419
477

Fuel (cont.)
Fuels in Foreign Countries....................... 324
Gage....................................................... 206
Gasoline Octane...................................... 321
Gasoline Specications............................ 322
Fuses
Engine Compartment Fuse Block............. 422
Fuses and Circuit Breakers...................... 419
Instrument Panel Fuse Block................... 419
Windshield Wiper..................................... 419
G
Gage
Engine Coolant Temperature.................... 199
Engine Oil Pressure................................. 204
Fuel......................................................... 206
Speedometer........................................... 190
Tachometer.............................................. 190
Voltmeter Gage........................................ 194
Garage Door Opener................................... 118
Gasoline
Octane..................................................... 321
Specications........................................... 322
Glove Box................................................... 130
GM Mobility Reimbursement Program.......... 457
H
Hatch/Trunk................................................... 82
Hazard Warning Flashers............................ 158
Headlamp Wiring......................................... 419
Headlamps
Bulb Replacement.................................... 371
Daytime Running Lamps.......................... 169
Exterior Lamps......................................... 168
Flash-to-Pass........................................... 162
Halogen Bulbs......................................... 372
Headlamps, Front Turn Signal, and
Parking Lamps..................................... 372
High Intensity Discharge (HID) Lighting.... 371
High/Low Beam Changer......................... 162
On Reminder........................................... 169
Wiper Activated........................................ 169
Head-Up Display (HUD).............................. 174
Heated Seats................................................ 10
Heater......................................................... 179
Highbeam On Light..................................... 206
High-Speed Operation, Tires........................ 388
Highway Hypnosis....................................... 301
Hill and Mountain Roads............................. 302
Hood
Checking Things Under............................ 328
Release................................................... 329
479

Vehicle Personalization
DIC .......................................................... 234
Ventilation Adjustment.................................. 186
Visors........................................................... 87
Voltmeter Gage........................................... 194

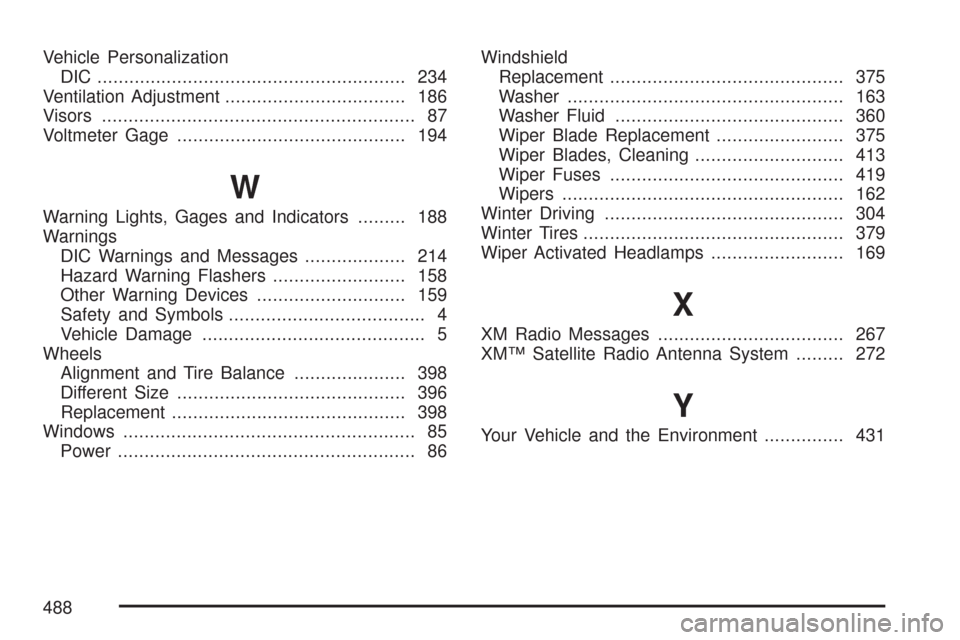

W
Warning Lights, Gages and Indicators......... 188
Warnings
DIC Warnings and Messages................... 214
Hazard Warning Flashers......................... 158
Other Warning Devices............................ 159
Safety and Symbols..................................... 4
Vehicle Damage.......................................... 5
Wheels
Alignment and Tire Balance..................... 398
Different Size........................................... 396
Replacement............................................ 398
Windows....................................................... 85
Power........................................................ 86Windshield
Replacement............................................ 375
Washer.................................................... 163
Washer Fluid........................................... 360
Wiper Blade Replacement........................ 375
Wiper Blades, Cleaning............................ 413
Wiper Fuses............................................ 419
Wipers..................................................... 162
Winter Driving............................................. 304
Winter Tires................................................. 379
Wiper Activated Headlamps ......................... 169
X
XM Radio Messages................................... 267
XM™ Satellite Radio Antenna System......... 272
Y
Your Vehicle and the Environment............... 431
488
