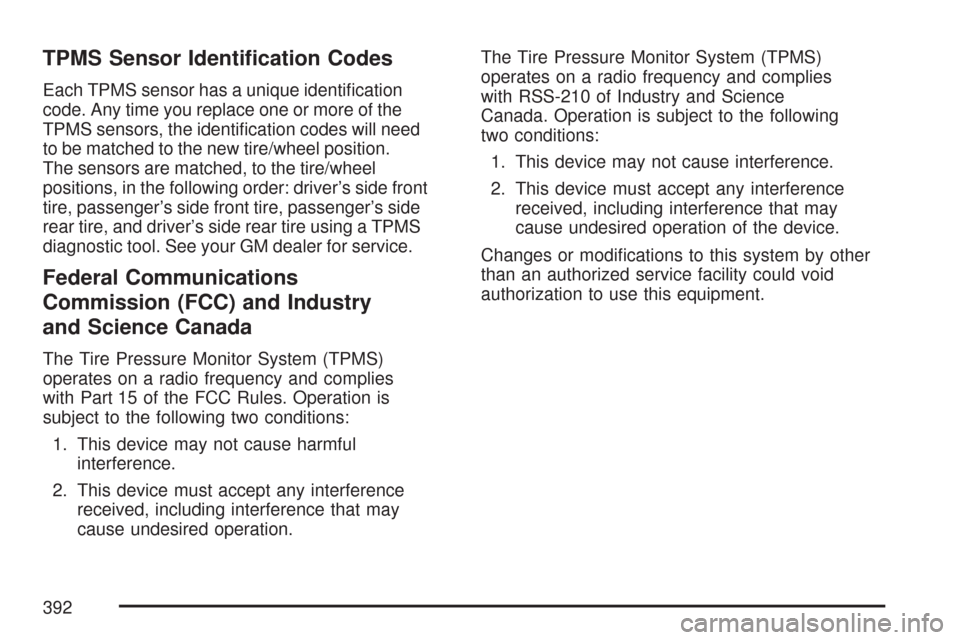

TPMS Sensor Identication Codes
Each TPMS sensor has a unique identication
code. Any time you replace one or more of the
TPMS sensors, the identication codes will need
to be matched to the new tire/wheel position.
The sensors are matched, to the tire/wheel
positions, in the following order: driver’s side front
tire, passenger’s side front tire, passenger’s side
rear tire, and driver’s side rear tire using a TPMS
diagnostic tool. See your GM dealer for service.
Federal Communications
Commission (FCC) and Industry
and Science Canada
The Tire Pressure Monitor System (TPMS)
operates on a radio frequency and complies
with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1. This device may not cause harmful
interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation.The Tire Pressure Monitor System (TPMS)
operates on a radio frequency and complies
with RSS-210 of Industry and Science
Canada. Operation is subject to the following
two conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.
Changes or modications to this system by other
than an authorized service facility could void
authorization to use this equipment.
392

Fuses Usage
SPARE Spare Fuse
SPARE Spare Fuse
SPARE Spare Fuse
SPARE Spare Fuse
TPA Tonneau Pulldown Actuator
ONSTAR OnStar
®
DRIV DR
SWTCHDriver Door Switch
TELE SWTCH/
MSMTelescope Switch,
Memory Seat Module
IGN SWTCH/
INTR SNSRIgnition Switch, Intrusion Sensor
BCK/UP LAMP Reverse Lamps
REVERSE
LAMPSReverse Lamps
Blank Not Used
STOP LAMP Stop Lamp
BTSI SOL/
STR WHL LCKBrake Transmission Shift Interlock,
Steering Wheel Column Lock
BLANK Not Used
Fuses Usage
RDO/S-BAND/
VICSRadio, S-Band, VICS
REAR FOG/
ALDL/TOP
SWTCHRear Fog Lamp, Assembly Line
Diagnostic Link Connector,
Convertible Top Switch
GM LAN
RUN/CRNKGM LAN Devices
ISRVM/ HVACElectric Inside Rearview Mirror,
Heating Ventilation, Air Conditioning
CRUISE
SWTCHCruise Control Switch
TONNEAU
RELSETonneau Release
RUN CRNK Run/Crank Relay
HTD SEAT/
WPR RLYHeated Seat, Wiper Relays
ECM Engine Control Module
SDM/AOS
SWTCH
AIRBAGSensing and Diagnostic Module,
Automatic Occupant Sensing
Module, Airbag
CLSTR/HUD Cluster, Heads-Up Display
HVAC/
PWR SNDHeating, Ventilation/Air Conditioning,
Power Sounder
421

Fuse Usage
5 Stoplamps/Back-Up Lamps
6 02 Sensor
7 Battery Main 5
8 Park Lamps
9Powertrain Relay Input/
Electronic Throttle Control
10 Manual Transmission Solenoids
11Engine Control Module/
Transmission Control Module/
Easy Key Module
12 Odd Numbered Fuel Injectors
13Electronic Suspension Control
(Option)
14Canister Purge Solenoid,
Mass Air Flow Sensor
15 Air Conditioner Compressor
16 Even Numbered Fuel Injectors
17 Windshield Washer
18 Headlamp Washer
19Passenger Side Low-Beam
HeadlampFuse Usage
20 Fuel Pump
21 Driver Side Low-Beam Headlamp
22 Front Fog Lamp
23Passenger Side High-Beam
Headlamp
24 Driver Side High-Beam Headlamp
J-Style Fuses Usage
25 Cooling Fan
26 Battery Main 3
27 Anti-lock Brake System
28Heating/Ventilation/
Air Conditioning Blower
29 Battery Main 2
30 Starter
31 Audio Amplier
32 Blank
33 Battery Main 1
424
