2007 CHEVROLET CORVETTE glove box

Turn and hold the knob clockwise to brighten the
lights or counterclockwise to dim them. During
the day, this knob will adjust the instrument panel
brightness and at night will adjust all interior
lighting.
Be sure not to have this knob turned all the way
down with the lamps on during the day. Your
Driver Information Center (DIC) may not be visible.
Courtesy Lamps
When any door or the hatch/trunk lid is opened,
the interior lamps will go on unless it is bright
outside.
You can also turn the courtesy lamps on and off
by pressing the instrument panel brightness knob.
Entry/Exit Lighting
With entry lighting, the interior lamps will come on
when entering the vehicle. The interior lamps
will come on for about 20 seconds when the
engine is off.
You can turn exit and entry lighting off by quickly
turning the courtesy lamps on and off.
Reading Lamps
The inside rearview mirror includes two reading
lamps. The lamps will go on when a door is
opened. When the doors are closed, each lamp
can be turned on individually by pressing the
switch for that lamp.
An ambient light is located in the passenger sun
visor clip. This light stays on while driving to
keep the cabin from being too dark.
Battery Run-Down Protection
This vehicle has a feature to help prevent the
battery from being drained in case any of
the following lamps are left on; the underhood
lamp, if your vehicle has this feature, vanity mirror
lamps, cargo lamps, reading lamps, console or
glove box lamps. If any of these lamps are left on,
they will automatically time-out after about
10 minutes. To reset it, all of the above lamps
must be turned off or the ignition key on.
173

If moving the transmitter to different locations
within the vehicle does not help, place the
transmitter in the glove box transmitter pocket
with the buttons facing to the right and then
press the START button.
The vehicle’s battery voltage is low. The
battery voltage must be above 10 volts
for the keyless access transmitter to be
detected properly.
NO FOB - OFF OR RUN?
This message displays when the keyless access
transmitter is not detected inside the vehicle while
you are trying to turn the ignition off. Your vehicle
may be near a strong radio antenna signal causing
the keyless access system to be jammed. The
vehicle will remain in Acc. until OFF or START has
been pressed or ve minutes has expired. If you
turn the ignition off and you cannot nd the keyless
access transmitter, you will not be able to restart
the vehicle. The keyless access transmitter needs
to be inside of the vehicle in order for the vehicle to
start. SeeStarting the Engine on page 91for more
information.
OPTIONS UNAVAILABLE
This message displays for a few seconds if a
keyless access transmitter that is not labelled 1 or 2
is used and you try to personalize the features on
your vehicle by pressing the OPTION button.
The personalization system will not recognize
the transmitter and the DIC will not display the
current driver number or the menus used to set
personalizations. The personalization features will
then be set to the default states. SeeDIC Vehicle
Personalization on page 234for more information.
223

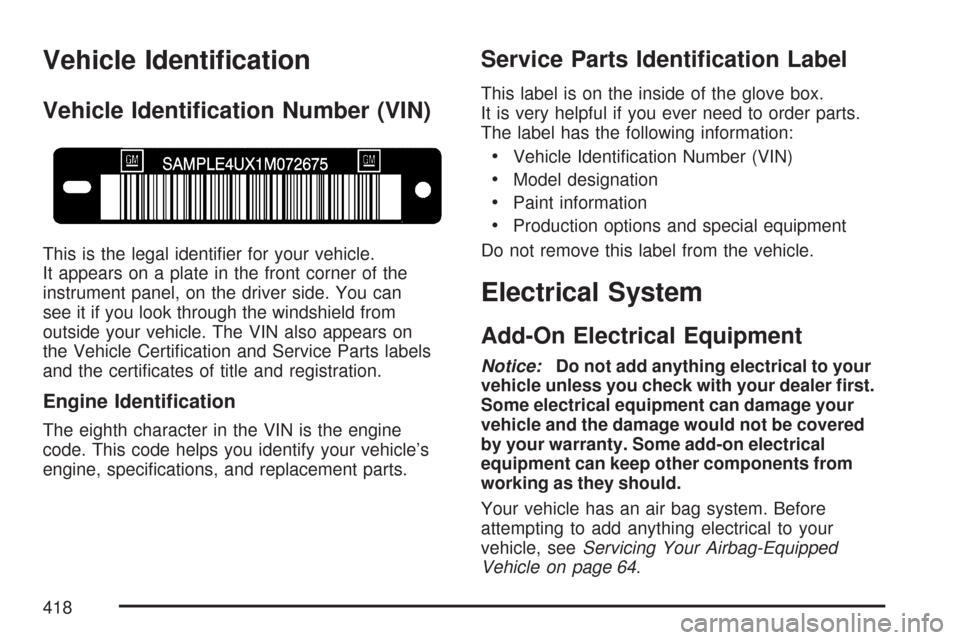

Vehicle Identication
Vehicle Identication Number (VIN)
This is the legal identier for your vehicle.
It appears on a plate in the front corner of the
instrument panel, on the driver side. You can
see it if you look through the windshield from
outside your vehicle. The VIN also appears on
the Vehicle Certication and Service Parts labels
and the certicates of title and registration.
Engine Identication
The eighth character in the VIN is the engine
code. This code helps you identify your vehicle’s
engine, specications, and replacement parts.
Service Parts Identication Label
This label is on the inside of the glove box.
It is very helpful if you ever need to order parts.
The label has the following information:
Vehicle Identication Number (VIN)
Model designation
Paint information
Production options and special equipment
Do not remove this label from the vehicle.
Electrical System
Add-On Electrical Equipment
Notice:Do not add anything electrical to your
vehicle unless you check with your dealer rst.
Some electrical equipment can damage your
vehicle and the damage would not be covered
by your warranty. Some add-on electrical
equipment can keep other components from
working as they should.
Your vehicle has an air bag system. Before
attempting to add anything electrical to your
vehicle, seeServicing Your Airbag-Equipped
Vehicle on page 64.
418

Fuel (cont.)
Fuels in Foreign Countries....................... 324
Gage....................................................... 206
Gasoline Octane...................................... 321
Gasoline Specications............................ 322
Fuses
Engine Compartment Fuse Block............. 422
Fuses and Circuit Breakers...................... 419
Instrument Panel Fuse Block................... 419
Windshield Wiper..................................... 419
G
Gage
Engine Coolant Temperature.................... 199
Engine Oil Pressure................................. 204
Fuel......................................................... 206
Speedometer........................................... 190
Tachometer.............................................. 190
Voltmeter Gage........................................ 194
Garage Door Opener................................... 118
Gasoline
Octane..................................................... 321
Specications........................................... 322
Glove Box................................................... 130
GM Mobility Reimbursement Program.......... 457
H
Hatch/Trunk................................................... 82
Hazard Warning Flashers............................ 158
Headlamp Wiring......................................... 419
Headlamps
Bulb Replacement.................................... 371
Daytime Running Lamps.......................... 169
Exterior Lamps......................................... 168
Flash-to-Pass........................................... 162
Halogen Bulbs......................................... 372
Headlamps, Front Turn Signal, and
Parking Lamps..................................... 372
High Intensity Discharge (HID) Lighting.... 371
High/Low Beam Changer......................... 162
On Reminder........................................... 169
Wiper Activated........................................ 169
Head-Up Display (HUD).............................. 174
Heated Seats................................................ 10
Heater......................................................... 179
Highbeam On Light..................................... 206
High-Speed Operation, Tires........................ 388
Highway Hypnosis....................................... 301
Hill and Mountain Roads............................. 302
Hood
Checking Things Under............................ 328
Release................................................... 329
479

Speedometer............................................... 190
Starting Your Engine..................................... 91
Steering...................................................... 286
Steering Wheel Controls, Audio................... 269
Steering Wheel Controls, Memory................. 10
Steering Wheel, Tilt Wheel.......................... 159
Storage Areas
Center Console Storage Area................... 130
Convenience Net..................................... 132
Cupholder(s)............................................ 130
Glove Box................................................ 130
Rear Storage Area................................... 131
Storing the Roof Panel................................ 136
Stuck in Sand, Mud, Ice, or Snow............... 308
Sun Visors.................................................... 87
System Identication, Universal Home
Remote System....................................... 118
T
Tachometer................................................. 190
Taillamps
Turn Signal, and Stoplamps..................... 374
TCS Warning Light...................................... 197
Theft-Deterrent, Radio................................. 269
Theft-Deterrent System.................................. 87Theft-Deterrent Systems................................ 87
Tilt Wheel.................................................... 159
Time, Setting............................................... 245
Tire
Pressure Light.......................................... 199
Tires........................................................... 378
Aluminum or Chrome-Plated Wheels,
Cleaning............................................... 414
Buying New Tires..................................... 394
Chains..................................................... 401
Cleaning.................................................. 415
Different Size........................................... 396
Extended Mobility..................................... 384
High-Speed Operation.............................. 388
If a Tire Goes Flat................................... 406
Ination - Tire Pressure............................ 386
Lifting Your Vehicle.................................. 402
Pressure Monitor System ......................... 389
Rotation................................................... 393
Tire Sidewall Labeling.............................. 380
Tire Terminology and Denitions............... 382
Uniform Tire Quality Grading.................... 396
Wheel Alignment and Tire Balance........... 398
Wheel Replacement................................. 398
When It Is Time for New Tires................. 393
Winter Tires............................................. 379
486
