2007 CADILLAC XLR V ECO mode

r(Play):Touch this button to begin playing
a CD.
RANDOM:Touch this button to hear the tracks in
random, rather than sequential, order on the disc.
Touch RANDOM again to turn off random mode.
SCAN TRACKS:Touch this button to hear the
rst 10 seconds of each track on the disc. Touch
this button again to stop scanning. The CD will
mute while scanning.
REPEAT TRACK:Touch this button to repeat the
selected track.
r(Rewind):Touch this button to rewind quickly
through a track selection.
j(Pause):Touch this button to pause CD play.
Touch it again to resume play or touch the
play button.
[(Forward):Touch this button to fast forward
quickly through a track selection.
«TUNE SEEKª:Touch the up arrow on the
TUNE/SEEK hard key to seek to the next selection
on the compact disc. If playing the last track of
the disc, touching the up arrow will seek to the rst
track of the disc. Touch the down arrow to seek
to the previous selection on the compact disc.
If playing the rst track of the disc, touching the
down arrow will seek to the last track of the
disc. The sound will mute while seeking.
DVD Player
To use the player as a video DVD player, you
must rst remove the navigation map DVD
or music CD. While playing a video DVD, the
navigation system is not available. The message
“The disc installed is not a map DVD” will
appear on the display if any of the navigation hard
keys are pressed.
This feature will not operate unless the vehicle is
in PARK (P).
307

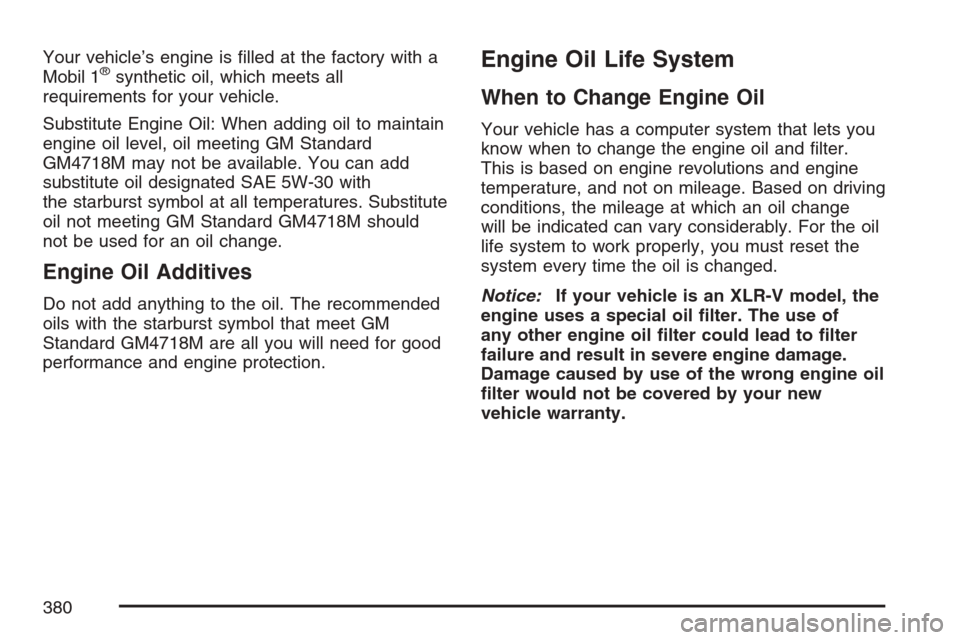

Your vehicle’s engine is lled at the factory with a
Mobil 1®synthetic oil, which meets all
requirements for your vehicle.
Substitute Engine Oil: When adding oil to maintain
engine oil level, oil meeting GM Standard
GM4718M may not be available. You can add
substitute oil designated SAE 5W-30 with
the starburst symbol at all temperatures. Substitute
oil not meeting GM Standard GM4718M should
not be used for an oil change.
Engine Oil Additives
Do not add anything to the oil. The recommended
oils with the starburst symbol that meet GM
Standard GM4718M are all you will need for good
performance and engine protection.
Engine Oil Life System
When to Change Engine Oil
Your vehicle has a computer system that lets you
know when to change the engine oil and lter.
This is based on engine revolutions and engine
temperature, and not on mileage. Based on driving
conditions, the mileage at which an oil change
will be indicated can vary considerably. For the oil
life system to work properly, you must reset the
system every time the oil is changed.
Notice:If your vehicle is an XLR-V model, the
engine uses a special oil lter. The use of
any other engine oil lter could lead to lter
failure and result in severe engine damage.
Damage caused by use of the wrong engine oil
lter would not be covered by your new
vehicle warranty.
380

Bulb Replacement
It is recommended that all bulbs be replaced by
your dealer.
Windshield Replacement
Keep in mind that your windshield is part of the
Head-Up Display (HUD) system. If you ever have
to get your windshield replaced, be sure to get
one that is designed for HUD or your HUD image
may look blurred or out of focus.
Windshield Wiper Blade
Replacement
Windshield wiper blades should be inspected for
wear or cracking. SeeScheduled Maintenance
on page 465.
It is a good idea to clean or replace the wiper
blade assembly on a regular basis or when worn.
For proper windshield wiper blade length and
type, seeNormal Maintenance Replacement Parts
on page 475.To replace the wiper blade assembly, do the
following:
1. Place the vehicle in accessory mode and turn
the wipers on. Position the wipers on the
windshield in the mid-wipe position. Then with
a door open, turn the vehicle off.
2. Tip the blade up and pull up on the tab to
release the wiper blade assembly.
3. To install, align the wiper blade with the loop
on the wiper blade assembly, and push up to
snap it into place.
412

Occupant Distribution:Designated seating
positions.
Outward Facing Sidewall:The side of an
asymmetrical tire that has a particular side that
faces outward when mounted on a vehicle.
The side of the tire that contains a whitewall, bears
white lettering, or bears manufacturer, brand,
and/or model name molding that is higher
or deeper than the same moldings on the other
sidewall of the tire.
Passenger (P-Metric) Tire:A tire used on
passenger cars and some light duty trucks and
multipurpose vehicles.
Recommended Ination Pressure:Vehicle
manufacturer’s recommended tire ination
pressure as shown on the tire placard. See
Ination - Tire Pressure on page 422andLoading
Your Vehicle on page 354.
Radial Ply Tire:A pneumatic tire in which the
ply cords that extend to the beads are laid at
90 degrees to the centerline of the tread.
Rim:A metal support for a tire and upon which
the tire beads are seated.Sidewall:The portion of a tire between the tread
and the bead.
Speed Rating:An alphanumeric code assigned
to a tire indicating the maximum speed at
which a tire can operate.
Traction:The friction between the tire and the
road surface. The amount of grip provided.
Tread:The portion of a tire that comes into
contact with the road.
Treadwear Indicators:Narrow bands, sometimes
called wear bars, that show across the tread of a
tire when only 1/16 inch (1.6 mm) of tread remains.
SeeWhen It Is Time for New Tires on page 428.
UTQGS (Uniform Tire Quality Grading
Standards):A tire information system that
provides consumers with ratings for a tire’s
traction, temperature, and treadwear. Ratings are
determined by tire manufacturers using
government testing procedures. The ratings are
molded into the sidewall of the tire. SeeUniform
Tire Quality Grading on page 431.
419

Roadside Service Availability
Wherever you drive in the United States or
Canada, an advisor is available to assist you over
the phone. A dealer technician, if available, can
travel to your location within a 30 mile (50 km)
radius of a participating Cadillac dealership.
If beyond this radius, we will arrange to have your
car towed to the nearest Cadillac dealership.
Reaching Roadside Service
Dial the toll-free Roadside Service number:
1-800-882-1112. A Roadside Service Advisor will
assist you and request the following information:
A description of the problem
Name, home address, home telephone
number
Location of your Cadillac and number you are
calling from
The model year, Vehicle Identication Number
(VIN), mileage, and date of delivery
Roadside Service for the Hearing or
Speech Impaired
Roadside Service is prepared to assist owners
who have hearing difficulties or are speech
impaired. Cadillac has installed special
telecommunication devices called Text Telephone
(TTY) in the Roadside Service Center.
Any customer who has access to a (TTY) or a
conventional teletypewriter can communicate with
Cadillac by dialing from the United States or
Canada1-888-889-2438— daily, 24 hours.
Courtesy Transportation
To enhance your ownership experience, we and
our participating dealers are proud to offer
Courtesy Transportation, a customer support
program for new vehicles.
The Courtesy Transportation program is offered to
customers in conjunction with the
Bumper-to-Bumper coverage provided by the New
Vehicle Limited Warranty. Several transportation
options are available when warranty repairs
are required. This will reduce your inconvenience
during warranty repairs.
488

Vehicle Data Collection and Event
Data Recorders
Your vehicle, like other modern motor vehicles, has
a number of sophisticated computer systems that
monitor and control several aspects of the vehicle’s
performance. Your vehicle uses on-board vehicle
computers to monitor emission control components
to optimize fuel economy, to monitor conditions for
airbag deployment and, if so equipped, to provide
anti-lock braking and to help the driver control the
vehicle in difficult driving situations. Some
information may be stored during regular operations
to facilitate repair of detected malfunctions; other
information is stored only in a crash event by
computer systems, such as those commonly called
Event Data Recorders (EDR).
In a crash event, computer systems, such as the
airbag Sensing and Diagnostic Module (SDM)
in your vehicle may record information about the
condition of the vehicle and how it was operated,
such as data related to engine speed, brake
application, throttle position, vehicle speed, safety
belt usage, airbag readiness, airbag performance,
and the severity of a collision. If your vehicle is
equipped with StabiliTrak
®, steering performance,including yaw rate, steering wheel angle, and
lateral acceleration, is also recorded. This
information has been used to improve vehicle
crash performance and may be used to improve
crash performance of future vehicles and
driving safety. Unlike the data recorders on many
airplanes, these on-board systems do not
record sounds, such as conversation of vehicle
occupants.
To read this information, special equipment is
needed and access to the vehicle or the device
that stores the data is required. GM will not access
information about a crash event or share it with
others other than:
with the consent of the vehicle owner or, if the
vehicle is leased, with the consent of the
lessee,
in response to an official request of police or
similar government office,
as part of GM’s defense of litigation through
the discovery process, or
as required by law.
491

E
Edit
Avoid Point/Area...................................... 257
Memory Point.......................................... 250
Waypoint.................................................. 254
Electrical System
Add-On Equipment................................... 452
Fuses and Circuit Breakers...................... 453
Instrument Panel Fuse Block................... 453
Power Windows and Other Power
Options................................................. 452
Underhood Fuse Block............................. 455
Windshield Wiper Fuses........................... 452
Engine
Air Cleaner/Filter...................................... 382
Battery..................................................... 402
Check and Service Engine Soon Light..... 196
Coolant.................................................... 385
Coolant Temperature Gage...................... 195
Drive Belt Routing.................................... 476
Engine Compartment Overview................ 374
Exhaust................................................... 102
Oil ........................................................... 377
Oil Life System........................................ 380
Oil Pressure Gage................................... 200
Overheated Protection Operating Mode.... 390Engine (cont.)
Overheating............................................. 388
Starting...................................................... 89
Supercharger Oil...................................... 382
Enter Destination......................................... 259
Entry/Exit Lighting....................................... 170
Event Data Recorders (EDR)...................... 491
Extender, Safety Belt..................................... 27
Exterior Lamps............................................ 164
Exterior Lighting Battery Saver.................... 169
F
Filter
Engine Air Cleaner................................... 382
Finish Damage............................................ 449
Flashers, Hazard Warning........................... 140
Flash-to-Pass.............................................. 143
Flat Tire...................................................... 440
Floor Mats................................................... 122
Fluid
Automatic Transmission............................ 384
Power Steering........................................ 396
Windshield Washer.................................. 397
Fog Lamp Light........................................... 201
Fog Lamps.................................................. 168
503

Message
DIC Warnings and Messages................... 206
Mirrors
Automatic Dimming Rearview with
OnStar
®................................................ 104
Outside Automatic Dimming Mirror........... 105
Outside Convex Mirror............................. 106
Outside Curb View Assist Mirror............... 106
Outside Power Heated Mirrors................. 105
MyGMLink.com............................................ 484
N
Navigation..........................................232, 234
Using the System.................................... 240
New Vehicle Break-In.................................... 87
Normal Maintenance Replacement Parts..... 475
O
Odometer.................................................... 187
Odometer, Trip............................................ 187
Off-Road Recovery...................................... 335Oil
Engine..................................................... 377
Engine Oil Pressure Gage....................... 200
Life Indicator............................................ 224
Supercharger, Engine............................... 382
Oil, Engine Oil Life System......................... 380
Older Children, Restraints............................. 28
Online Owner Center................................... 484
OnStar
®System.......................................... 281
OnStar®System, see OnStar®Manual........ 107
Ordering
Map DVDs............................................... 284
Other Warning Devices................................ 140
Outlet Adjustment........................................ 184
Outlet(s), Accessory Power.......................... 177
Outside
Automatic Dimming Mirror........................ 105
Convex Mirror.......................................... 106
Curb View Assist Mirror........................... 106
Power Heated Mirrors .............................. 105
Overheated Engine Protection
Operating Mode....................................... 390
Owner Checks and Services....................... 470
Owners, Canadian.......................................... 3
507
