2007 CADILLAC STS V engine coolant

{CAUTION:
Turning the Intercooler System pressure
cap when the engine and intercooler are
hot can allow steam and scalding liquids
to blow out and burn you badly. Never
turn the Intercooler System pressure cap,
even a little, when the engine and
intercooler are hot.
{CAUTION:
Adding only plain water to your cooling
system can be dangerous. Plain water, or
some other liquid such as alcohol, can
boil before the proper coolant mixture will.
Your vehicle’s coolant warning system is
set for the proper coolant mixture. With
plain water or the wrong mixture, your
CAUTION: (Continued)
CAUTION: (Continued)
engine could get too hot but you would
not get the overheat warning. Your engine
could catch re and you or others could
be burned. Use a 50/50 mixture of clean,
drinkable water and DEX-COOL
®coolant.
Notice:In cold weather, water can freeze and
crack the engine, radiator, heater core and
other parts. Use the recommended coolant and
the proper coolant mixture.
{CAUTION:
You can be burned if you spill coolant on
hot engine parts. Coolant contains
ethylene glycol and it will burn if the
engine parts are hot enough. Do not spill
coolant on a hot engine.
401

1. Remove the Intercooler System pressure cap
when the Intercooler System, including the
upper intercooler hoses, are no longer
hot. Turn the pressure cap slowly
counterclockwise about one-quarter of a turn.
If you hear a hiss, wait for that to stop.
This allows any pressure still left to be vented.
2. Then keep turning the pressure cap slowly,
and remove it.3. Add the proper DEX-COOL
®coolant mixture
to the ll neck, until the coolant reaches the
COLD FILL line on the ll neck.
4. With the Intercooler System pressure cap off,
start the engine and let it run for a couple of
minutes. Then turn the engine off. By this time,
the coolant level inside the ll neck may be
lower. If the level drops to where coolant is no
longer visible in the horizontal tube section
of the ll neck, with the engine off add more of
the DEX-COOL
®coolant mixture to the ll
neck until the level is again visible in the
horizontal tube section.
5. Then replace the pressure cap. Be sure the
pressure cap is hand-tight and fully seated.
If the coolant is not at the proper level
when the system cools down again, see
your dealer.
402

Windshield Washer Fluid
What to Use
When you need windshield washer uid, be sure
to read the manufacturer’s instructions before
use. If you will be operating your vehicle in an area
where the temperature may fall below freezing,
use a uid that has sufficient protection against
freezing.
Adding Washer Fluid
The CHECK WASHER FLUID message will
appear on the Driver Information Center (DIC)
when the uid level is low. SeeDIC Warnings and
Messages on page 264for more information.
Open the cap with the
washer symbol on it.
Add washer uid
until the tank is full. See
Engine Compartment
Overview on page 373
for reservoir location.Notice:
When using concentrated washer uid,
follow the manufacturer’s instructions
for adding water.
Do not mix water with ready-to-use washer
uid. Water can cause the solution to
freeze and damage your washer uid tank
and other parts of the washer system.
Also, water does not clean as well
as washer uid.
Fill your washer uid tank only
three-quarters full when it is very cold.
This allows for expansion if freezing
occurs, which could damage the tank if it
is completely full.
Do not use engine coolant (antifreeze) in
your windshield washer. It can damage
your washer system and paint.
404

Scheduled Maintenance
Service MaintenanceIMaintenanceII
Change engine oil and lter. SeeEngine Oil on page 380. Reset oil life system.
SeeEngine Oil Life System on page 383.An Emission Control Service.••
Visually check for any leaks or damage.See footnote (k).••
Inspect engine air cleaner lter. If necessary, replace lter. SeeEngine Air
Cleaner/Filter on page 386.See footnote (m).•
Check tires for ination pressures and wear. SeeTires on page 421. If tire
rotation is recommended for your vehicle, rotate tires. SeeTire Inspection and
Rotation on page 438and “Tire Wear Inspection” inAt Least Once a Month on
page 513.••
Inspect brake system.See footnote (a).••
Check engine coolant and windshield washer uid levels. If you have the
4.4L V8 supercharged engine, check intercooler uid level. Add uid as
needed.••
Perform any needed additional services. See “Additional Required Services”
in this section.••
Inspect suspension and steering components.See footnote (b).•
Inspect engine cooling system.See footnote (c).•
Inspect wiper blades.See footnote (d).•
Inspect restraint system components.See footnote (e).•
Lubricate body components.See footnote (f).•
Replace passenger compartment air lter.See footnote (g).•
507

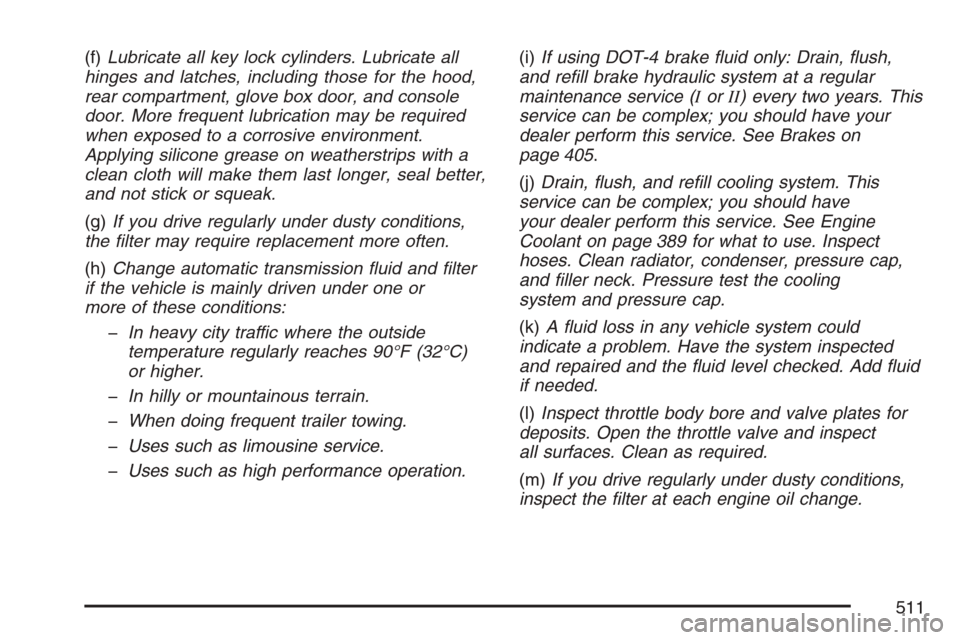

(f)Lubricate all key lock cylinders. Lubricate all
hinges and latches, including those for the hood,
rear compartment, glove box door, and console
door. More frequent lubrication may be required
when exposed to a corrosive environment.
Applying silicone grease on weatherstrips with a
clean cloth will make them last longer, seal better,
and not stick or squeak.
(g)If you drive regularly under dusty conditions,
the lter may require replacement more often.
(h)Change automatic transmission uid and lter
if the vehicle is mainly driven under one or
more of these conditions:
In heavy city traffic where the outside
temperature regularly reaches 90°F (32°C)
or higher.
In hilly or mountainous terrain.
When doing frequent trailer towing.
Uses such as limousine service.
Uses such as high performance operation.(i)If using DOT-4 brake uid only: Drain, ush,
and rell brake hydraulic system at a regular
maintenance service (IorII) every two years. This
service can be complex; you should have your
dealer perform this service. See Brakes on
page 405.
(j)Drain, ush, and rell cooling system. This
service can be complex; you should have
your dealer perform this service. See Engine
Coolant on page 389 for what to use. Inspect
hoses. Clean radiator, condenser, pressure cap,
and ller neck. Pressure test the cooling
system and pressure cap.
(k)A uid loss in any vehicle system could
indicate a problem. Have the system inspected
and repaired and the uid level checked. Add uid
if needed.
(l)Inspect throttle body bore and valve plates for
deposits. Open the throttle valve and inspect
all surfaces. Clean as required.
(m)If you drive regularly under dusty conditions,
inspect the lter at each engine oil change.
511

(n)Visually inspect belt for fraying, excessive
cracks, or obvious damage. Replace belt if
necessary.
(o)Drain, ush, and rell intercooler system. This
service can be complex; you should have your
dealer perform this service. See Engine Coolant on
page 389
(p)For supercharged engines only: Have your
dealer check the supercharger oil level and
add the proper supercharger oil as needed
(or every 36 months, whichever occurs rst).
See Recommended Fluids and Lubricants
on page 516Owner Checks and Services
These owner checks and services should be
performed at the intervals specied to help
ensure the safety, dependability, and emission
control performance of your vehicle. Your
GM Goodwrench
®dealer can assist you with
these checks and services.
Be sure any necessary repairs are completed at
once. Whenever any uids or lubricants are added
to your vehicle, make sure they are the proper
ones, as shown inRecommended Fluids and
Lubricants on page 516.
512

At Each Fuel Fill
It is important to perform these underhood checks
at each fuel ll.
Engine Oil Level Check
Check the engine oil level and add the proper oil
if necessary. SeeEngine Oil on page 380for
further details.
Notice:It is important to check the engine oil
regularly and keep it at the proper level.
Failure to keep the engine oil at the proper
level can cause damage to the engine not
covered by your warranty.
Engine Coolant Level Check
Check the engine coolant level and add
DEX-COOL®coolant mixture if necessary. See
Engine Coolant on page 389for further details.
Intercooler Coolant Level Check
(4.4L Supercharged Engine)
Check the coolant level and add DEX-COOL®
coolant mixture if necessary. SeeEngine Coolant
on page 389for further details.
Windshield Washer Fluid Level Check
Check the windshield washer uid level in
the windshield washer uid reservoir and add the
proper uid if necessary.
At Least Once a Month
Tire Ination Check
Visually inspect your vehicle’s tires and make sure
they are inated to the correct pressures. Do not
forget to check the spare tire. SeeInation - Tire
Pressure on page 431. Check to make sure the
spare tire is stored securely. SeeChanging a Flat
Tire on page 464.
Tire Wear Inspection
Tire rotation is recommended if your vehicle has
the same size tires at all four wheel positions
and may be required for high mileage highway
drivers prior to the Engine Oil Life System service
notication. Check the tires for wear and, if
necessary, rotate the tires. SeeTire Inspection
and Rotation on page 438.
513

Recommended Fluids and
Lubricants
Fluids and lubricants identied below by name,
part number, or specication can be obtained from
your dealer.
Usage Fluid/Lubricant
Engine OilThe engine requires a special
engine oil meeting GM Standard
GM4718M. Oils meeting this
standard can be identied as
synthetic, and should also be
identied with the American
Petroleum Institute (API) Certied
for Gasoline Engines starburst
symbol. However, not all synthetic
API oils with the starburst symbol
will meet this GM standard. You
should look for and use only oil that
meets GM Standard GM4718M. GM
Goodwrench
®oil meets all the
requirements for your vehicle. For
the proper viscosity, seeEngine Oil
on page 380.
Engine Cooling
System50/50 mixture of clean, drinkable
water and use only DEX-COOL
®
Coolant. SeeEngine Coolant on
page 389.
Usage Fluid/Lubricant
Intercooler
System
(4.4L V8
Supercharged
engine)50/50 mixture of clean, drinkable
water and use only DEX-COOL
®
Coolant.
Hydraulic Brake
SystemDelco
®Supreme 11 Brake Fluid or
equivalent DOT-3 brake uid.
Windshield
WasherGM Optikleen
®Washer Solvent.
Parking Brake
Cable GuidesChassis Lubricant
(GM Part No. U.S. 12377985,
in Canada 88901242) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Power Steering
SystemGM Power Steering Fluid
(GM Part No. U.S. 89021184,
in Canada 89021186).
Automatic
TransmissionDEXRON
®-VI Automatic
Transmission Fluid.
Key Lock
CylindersMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241,
in Canada 10953474).
SuperchargerSupercharger Oil
(GM Part No. U.S. 12345982,
in Canada 10953513). See
Supercharger Oil on page 385
516
