2007 CADILLAC CTS V Owners Manual

If your vehicle is in cruise control when the
Traction Control System (TCS) begins to limit
wheel spin, the cruise control will automatically
disengage. SeeTraction Control System (TCS)
(CTS) on page 293orTraction Control System
(TCS) (CTS-V) on page 295andStabiliTrak
®
System on page 297. When road conditions allow
you to safely use it again, you may turn the
cruise control back on.
Setting Cruise Control
{CAUTION:
If you leave your cruise control on when
you are not using cruise, you might hit a
button and go into cruise when you do not
want to. You could be startled and even
lose control. Keep the cruise control switch
off until you want to use cruise control.
1. Move the cruise control switch to on.
2. Get up to the desired speed.3. Press in the set button at the end of the lever
and release it.
4. Take your foot off the accelerator pedal.
This light on the
instrument panel cluster
will come on while
cruise control is on.
177

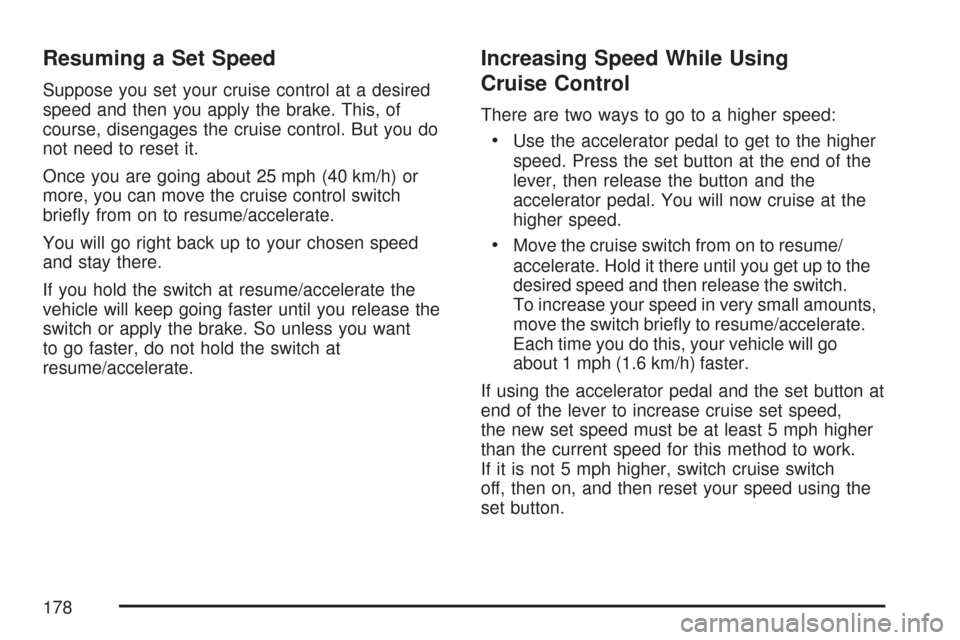

Resuming a Set Speed
Suppose you set your cruise control at a desired
speed and then you apply the brake. This, of
course, disengages the cruise control. But you do
not need to reset it.
Once you are going about 25 mph (40 km/h) or
more, you can move the cruise control switch
briey from on to resume/accelerate.
You will go right back up to your chosen speed
and stay there.
If you hold the switch at resume/accelerate the
vehicle will keep going faster until you release the
switch or apply the brake. So unless you want
to go faster, do not hold the switch at
resume/accelerate.
Increasing Speed While Using
Cruise Control
There are two ways to go to a higher speed:
Use the accelerator pedal to get to the higher
speed. Press the set button at the end of the
lever, then release the button and the
accelerator pedal. You will now cruise at the
higher speed.
Move the cruise switch from on to resume/
accelerate. Hold it there until you get up to the
desired speed and then release the switch.
To increase your speed in very small amounts,
move the switch briey to resume/accelerate.
Each time you do this, your vehicle will go
about 1 mph (1.6 km/h) faster.
If using the accelerator pedal and the set button at
end of the lever to increase cruise set speed,
the new set speed must be at least 5 mph higher
than the current speed for this method to work.
If it is not 5 mph higher, switch cruise switch
off, then on, and then reset your speed using the
set button.
178

Reducing Speed While Using Cruise
Control
There are two ways to reduce your speed while
using cruise control:
Press in the button at the end of the lever
until the desired lower speed is reached,
then release it.
To slow down in very small amounts, briey
press the set button. Each time you do this,
you will go about 1 mph (1.6 km/h) slower.
Passing Another Vehicle While Using
Cruise Control
Use the accelerator pedal to increase your speed.
When you take your foot off the pedal, your
vehicle will slow down to the cruise control speed
you set earlier.
Using Cruise Control on Hills
How well your cruise control will work on hills
depends upon your speed, load, and the steepness
of the hills. When going up steep hills, you mayhave to step on the accelerator pedal to maintain
your speed. When going downhill, you may have to
brake or shift to a lower gear to keep the speed
reduced. Applying the brake or shifting into a lower
gear will take you out of cruise control. If you need
to apply the brake or shift to a lower gear due to the
grade of the downhill slope, you may not want to
use the cruise control feature.
Ending Cruise Control
To end a cruise control session, step lightly on the
brake pedal. If your vehicle has a manual
transmission, lightly tapping the clutch pedal will
also end a cruise control session.
Stepping on the brake or clutch pedal will only end
the current cruise control session. Move the
cruise control switch to off to completely turn off
the system.
Erasing Speed Memory
When you turn off the cruise control or the ignition,
the cruise control set speed memory is erased.
179

Headlamps
The exterior lamp control is located in the middle
of the turn signal/multifunction lever. SeeTurn
Signal/Multifunction Lever on page 171.
O(Exterior Lamp Control):Turn the control
with this symbol on it to operate the exterior lamps.
The exterior lamp control has the following
four positions:
9(Off):Turning the control to this position
turns off all lamps except the Daytime Running
Lamps (DRL).
;(Parking Lamps):Turning the control to this
position turns on the parking lamps together
with the following:
Sidemarker Lamps
Taillamps
License Plate Lamps
Instrument Panel Lights
5(Headlamps):Turning the control to this
position turns on the headlamps, together with the
previously listed lamps and lights.
AUTO (Automatic):Turning the control to this
position puts the headlamps in automatic
mode. AUTO mode will turn the exterior lamps
on and off depending upon how much light
is available outside of the vehicle.
Wiper Activated Headlamps
This feature activates the headlamps and parking
lamps after the windshield wipers have been in
use for about six seconds. For this feature to work,
the exterior lamp control must be in AUTO.
When the exterior lamp control is off or in the
parking lamp position and the windshield wiper
control is in any position except off, the Headlamps
Suggested message will appear on the DIC
display. See “Headlamps Suggested Message”
underDIC Warnings and Messages on page 232
for more information.
When the ignition is turned to OFF, the
wiper-activated headlamps will immediately turn
off. They will also turn off if the windshield
wiper control is turned off.
180

Headlamps on Reminder
A warning chime will sound if the exterior lamp
control is left on in either the headlamp or parking
lamp position and the driver’s door is opened
with the ignition off. SeeLights On Reminder on
page 213for additional information.
Daytime Running Lamps (DRL)
Daytime Running Lamps (DRL) can make it easier
for others to see the front of your vehicle during
the day. DRL can be helpful in many different
driving conditions, but they can be especially
helpful in the short periods after dawn and before
sunset. Fully functional daytime running lamps
are required on all vehicles rst sold in Canada.
The DRL system will make the turn signal lamps
come on when the following conditions are met:
It is still daylight and the ignition is in ON
or START.
The exterior lamp control is in off or AUTO and
the headlamps are off.
The automatic transmission is not in PARK (P).When DRL are on, only your front turn signal
lamps will be on. No other exterior lamps will
be on. Your instrument panel cluster will not be
lit up either.
When the exterior lamp control is in AUTO and it
is dark enough outside, the DRL will turn off
and the low-beam headlamps will turn on. When it
is bright enough outside, the low-beam headlamps
will go off, and the DRL will turn back on. If you
start your vehicle in a dark garage, the automatic
headlamp system will come on immediately.
Once you leave the garage, it will take about
one minute for the automatic headlamp system to
change to DRL if it is light outside. During that
delay, your instrument panel cluster may not be as
bright as usual. Make sure your instrument
panel brightness lever is in the full bright position.
SeeInstrument Panel Brightness on page 184.
181

If it is dark enough outside and the exterior lamp
control is off, a Headlamps Suggested message
will appear on the Driver’s Information Center
(DIC) display. This message informs the driver that
turning on the exterior lamps is recommended
even though the DRL are still on. Turning the
exterior lamp control to AUTO or to the low-beam
headlamp position will turn off the DRL and
cancel the Headlamps Suggested message.
If the parking lamps or the fog lamps were turned
on instead, the DRL will still turn off and the
Headlamps Suggested message will be displayed.
You can turn it off by pressing the OK button if
you have the Navigation audio system or the
CLR (Clear) button if you have the base audio
system.
To drive your vehicle with the DRL off, turn the
exterior lamp control off. Then turn on the fog lamps
or parking lamps, and the DRL will turn off.
The Headlamps Suggested message will appear on
the DIC display. This will work regardless of gear
position and whether or not the parking brake is set.
As with any vehicle, you should turn on the
regular headlamp system when you need it.Light Sensor
The light sensor for the DRL and AUTO headlamp
feature is located on top of the instrument panel.
If you cover the sensor, it will prevent it from
sensing light, and the exterior lamps or the
Headlamps Suggested message will appear on
the DIC whenever the ignition is on.
182

Fog Lamps
Use the fog lamps for better vision in foggy or
misty conditions.
The fog lamp control is located on the turn
signal/multifunction lever.
-(Fog Lamps):The band with/or next to this
symbol is used to turn the fog lamps on and off.
The parking lamps must be on for the fog lamps
to work.
To operate the fog lamps:
To turn the fog lamps on, turn the fog lamp
band on the lever up to the dot and release
it. The band will return to its original position.
To turn the fog lamps off, turn the for lamp band
up to the dot and release it. The band will return
to its original position, and the fog lamps will
turn off. If the high-beam headlamps are turned
on, the fog lamps will also turn off. They will turn
back on again when you switch back to
low-beam headlamps.
Some localities have laws that require the
headlamps to be on along with the fog lamps.
Exterior Lighting Battery Saver
If the parking lamps or headlamps have been
left on, the exterior lamps will turn off about
10 minutes after the ignition is turned to OFF.
This protects against draining the battery in case
the headlamps or parking lamps have been
left on. The battery saver does not work if the
headlamps are turned on after the ignition is
turned to OFF.
If you need to leave the lamps on for more than
10 minutes, use the exterior lamp control to
turn the lamps back on.
183

Instrument Panel Brightness
The lever for this
feature is located on the
overhead console.
Slide the lever toward the symbol to brighten the
lights or away from it to dim them.
If you slide the lever all the way toward the
symbol past the resistance point, the interior lamps
will come on. To turn them off, slide the lever
back toward the minimum brightness setting.
Entry Lighting
The entry lighting system turns on the reading and
dome lamps and the backlighting to the exterior
lamp control when a door is opened or if the
Remote Keyless Entry (RKE) transmitter unlock
button is pressed. If activated by the (RKE),
the lighting will remain active for about 25 seconds.
The entry lighting system uses the light sensor
on the instrument panel; so it must be dark outside
in order for the lamps to turn on. The lamps turn
off about 25 seconds after the last door is
closed. They will dim to off if the ignition key is
turned to ON, or immediately turn off if the power
locks are used.
184
