If you need to replace any of your wheels, wheel
bolts, or wheel nuts, replace them only with new
GM original equipment parts. This way, you will be
sure to have the right wheel, wheel bolts, and wheel
nuts for your vehicle.
{CAUTION:
Using the wrong replacement wheels,
wheel bolts, or wheel nuts on your vehicle
can be dangerous. It could affect the
braking and handling of your vehicle,
make your tires lose air and make you
lose control. You could have a collision
in which you or others could be injured.
Always use the correct wheel, wheel bolts,
and wheel nuts for replacement.Notice:The wrong wheel can also cause
problems with bearing life, brake cooling,
speedometer or odometer calibration, headlamp
aim, bumper height, vehicle ground clearance,
and tire or tire chain clearance to the body and
chassis.
SeeChanging a Flat Tire on page 428for more
information.Used Replacement Wheels
{CAUTION:
Putting a used wheel on your vehicle is
dangerous. You cannot know how it has
been used or how far it has been driven. It
could fail suddenly and cause a crash. If
you have to replace a wheel, use a new
GM original equipment wheel.
423

Electrical System
Add-On Electrical Equipment
Notice:Do not add anything electrical to your
vehicle unless you check with your dealer rst.
Some electrical equipment can damage your
vehicle and the damage would not be covered
by your warranty. Some add-on electrical
equipment can keep other components from
working as they should.
Add-on equipment can drain your vehicle’s
battery, even if your vehicle is not operating.
Your vehicle has an airbag system. Before
attempting to add anything electrical to your
vehicle, seeServicing Your Airbag-Equipped
Vehicle on page 102.
Headlamp Wiring
The headlamp wiring is protected by internal fuses
in the fuse block. An electrical overload will cause
the lamps to go off and remain off. If this happens,
have your headlamp wiring checked right away.
Windshield Wiper Fuses
The windshield wiper motor is protected by an
internal circuit breaker and a fuse. If the motor
overheats due to heavy snow, etc., the wiper will
stop until the motor cools. If the overload is caused
by some electrical problem, be sure to get it xed.
Power Windows and Other Power
Options
Circuit breakers in the oor console fuse block
protect the power windows and other power
accessories. When the current load is too heavy,
the circuit breaker opens and closes, protecting
the circuit until the problem is xed.
462

Fuse Usage
6 Powertrain Relay
7 Powertrain Sensors
8 Transmission Control Module (TCM)
9Anti-lock Brake System (ABS)
Solenoids Valves
10 Oxygen Sensor/MAF Sensor
11 Fuel Injectors (Even)
13 Fuel Injectors (Odd)
14 Daytime Running Lamps (DRL)
15 Passenger’s Low-Beam Headlamp
16 Transmission
17 Driver’s Low-Beam Headlamp
18 Driver’s High-Beam Headlamp
19 Ignition Switch Battery Power
20 Parking LampsFuse Usage
21 Engine Control Module (ECM)
23 Passenger’s High-Beam Headlamp
24 Vent Solenoids
25 DVD
26 Front Fog Lamps
27 Ignition Relay
28 Body Control Module (BCM)
29 S-Band
30 Not Used
31 Cruise Control
32 Front Power Outlets/Lights, OnStar
®
33Automatic Transaxle Shift Lock
Control System
34 Starter Solenoid Battery Fuse
35 Anti-lock Brake System (ABS) Motor
38 Engine Cooling Fan 2
467

Fuse Usage
39 Engine Cooling Fan 1
40Main Battery Fuse for Retained
Accessory Power Relay and
Accessory Relay
41Main Battery Fuse for Heated Seats,
Air Conditioning, Defogger
44Main Battery Fuse for Power
Outlets, Level Control, Power Seats,
Mirrors, and Body Computer
46Main Battery Fuse for Climate
Control Blower and Ignition 3 Relay
47Main Battery Fuse for Ignition
Switch, Radio, Heads-Up Display
(HUD), Remote Keyless Entry
(RKE), Instrument Cluster, Air
Conditioning, and Body Computer
70
§Diode for Air Conditioning
Compressor Clutch
§71Diode for Ignition
Relay Usage
49 Horn
50 Fuel Pump
51 Air Conditioning Clutch
52 Daytime Running Lamps (DRL)
53 Low-Beam Headlamps
54 Parking Lamps
55 High-Beam Headlamps
56 Fog Lamps
57 Starter Relay
58 Cooling Fan Series/Parallel
59 Powertrain
60 Cooling Fan 2
61 Cooling Fan 1
62 Ignition
468

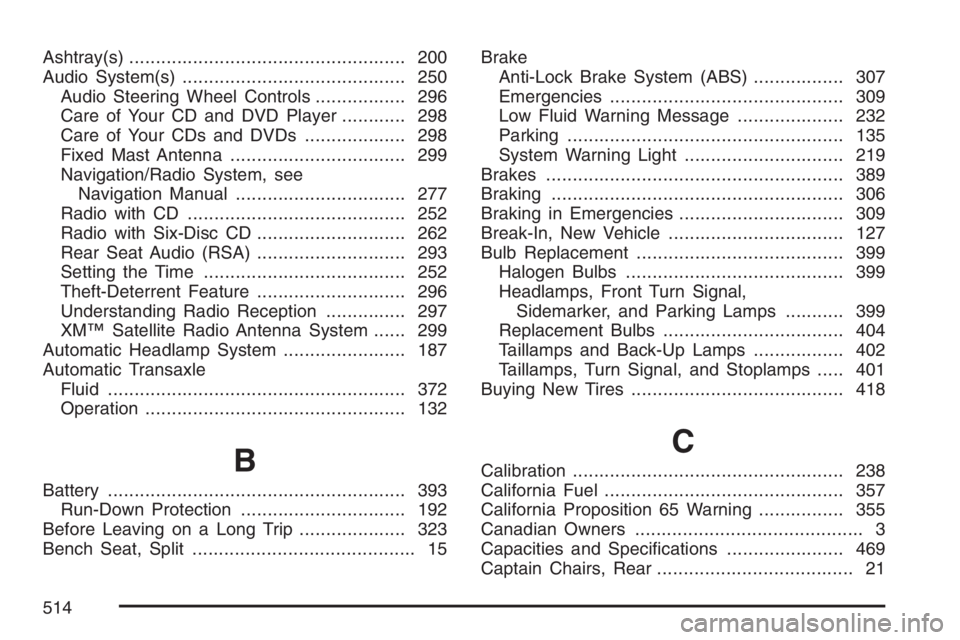

Ashtray(s).................................................... 200
Audio System(s).......................................... 250
Audio Steering Wheel Controls................. 296
Care of Your CD and DVD Player............ 298
Care of Your CDs and DVDs................... 298
Fixed Mast Antenna................................. 299
Navigation/Radio System, see
Navigation Manual................................ 277
Radio with CD......................................... 252
Radio with Six-Disc CD............................ 262
Rear Seat Audio (RSA)............................ 293
Setting the Time...................................... 252
Theft-Deterrent Feature............................ 296
Understanding Radio Reception............... 297
XM™ Satellite Radio Antenna System...... 299
Automatic Headlamp System....................... 187
Automatic Transaxle
Fluid........................................................ 372
Operation................................................. 132
B
Battery........................................................ 393
Run-Down Protection............................... 192
Before Leaving on a Long Trip.................... 323
Bench Seat, Split.......................................... 15Brake
Anti-Lock Brake System (ABS)................. 307
Emergencies............................................ 309
Low Fluid Warning Message.................... 232
Parking.................................................... 135
System Warning Light.............................. 219
Brakes........................................................ 389
Braking....................................................... 306
Braking in Emergencies............................... 309
Break-In, New Vehicle................................. 127
Bulb Replacement....................................... 399
Halogen Bulbs......................................... 399
Headlamps, Front Turn Signal,
Sidemarker, and Parking Lamps........... 399
Replacement Bulbs.................................. 404
Taillamps and Back-Up Lamps................. 402
Taillamps, Turn Signal, and Stoplamps..... 401
Buying New Tires........................................ 418
C
Calibration................................................... 238
California Fuel............................................. 357
California Proposition 65 Warning................ 355
Canadian Owners........................................... 3
Capacities and Specications...................... 469
Captain Chairs, Rear..................................... 21
514

Driver Information Center (DIC) (cont.)
DIC Vehicle Personalization..................... 240
Driving
At Night................................................... 317
City.......................................................... 321
Defensive................................................. 302
Drunken................................................... 303
Freeway................................................... 322
Hill and Mountain Roads.......................... 325
In Rain and on Wet Roads...................... 318
Rocking Your Vehicle to Get it Out.......... 332
Winter...................................................... 327
Dual Automatic Climate Control System....... 206
Dual Climate Control System....................... 203
DVD
Rear Seat Entertainment System............. 277
E
Electrical System
Add-On Equipment................................... 462
Floor Console Fuse Block........................ 463
Fuses and Circuit Breakers...................... 463
Headlamp Wiring..................................... 462
Power Windows and Other Power
Options................................................. 462
Underhood Fuse Block............................. 466Electrical System (cont.)
Windshield Wiper Fuses........................... 462
Engine
Air Cleaner/Filter...................................... 370
Battery..................................................... 393
Change Oil Message............................... 230
Check and Service Engine Soon Light..... 222
Coolant.................................................... 375
Coolant Heater......................................... 131
Coolant Temperature Gage...................... 221
Coolant Temperature Warning Message ... 227
Drive Belt Routing.................................... 487
Engine Compartment Overview ................ 364
Exhaust................................................... 140
Oil ........................................................... 365
Oil Life System........................................ 368
Overheated Protection Operating Mode.... 380
Overheating............................................. 378
Reduced Power Message........................ 228
Starting.................................................... 129
Entry Lighting.............................................. 189
Event Data Recorders (EDR)...................... 503
Exit Delay, Headlamp.................................. 189
Exit Lighting................................................ 190
Extender, Safety Belt..................................... 56
Exterior Lamps............................................ 185
517

H
Hatch Ajar Warning Message...................... 230
Hazard Warning Flashers............................ 176
Head Restraints............................................ 15
Headlamp Wiring......................................... 462
Headlamps
Automatic Headlamp System.................... 187
Bulb Replacement.................................... 399
Daytime Running Lamps.......................... 186
Exit Delay................................................ 189
Flash-to-Pass........................................... 179
Halogen Bulbs......................................... 399
Headlamps, Front Turn Signal,
Sidemarker, and Parking Lamps........... 399
High/Low Beam Changer......................... 179
Head-Up Display (HUD).............................. 193
Heated Seats................................................ 11
Heater................................................200, 203
Heater......................................................... 206
Highbeam Out Warning Message................ 235
Highway Hypnosis....................................... 324
Hill and Mountain Roads............................. 325
Hood
Checking Things Under............................ 362
Release................................................... 363Horn............................................................ 176
How to Use This Manual ................................ 4
How to Wear Safety Belts Properly............... 35
I
Ignition Positions......................................... 128
Infants and Young Children, Restraints .......... 60
Ination - Tire Pressure............................... 413
Instrument Panel
Overview.................................................. 174
Switchbank.............................................. 192
Instrument Panel (I/P)
Brightness................................................ 188
Cluster..................................................... 212
Interior Lamps............................................. 188
Interior Lamps Control................................. 188
J
Jump Starting.............................................. 394
K
Keyless Entry System................................. 110
Keys........................................................... 109
519
