2007 BMW X3 3.0I engine

Replacing components
106 bracket. To do so, loosen the bolt, refer to
arrow, and place the reservoir to one side.
Bear in mind that the windshield washing
system reservoir is heavy. Failure to take
this into account can lead to personal injury or
damage to the vehicle.<
For bulb replacement procedure, refer to
Driver's side.
Halogen high beams
H7 bulb, 55 watts
Always wear gloves and eye protection –
the atmosphere inside the H7 bulb is
pressurized. Failure to observe this precaution
can lead to injuries should the bulb be dam-
aged.<
For checking and adjusting headlamp
aim, please contact your BMW Sports
Activity Vehicle Center.<
Driver's side
1.Open the clip and remove the lamp cover.
2.Press the bulb holder downward and
remove, refer to Low beams.
3.Pull off the lamp base; plug in a new lamp
base.
4.Place the lamp base with the lower edge
against the bracket and press it in until the
lamp base locks into place.
Make sure that the cover does not fall into
the engine compartment; otherwise, the
vehicle can be damaged or other road users can
be endangered.<
Front passenger side
Before replacing the bulb, remove the reservoir
of the windshield washer system from the
bracket, refer to Halogen low beams on
page105.
For bulb replacement procedure, refer to
Driver's side.
Parking and roadside parking lamps
W5W bulb, 5 watts
A bulb is located over each high beam.
1.Remove bulb cover for high beams, refer to
Halogen high beams.
2.Remove bulb holder.
3.Remove and replace the bulb.
Turn signal, front
PSY24WSV bulb, 24 watts
Access to the turn signal is at the edge of the
lamp unit, refer to arrow.
Make sure that the lamp base does not fall
into the engine compartment; otherwise,
the vehicle can be damaged or other road users
can be endangered.<
1.Turn the lamp base and remove it.
2.Replace the bulb.
3.Insert the lamp base. If it does not snap into
place immediately, turn the lamp base until
it does.

Replacing components

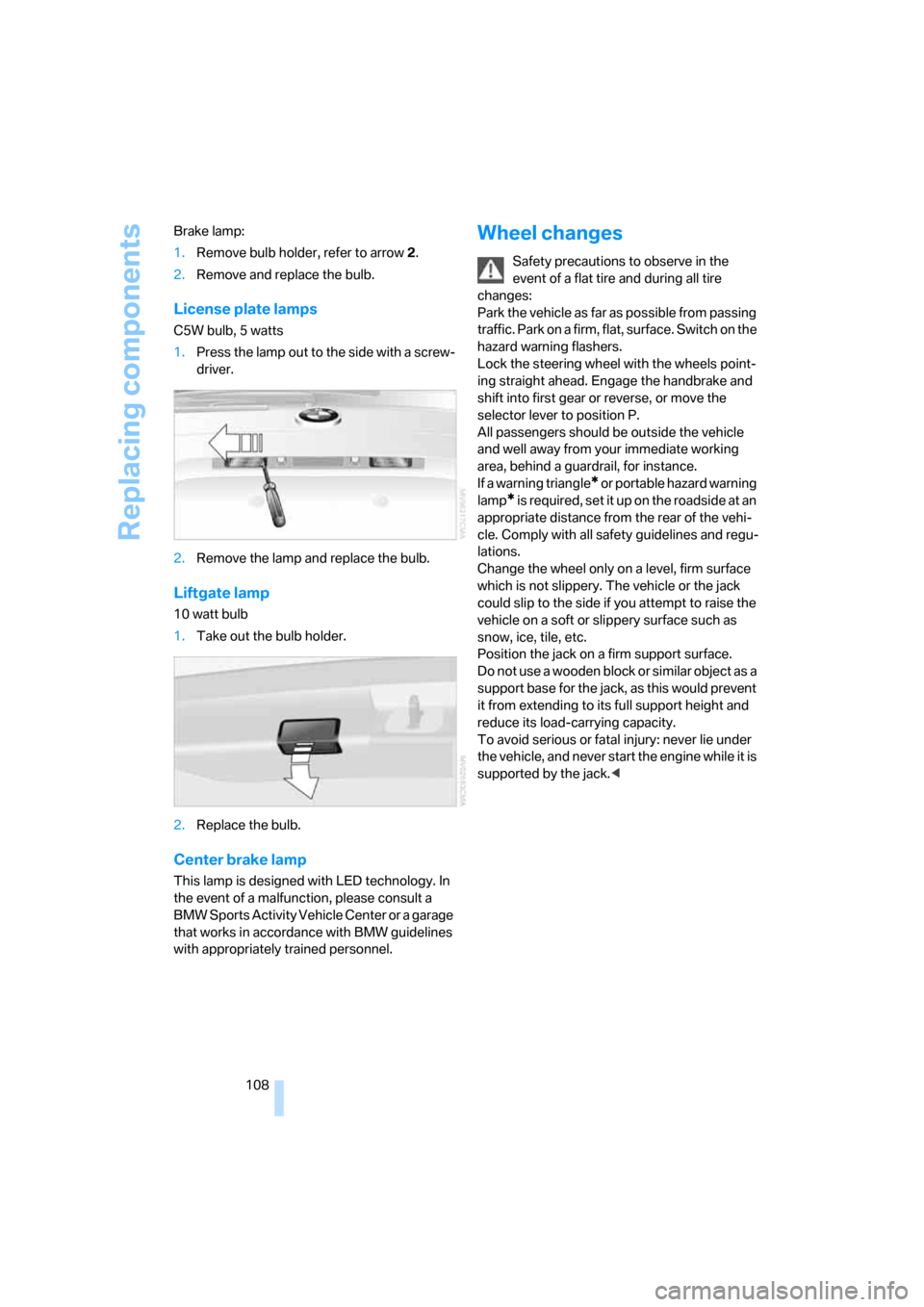

108 Brake lamp:
1.Remove bulb holder, refer to arrow 2.
2.Remove and replace the bulb.
License plate lamps
C5W bulb, 5 watts
1.Press the lamp out to the side with a screw-
driver.
2.Remove the lamp and replace the bulb.
Liftgate lamp
10 watt bulb
1.Take out the bulb holder.
2.Replace the bulb.
Center brake lamp
This lamp is designed with LED technology. In
the event of a malfunction, please consult a
BMW Sports Activity Vehicle Center or a garage
that works in accordance with BMW guidelines
with appropriately trained personnel.
Wheel changes
Safety precautions to observe in the
event of a flat tire and during all tire
changes:
Park the vehicle as far as possible from passing
traffic. Park on a firm, flat, surface. Switch on the
hazard warning flashers.
Lock the steering wheel with the wheels point-
ing straight ahead. Engage the handbrake and
shift into first gear or reverse, or move the
selector lever to position P.
All passengers should be outside the vehicle
and well away from your immediate working
area, behind a guardrail, for instance.
If a warning triangle
* or portable hazard warning
lamp
* is required, set it up on the roadside at an
appropriate distance from the rear of the vehi-
cle. Comply with all safety guidelines and regu-
lations.
Change the wheel only on a level, firm surface
which is not slippery. The vehicle or the jack
could slip to the side if you attempt to raise the
vehicle on a soft or slippery surface such as
snow, ice, tile, etc.
Position the jack on a firm support surface.
Do not use a wooden block or similar object as a
support base for the jack, as this would prevent
it from extending to its full support height and
reduce its load-carrying capacity.
To avoid serious or fatal injury: never lie under
the vehicle, and never start the engine while it is
supported by the jack.<

Reference
At a glance
Controls
Driving tips
Mobility
111
Protect valve stems with valve stem
seal caps from dirt and contamina-
tion. Dirt in valve stems is a frequent source
of gradual air loss.<
4.Reinitialize the Flat Tire Monitor
* or reset
the Tire Pressure Monitor
*, refer to
pages53, 54.
Do not initialize the Flat Tire Monitor
when driving with a compact wheel.<
5.Replace the defective tire as soon as possi-
ble and have the new wheel/tire balanced.
Driving with compact wheel
Drive reservedly and do not exceed a speed of
50 mph/80 km/h.
Mounting the compact wheel can change the
driving characteristics. For example, it can
reduce tracking stability during braking, extend
braking distances, and alter self-steering char-
acteristics in the limit range. With winter tires,
these characteristics are more pronounced.
Only one compact wheel may be
mounted. You should re-equip with
wheels and tires of the original size as soon as
possible.<
Vehicle battery
Maintenance
The battery is 100 % maintenance-free, i.e., the
electrolyte will last for the life of the battery
when the vehicle is operated in a temperate cli-
mate. Your BMW Sports Activity Vehicle Center
will be happy to advise you on all questions con-
cerning the battery.
Warning lamp
The warning lamp lights up. The battery
is no longer being charged. The alterna-
tor V-belt is defective or there is a mal-
function in the charge current circuit of the
alternator. Have the system checked immedi-
ately.Do not continue driving if the V-belt is
defective. The engine could be damaged
due to overheating.
Moreover, an increased amount of force is
required for steering if there is a sharp drop in
the onboard supply voltage.<
Charging battery
Charge the battery in the vehicle only when the
engine has been switched off. For connections,
refer to Jump starting on page114.
Disposal
Have old batteries disposed of following
replacement at your BMW Sports Activity
Vehicle Center or bring them to a collection
point. Maintain the battery in an upright position
for transport and storage. Always secure the
battery to prevent it from tipping over during
transport.<
Power failure
After a temporary power supply interruption,
some equipment is subject to limited use and
must be reinitialized. Individual settings are also
lost and must be updated again:
>Panorama glass sunroof
It may be only possible to raise the sunroof.
The system must be initialized, refer to
page24.
>Power windows
The pinch protection system must be reini-
tialized, refer to page23.
>Seat and mirror memory
The positions must be stored again, refer to
page30.
>Time
Must be set again, refer to page46.

Giving and receiving assistance
114
First-aid kit*
Some of the articles in the first-aid kit may be
used within a limited time only. Check the expi-
ration dates of the contents regularly and
replace the contents in a timely fashion as
needed.
The first-aid kit is located under the front pas-
senger's seat.
To open: pull the handle and fold the cover
downward.
To close: fold the cover up.
Jump starting
When your battery is discharged, you can use
two jumper cables to start the engine of your
BMW with power from the battery in another
vehicle. You can also use the same method to
help start another vehicle. Use only jumper
cables with fully-insulated clamp handles.
To avoid the risk of potentially fatal injury,
always avoid all contact with electrical
components while the engine is running. Care-
fully comply with the following instructions to
avoid personal injury and/or damage to one or
both vehicles.<
Preparing
1.Check whether the battery of the other
vehicle has a voltage of 12 Volts and
approximately the same capacitance in Ah.
This information can be found on the bat-
tery.
2.Switch off the engine of the vehicle provid-
ing assistance.3.Switch off any electrical systems and com-
ponents in both vehicles.
Ensure that there is no contact between
the bodywork on the two vehicles; other-
wise, there is a danger of short circuits.<
Connecting jumper cables
Connect the jumper cables in the correct
order; failure to do so could generate
sparks and cause injury.<
In your BMW, the so-called jump starting termi-
nal in the engine compartment functions as the
positive battery terminal, also refer to engine
compartment overview on page98. The
symbol + is embossed on the cover.
1.Open the cover of the BMW jump starting
terminal, refer to arrow1.
2.Connect one terminal clamp of the posi-
tive/+ jumper cable to the positive terminal
of the battery or to a jump starting terminal
of the vehicle providing starting assistance.
3.Connect the second terminal clamp of the
positive/+ jumper cable to the positive ter-
minal of the battery or to a jump starting ter-
minal of the vehicle to be started.
4.Connect one terminal clamp of the nega-
tive/– jumper cable to the negative terminal
of the battery or to an engine or body
ground of the vehicle providing assistance.
Your BMW has a special nut that serves as
the body ground or negative terminal, refer
to arrow2.
5.Connect the second terminal clamp of the
negative/– jumper cable to the negative ter-
minal of the battery or to the engine or body
ground of the vehicle to be started.

Reference
At a glance
Controls
Driving tips
Mobility
115
Starting engine
1.Start the engine of the assisting vehicle and
let it run at a slightly elevated idling speed
for a few minutes.
2.Start the engine on the other vehicle in the
usual way.
If the first start attempt is not successful,
wait a few minutes before another attempt
in order to allow the discharged battery to
recharge.
3.Let the engines run for a few minutes.
4.Disconnect the jumper cables by reversing
the connection sequence.
If need be, have the battery checked and
recharged.
Never use spray fluids to start the
engine.<
Tow starting and towing
Obey all applicable laws and guidelines
for tow starting and towing.<
Do not allow any passengers other than
the driver to ride in a vehicle that is being
towed.<
Using tow fitting
The threaded tow fitting is stored in the
onboard tool kit, refer to page104, and must
always remain in the vehicle. It can be screwed
in at the front or rear of the BMW.
Only use the tow fitting that comes with
the vehicle and screw it in as far as it will
go. Use the tow fitting only for towing on roads.
Avoid lateral loading of the tow fitting, e.g. do
not lift the vehicle by the tow fitting. Otherwise,
the tow fitting and the vehicle can be dam-
aged.<
Access to screw thread
Front
Push the cover in the bumper out of the recess
with a screwdriver.
Rear
Press on the mark provided on the cover.
Being towed
Make sure that the ignition key is in posi-
tion 1; otherwise, the steering lock will
engage, making it impossible to steer the vehi-
cle. There is no power assist with the engine
switched off. It is therefore necessary to exert
increased effort for braking and steering.<
Switch on the hazard warning flashers depend-
ing on the local regulations. If the electrical sys-
tem fails, mark the vehicle to be towed, e.g. with
a sign or warning triangle in the rear window.
Manual transmission
Gearshift lever in neutral.
Automatic transmission
Selector lever in position N.
Changing selector lever positions, refer to
page39.
Do not exceed a towing speed of
45 mph/70 km/h and a towing distance
of 90 miles/150 km; otherwise, the automatic
transmission may be damaged.<

Giving and receiving assistance
116
Towing methods
To avoid damage, do not lift the vehicle by
the tow fitting or body and suspension
parts.<
In some countries, towing with tow bars or
ropes on public roads is not permitted. Familiar-
ize yourself with the regulations on towing in the
specific country.
With tow bar
The towing vehicle must not be lighter
than the vehicle to be towed; otherwise,
it will not be possible to safely control vehicle
response.<
The tow fittings used should be on the same
side on both vehicles. Should it prove impossi-
ble to avoid mounting the tow bar at an offset
angle, please observe the following:
>Clearance and maneuvering capability will
be strictly limited in corners.
>When mounted at an angle, the tow bar will
exert lateral forces, tending to push the
vehicle sideways.
Secure the tow bar to the tow fittings
only. Otherwise, other vehicle parts could
be damaged.<
With tow-rope
When starting off in the towing vehicle, make
sure that the tow-rope is taut.
To avoid jerking and the associated
stresses on vehicle components when
towing, always use nylon ropes or nylon straps.
Secure the tow rope to the tow fittings only.
Otherwise, other vehicle parts could be dam-
aged.<
With tow truck
Do not tow the X3 with only the front or
rear axle raised; otherwise, the wheels
could lock and the transfer case could be dam-
aged. Tow starting
If possible, do not tow start the vehicle; jump
start the engine instead, refer to page114.
Vehicles equipped with catalytic convertors
should only be tow started when the engine is
cold. It is not possible to tow start an engine
equipped with an automatic transmission.
1.Switch on hazard warning flashers, comply
with local regulations.
2.Switch on ignition, refer to page37.
3.Shift into 3rd gear.
4.Have the vehicle tow-started with the clutch
depressed and slowly release the clutch.
After the engine starts, immediately
depress the clutch again.
5.Stop at a suitable location, remove the tow
bar or rope and switch off the hazard warn-
ing flashers.
6.Have the vehicle checked.
Do not activate the HDC Hill Descent
Control during tow starting, refer to
page51.<

Technical data
120
Technical data
Engine specifications
X3 3.0iX3 3.0si
Displacement
Number of cylinderscu in/cm
3182.8/2996
6182.8/2996
6
Maximum power
at engine speedhp
rpm215
6250260
6600
Maximum torque
at engine speedIb ft/Nm
rpm185/251
2750225/305
2750
An engine performance test is authorized only on an appropriate chassis dynamometer.

Everything from A to Z
124
Everything from A to Z
Index
A
ABS Antilock Brake
System50
– indicator lamp12
Acceleration assistance
– refer to Acceleration
assistant52
– refer to DSC50
Acceleration assistant52
Accessories, refer to For your
own safety5
Accident, refer to Receiving
assistance113
Activated-charcoal filter66
Adaptive Head Light59
Adding engine oil100
Adjusting seats28
– electrically28
– mechanically28
– mechanically, Sports seat29
Airbags56
– deactivating front passenger
side34,56
– front passenger side,
deactivating34,56
– indicator lamp for front
passenger airbags57
– sitting safely27
– warning lamp57
Air circulation, refer to
Recirculated-air
mode62,66
Air conditioner61
Air distribution
– air conditioner62
– automatic climate control65
Airing, refer to
Ventilation63,66
Air outlets, refer to
Ventilation63,66Air pressure, refer to Tire
inflation pressure90
Air vents, refer to
Ventilation63,66
Air volume62
– adjusting manually65
AKI, refer to Fuel
specifications89
Alarm system25
– avoiding unintentional
alarms26
All-season tires, refer to
Special characteristics of
winter tires95
All wheel drive, refer to
xDrive51
Anchorage points76
Antifreeze
– coolant101
– washer fluid42
Antilock Brake System
ABS50
– indicator lamp12
Anti-theft alarm system, refer
to Alarm system19,25
Approved axle load, refer to
Weights122
Approved engine oils100
Approved gross vehicle
weight, refer to Weights122
Armrest
– front71
– rear71
Artificial leather, refer to
Caring for your vehicle
brochure
Ashtray72
AUC Automatic recirculated-
air control66
Audio device, external72Automatic
– air distribution65
– air volume65
– recirculated-air control
AUC66
Automatic car wash, refer to
Caring for your vehicle
brochure
Automatic climate control64
Automatic cruise control43
Automatic curb monitor32
Automatic deactivation of
front passenger airbags56
Automatic headlamp
control58
Automatic transmission with
Steptronic39
– indicator lamp40
– interlock37
– selector lever interlock39
– shiftlock39
– towing115
– tow starting116
AUTO program65
Average fuel consumption48
– setting units47
Average speed48
– setting units47
Avoiding unintentional
alarms26
Axle loads, refer to
Weights122
B
Backrest, refer to Seats28
Backrest contour, refer to
Lumbar support29
Backup lamps, bulb
replacement107
Bandages, refer to First-aid
kit114
