2007 BMW MOTORRAD G650 XMOTO coolant level

General view, left side1Adjuster for damping char-
acteristic, front suspen-
sion (compression stage)
( 36)
2 Adjuster for spring preload,
rear ( 34)
3 Power socket
OE
( 56)
4 Adjuster for damping char-
acteristic, rear suspension
( 37)
5 Coolant-level indicator
( 67)
211zGeneral views

Fuel down to reserveWarning light for fuel down
to reserve lights up.
Lack of fuel can result in
the engine misfiring and
cutting out unexpectedly. Mis-
firing can damage the catalytic
converter; a hazardous situation
can result if the engine cuts out
unexpectedly.
Do not run the fuel tank dry.
Possible cause: The fuel tank
contains no more than the re-
serve quantity of fuel.
Reserve fuel
2l
Refuelling ( 50) Insufficient engine oil
pressure
Warning light for oil pres-
sure shows.
The oil pressure in the lube-oil
system is too low. Stop immedi-
ately and switch off the engine if
the warning light shows.
The insufficient oil pres-
sure warning does not fulfil
the function of an oil gauge. The
only way of checking whether
the oil level is correct is to check
with the oil dipstick.
Possible cause: Engine-oil level
too low.
Check the engine oil level
( 61)
If the oil level is too low: Top up the engine oil ( 63)
If the engine oil level is correct: Riding when engine-oil
pressure is low can result
in engine damage. Do not continue your journey.
Have the fault rectified as
quickly as possible by a
specialist workshop, preferably
an authorised BMW Motorrad
dealer.
Coolant temperature too high Warning light for coolant
temperature shows.
Continuing to ride when the
engine is overheated could
result in engine damage.
You must comply with the in-
structions below.
Possible cause: Coolant level too
low.
Check the coolant level ( 67)
If the coolant level is too low:
Topping up coolant ( 68)
Possible cause: Radiator fan de-
fective.
322zStatus indicators

Brake fluid level, rear
DOT4 brake fluid
Do not permit the brake fluid
level to drop below the MIN
mark. (Brake-fluid reservoir
horizontal)
If the brake fluid level drops be-
low the permitted level: Have the defect rectified as
quickly as possible by a spe-
cialist workshop, preferably
an authorised BMW Motorrad
dealer.

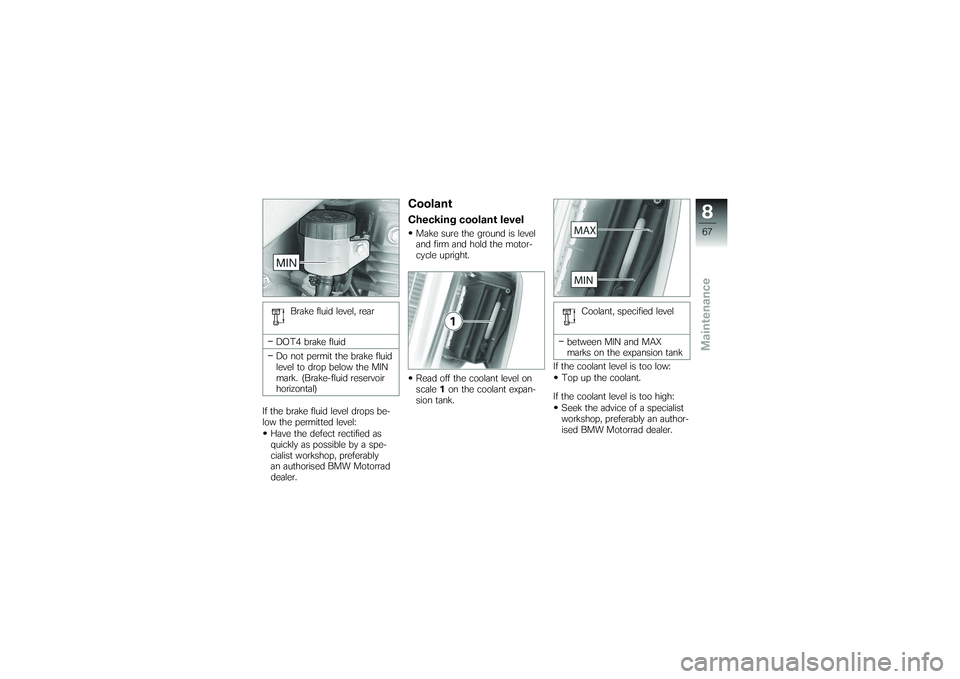

CoolantChecking coolant levelMake sure the ground is level
and firm and hold the motor-
cycle upright.
Read off the coolant level on
scale 1on the coolant expan-
sion tank. Coolant, specified level
between MIN and MAX
marks on the expansion tank
If the coolant level is too low: Top up the coolant.
If the coolant level is too high: Seek the advice of a specialist
workshop, preferably an author-
ised BMW Motorrad dealer.
867zMaintenance

Topping up coolantPull cover of radiator cap1for-
ward to remove.
Open cap of the expansion
tank for coolant 2. Top up the coolant to the spe-
cified level.
Close the cap of the expansion
tank for coolant.
Seat the cover of the radiator
cap in holders
3. In this pro-
cess, guide the top edge of the
cover behind the bottom edge
of centre trim panel 4.
ClutchChecking clutch-lever
playPull the clutch lever until resist-
ance is perceptible.
Measure clutch-lever play A.
Clutch-lever play
2...3 mm (Engine cold)
Clutch-lever play is out of toler-
ance: Adjust clutch-lever play ( 69)
868zMaintenance

A
Abbreviations and symbols, 6
ABSEngineering details, 52
Fuses, 13, 81
Self-diagnosis, 46
Switching off and on, 15, 33
Warnings, 23
Accessories Notes, 56
Power socket, 56
Auxiliary stand, 78
B
Battery Charging, 92
Maintenance instructions, 91
Removing and installing, 92
Technical data, 111
Voltmeter, 20, 30
BMW Motorrad service, 116
BMW Motorrad Service Card, 116 Brake fluid
Checking level, 65
Reservoir, front, 13
Reservoir, rear, 13
Brake pads Running in, 47
Test, 64
Brakes Notes, 47
Technical data, 109
Test, 63
Bulbs Notes on replacement, 82
Replacing low-beam headlight
bulb, 83
Replacing number-plate light
bulbs, 89
Replacing rear light, 89
Replacing side-light bulb, 86
Replacing turn indicator
bulb, 87
Technical data, 111
C
Care, 97 Chain
Adjusting tension, 70
Checking tension, 70
Checking wear, 71
Lubricating, 69
Checklist, 44
Clock, 20 Adjusting, 17, 29
Clutch Adjusting play, 69
Checking play, 68
Technical data, 107
Confirmation of maintenance work, 118
Coolant Checking level, 67
Fore-and-aft tilt indicator, 11
Topping up, 68
Coolant temperature Warning, 22
D
Damping Adjusting, 11, 13, 35
Dimensions, 112
12125zIndex
