Air conditioning, as it cools, removes
moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry.
Switch the fan on.
Tu rn on the air conditioning.
Select and fresh air mode.
Adjust the temperature to your
preference.
This setting is suitable for all driving
conditions whenever the outside
temperature is above 32°F (0°C).
Air
conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page ). If it moves near the red zone,
turn of f the A/C until the gauge
reading returns to normal.
To remove f og f rom inside the
windows:Set the f an to the desired speed, or
on high f or f aster def rosting.
Select . When you select , the system automatically
switches to f resh air mode and
turns on the A/C. The A/C ON indicator will not come on, if it was
previously of f .
Adjust the temperature so the
airflow feels warm.
Select to help clear the
rear window.
When you select or ,
the system automatically switches to
f resh air mode and turns on the A/C.
This helps to dehumidif y the air and
to def og the windshield. In either
mode, you cannot turn of f the A/C.
When you switch to another mode,
the A/C returns to its original setting,
either on or of f , as displayed by the
A/C ON or A/C OFF indicator.
Turn on the A/C by pressing the
button.
Set the temperature to the desired
level. For quick cooling set the
temperature to maximum cool.
Select .
If the outside air is humid, select
recirculation mode. If the outside
air is dry, select f resh air mode.
Set the f an to the desired speed.
you can
cool it down more rapidly by partially
opening the windows, turning on the
air conditioning, and setting the f an
to maximum speed in f resh air mode. 1.
2.
3.
4.
1.
2.3.
66 4.
1.
2.
3.
4.
5.
If the interior is very warm,
Vents, Heating, and A/C
Dehumidif y the Interior
Using the A/C
To Def og and Def rost
130
——
y

y
(%y
y

When the AUTO button on the
driver’s side is pressed, the
temperature control buttons on the
passenger’s side are disabled, and
the interior temperature is regulated
to the temperature set on the driver’s
side.WhentheAUTObuttononthe
passenger’s side is pressed,
temperature can be set on the driver’s
side and passenger’s side separately.
The system automatically selects the
proper mix of conditioned and/or
heated air that will, as quickly as
possible, raise or lower the interior
temperature to your pref erence.
When you set the temperature to its
lower or its upper limit, the system
runs at f ull cooling or heating only. It
does not regulate the interior
temperature.
The automatic climate control
system adjusts the f an speed and
airflow levels to maintain the interior
temperature you select.
In AUTO mode, the vehicle’s interior
temperature is independently
regulated f or the driver and
passenger. If the driver’s side of the
vehicle is getting too much sun, the
system will adjust to a lower
temperature.
Press the AUTO button.
Set the desired temperature with
the temperature control buttons.
You will see AUTO in the system’s
display.
Select . The system
automatically switches to f resh air
mode and turns on the A/C. The
A/C indicator does not come on if
it was previously off.
Select .
Set the f an and temperature
controls to maximum level.
To clear the windshield f aster, you
can close the dashboard corner vents
by rotating the wheel below each
vent. This sends more warm air to
the windshield def roster vents. Once
the windshield is clear, select f resh
air mode to avoid fogging the
windows.
For your saf ety, make sure you have
a clear view through all the windows
bef ore driving. 1.
2.
1.
2.
3.
On models with navigation system
Climat e Cont rol
T o Cool or Heat A utomatically
Using A utomatic Climate Control
T o Remove Exterior Frost or Ice
From the Windows
Features
131
——
y
y
(%y
y

You can manually select various
f unctions of the climate control
system when it is in f ully automatic
mode. All other f eatures remain
automatically controlled. Making any
manual selection causes the word
AUTO in the display to go out.
Press the OFF button. However, a
lack of airf low can cause the
windowstofogup.Youshouldkeep
the fan on at all times so stale air and
moisture do not build up in the
interior and cause f ogging.Theclimatecontrolsystemhasa
temperature sensor next to the
steering column. Do not cover the
sensor or spill any liquid on it.
When you press a f an control button,
the fan is taken out of AUTO mode
and starts to run at its lowest speed.
Press the button to make the
fan run faster.
Climat e Cont rol
Semi-automatic Operation
To Turn Everything Off
T emperature Sensor
132
TEMPERATURE SENSOR
——
y
y
(%y
y

µ
µ ´µ µ
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.

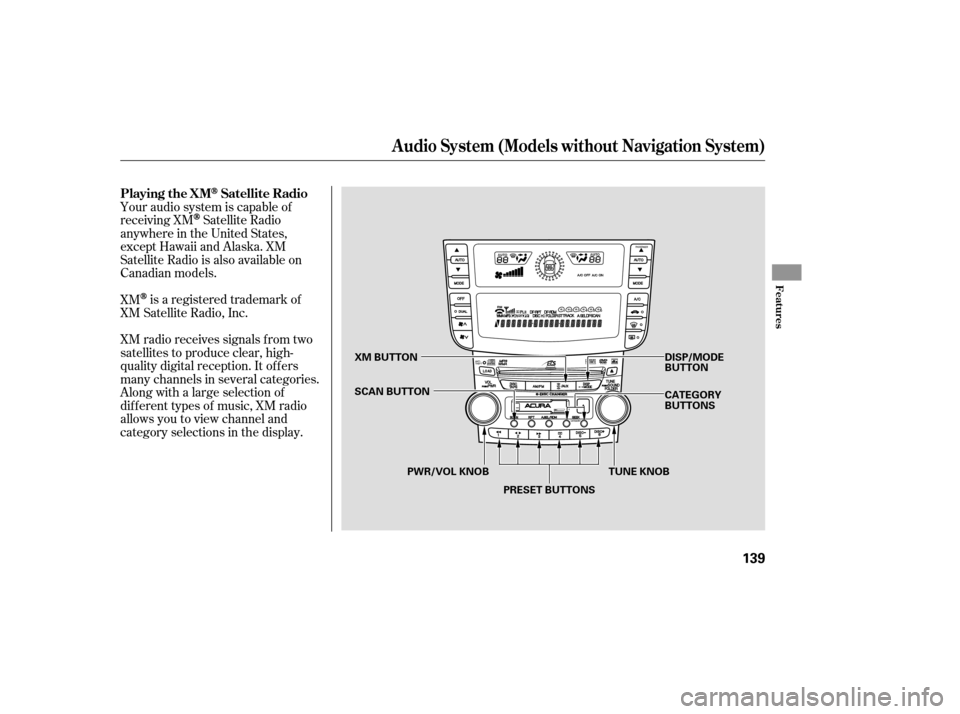

Turn the system on by pushing the
power/volume knob or the AM/FM
button. Adjust the volume by turning
the power/volume knob. You can use any of f ive methods to
f ind radio stations on the selected
band: tune, seek, scan, the preset
buttons, and auto select.
Use the TUNE knob to
tune the radio to a desired f requency.
Turn the knob to the right to tune a
higher f requency, and turn it to the
lef t to tune a lower f requency.
The band and f requency that the
radio was last tuned to are displayed.
To change bands, press the AM/FM
button. On the FM band, ST will be
displayed if the station is
broadcasting in stereo. Stereo
reproduction in AM is not available. The seek f unction
searches up and down from the
current f requency to f ind a station
with a strong signal. To activate it,
press the or SEEK button, then
release it. The scan f unction samples
all stations with strong signals on the
selected band. To activate it, press
the SCAN button, then release it.
You will see SCAN in the display.
The system will scan f or a station
with a strong signal. When it f inds
one, it will stop and play that station
f or about 10 seconds.
If you do nothing, the system will
scan f or the next strong station and
play it f or 10 seconds. When it plays
a station that you want to listen to,
press the SCAN button again.
CONT INUED
TUNE
SEEK SCAN
Playing the A M/FM Radio Selecting a Station
Audio System (Models without Navigation System)
Features
135
——
y

y
(%y
y

µµEach preset button can
store one frequency on AM and two
frequencies on FM.
Select the desired band, AM or
FM. FM1 and FM2 let you store
two frequencies with each preset
button.
Usethetune,seek,orscan
function to tune the radio to a
desired station.
Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM.
Pick
a preset button, and hold it
until you hear a beep. If
you are
traveling far from home and can no
longer receive your preset stations,
you can use the auto select feature to
find stations in the local area.
Press the A. SEL button. You will see
A. SEL flashing in the display, and
the system goes into scan mode for
several seconds. It stores the
frequencies of six AM, and twelve
FM stations in the preset buttons.
You will see a ‘‘0’’ displayed after
pressing a preset button if auto
select cannot find a strong station for
every preset button. If
you do not like the stations auto
select has stored, you can store
other frequencies on the preset
buttons as previously described.
press the
A. SEL button. This restores the
presets you originally set.
For inf ormation on AM/FM radio
f requencies and reception, see page .
1.
2.
3.
4.
178
To turn of f auto select,
Preset
A UT O SEL ECT
Audio System (Models without Navigation System)
136
——
y
y
(%y

y

µ
µ
µ
Bass, treble, balance, and fader are
each adjustable. In addition, you can
adjust the strength of the sound
coming from the center and the
subwoof er speakers. These two
modes adjust the strength of the
sound coming f rom the center
speaker and the subwoof er speaker.
If you turn the TUNE/SOUND knob
all the way to the lef t, you will see
‘‘OFF’’inthedisplay,andthecenter
speaker and/or subwoof er speaker
will be of f .
Press the TUNE/SOUND knob
repeatedly to display the bass, treble,
balance, f ader, center and subwoof er
setting.
Eachmodeisshowninthedisplayas
it changes. Turn the TUNE/SOUND
knob to adjust the setting to your
liking. When the level reaches the
center, you will see ‘‘C’’ in the display.
The system will automatically return
the display to the selected audio
mode about 5 seconds af ter you stop
adjusting a mode. Use the TREB/
BASS modes to adjust the tone to
your liking.
These two
modes adjust the strength of the
sound coming f rom each speaker.
BAL adjust the side-to-side strength,
and FADE adjusts the f ront-to-back
strength.
CONT INUED
A djusting the Sound Center/Subwoof er
Treble/Bass
Balance/Fader
Audio System (Models without Navigation System)
Features
137
——
y
y
(%y
y

µµ
Î
Î
Adjusts the volume level
basedonthevehiclespeed. This
function is set to MID as the
default setting when the vehicle
leaves the factory. You
can use the instrument panel
brightness control buttons to adjust
the illumination of the audio system
(see page ). The audio system
illuminates when the parking lights
are on, even if the radio is of f .
The SVC mode controls the volume
based on vehicle speed. The f aster
you go, the louder the audio volume
becomes. As you slow down, the
audio volume decreases.
The SVC has f our modes; SVC OFF,
SVC LOW, SVC MID, and SVC
HIGH. Turn the TUNE knob to
adjust the setting to your liking. If
you f eel the sound is too loud,
choose low. If you f eel the sound is
too quiet, choose high. Dolby
PL (Prologic) II signal processing
creates multi-channel surround
sound f rom the audio signal
recorded with two channel stereo
sources. Dolby prologic II can only
activate when using the CD (CD-DA,
MP3/WMA),XMradio,andAUX
audio modes. When it activates,
‘‘DPL II’’ is shown on the upper
display.
Manuf actured under license f rom
Dolby Laboratories. ‘‘Dolby’’,
‘‘ProLogic’’, and the double-D symbol
are trademarks of Dolby
Laboratories. 89
SVC
A udio System L ighting
Dolby PL (Prologic) II
Speed-sensit ive Volume Compensat ion (SVC)
Audio System (Models without Navigation System)
138
——
y
y
(%y
y

Your audio system is capable of
receiving XM
Satellite Radio
anywhere in the United States,
except Hawaii and Alaska. XM
Satellite Radio is also available on
Canadian models.
XM radio receives signals f rom two
satellites to produce clear, high-
quality digital reception. It of f ers
many channels in several categories.
Along with a large selection of
dif f erent types of music, XM radio
allows you to view channel and
category selections in the display. XM
is a registered trademark of
XM Satellite Radio, Inc.
Audio System (Models without Navigation System)
Playing the XMSatellite Radio
Features
139
SCAN BUTTON
PWR/VOL KNOB PRESET BUTTONS
XM BUTTON
DISP/MODE
BUTTON
CATEGORY
BUTTONS
TUNE KNOB
——
y

y
(%y
y
