Your seat belt system includes lap/
shoulder belts in all five seating
positions. The front seat belts are
also equipped w ith automatic seat
belt tensioners.
This system uses the same sensors
as the front airbags to monitor
whether the front seat belts are
latched or unlatch ed, and how much
weight is on the front passenger’s
seat (see pages and ). The seat belt system
includes an indicator on the
instrument panel and a b eeper to
remind you and your passengers to
fasten your seat belts.
This system monitors the front seat
belts. If you turn the ignition switch
to the ON (II) position before your
seat be lt is fastened, the beeper will
sound and the indicator will fl ash. If
your seat belt is not fastened before
the beeper stops, the indicator will
stop fl ashing but remain on.
If a front passenger does not fasten
their seat belt, the indicator will
come on about 6 seconds after the
ignition switch is turned to the ON
(II) position. If either the driver or a front
passenger does not fasten their seat
belt while driving, the b
eeper will
sound and the indicator will fl ash
again at regular intervals.
You will also see a ‘‘FAS TEN SEAT
BELT’’ or ‘‘FASTEN PASSENGER
SEAT BELT’’ message on the multi-
info rmation display (see page ).
When no one is sitting in the f ront
passenger’s seat, or a child or small
adult is riding there, the indicator
should not come on and the beeper
should not sound.
26 27 68
Seat Belt System Components
Additional Inf ormation About Your Seat Belts
18
——
y
y
(%yy

Your airbag system includes:
Two SRS (supplemental restraint
system) front airbags. The driver’s
airbag is stored in the center of
the steering wheel; the front
passenger’sairbagisstoredinthe
dashboard. Both are marked ‘‘SRS
AIRBAG’’ (see page ).
Two side airbags, one for the
driver and one for a front
passenger. The airbags are stored
in the outer edges of the seat-
ba cks. Both are marked ‘‘SIDE
AIRBAG’’ (see page ).
Two side curtain airbags, one for
each side of the vehicle. The
airbags are stor ed in the ceiling,
above the side windows. The front
and rear pillars are marked ‘‘SIDE
CURTAIN AIRBAG’’ (see page ). 24
27
29

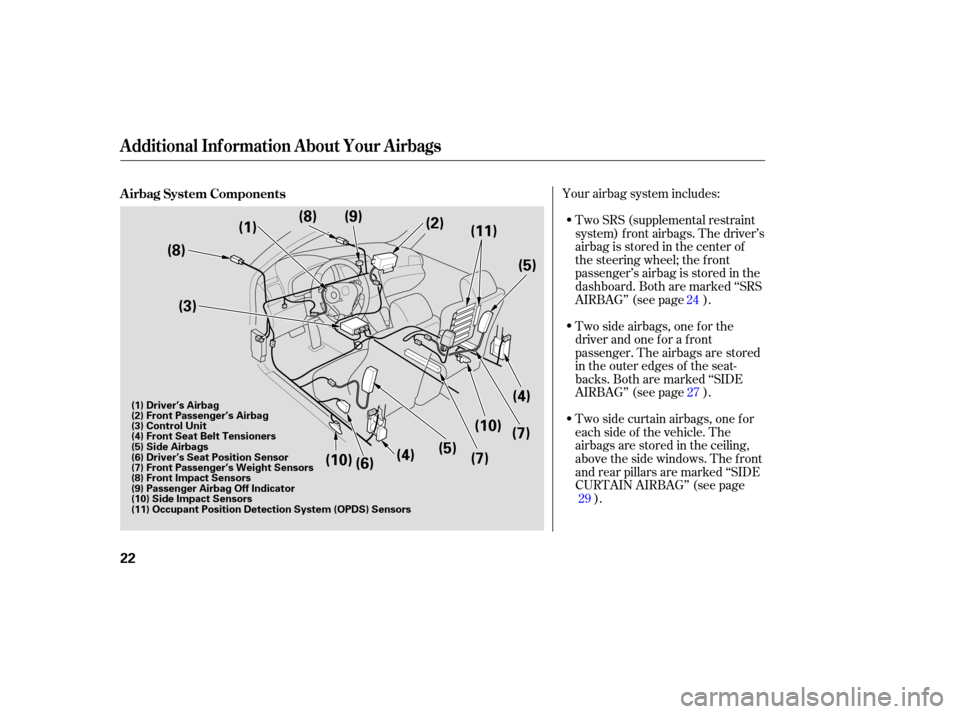

A irbag System Components
Additional Inf ormation About Your Airbags
22
(1)
(2)
(3)
(4)(5)
(8)
(7)
(10) (11)
(9)
(6) (7)
(8)
(10)(5)
(4)
(6) Driver’s Seat Position Sensor
(7) Front Passenger’s Weight Sensors
(8) Front Impact Sensors
(9) Passenger Airbag Off Indicator
(10) Side Impact Sensors (1) Driver’s Airbag
(2) Front Passenger’s Airbag
(3) Control Unit
(4) Front Seat Belt Tensioners
(5) Side Airbags
(11) Occupant Position Detection System (OPDS) Sensors
——
y
y
(%yy

Sensors that can detect a
moderate to severe front impact or
side impact.
Automatic
front seat belt
tensioners (see page ). An
indicator on the instrument
panel that alerts you to a possible
problem with your airbags,
sensors, or seat belt tensioners
(see page ).
Sensors that can detect whether a
child is in the passenger’s side
airbag path and signal the control
unit to turn the airb ag off (see
page ). A
sophisticated electronic system
that continually monitors and
reco rds information about the
sensors, the control unit, the
airbag activators, the seat belt
tensioners, and driver and front
passenger seat belt use when the
ignition switch is in the ON (II)
position.
An indicator on the instrument
panel that alerts you that the
passenger’s side airbag has been
turned off (see page ). An
indicator on the dashboard that
alerts you that the passenger’s
front airbag has been turned off
(see page ).
Emergency backup power in case
your vehicle’s electrical system is
disconnected in a crash.
A driver’s seat position sensor that
monitors the distance of the seat
from the front airbag. If the seat is
too far forward, the airbag will
inflate with less force (see page
).
Sensors
that can detect whether
the driver’s seat belt and a front
passenger’s seat belt is latched or
unlatch ed (see page ). Sensors
that monitor the weight
on the front passenger’s seat. If
the weight is about 65 lbs (29 kg)
or less (the weight of an infant or
small child), the passenger’s front
airbag will be turned off (see page
).
18 20
28
26 26
30 29
30
Additional Inf ormation About Your Airbags
Driver and Passenger Saf ety
23
——
y
y
(%yy

During a frontal crash, your seat belt
restrains your lower body and torso,
and the front airbag helps protect
your head and chest.
After inflating, the front airbags
immediately deflate, so they won’t
interfere with the driver’s visibility,
or the ability to steer or operate
other controls.
This
can happen if the severity of a
collision is at the margin, or
threshold, that determines whether
or not the airb ags will deploy. In
such cases, the seat belt will provide
sufficient protection, and the
supplemental protection offered by
the airbag would be minimal.
If
you ever have a moderate to
severe frontal collision, sensors will
detect the vehicle’s rapid
deceleration. Al
though both airbags normally
inflate within a split second of each
other, it is possible for only one
airbag to deploy.
Only the driver’s airbag can deploy if
there is no passenger in the f ront
seat, or if the advanced airbag
system has turned the passenger’s
airbag off (see page ).
If the rate of deceleration is high
enough, the control unit will instantly
inf late the driver’s and f ront
passenger’s airbags, at the time and
with the f orce needed.
26
How Your Front Airbags Work
Additional Inf ormation About Your Airbags
24
——
yy
(%yy

The total time for inflation and
def lation is one-tenth of a second, so
f ast that most occupants are not
aware that the airbags deployed until
they see them lying in their laps.
After a crash, you may see what
looks like smoke. This is actually
powder f rom the airbag’s surf ace.
Although the powder is not harmf ul,
people with respiratory problems
mayexperiencesometemporary
discomf ort. If this occurs, get out of
the vehicle as soon as it is saf e to do
so.Your f ront airbags are dual-stage
airbags. This means they have two
inf lation stages that can be ignited
sequentially or simultaneously,
depending on crash severity.
In a
crash, both stages
will ignite simultaneously to provide
the quickest and greatest protection. Your f ront airbags are also dual-
threshold airbags. Airbags with this
f eature have two deployment
thresholds that depend on whether
sensors detect the occupant is
wearing a seat belt or not.
If the occupant’s belt is , the
airbag will inf late at a slightly higher
threshold, when the airbag would be
needed to supplement the protection
provided by the seat belt.
In a
crash, one stage will
ignite first, then the second stage
will ignite a split second later. This
provides longer airbag inf lation time
with a little less force. If the occupant’s belt is
,
the airbag will deploy at a slightly
lower threshold, because the
occupant would need extra
protection.
CONT INUED
Dual-Stage A irbags
more severe Dual-T hreshold A irbags
latched
less severe not lat ched
Additional Inf ormation About Your Airbags
Driver and Passenger Saf ety
25
——
y
y
(%yy

Your f ront airbags are also advanced
airbags. The main purpose of this
feature is to help prevent airbag-
caused injuries to short drivers and
children who ride in f ront.
For both advanced airbags to work
properly:Occupants must sit upright and
wear their seat belts properly.
Do not spill any liquids on or
under the seats, cover the sensors,
or put any cargo or metal objects
under the f ront seats.
Back-seat passengers should not
put their f eet under the f ront seats.
Failure to f ollow these instructions
could damage the sensors or prevent
them f rom working properly. The driver’s advanced front airbag
system includes a seat position
sensor under the seat. If the seat is
too f ar f orward, the airbag will
inf late with less f orce, regardless of
the severity of the impact.
If there is a problem with the sensor,
the SRS indicator will come on, and
the airbag will inf late in the normal
manner regardless of the driver’s
seating position.The passenger’s advanced f ront
airbag system has weight sensors
under the seat. Although Acura does
not encourage carrying an inf ant or
small child in f ront, if the sensors
detect the weight of an inf ant or
small child (up to about 65 lbs or 29
kg), the system will automatically
turn the passenger’s front airbag off.
Advanced Airbags
Additional Inf ormation About Your Airbags
26
DRIVER’S
SEAT
POSITION
SENSOR
PASSENGER’S
SEAT WEIGHT
SENSOR
——
yy
(%y
y

Hanging heavy items on the front
passenger seat, or placing heavy
items in the seat-back pocket.
Also,makesurethe floormatbehind
the front passenger’s seat is hooked
to the floor mat anchor (see page
). If it is not, the mat may
interfere with the proper operation
of the sensors and operation of the
seat.
Wh
en the airbag is turned off, a
‘‘passenger airbag off’’ indicator in
the center of the dashboard comes
on (see page ).
Be aware that objects placed on the
passenger’s seat can also cause the
airbag to be turned off.
If the weight sensors detect there is
no passenger in the f ront seat, the
airbag will be off. However, the
passenger airbag of f indicator will
not come on.
To ensure that the passenger’s
advanced front airbag system will
work properly,
This includes:
A rear passenger pushing or
pulling on the back of the f ront
passenger’s seat. Moving the front seat or seat-back
forcibly back against cargo on the
seat or f loor behind it.
If you ever have a moderate to
severe side impact, sensors will
detect rapid acceleration and signal
the control unit to instantly inf late
either the driver’s or the passenger’s
side airbag and activate the seat belt
tensioner on that side of the vehicle.
30
300
CONT INUED
How Your Side A irbags Work
Additional Inf ormation About Your Airbags
do not do anyt hing
t hat would increase or decrease t he weight on the f ront passenger’s seat.
Driver and Passenger Saf ety
27
——
yy
(%yy

There will be some delay between
the moment the passenger moves
into or out of the airbag deployment
path andwhentheindicatorcomes
on or goes off.
A front seat passenger should not
use a cushion or other object as a
backrest. It may prevent the cutoff
system from working properly.
Only
one airbag will deploy during a
side impact. If the impact is on the
passenger’s side, the passenger’s
side airbag will deploy even if there
is no passenger.
To get the best protection from the
side airbags, front seat occupa nts
should wear their seat belts and sit
upright and well back in their seats.
Thesideairbagmayalsoshutoffifa
short adult leans sideways, or a
larger adult slouches and leans
sideways into the airbag’s
deployment path.
Objects placed on the front
passenger seat can also cause the
side airbag to be shut off.
Your
vehicle has a side airbag cutoff
system designed primarily to protect
a child riding in the front passenger’s
seat.
Al though Acura does not encourage
children to ride in front, if the
sensors in the seat detect a child has
leaned into the side airbag’s
deployment path, the airbag will shut
off. If the side airbag of f indicator comes
on (see page ), have the
passenger sit upright. Once the
passenger is out of the airbag’s
deployment path, the system will
turn the airbag back on, and the
indicator will go out.
30
Side A irbag Cut of f Syst em
Additional Inf ormation About Your Airbags
28
——
yy
(%yy
