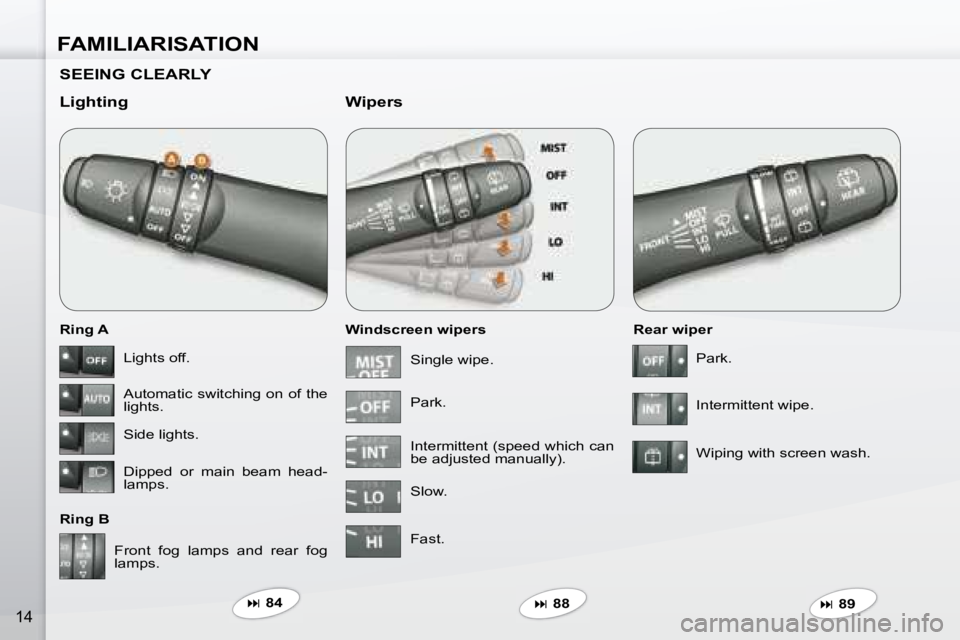

FAMILIARISATION
14
SEEING CLEARLY
Lighting
Ring A
Ring B Windscreen wipers
Wipers
Rear wiper
F r o n t f o g l a m p s a n d r e a r f o g
l a m p s .
84
88
89
Lights off.
A u t o m a t i c s w i t c h i n g o n o f t h e
lights.
Side lights.
D i p p e d o r m a i n b e a m h e a d -
l a m p s .
S i n g l e w i p e .
Park.
I n t e r m i t t e n t ( s p e e d w h i c h c a n
b e a d j u s t e d m a n u a l l y ) .
S l o w .
Fast. Park.
I n t e r m i t t e n t w i p e .
W i p i n g w i t h s c r e e n w a s h .
Page 95 of 221
4
VISIBILITY
In foggy weather or in snow, the
brightness sensor can detect
s u f fi c i e n t l i g h t . T h e l i g h t s w i l l n o t
come on automatically.
Do not cover the brightness sen-
sor, the associated functions will
no longer be controlled.
Automatic lighting
The side lights and the dipped head-
lamps come on automatically, without
any action on the part of the driver, if a
low level of exterior light is detected or
if the wipers are switched on.
W h e n t h e l i g h t r e t u r n s t o a s u f fi c i e n t
level or the wipers are switched off, the
lights are switched off automatically.
The sensor is located at the base of the
windscreen.
Contact a PEUGEOT dealer to adjust
the sensitivity of the sensor.
Daytime lights *
On vehicles which are equipped with
daytime lights, the dipped headlamps
come on when the vehicle is started.
* According to country. This warning light comes on
on the instrument panel.
The instruments and controls (instru-
ment panel, multifunction display, air
c o n d i t i o n i n g c o n t r o l p a n e l , . . . ) a r e l i t . Automatic switching off
When the lights stalk is at "dipped head-
lamps or main beam headlamps", if the
ignition switch is at "LOCK" or "ACC" or
if the key has been removed from the
ignition switch, the lights switch off au-
tomatically
when the driver’s door is
opened .
Page 96 of 221
4
VISIBILITY
In foggy weather or in snow, the
brightness sensor can detect
s u f fi c i e n t l i g h t . T h e l i g h t s w i l l n o t
come on automatically.
Do not cover the brightness sen-
sor, the associated functions will
no longer be controlled.
Automatic lighting
The side lights and the dipped head-
lamps come on automatically, without
any action on the part of the driver, if a
low level of exterior light is detected or
if the wipers are switched on.
W h e n t h e l i g h t r e t u r n s t o a s u f fi c i e n t
level or the wipers are switched off, the
lights are switched off automatically.
The sensor is located at the base of the
windscreen.
Contact a PEUGEOT dealer to adjust
the sensitivity of the sensor.
Daytime lights *
On vehicles which are equipped with
daytime lights, the dipped headlamps
come on when the vehicle is started.
* According to country. This warning light comes on
on the instrument panel.
The instruments and controls (instru-
ment panel, multifunction display, air
c o n d i t i o n i n g c o n t r o l p a n e l , . . . ) a r e l i t . Automatic switching off
When the lights stalk is at "dipped head-
lamps or main beam headlamps", if the
ignition switch is at "LOCK" or "ACC" or
if the key has been removed from the
ignition switch, the lights switch off au-
tomatically
when the driver’s door is
opened .
Page 98 of 221
4
VISIBILITY

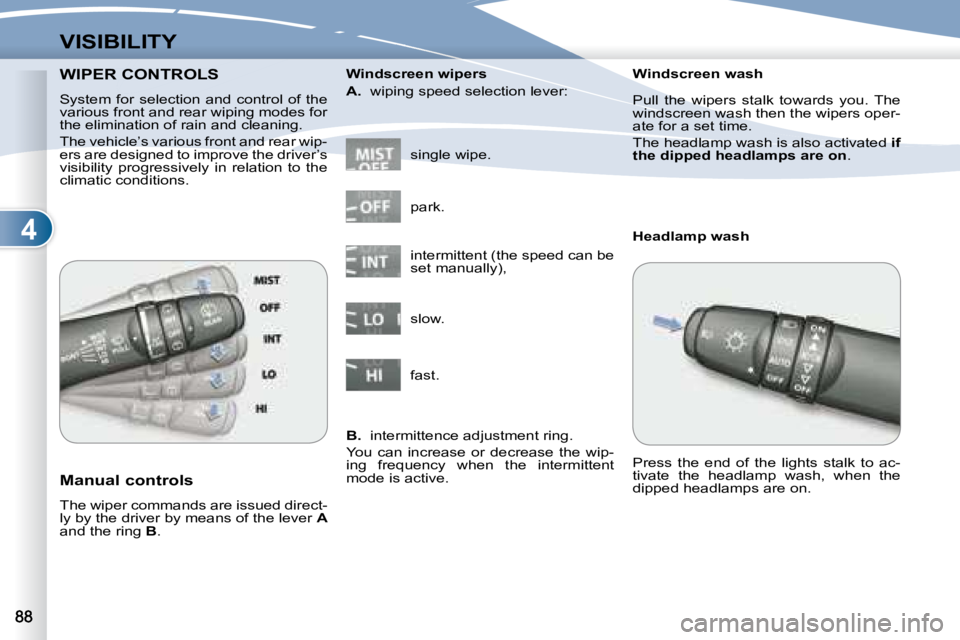

WIPER CONTROLS WIPER CONTROLS
System for selection and control of the
various front and rear wiping modes for
the elimination of rain and cleaning.
The vehicle’s various front and rear wip-
ers are designed to improve the driver’s
visibility progressively in relation to the
climatic conditions. Manual controls
The wiper commands are issued direct-
ly by the driver by means of the lever A
and the ring B . single wipe.
Windscreen wipers
A. wiping speed selection lever:
park.
intermittent (the speed can be
s e t m a n u a l l y ) ,
slow.
fast.
B. intermittence adjustment ring.
You can increase or decrease the wip-
ing frequency when the intermittent
mode is active. Windscreen wash
Pull the wipers stalk towards you. The
windscreen wash then the wipers oper-
ate for a set time.
The headlamp wash is also activated
if
the dipped headlamps are on .
Headlamp wash
Press the end of the lights stalk to ac-
tivate the headlamp wash, when the
dipped headlamps are on.
Page 145 of 221
9
PRACTICAL INFORMATION
Fascia fuses
T h e f u s e b o x e s a r e p l a c e d i n t h e l o w e r
p a r t o f t h e f a s c i a b e h i n d t h e g l o v e b o x .
Access to the fuses
O p e n t h e g l o v e b o x ,
Push the two opening guides A in-
w a r d s t o p a s s t h e fi r s t n o t c h ,
Remove the retaining tab B pulling
it outwards,
Support the cover and tilt it down-
wards,
Change the fuse (refer to the cor-
responding paragraph).
Fuse N° Rating Functions
1 * 30 A Heating.
2
15 A Brake lights, third brake light, built-in systems
interface.
3 10 A Rear fog lamps.
4 30 A Windscreen wipers and wash-wipe.
5 10 A Diagnostic socket.
6 20 A C e n t r a l l o c k i n g , e x t e r i o r m i r r o r s .
7 15 A Audio equipment, telematics, multifunction display,
hands-free kit, rear DVD player.
8 7.5 A Remote control key, air conditioning control unit,
instrument panel, controls bar, steering wheel
controls.
9 15 A Multifunction display, instrument panel.
10 15 A Built-in systems interface.
11 15 A Rear wiper.
12 7.5 A Instrument panel, 4 wheel drive control unit,
air conditioning control panel, ABS control
unit, multifunction display, automatic headlamp
adjustment, heated seats, air bags control unit,
steering wheel angle sensor, sunroof, rear screen
demisting, remote control.
13 -
Not used.
14 10 A Ignition switch.
15 20 A Sunroof.
16 10 A E x t e r i o r m i r r o r s , a u d i o e q u i p m e n t , t e l e m a t i c s , r e a r
DVD player.
Page 147 of 221
9
Engine compartment fuses
T h e f u s e b o x i s p l a c e d i n t h e e n g i n e c o m p a r t m e n t n e a r t h e
battery (left-hand side).
Access to the fuses
Open the bonnet (refer to the "Access" section),
Press on the hook A to release the catch,
Remove the cover completely,
Change the fuse (refer to the corresponding paragraph).
W h e n y o u h a v e fi n i s h e d , c l o s e t h e c o v e r c a r e f u l l y t o
g u a r a n t e e t h e s e a l i n g o f t h e f u s e b o x .
Fuse N° Rating Functions
1 15 A Front fog lamps.
2 - Not used.
3 - Not used.
4 10 A Horn.
5 - Not used.
6 20 A Headlamp wash.
7 10 A Air conditioning.
8 - Not used.
9 - Not used.
10 15 A Demisting, wipers.
11 - Not used.
12 - Not used.
13 - Not used.
14 10 A Left-hand main beam headlamp.
15 10 A Right-hand main beam headlamp.
16 20 A L e f t - h a n d d i p p e d h e a d l a m p ( x e n o n ) .
17 20 A R i g h t - h a n d d i p p e d h e a d l a m p ( x e n o n ) .
18 10 A Left-hand dipped headlamp,
manual and automatic headlamp
adjustment.
19 10 A Right-hand dipped headlamp.
20 - Not used.
21 - Not used.
