INSTRUMENTS and CONTROLS
The total distance is dis-
played in zone 1 of the
display and the trip dis-
tance in zone 2 (refer to
the "Distance recorders"
section).
Distance recorder (A and B)
INFORMATION ON THE INFORMATION ON THE
INSTRUMENT PANEL DISPLAY
D a t a d i s p l a y s
With the ignition on, press the
INFO
button, located on the fascia to the right
of the instrument panel, to display the
various information displays in succes-
sion:
- the distance recorder A,
- the distance recorder B,
- the service indicator,
- the coolant temperature,
- the range,
- the trip computer,
- the setting menu.
This displays the distance
and the number of months
remaining before the next
service to be carried out in
accordance with the manu-
facturer’s servicing sched-
ule (refer to the "Service
indicator" section).
Service indicator
When the engine is run-
ning, this indicates the
temperature of the cool-
ant (refer to the "Coolant
temperature indicator"
section).
C o o l a n t t e m p e r a t u r e When the engine is run-
ning, this indicates the
number of miles (kilo-
metres) which can still
be travelled with the fuel
remaining in the tank in
relation to the average
consumption over the
last few miles (kilometres) travelled (re-
fer to the "Range" section).
Range
This indicates the aver-
age consumption, the
average speed and the
current consumption (re-
fer to the "Trip computer"
section).
T r i p c o m p u t e r
When the vehicle is sta-
t i o n a r y , this allows the
user to change the follow-
ing parameters (refer to
the "Function parameters"
section):
- the display language,
- the temperature dis- play unit,
- the fuel consumption unit,
- the option to reinitialise the average consumption and the average speed,
- the break (rest) reminder display in- terval.
Setting menu
Page 27 of 221
1
i
INSTRUMENTS and CONTROLS
The total distance is dis-
played in zone 1 of the
display and the trip dis-
tance in zone 2 .
DISTANCE RECORDERS (A/B)
System for measuring the total dis-
tance travelled by the vehicle during its
service life and the distance travelled in
a day or other period until it is reset to
zero by the driver.
Zero reset
With the ignition on, press the INFO
button for more than 2 seconds until
zeros appear. When the engine is run-
ning, this indicates the tem-
perature of the coolant.
COOLANT TEMPERATURE
If the bar is close to the
critical position
located on the right, the temperature is
too high.
T h e s y m b o l fl a s h e s w h e n y o u r e n g i n e
is overheating.
I t i s i m p e r a t i v e t h a t y o u s t o p y o u r
v e h i c l e s a f e l y .
W a i t a f e w m i n u t e s b e f o r e s w i t c h i n g
o f f t h e e n g i n e .
Wait for the engine to cool be-
fore topping up the level. The
cooling system is pressurised.
When the engine is
running , this indicates
the distance which can
still be travelled with
the fuel remaining in the
tank in relation to the av-
erage consumption over
the last few miles/kilo-
metres travelled.
RANGE RANGE
When the range is less than 30 miles
(50 km) , dashes are displayed.
Fill the fuel tank as soon as possible.
The display of the range is updated.
As the cooling system is pressurised, to
avoid any risk of scalding, unscrew the
cap by two turns to allow the pressure
to drop.
When the pressure has dropped, re-
move the cap and top up the level, if
necessary.
Contact a PEUGEOT dealer. T h i s fi g u r e m a y i n c r e a s e f o l -
lowing a change in the style of
driving or the relief, resulting in
a reduction in the current con-
sumption.
If you only add a few litres, the
value displayed will be incorrect.
T h e r e f o r e , y o u m u s t fi l l t h e t a n k
whenever possible.
When you disconnect the bat-
tery, the previous consumption
data is lost and the value dis-
played will be different from that
displayed before the battery was
disconnected. The distance dis-
played must be considered an
approximate indication.
Page 29 of 221
1
i
INSTRUMENTS and CONTROLS
The total distance is dis-
played in zone 1 of the
display and the trip dis-
tance in zone 2 .
DISTANCE RECORDERS (A/B)
System for measuring the total dis-
tance travelled by the vehicle during its
service life and the distance travelled in
a day or other period until it is reset to
zero by the driver.
Zero reset
With the ignition on, press the INFO
button for more than 2 seconds until
zeros appear. When the engine is run-
ning, this indicates the tem-
perature of the coolant.
COOLANT TEMPERATURE
If the bar is close to the
critical position
located on the right, the temperature is
too high.
T h e s y m b o l fl a s h e s w h e n y o u r e n g i n e
is overheating.
I t i s i m p e r a t i v e t h a t y o u s t o p y o u r
v e h i c l e s a f e l y .
W a i t a f e w m i n u t e s b e f o r e s w i t c h i n g
o f f t h e e n g i n e .
Wait for the engine to cool be-
fore topping up the level. The
cooling system is pressurised.
When the engine is
running , this indicates
the distance which can
still be travelled with
the fuel remaining in the
tank in relation to the av-
erage consumption over
the last few miles/kilo-
metres travelled.
RANGE RANGE
When the range is less than 30 miles
(50 km) , dashes are displayed.
Fill the fuel tank as soon as possible.
The display of the range is updated.
As the cooling system is pressurised, to
avoid any risk of scalding, unscrew the
cap by two turns to allow the pressure
to drop.
When the pressure has dropped, re-
move the cap and top up the level, if
necessary.
Contact a PEUGEOT dealer. T h i s fi g u r e m a y i n c r e a s e f o l -
lowing a change in the style of
driving or the relief, resulting in
a reduction in the current con-
sumption.
If you only add a few litres, the
value displayed will be incorrect.
T h e r e f o r e , y o u m u s t fi l l t h e t a n k
whenever possible.
When you disconnect the bat-
tery, the previous consumption
data is lost and the value dis-
played will be different from that
displayed before the battery was
disconnected. The distance dis-
played must be considered an
approximate indication.
Page 46 of 221
2
i
COMFORT

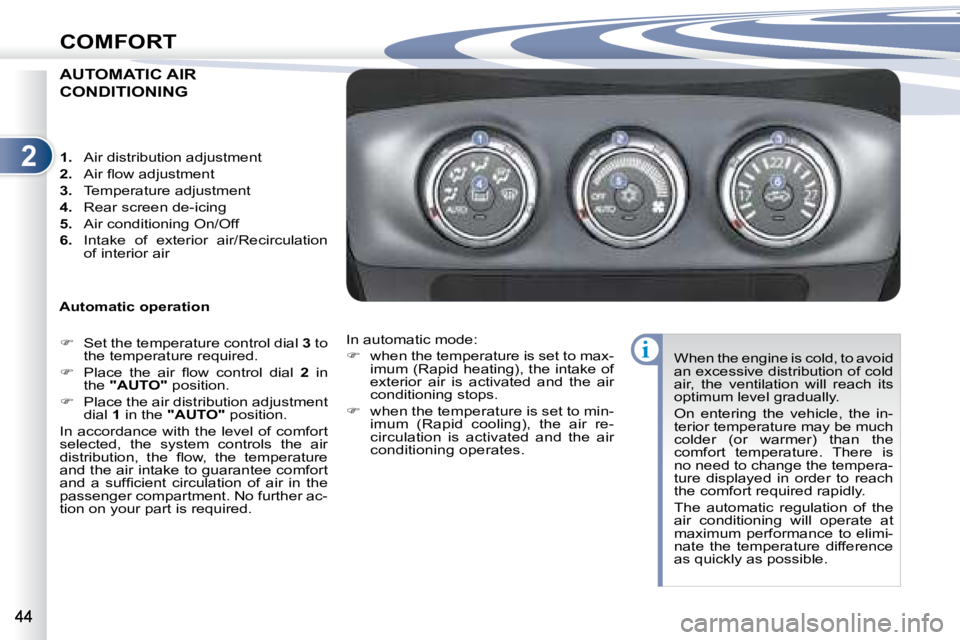

AUTOMATIC AIR
CONDITIONING
Automatic operation
S e t t h e t e m p e r a t u r e c o n t r o l d i a l 3 to
t h e t e m p e r a t u r e r e q u i r e d .
P l a c e t h e a i r fl o w c o n t r o l d i a l 2 in
the "AUTO" p o s i t i o n .
P l a c e t h e a i r d i s t r i b u t i o n a d j u s t m e n t
dial 1 in the "AUTO" p o s i t i o n .
In accordance with the level of comfort
s e l e c t e d , t h e s y s t e m c o n t r o l s t h e a i r
d i s t r i b u t i o n , t h e fl o w , t h e t e m p e r a t u r e
and the air intake to guarantee comfort
a n d a s u f fi c i e n t c i r c u l a t i o n o f a i r i n t h e
p a s s e n g e r c o m p a r t m e n t . N o f u r t h e r a c -
t i o n o n y o u r p a r t i s r e q u i r e d . When the engine is cold, to avoid
an excessive distribution of cold
air, the ventilation will reach its
o p t i m u m l e v e l g r a d u a l l y .
On entering the vehicle, the in-
t e r i o r t e m p e r a t u r e m a y b e m u c h
c o l d e r ( o r w a r m e r ) t h a n t h e
c o m f o r t t e m p e r a t u r e . T h e r e i s
n o n e e d t o c h a n g e t h e t e m p e r a -
t u r e d i s p l a y e d i n o r d e r t o r e a c h
t h e c o m f o r t r e q u i r e d r a p i d l y .
The automatic regulation of the
a i r c o n d i t i o n i n g w i l l o p e r a t e a t
m a x i m u m p e r f o r m a n c e t o e l i m i -
n a t e t h e t e m p e r a t u r e d i f f e r e n c e
a s q u i c k l y a s p o s s i b l e .
1. A i r d i s t r i b u t i o n a d j u s t m e n t
2. A i r fl o w a d j u s t m e n t
3. T e m p e r a t u r e a d j u s t m e n t
4. Rear screen de-icing
5. Air conditioning On/Off
6. Intake of exterior air/Recirculation
of interior air
In automatic mode:
w h e n t h e t e m p e r a t u r e i s s e t t o m a x -
i m u m ( R a p i d h e a t i n g ) , t h e i n t a k e o f
exterior air is activated and the air
c o n d i t i o n i n g s t o p s .
w h e n t h e t e m p e r a t u r e i s s e t t o m i n -
i m u m ( R a p i d c o o l i n g ) , t h e a i r r e -
circulation is activated and the air
c o n d i t i o n i n g o p e r a t e s .
Page 53 of 221
2
i
COMFORT
Head restraint height adjustment Front armrest
Heated seats adjustment
T h e a d j u s t m e n t i s c o r r e c t w h e n
t h e t o p o f t h e h e a d r e s t r a i n t i s
a l i g n e d w i t h t h e t o p o f t h e h e a d
o f t h e s e a t e d p e r s o n .
N e v e r d r i v e w i t h t h e r e m o v e d
head restraints in the vehicle as
t h e y c o u l d b e t h r o w n a r o u n d t h e
v e h i c l e o n s h a r p b r a k i n g . T h e y
m u s t b e i n p l a c e a n d a d j u s t e d
c o r r e c t l y .
After installing the head restraint,
c h e c k t h a t t h e h e i g h t a d j u s t m e n t
b u t t o n i s l o c k e d c o r r e c t l y .
You can move the console housing
c o v e r i n o r d e r t o u s e i t a s a n a r m r e s t .
With the engine running , tilt the but-
t o n t o t h e p o s i t i o n r e q u i r e d .
T h e t e m p e r a t u r e o f t h e s e a t i s r e g u l a t -
e d a u t o m a t i c a l l y .
T h e r e a r e t w o s e t t i n g p o s i t i o n s :
- " H I " : H i g h h e a t i n g
- "LO": Low heating
When the button is in the intermediate
p o s i t i o n , t h e h e a t i n g i s s w i t c h e d o f f .
The indicator lights A comes on when
t h e s y s t e m i s a c t i v a t e d . T o r a i s e t h e h e a d r e s t r a i n t , p u l l i t u p -
w a r d s .
T o l o w e r t h e h e a d r e s t r a i n t , p u s h i t
d o w n w a r d s p r e s s i n g t h e h e i g h t a d j u s t -
m e n t b u t t o n a t t h e s a m e t i m e .
To remove the head restraint, bring it to
t h e u p p e r m o s t p o s i t i o n t h e n r e m o v e i t
p r e s s i n g t h e h e i g h t a d j u s t m e n t b u t t o n
a t t h e s a m e t i m e .
T o r e fi t t h e h e a d r e s t r a i n t , e n g a g e t h e
stems of the head restraint in the holes
p r e s s i n g t h e h e i g h t a d j u s t m e n t b u t t o n
a t t h e s a m e t i m e .
Page 76 of 221
3
i
ACCESS
The vehicle will relock automati-
cally after thirty seconds unless
a door or the tailgate is opened.
This function prevents inadvertent
unlocking.
The folding and unfolding of the
e x t e r i o r m i r r o r s c a n b e c o n fi g -
ured via the colour display "Set-
tings" menu or deactivated by a
PEUGEOT dealer.
Folding the key
First press button A to fold the key. Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised to permit starting.
This electronic engine immobiliser locks
the engine management system a few
moments after the ignition is switched
off and prevents starting of the engine
by anyone who does not have the key.
Anti-theft protection
In the event of a malfunction and if
your vehicle does not start; contact a
PEUGEOT dealer as soon as possible.
Page 77 of 221
3
i
ACCESS
Starting the vehicle
Insert the key in the ignition switch.
Operate the starter by turning the
key to position 4 (START) .
When the engine turns over, release
the key. The ignition switch is placed
in position 3 (ON) automatically. Switching the vehicle off
Park the vehicle.
While pressing the key, turn it
towards you to position 1 (LOCK) .
Remove the key from the ignition
switch. Changing the battery
Battery reference: CR1616/3 volts.
Unclip the casing using a coin at the
notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s h o u s i n g .
Slide the new battery into its housing
observing the original direction.
Clip the casing.
Key in ignition
A buzzer sounds on opening the
driver’s door, if the key has been
left in the ignition.
Page 79 of 221
3
i
ACCESS
The vehicle will relock automati-
cally after thirty seconds unless
a door or the tailgate is opened.
This function prevents inadvertent
unlocking.
The folding and unfolding of the
e x t e r i o r m i r r o r s c a n b e c o n fi g -
ured via the colour display "Set-
tings" menu or deactivated by a
PEUGEOT dealer.
Folding the key
First press button A to fold the key. Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised to permit starting.
This electronic engine immobiliser locks
the engine management system a few
moments after the ignition is switched
off and prevents starting of the engine
by anyone who does not have the key.
Anti-theft protection
In the event of a malfunction and if
your vehicle does not start; contact a
PEUGEOT dealer as soon as possible.
