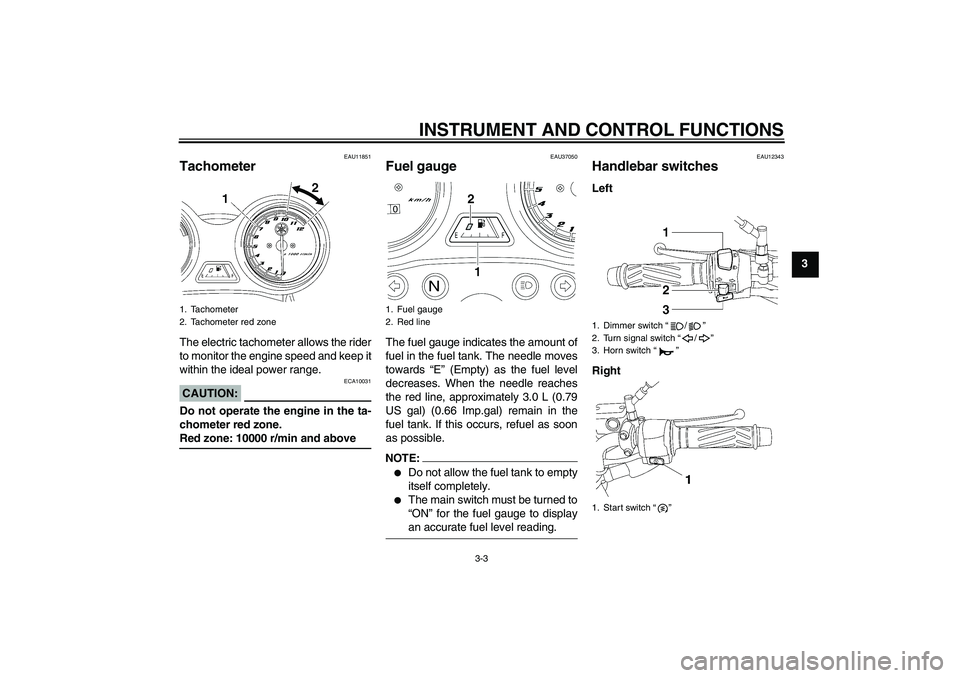

INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAU11851
Tachometer The electric tachometer allows the rider
to monitor the engine speed and keep it
within the ideal power range.CAUTION:
ECA10031
Do not operate the engine in the ta-
chometer red zone.Red zone: 10000 r/min and above
EAU37050
Fuel gauge The fuel gauge indicates the amount of
fuel in the fuel tank. The needle moves
towards “E” (Empty) as the fuel level
decreases. When the needle reaches
the red line, approximately 3.0 L (0.79
US gal) (0.66 Imp.gal) remain in the
fuel tank. If this occurs, refuel as soon
as possible.NOTE:
Do not allow the fuel tank to empty
itself completely.
The main switch must be turned to
“ON” for the fuel gauge to displayan accurate fuel level reading.
EAU12343
Handlebar switches Left
Right
1. Tachometer
2. Tachometer red zone
1. Fuel gauge
2. Red line
1. Dimmer switch “/”
2. Turn signal switch “/”
3. Horn switch “”
1. Start switch “”
