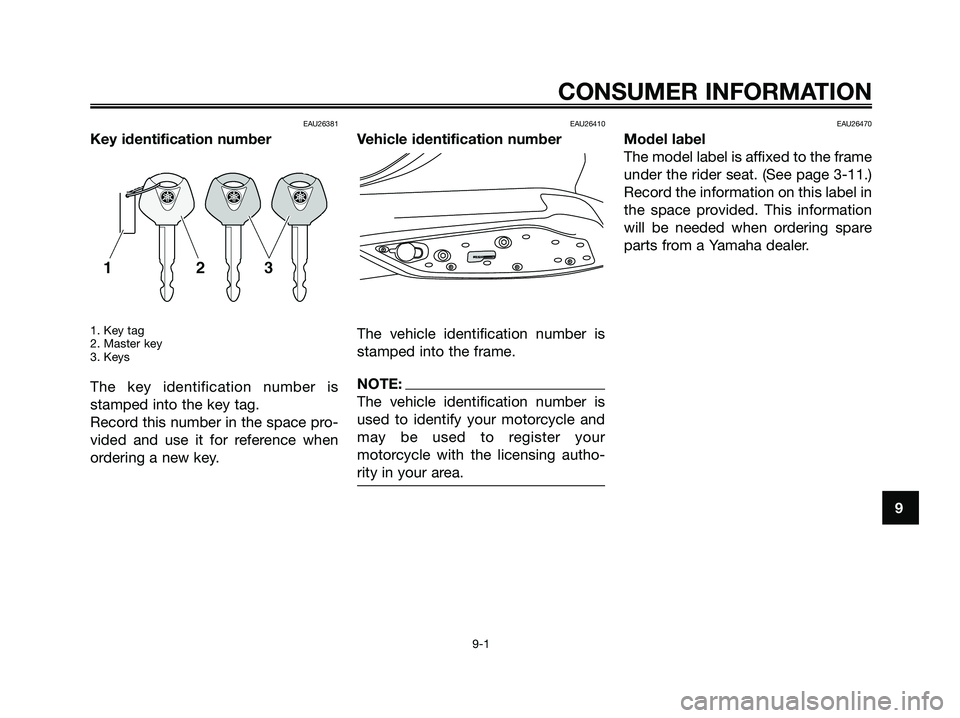

EAU26381
Key identification number
1. Key tag
2. Master key
3. Keys
The key identification number is
stamped into the key tag.
Record this number in the space pro-
vided and use it for reference when
ordering a new key.
EAU26410
Vehicle identification number
The vehicle identification number is
stamped into the frame.
NOTE:
The vehicle identification number is
used to identify your motorcycle and
may be used to register your
motorcycle with the licensing autho-
rity in your area.
EAU26470
Model label
The model label is affixed to the frame
under the rider seat. (See page 3-11.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.
9
CONSUMER INFORMATION
9-1
1B9-F8199-E0.qxd 14/10/2005 11:07 Página 73

AAcceleration and deceleration ...................5-2
Adjusting the shock absorber
assemblies .............................................3-13
Adjusting the throttle cable free play .......6-14
Air filter and V-belt case air filter
elements ................................................6-12
Anti-theft alarm (optional) ..........................3-7
BBattery......................................................6-22
Braking .......................................................5-2
CCare............................................................7-1
Cast wheels .............................................6-17
Catalytic converter ...................................3-11
Changing the brake fluid..........................6-19
Checking and lubricating the centerstand
and sidestand ........................................6-20
Checking and lubricating the throttle grip
and cable ...............................................6-19
Checking the brake fluid level .................6-18
Checking the front and rear brake pads..6-17
Checking the front fork ............................6-20
Checking the spark plug ............................6-7
Checking the steering ..............................6-21
Checking the wheel bearings ..................6-22
Controls and instruments ..........................2-3
Coolant.....................................................6-11
Coolant temperature gauge .......................3-4
EEngine break-in ..........................................5-3
Engine oil ...................................................6-8
FFinal transmission oil ...............................6-10Front and rear brake lever free play.........6-17
Front brake lever ........................................3-9
Front storage compartment .....................3-12
Fuel ..........................................................3-10
Fuel gauge .................................................3-4
Fuel tank cap ...........................................3-10
HHandlebar switches ...................................3-8
IIdentification numbers ...............................9-1
Immobilizer system ....................................3-1
Indicators, indicator lights and
warning light ............................................3-3
LLeft view .....................................................2-1
Lubricating the front and rear brake
levers .....................................................6-20
MMain switch/steering lock ..........................3-2
Multi-function display ................................3-5
OOwner’s tool kit ..........................................6-1
PParking .......................................................5-4
Periodic maintenance and lubrication
chart .........................................................6-3
Pre-operation check list .............................4-2
RRear brake lever .........................................3-9
Removing and installing cowlings
and panels ...............................................6-6
Replacing a front turn signal light bulb....6-25
Replacing a headlight bulb ......................6-24
Replacing the auxiliary light bulb .............6-27Replacing the fuses .................................6-23
Replacing the license plate light bulb......6-26
Replacing the tail/brake light bulb or a
rear turn signal light bulb.......................6-25
Right view ..................................................2-2
SSeat ..........................................................3-11
Sidestand .................................................3-13
Speedometer .............................................3-4
Starting a cold engine ................................5-1
Starting off .................................................5-2
Storage.......................................................7-3
Storage compartment ..............................3-12
TTips for reducing fuel consumption ...........5-3
Tires .........................................................6-15
Troubleshooting .......................................6-27
Troubleshooting charts ............................6-28
VValve clearance ........................................6-15
