Page 25 of 84
INSTRUMENT AND CONTROL FUNCTIONS
3-10
3
EAU13210
Fuel Make sure that there is sufficient fuel in
the tank. Fill the fuel tank to the bottom
of the filler tube as shown.
WARNING
EWA10880
Do not overfill the fuel tank, oth-
erwise it may overflow when the
fuel warms up and expands.
Avoid spilling fuel on the hot en-gine.
CAUTION:
ECA10070
Immediately wipe off spilled fuel
with a clean, dry, soft cloth, since
fuel may deteriorate painted surfac-es or plastic parts.
EAU13320
CAUTION:
ECA11400
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,as well as to the exhaust system.
Your Yamaha engine has been de-
signed to use regular unleaded gaso-
line with a research octane number of
91 or higher. If knocking (or pinging) oc-
curs, use a gasoline of a different brandor premium unleaded fuel. Use of un-
leaded fuel will extend spark plug life
and reduce maintenance costs.
1. Fuel tank filler tube
2. Fuel level
1
2
ZAUM0020
Recommended fuel:
REGULAR UNLEADED GASOLINE
ONLY
Fuel tank capacity:
10.9 L (2.88 US gal) (2.40 Imp.gal)
Fuel reserve amount:
1.9 L (0.50 US gal) (0.42 Imp.gal)

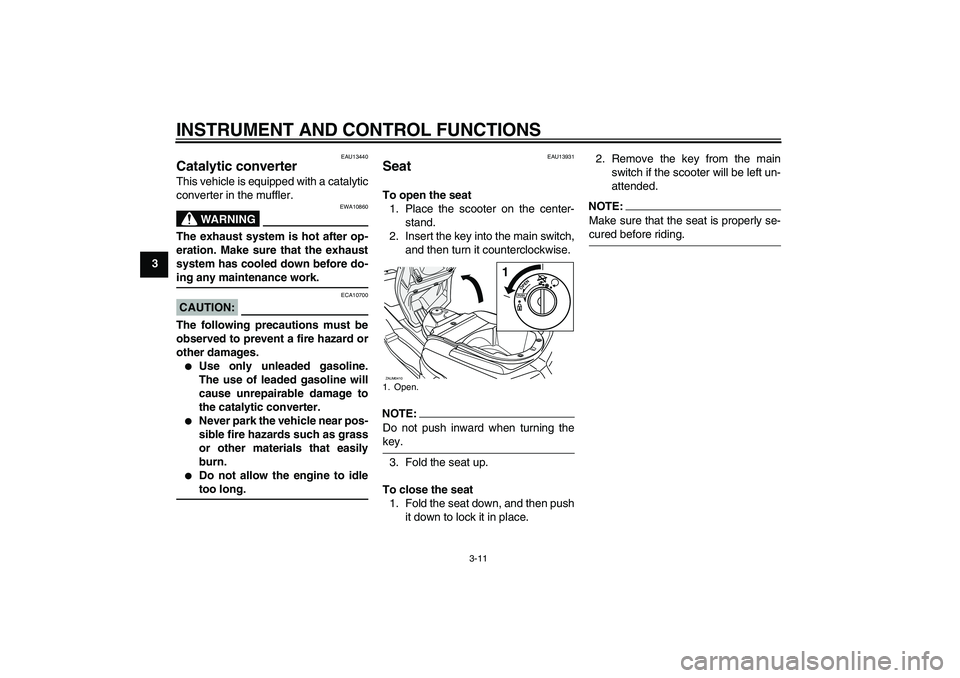

Page 26 of 84
INSTRUMENT AND CONTROL FUNCTIONS
3-11
3
EAU13440
Catalytic converter This vehicle is equipped with a catalytic
converter in the muffler.
WARNING
EWA10860
The exhaust system is hot after op-
eration. Make sure that the exhaust
system has cooled down before do-ing any maintenance work.CAUTION:
ECA10700
The following precautions must be
observed to prevent a fire hazard or
other damages.
Use only unleaded gasoline.
The use of leaded gasoline will
cause unrepairable damage to
the catalytic converter.
Never park the vehicle near pos-
sible fire hazards such as grass
or other materials that easily
burn.
Do not allow the engine to idletoo long.
EAU13931
Seat To open the seat
1. Place the scooter on the center-
stand.
2. Insert the key into the main switch,
and then turn it counterclockwise.NOTE:Do not push inward when turning thekey.
3. Fold the seat up.
To close the seat
1. Fold the seat down, and then push
it down to lock it in place.2. Remove the key from the main
switch if the scooter will be left un-
attended.
NOTE:Make sure that the seat is properly se-cured before riding.
1. Open.
PUSHOPEN
1
ZAUM0410
Page 27 of 84
INSTRUMENT AND CONTROL FUNCTIONS
3-12
3
EAUM1181
Storage compartment To unlock the storage compartment
Insert the key in the lock and turn it 1/4
turn clockwise.
To open the storage compartment
when it is unlocked
Turn the knob 1/4 turn clockwise. The
knob will return to its original position
after released.
To close the storage compartment
Push the lid into the original position.To lock the storage compartment
Insert the key in the lock and turn it 1/4
turn counterclockwise, and then re-
move the key.
WARNING
EWA10960
Do not exceed the load limit of 1
kg (2.2 lb) for the storage com-
partment.
Do not exceed the maximum
load of 202 kg (445 lb) for the ve-hicle.
EAUM1490
Storage compartment To open the storage compartment
Push on the “” mark of the storage
compartment lid.
To close the storage compartment
Push the lid into the original position.
WARNING
EWA11160
Do not store heavy items in thiscompartment.
1. Lock
2. Front storage compartment A
OPEN
OPEN
UNLOCKLOCK
OPEN
OPEN
UNLOCKLOCK
OPEN
OPEN
UNLOCKLOCK
1
2
ZAUM0411
1. Front storage compartment B
1
ZAUM0412
Page 28 of 84
INSTRUMENT AND CONTROL FUNCTIONS
3-13
3
EAUM1190
Storage compartment There is a storage compartment under
the seat. (See page 3-11.)
WARNING
EWA10960
Do not exceed the load limit of 5
kg (11 lb) for the storage com-
partment.
Do not exceed the maximum
load of 202 kg (445 lb) for the ve-hicle.
CAUTION:
ECA10080
Keep the following points in mind
when using the storage compart-
ment.
Since the storage compartment
accumulates heat when ex-
posed to the sun, do not store
anything susceptible to heat in-
side it.
To avoid humidity from spread-
ing through the storage com-
partment, wrap wet articles in a
plastic bag before storing them
in the compartment.
Since the storage compartment
may get wet while the scooter is
being washed, wrap any articles
stored in the compartment in a
plastic bag.
Do not keep anything valuable
or breakable in the storage com-partment.
To store a helmet in the storage com-
partment, place the helmet with the
front facing backward.
NOTE:
Some helmets cannot be stored in
the storage compartment because
of their size or shape.
Do not leave your scooter unat-tended with the seat open.
EAUM1940
Anti-theft device housing The anti-theft device housing, located
in the storage compartment under the
seat, is designed to hold a genuine
Yamaha U-LOCK. (See page 3-11.)
When placing a U-LOCK in the storage
compartment, securely fasten it with
the straps. When the U-LOCK is not in
the storage compartment, be sure to
secure the straps to prevent losing
them.NOTE:Some U-LOCKS cannot fit into thehousing due to their size or shape.
1. Rear storage compartment
1
ZAUM0413
Page 29 of 84
INSTRUMENT AND CONTROL FUNCTIONS
3-14
3
EAU14880
Adjusting the shock absorber
assemblies Each shock absorber assembly is
equipped with a spring preload adjust-
ing ring.CAUTION:
ECA10100
Never attempt to turn an adjusting
mechanism beyond the maximum orminimum settings.
WARNING
EWA10210
Always adjust both shock absorber
assemblies equally, otherwise poor
handling and loss of stability mayresult.
Adjust the spring preload as follows.
To increase the spring preload and
thereby harden the suspension, turn
the adjusting ring on each shock ab-
sorber assembly in direction (a). To de-
crease the spring preload and thereby
soften the suspension, turn the adjust-
ing ring on each shock absorber as-
sembly in direction (b).NOTE:Align the appropriate notch in the ad-
justing ring with the position indicatoron the shock absorber.
EAUT1070
Luggage hook
WARNING
EWAT1030
Do not exceed the load limit of 3
kg (6.6 lb) for the luggage hook.
Do not exceed the maximum
load of 202 kg (445 lb) for the ve-hicle.
1. Spring preload adjusting ring
2. Position indicator
1
2
3
4
1
2
(b)
(a)
ZAUM0414
Spring preload setting:
Minimum (soft):
1
Standard:
2
Maximum (hard):
4
1. Luggage hook
1
ZAUM0415
Page 30 of 84
INSTRUMENT AND CONTROL FUNCTIONS
3-15
3
EAU15300
Sidestand The sidestand is located on the left side
of the frame. Raise the sidestand or
lower it with your foot while holding the
vehicle upright.NOTE:The built-in sidestand switch is part of
the ignition circuit cut-off system, which
cuts the ignition in certain situations.
(See further down for an explanation ofthe ignition circuit cut-off system.)
WARNING
EWA10240
The vehicle must not be ridden with
the sidestand down, or if the side-
stand cannot be properly moved up(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control.
Yamaha’s ignition circuit cut-off
system has been designed to assist
the operator in fulfilling the respon-
sibility of raising the sidestand be-
fore starting off. Therefore, check
this system regularly as described
below and have a Yamaha dealer re-
pair it if it does not function proper-
ly.
EAU15371
Ignition circuit cut-off system The ignition circuit cut-off system (com-
prising the sidestand switch and brake
light switches) has the following func-
tions.
It prevents starting when the side-
stand is up, but neither brake is ap-
plied.
It prevents starting when either
brake is applied, but the sidestand
is still down.
It cuts the running engine when the
sidestand is moved down.
Periodically check the operation of the
ignition circuit cut-off system according
to the following procedure.WARNING
EWA10250
If a malfunction is noted, have a
Yamaha dealer check the system be-fore riding.
1. Sidestand switch
1
ZAUM0416
Page 31 of 84
INSTRUMENT AND CONTROL FUNCTIONS
3-16
3
With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is turned on.
3. Turn the key on.
4. Keep the front or rear brake applied.
5. Push the start switch.
Does the engine start?
With the engine still off:
6. Move the sidestand up.
7. Keep the front or rear brake applied.
8. Push the start switch.
Does the engine start?
With the engine still running:
9. Move the sidestand down.
Does the engine stall?
The system is OK. The scooter can be ridden.
This check is most reliable if performed with
a warmed-up engine.The sidestand switch may be defective.
The scooter should not be ridden until
checked by a Yamaha dealer.
The brake switch may be defective.
The scooter should not be ridden until
checked by a Yamaha dealer.
The sidestand switch may be defective.
The scooter should not be ridden until
checked by a Yamaha dealer.
YES NO YES NO NO YESNOTE:
Page 32 of 84
INSTRUMENT AND CONTROL FUNCTIONS
3-17
3
EAUM2000
Auxiliary DC jack This scooter is equipped with an auxil-
iary DC jack in the storage compart-
ment.
12-V accessories connected to the
auxiliary jack can be used when the key
is in the “ ” position and should only
be used when the engine is running.CAUTION:
ECA10200
The accessories connected to the
auxiliary DC terminals should not be
used with the engine turned off, and
their combined load must never ex-
ceed 2.5 A or 30 W, otherwise thebattery may discharge.To use the auxiliary DC jack
1. Turn the key to “ ”.
2. Remove the dust cap from the re-
ceptacle.
3. Insert the accessory plug into the
receptacle.
4. Turn the key to “ ”, and then start
the engine. (See page 5-1.)
5. When the accessory jack is not be-
ing used, make sure that the dust
cap is installed onto the receptacle
for protection.1. Auxiliary DC jack
12V
1
ZAUM0417
