2006 YAMAHA VERSITY 300 Owners Manual

SCOOTER CARE AND STORAGE
7-2
7 After normal use
Remove dirt with warm water, a mild
detergent, and a soft, clean sponge,
and then rinse thoroughly with clean
water. Use a toothbrush or bottlebrush
for hard-to-reach areas. Stubborn dirt
and insects will come off more easily if
the area is covered with a wet cloth for
a few minutes before cleaning.
After riding in the rain, near the sea oron salt-sprayed roadsSince sea salt or salt sprayed on the
roads during winter are extremely cor-
rosive in combination with water, carry
out the following steps after each ride in
the rain, near the sea or on salt-
sprayed roads.NOTE:Salt sprayed on roads in the winter mayremain well into spring.
1. Clean the scooter with cold water
and a mild detergent after the en-
gine has cooled down.
CAUTION:
ECA10790
Do not use warm water since it in-
creases the corrosive action of thesalt.
2. Apply a corrosion protection spray
on all metal, including chrome- and
nickel-plated, surfaces to prevent
corrosion.
After cleaning
1. Dry the scooter with a chamois or
an absorbing cloth.
2. Use a chrome polish to shine
chrome, aluminum and stainless-
steel parts, including the exhaust
system. (Even the thermally in-
duced discoloring of stainless-
steel exhaust systems can be re-
moved through polishing.)
3. To prevent corrosion, it is recom-
mended to apply a corrosion pro-
tection spray on all metal,
including chrome- and nickel-plat-
ed, surfaces.
4. Use spray oil as a universal clean-
er to remove any remaining dirt.5. Touch up minor paint damage
caused by stones, etc.
6. Wax all painted surfaces.
7. Let the scooter dry completely be-
fore storing or covering it.
WARNING
EWA10940


Make sure that there is no oil or
wax on the brakes or tires. If
necessary, clean the brake
discs and brake linings with a
regular brake disc cleaner or ac-
etone, and wash the tires with
warm water and a mild deter-
gent.


Before operating the scooter
test its braking performanceand cornering behavior.
CAUTION:
ECA10800


Apply spray oil and wax spar-
ingly and make sure to wipe off
any excess.


Never apply oil or wax to any
rubber and plastic parts, but
treat them with a suitable care
product.

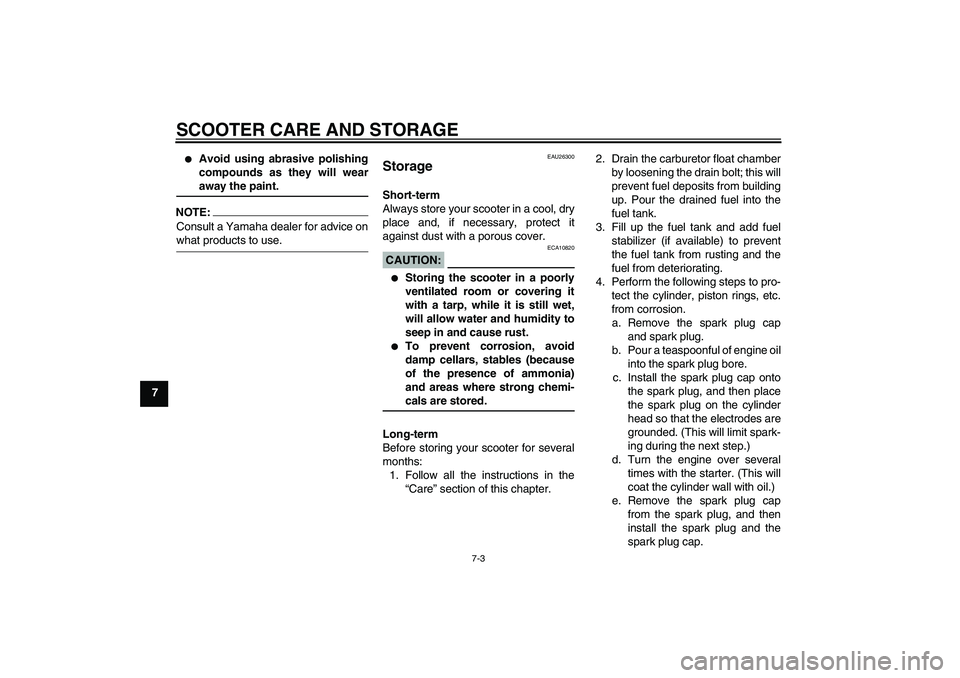

SCOOTER CARE AND STORAGE
7-3
7


Avoid using abrasive polishing
compounds as they will wearaway the paint.
NOTE:Consult a Yamaha dealer for advice onwhat products to use.
EAU26300
Storage Short-term
Always store your scooter in a cool, dry
place and, if necessary, protect it
against dust with a porous cover.CAUTION:
ECA10820


Storing the scooter in a poorly
ventilated room or covering it
with a tarp, while it is still wet,
will allow water and humidity to
seep in and cause rust.


To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-cals are stored.
Long-term
Before storing your scooter for several
months:
1. Follow all the instructions in the
“Care” section of this chapter.2. Drain the carburetor float chamber
by loosening the drain bolt; this will
prevent fuel deposits from building
up. Pour the drained fuel into the
fuel tank.
3. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
4. Perform the following steps to pro-
tect the cylinder, piston rings, etc.
from corrosion.
a. Remove the spark plug cap
and spark plug.
b. Pour a teaspoonful of engine oil
into the spark plug bore.
c. Install the spark plug cap onto
the spark plug, and then place
the spark plug on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several
times with the starter. (This will
coat the cylinder wall with oil.)
e. Remove the spark plug cap
from the spark plug, and then
install the spark plug and the
spark plug cap.

SCOOTER CARE AND STORAGE
7-4
7
WARNING
EWA10950
To prevent damage or injury from
sparking, make sure to ground the
spark plug electrodes while turningthe engine over.
5. Lubricate all control cables and the
pivoting points of all levers and
pedals as well as of the side-
stand/centerstand.
6. Check and, if necessary, correct
the tire air pressure, and then lift
the scooter so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
7. Cover the muffler outlet with a
plastic bag to prevent moisture
from entering it.
8. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place [less
than 0 °C (30 °F) or more than 30°C (90 °F)]. For more information
on storing the battery, see page
6-25.
NOTE:Make any necessary repairs beforestoring the scooter.

SPECIFICATIONS
8-1
8
Dimensions:Overall length:
2170 mm (85.4 in)
Overall width:
765 mm (30.1 in)
Overall height:
1465 mm (57.7 in)
Seat height:
805 mm (31.7 in)
Wheelbase:
1480 mm (58.3 in)
Ground clearance:
155 mm (6.10 in)
Minimum turning radius:
1706 mm (67.2 in)Weight:With oil and fuel:
174.0 kg (384 lb)Engine:Engine type:
Liquid cooled 4-stroke, SOHC
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
264.0 cm³ (16.11 cu.in)
Bore × stroke:
71.0 × 66.8 mm (2.80 × 2.63 in)
Compression ratio:
10.00 :1
Starting system:
Electric starter
Lubrication system:
Wet sump
Engine oil:Type:
SAE10W30 or SAE10W40 or SAE15W40
or SAE20W40 or SAE20W50
Recommended engine oil grade:
API service SE, SF, SG type or higher
Engine oil quantity:
Periodic oil change:
1.20 L (1.27 US qt) (1.06 Imp.qt)Final transmission oil:Type:
SAE10W30 type SE motor oil
Quantity:
0.25 L (0.26 US qt) (0.22 Imp.qt)Cooling system:Coolant reservoir capacity (up to the
maximum level mark):
0.40 L (0.42 US qt) (0.35 Imp.qt)
Radiator capacity (including all routes):
1.60 L (1.69 US qt) (1.41 Imp.qt)
Air filter:Air filter element:
Wet elementFuel:Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity:
10.9 L (2.88 US gal) (2.40 Imp.gal)
Fuel reserve amount:
1.9 L (0.50 US gal) (0.42 Imp.gal)Carburetor:Manufacturer:
TEIKEI
Type x quantity:
Y28V-1J x 1Spark plug(s):Manufacturer/model:
NGK/DR8EA
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)Clutch:Clutch type:
Dry, centrifugal automaticTransmission:Primary reduction system:
Helical gear
Primary reduction ratio:
40/15 (2.666)
Secondary reduction system:
Helical gear
Secondary reduction ratio:
37/12 (3.083)
Transmission type:
V-belt automatic
-20 -10 0
10 20 30
40
50 ˚C
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40

SPECIFICATIONS
8-2
8
Operation:
Centrifugal automatic typeChassis:Frame type:
Steel tube underbone
Caster angle:
26.00 °
Trail:
90.0 mm (3.54 in)Front tire:Type:
Tubeless
Size:
120/80-14 58P
Manufacturer/model:
MICHELIN/PILOT CITY TLRear tire:Type:
Tubeless
Size:
150/70-14 66P
Manufacturer/model:
MICHELIN/PILOT CITY TLLoading:Maximum load:
202 kg (445 lb)
(Total weight of rider, passenger, cargo and
accessories)Tire air pressure (measured on cold
tires):Loading condition:
0–90 kg (0–198 lb)
Front:
180 kPa (26 psi) (1.80 kgf/cm²)Rear:
190 kPa (28 psi) (1.90 kgf/cm²)
Loading condition:
90–160 kg (198–353 lb)
Front:
180 kPa (26 psi) (1.80 kgf/cm²)
Rear:
200 kPa (29 psi) (2.00 kgf/cm²)
Loading condition :
160–202 kg (353–445 lb)
Front:
190 kPa (28 psi) (1.90 kgf/cm²)
Rear:
220 kPa (32 psi) (2.20 kgf/cm²)
Front wheel:Wheel type:
Cast wheel
Rim size:
14 x MT2.75Rear wheel:Wheel type:
Cast wheel
Rim size:
14 x MT4.00Front brake:Type:
Single disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4Rear brake:Type:
Single disc brakeOperation:
Left hand operation
Recommended fluid:
DOT 4
Front suspension:Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
108.0 mm (4.25 in)Rear suspension:Type:
Unit swing
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
120.0 mm (4.72 in)Electrical system:Ignition system:
Transistorized coil ignition
Charging system:
AC magnetoBattery:Model:
F9-12B
Voltage, capacity:
12 V, 9.0 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage x quantity:Headlight:
12 V, 35 W/35.0 W × 2

SPECIFICATIONS
8-3
8
Tail/brake light:
12 V, 5.0 W/21.0 W × 2
Front turn signal light:
12 V, 21.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
Auxiliary light:
12 V, 5.0 W × 2
Licence plate light:
12 V, 5.0 W × 1
Meter lighting:
LED
High beam indicator light:
LED
Turn signal indicator light:
LEDFuses:Main fuse:
30.0 A
Headlight fuse:
15.0 A
Signaling system fuse:
15.0 A
Ignition fuse:
7.5 A
Radiator fan fuse:
15.0 A
Auxiliary DC jack fuse:
3.0 A
Backup fuse:
3.0 A

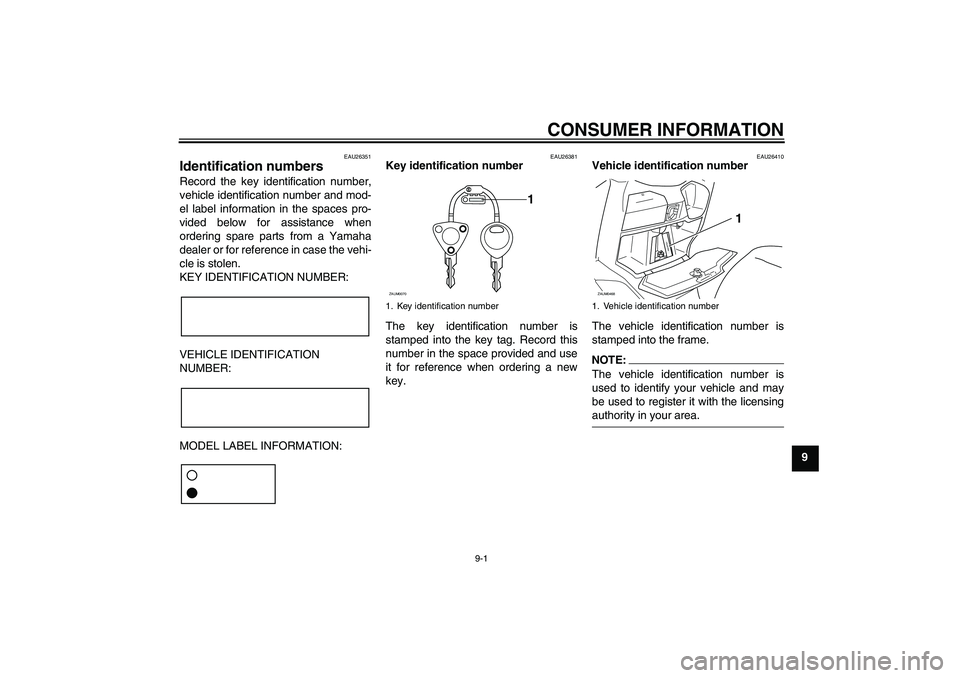

CONSUMER INFORMATION
9-1
9
EAU26351
Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26381
Key identification number
The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU26410
Vehicle identification number
The vehicle identification number is
stamped into the frame.NOTE:The vehicle identification number is
used to identify your vehicle and may
be used to register it with the licensingauthority in your area.
1. Key identification number
1
ZAUM0070
1. Vehicle identification number
x
xxxxxxxxx
1
ZAUM0468

CONSUMER INFORMATION
9-2
9
EAU26490
Model label
The model label is affixed to the bottom
of the seat. (See page 3-11.) Record
the information on this label in the
space provided. This information will be
needed when ordering spare parts from
a Yamaha dealer.1. Model label
1
ZAUM0469
