2006 YAMAHA T135 engine

PERIODIC MAINTENANCE AND MINOR REPAIR
6-14
6 4. Insert the air filter element into the
air filter case.
CAUTION:
ECA10480


Make sure that the air filter ele-
ment is properly seated in the
air filter case.


The engine should never be op-
erated without the air filter ele-
ment installed, otherwise the
piston(s) and/or cylinder(s) maybecome excessively worn.
5. Install the air filter case cover by in-
stalling the clamp and screws.
NOTE:

Make sure that the carburetor air
vent hose is routed as shown.


If dust or water collects in the air fil-
ter check hose, remove the clamp
from it, and then remove the plugto drain the hose.
6. Install the panel.
EAU21280
Adjusting the carburetor The carburetor is an important part of
the engine and requires very sophisti-
cated adjustment. Therefore, most car-
buretor adjustments should be left to a
Yamaha dealer, who has the neces-
sary professional knowledge and expe-
rience. The adjustment described in the
following section, however, may be ser-
viced by the owner as part of routine
maintenance.CAUTION:
ECA10550
The carburetor has been set and ex-
tensively tested at the Yamaha fac-
tory. Changing these settings
without sufficient technical knowl-
edge may result in poor perfor-mance of or damage to the engine.
1. Carburetor air vent hose
1. Air filter check hose
2. Clamp
U5YPE0E0.book Page 14 Wednesday, February 23, 2005 4:22 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-15
6
EAU37520
Adjusting the engine idling
speed The engine idling speed must be
checked and, if necessary, adjusted as
follows at the intervals specified in the
periodic maintenance and lubrication
chart.
The engine should be warm before
making this adjustment.NOTE:

The engine is warm when it quickly
responds to the throttle.


A diagnostic tachometer is neededto make this adjustment.
1. Remove cowling B. (See page
6-5.)
2. Attach the diagnostic tachometer
to the spark plug lead.
3. Check the engine idling speed
and, if necessary, adjust it to spec-
ification by turning the throttle stop
screw. To increase the engine
idling speed, turn the screw in di-
rection (a). To decrease the en-
gine idling speed, turn the screw in
direction (b).
NOTE:
If the specified idling speed cannot be
obtained as described above, have aYamaha dealer make the adjustment.
4. Install the cowling.
EAU21370
Adjusting the throttle cable
free play The throttle cable free play should mea-
sure 3.0–7.0 mm (0.12–0.28 in) at the
throttle grip. Periodically check the
throttle cable free play and, if neces-
sary, adjust it as follows.NOTE:The engine idling speed must be cor-
rectly adjusted before checking and ad-justing the throttle cable free play.
1. Loosen the locknut.
1. Throttle stop screwEngine idling speed:
1300–1500 r/min
1. Throttle cable free play
2. Locknut
3. Adjusting nut
U5YPE0E0.book Page 15 Wednesday, February 23, 2005 4:22 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-16
6 2. To increase the throttle cable free
play, turn the adjusting nut in direc-
tion (a). To decrease the throttle
cable free play, turn the adjusting
nut in direction (b).
3. Tighten the locknut.
EAU21401
Valve clearance The valve clearance changes with use,
resulting in improper air-fuel mixture
and/or engine noise. To prevent this
from occurring, the valve clearance
must be adjusted by a Yamaha dealer
at the intervals specified in the periodic
maintenance and lubrication chart.
EAU21571
Tires To maximize the performance, durabil-
ity, and safe operation of your motor-
cycle, note the following points
regarding the specified tires.
Tire air pressure
The tire air pressure should be checked
and, if necessary, adjusted before each
ride.
WARNING
EWA10500


The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the temperature
of the tires equals the ambient
temperature).


The tire air pressure must be ad-
justed in accordance with the
riding speed and with the total
weight of rider, passenger, car-
go, and accessories approvedfor this model.
U5YPE0E0.book Page 16 Wednesday, February 23, 2005 4:22 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-23
6en the drive chain, turn the adjust-
ing nut at each end of the
swingarm in direction (b), and then
push the rear wheel forward.
NOTE:Using the alignment marks on each
side of the swingarm, make sure that
both chain pullers are in the same posi-tion for proper wheel alignment.CAUTION:
ECA10570
Improper drive chain slack will over-
load the engine as well as other vital
parts of the motorcycle and can leadto chain slippage or breakage. To
prevent this from occurring, keep
the drive chain slack within the
specified limits.
4. Tighten both locknuts, and then
tighten the axle nut and brake
torque rod nut to their specified
torques.NOTE:When tightening the axle nut, hold the
wheel axle with a wrench to keep it fromturning.
5. Adjust the brake pedal free play.
(See page 6-19.)
WARNING
EWA10660
After adjusting the brake pedal free
play, check the operation of thebrake light.
EAU23013
Cleaning and lubricating the
drive chain The drive chain must be cleaned and
lubricated at the intervals specified in
the periodic maintenance and lubrica-
tion chart, otherwise it will quickly wear
out, especially when riding in dusty or
wet areas. Service the drive chain as
follows.CAUTION:
ECA10581
The drive chain must be lubricated
after washing the motorcycle andriding in the rain.
1. Remove all dirt and mud from the
drive chain with a brush or cloth.NOTE:For a thorough cleaning, have a
Yamaha dealer remove the drive chainand soak it in solvent.
2. Spray Yamaha Chain and Cable
Lube or a high-quality spray-type
drive chain lubricant on both sides
and on the middle of the chain,
1. Axle nut
2. Locknut
3. Drive chain slack adjusting nut
4. Alignment marks
Tightening torques:
Axle nut:
60 Nm (6.0 m·kgf, 43 ft·lbf)
Brake torque rod nut:
19 Nm (1.9 m·kgf, 14 ft·lbf)
U5YPE0E0.book Page 23 Wednesday, February 23, 2005 4:22 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-24
6 making sure that all side plates
and rollers have been sufficiently
oiled.
EAU23100
Checking and lubricating the
cables The operation of all control cables and
the condition of the cables should be
checked before each ride, and the ca-
bles and cable ends should be lubricat-
ed if necessary. If a cable is damaged
or does not move smoothly, have a
Yamaha dealer check or replace it.
WARNING
EWA10720
Damage to the outer sheath may in-
terfere with proper cable operation
and will cause the inner cable to
rust. Replace a damaged cable as
soon as possible to prevent unsafeconditions.
EAU23111
Checking and lubricating the
throttle grip and cable The operation of the throttle grip should
be checked before each ride. In addi-
tion, the cable should be lubricated at
the intervals specified in the periodic
maintenance chart.
Recommended lubricant:
Engine oil
U5YPE0E0.book Page 24 Wednesday, February 23, 2005 4:22 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-25
6
EAU23160
Lubricating the brake lever The pivoting point of the brake lever
must be lubricated at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU23180
Lubricating the brake pedal The operation of the brake pedal
should be checked before each ride,
and the pedal pivot should be lubricat-
ed if necessary.
EAU23211
Checking and lubricating the
centerstand and sidestand The operation of the centerstand and
sidestand should be checked before
each ride, and the pivots and metal-to-
metal contact surfaces should be lubri-
cated if necessary.
WARNING
EWA10740
If the centerstand or sidestand does
not move up and down smoothly,
have a Yamaha dealer check or re-pair it.
Recommended lubricant:
Engine oil
Recommended lubricant:
Lithium-soap-based grease (all-pur-
pose grease)
Recommended lubricant:
Lithium-soap-based grease (all-pur-
pose grease)
U5YPE0E0.book Page 25 Wednesday, February 23, 2005 4:22 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-27
6
EAU23280

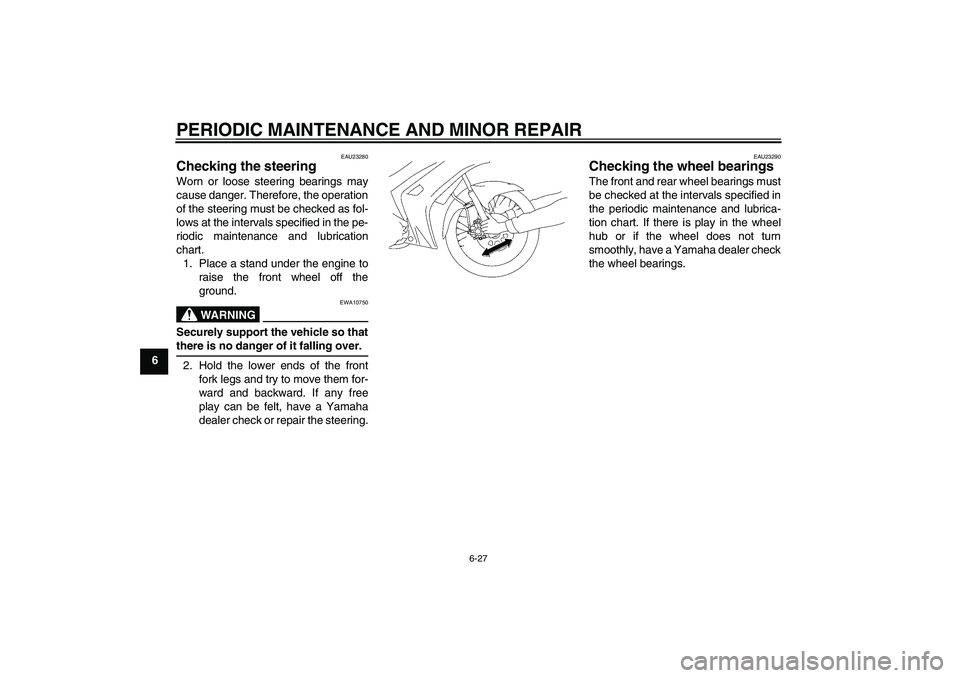

Checking the steering Worn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as fol-
lows at the intervals specified in the pe-
riodic maintenance and lubrication
chart.
1. Place a stand under the engine to
raise the front wheel off the
ground.
WARNING
EWA10750
Securely support the vehicle so thatthere is no danger of it falling over.
2. Hold the lower ends of the front
fork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steering.
EAU23290
Checking the wheel bearings The front and rear wheel bearings must
be checked at the intervals specified in
the periodic maintenance and lubrica-
tion chart. If there is play in the wheel
hub or if the wheel does not turn
smoothly, have a Yamaha dealer check
the wheel bearings.
U5YPE0E0.book Page 27 Wednesday, February 23, 2005 4:22 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-36
6
EAU37620
Troubleshooting charts Starting problems or poor engine performance
WARNING
EWA10840
Keep away open flames and do not smoke while checking or working on the fuel system.
Check the fuel level in
the fuel tank.1. Fuel
There is
enough fuel.
There is
no fuel.
Check the compression.
Supply fuel.
The engine does not start.
Check the compression.
Operate the
electric starter or the
kickstarter.2. Compression
There is compression.
There is no compression.
Check the ignition.
Have a Yamaha dealer
check the vehicle.
Remove the spark plug
and check the electrodes.3. Ignition
Wet
Dry
Wipe off with a dry cloth and correct the
spark plug gap, or replace the spark plug.
Have a Yamaha dealer check the vehicle.
The engine does not start. Have a
Yamaha dealer check the vehicle.The engine does not start.
Check the battery.Open the throttle halfway and
operate the electric starter.
Operate the
electric starter.4. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.Check the electrolyte and battery
lead connections, and charge the
battery if necessary.
U5YPE0E0.book Page 36 Wednesday, February 23, 2005 4:22 PM
