Page 57 of 102
PERIODIC MAINTENANCE AND MINOR REPAIR
6-4
6
EAU17670
NOTE:
The air filter needs more frequent service if you are riding in unusually wet or dusty areas.
Hydraulic brake and clutch service
Regularly check and, if necessary, correct the brake and clutch fluid levels.
Every two years replace the internal components of the brake master cylinders and calipers as well as clutch master
and release cylinders, and change the brake and clutch fluids.Replace the brake and clutch hoses every four years and if cracked or damaged.
23*Cooling systemCheck coolant level and vehicle for coolant leakage.√√√√ √
Change. Every 3 years
24 Final gear oilCheck oil level and vehicle for oil leakage.
Change.√√√√√
25*Front and rear brake
switchesCheck operation.√√√√√ √
26Moving parts and ca-
blesLubricate.√√√√ √
27*Throttle grip housing
and cableCheck operation and free play.
Adjust the throttle cable free play if necessary.
Lubricate the throttle grip housing and cable.√√√√ √
28*Muffler and exhaust
pipeCheck the screw clamp for looseness.√√√√√
29*Lights, signals and
switchesCheck operation.
Adjust headlight beam.√√√√√ √ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (× 1000 km)
ANNUAL
CHECK
1 10203040
U3P6E0E0.book Page 4 Tuesday, January 24, 2006 10:46 AM
Page 58 of 102
PERIODIC MAINTENANCE AND MINOR REPAIR
6-5
6
EAU18771
Removing and installing
panels The panels shown need to be removed
to perform some of the maintenance
jobs described in this chapter. Refer to
this section each time a panel needs to
be removed and installed.
EAU39550
Panel A
To remove the panelRemove the bolts and the quick fasten-
er, and then take the panel off.To install the panel
Place the panel in the original position,
and then install the bolts and the quick
fastener.
EAU39562
Panel B
To remove the panel1. Open the accessory box lid. (See
page 3-24.)
2. Remove the bolt, screw and the
quick fasteners shown, and then
take the panel off.
1. Panel A
2. Panel B
3. Panel C
4. Panel D
1. Panel E
1. Panel F
1. Panel A
2. Bolt
3. Quick fastener
U3P6E0E0.book Page 5 Tuesday, January 24, 2006 10:46 AM

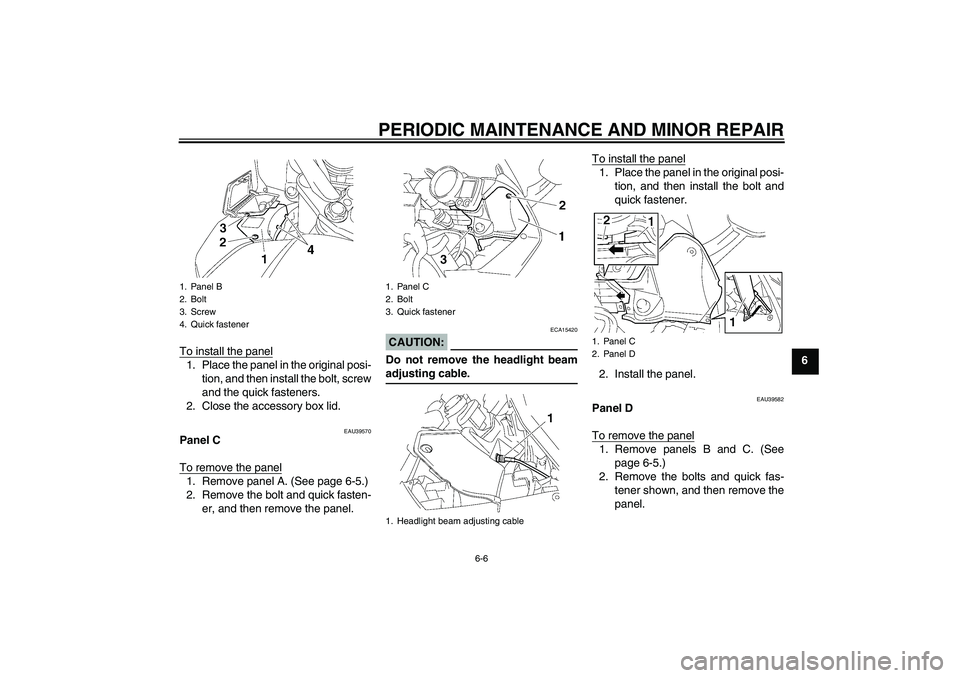

Page 59 of 102
PERIODIC MAINTENANCE AND MINOR REPAIR
6-6
6 To install the panel
1. Place the panel in the original posi-
tion, and then install the bolt, screw
and the quick fasteners.
2. Close the accessory box lid.
EAU39570
Panel C
To remove the panel1. Remove panel A. (See page 6-5.)
2. Remove the bolt and quick fasten-
er, and then remove the panel.
CAUTION:
ECA15420
Do not remove the headlight beamadjusting cable.To install the panel
1. Place the panel in the original posi-
tion, and then install the bolt and
quick fastener.
2. Install the panel.
EAU39582
Panel D
To remove the panel1. Remove panels B and C. (See
page 6-5.)
2. Remove the bolts and quick fas-
tener shown, and then remove the
panel.
1. Panel B
2. Bolt
3. Screw
4. Quick fastener
1. Panel C
2. Bolt
3. Quick fastener
1. Headlight beam adjusting cable
1. Panel C
2. Panel D
U3P6E0E0.book Page 6 Tuesday, January 24, 2006 10:46 AM
Page 60 of 102
PERIODIC MAINTENANCE AND MINOR REPAIR
6-7
6
CAUTION:
ECA15420
Do not remove the headlight beamadjusting cable.To install the panel
1. Place the panel in the original posi-
tion, and then install the bolts and
quick fastener.
2. Install panels B and C.
EAU39591
Panel E
To remove the panel1. Remove the seats. (See page
3-19.)
2. Remove the bolts and the quick
fastener screws, and then take the
panel off.To install the panel
1. Place the panel in the original posi-
tion, and then install the bolts and
the quick fastener screws.
2. Install the seats.
1. Panel D
2. Bolt
3. Quick fastener
1. Headlight beam adjusting cable
1. Panel D
1. Panel E
2. Bolt
3. Quick fastener screw
U3P6E0E0.book Page 7 Tuesday, January 24, 2006 10:46 AM
Page 61 of 102
PERIODIC MAINTENANCE AND MINOR REPAIR
6-8
6
EAU39601
Panel F
To remove the panel1. Remove the seats. (See page
3-19.)
2. Remove the bolt and the quick fas-
tener screws, and then take the
panel off.
To install the panel1. Place the panel in the original posi-
tion, and then install the bolt and
the quick fastener screws.2. Install the seats.
EAU19642
Checking the spark plugs The spark plugs are important engine
components, which should be checked
periodically, preferably by a Yamaha
dealer. Since heat and deposits will
cause any spark plug to slowly erode,
they should be removed and checked
in accordance with the periodic mainte-
nance and lubrication chart. In addition,
the condition of the spark plugs can re-
veal the condition of the engine.
The porcelain insulator around the cen-
ter electrode of each spark plug should
be a medium-to-light tan (the ideal color
when the vehicle is ridden normally),
and all spark plugs installed in the en-
gine should have the same color. If any
spark plug shows a distinctly different
color, the engine could be operating im-
properly. Do not attempt to diagnose
such problems yourself. Instead, have
a Yamaha dealer check the vehicle.
If a spark plug shows signs of electrode
erosion and excessive carbon or other
deposits, it should be replaced.
1. Panel F
2. Bolt
3. Quick fastener screw
U3P6E0E0.book Page 8 Tuesday, January 24, 2006 10:46 AM
Page 62 of 102
PERIODIC MAINTENANCE AND MINOR REPAIR
6-9
6Before installing a spark plug, the spark
plug gap should be measured with a
wire thickness gauge and, if necessary,
adjusted to specification.
Clean the surface of the spark plug
gasket and its mating surface, and then
wipe off any grime from the spark plug
threads.
NOTE:
If a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-fied torque as soon as possible.
EAU19881
Engine oil and oil filter
cartridge The engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter car-
tridge replaced at the intervals speci-
fied in the periodic maintenance and
lubrication chart.
To check the engine oil level
1. Place the vehicle on the center-
stand.NOTE:
Make sure that the vehicle is positioned
straight up when checking the oil level.
A slight tilt to the side can result in afalse reading.
2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Wait a few minutes until the oil set-
tles, and then check the oil level
through the check window located
at the bottom-left side of the crank-
case.
Specified spark plug:
NGK/CR8E
DENSO/U24ESR-N1. Spark plug gapSpark plug gap:
0.7–0.8 mm (0.028–0.031 in)
Tightening torque:
Spark plug:
12.5 Nm (1.25 m·kgf, 9.0 ft·lbf)
U3P6E0E0.book Page 9 Tuesday, January 24, 2006 10:46 AM
Page 63 of 102
PERIODIC MAINTENANCE AND MINOR REPAIR
6-10
6
NOTE:The engine oil should be between theminimum and maximum level marks.
4. If the engine oil is below the mini-
mum level mark, add sufficient oil
of the recommended type to raise
it to the correct level.
To change the engine oil (with or
without oil filter cartridge replace-
ment)
1. Start the engine, warm it up for
several minutes, and then turn it
off.2. Place an oil pan under the engine
to collect the used oil.
3. Remove the engine oil filler cap
and drain bolt to drain the oil from
the crankcase.
NOTE:Skip steps 4–6 if the oil filter cartridge isnot being replaced.
4. Remove the oil filter cartridge with
an oil filter wrench.
NOTE:An oil filter wrench is available at aYamaha dealer.
5. Apply a thin coat of engine oil to
the O-ring of the new oil filter car-
tridge.
1. Engine oil level check window
2. Maximum level mark
3. Minimum level mark
1. Engine oil filler cap
2. Oil filter cartridge
3. Engine oil drain bolt
1. Oil filter cartridge
2. Oil filter wrench
U3P6E0E0.book Page 10 Tuesday, January 24, 2006 10:46 AM
Page 64 of 102
PERIODIC MAINTENANCE AND MINOR REPAIR
6-11
6
NOTE:
Make sure that the O-ring is properlyseated.
6. Install the new oil filter cartridge,
and then tighten it to the specified
torque with a torque wrench.7. Install the engine oil drain bolt, and
then tighten it to the specified
torque.
NOTE:
Check the washer for damage and re-place it if necessary.
8. Add the specified amount of the
recommended engine oil, and then
install and tighten the oil filler cap.
CAUTION:
ECA11620
In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a high-
er quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.
Make sure that no foreign mate-rial enters the crankcase.
9. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking, im-
mediately turn the engine off and
check for the cause.
NOTE:After the engine is started, the engine
oil level warning light should go off if theoil level is sufficient.
1. O-ring
1. Oil filter cartridge
2. Torque wrench
Tightening torque:
Oil filter cartridge:
17 Nm (1.7 m·kgf, 12 ft·lbf)
Tightening torque:
Engine oil drain bolt:
43 Nm (4.3 m·kgf, 31 ft·lbf)
Recommended engine oil:
See page 8-1.
Oil quantity:
Without oil filter cartridge replace-
ment:
3.80 L (4.02 US qt) (3.34 Imp.qt)
With oil filter cartridge replacement:
4.00 L (4.23 US qt) (3.52 Imp.qt)
