INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
EAU11060

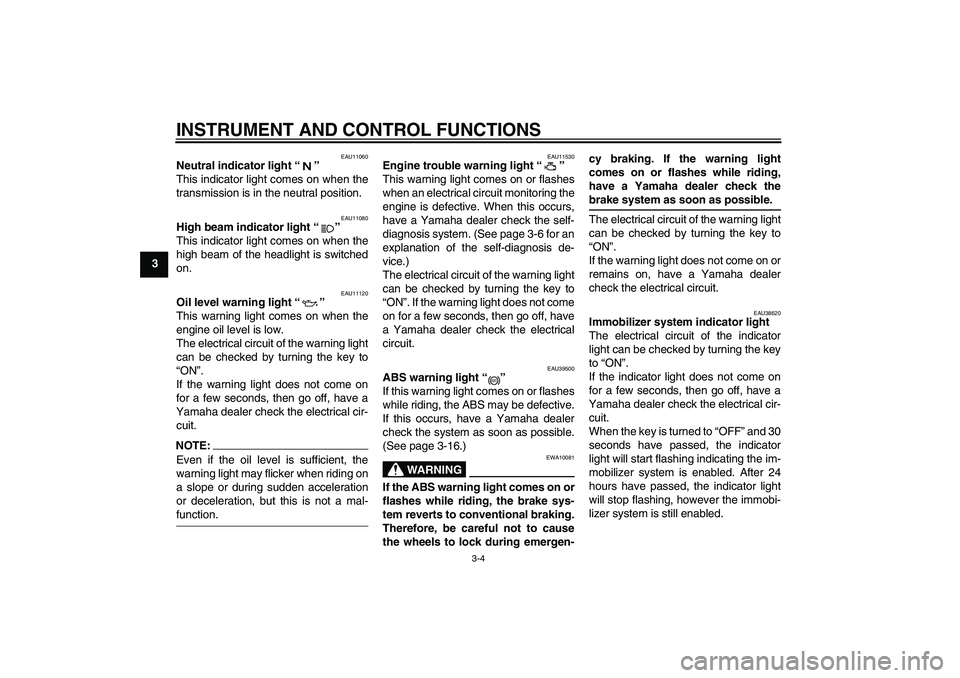

Neutral indicator light “”
This indicator light comes on when the
transmission is in the neutral position.
EAU11080
High beam indicator light “”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU11120
Oil level warning light “”
This warning light comes on when the
engine oil level is low.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.NOTE:Even if the oil level is sufficient, the
warning light may flicker when riding on
a slope or during sudden acceleration
or deceleration, but this is not a mal-function.
EAU11530
Engine trouble warning light “”
This warning light comes on or flashes
when an electrical circuit monitoring the
engine is defective. When this occurs,
have a Yamaha dealer check the self-
diagnosis system. (See page 3-6 for an
explanation of the self-diagnosis de-
vice.)
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. If the warning light does not come
on for a few seconds, then go off, have
a Yamaha dealer check the electrical
circuit.
EAU39500
ABS warning light “”
If this warning light comes on or flashes
while riding, the ABS may be defective.
If this occurs, have a Yamaha dealer
check the system as soon as possible.
(See page 3-16.)
WARNING
EWA10081
If the ABS warning light comes on or
flashes while riding, the brake sys-
tem reverts to conventional braking.
Therefore, be careful not to cause
the wheels to lock during emergen-cy braking. If the warning light
comes on or flashes while riding,
have a Yamaha dealer check the
brake system as soon as possible.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on or
remains on, have a Yamaha dealer
check the electrical circuit.
EAU38620
Immobilizer system indicator light
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”.
If the indicator light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
When the key is turned to “OFF” and 30
seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.
ABS
U3P6E0E0.book Page 4 Tuesday, January 24, 2006 10:46 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
EAU26866
Multi-function display
WARNING
EWA14430
Be sure to stop the vehicle before
making any setting changes to themulti-function display.
The multi-function display is equipped
with the following:

an odometer (which shows the to-
tal distance traveled)


two tripmeters (which show the
distance traveled since they were
last set to zero)


a fuel reserve tripmeter (which
shows the distance traveled on the
fuel reserve)


a clock


a fuel meter


a coolant temperature meter


a transmission gear display


an ambient temperature display


two fuel consumption displays (in-
stantaneous and average)


a self-diagnosis device
NOTE:Be sure to turn the key to “ON” before
using the “SELECT” and “RESET” but-tons.Odometer and tripmeter modes
Pushing the “SELECT” button switches
the display between the odometer
mode “ODO” and the tripmeter modes
“TRIP 1” and “TRIP 2” in the following
order:
ODO → TRIP 1 → TRIP 2 → ODO
NOTE:When selecting “TRIP 1” or “TRIP 2”,the display flashes for five seconds.
When approximately 5.5 L (1.45 US
gal) (1.21 Imp.gal) of fuel remains in the
fuel tank, the display will automatically
change to the fuel reserve tripmeter
mode “F-TRIP” and start counting the
1. Multi-function display
2.“SELECT” button
3.“RESET” button
1. Odometer/tripmeter/fuel reserve tripmeter
2.“SELECT” button
3.“RESET” button
U3P6E0E0.book Page 6 Tuesday, January 24, 2006 10:46 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-13
3
EAU12331
Anti-theft alarm (optional) This model can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.
EAU12344
Handlebar switches LeftRight
EAU12380
Pass switch “”
Press this switch to flash the head-
lights.
EAU12400
Dimmer switch “/”
Set this switch to “” for the high
beam and to “” for the low beam.
EAU12460
Turn signal switch “/”
To signal a right-hand turn, push this
switch to “”. To signal a left-hand
turn, push this switch to “”. When re-
leased, the switch returns to the center
1. Pass switch “”
2. Windshield position adjusting switch “”
3. Dimmer switch “/”
4. Turn signal switch “/”
5. Horn switch “”
1. Engine stop switch “/”
2. Hazard switch “”
3. Start switch “”
U3P6E0E0.book Page 13 Tuesday, January 24, 2006 10:46 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-14
3position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12493
Windshield position adjusting
switch “”
To move the windshield up, push this
switch in direction (a). To move the
windshield down, push the switch in di-
rection (b).NOTE:When the key is turned to “OFF”, the
windshield will automatically return tothe lowest position.
EAU12500
Horn switch “”
Press this switch to sound the horn.
EAU12660
Engine stop switch “/”
Set this switch to “” before starting
the engine. Set this switch to “” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12710
Start switch “”
Push this switch to crank the engine
with the starter.CAUTION:
ECA10050
See page 5-1 for starting instruc-tions prior to starting the engine.
EAU12733
Hazard switch “”
With the key in the “ON” or “” posi-
tion, use this switch to turn on the haz-
ard lights (simultaneous flashing of all
turn signal lights).The hazard lights are used in case of
an emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.
CAUTION:
ECA10061
Do not use the hazard lights for an
extended length of time with the en-
gine not running, otherwise the bat-tery may discharge.
1. Windshield position adjusting switch “”U3P6E0E0.book Page 14 Tuesday, January 24, 2006 10:46 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-31
3
With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is turned on.
3. Turn the key on.
4. Shift the transmission into the neutral position.
5. Push the start switch.
Does the engine start?
With the engine still running:
6. Move the sidestand up.
7. Keep the clutch lever pulled.
8. Shift the transmission into gear.
9. Move the sidestand down.
Does the engine stall?
After the engine has stalled:
10. Move the sidestand up.
11. Keep the clutch lever pulled.
12. Push the start switch.
Does the engine start?
The system is OK. The motorcycle can be ridden.
This check is most reliable if performed with
a warmed-up engine.The neutral switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The sidestand switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The clutch switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
YES NO YES NO YES NONOTE:
U3P6E0E0.book Page 31 Tuesday, January 24, 2006 10:46 AM

OPERATION AND IMPORTANT RIDING POINTS
5-1
5

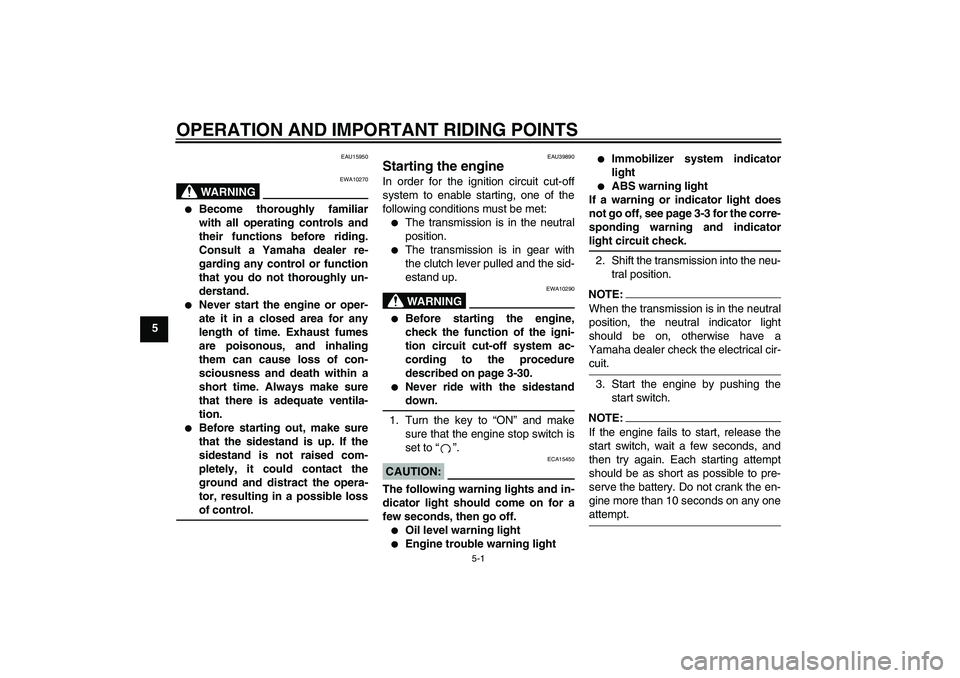

EAU15950
WARNING
EWA10270


Become thoroughly familiar
with all operating controls and
their functions before riding.
Consult a Yamaha dealer re-
garding any control or function
that you do not thoroughly un-
derstand.


Never start the engine or oper-
ate it in a closed area for any
length of time. Exhaust fumes
are poisonous, and inhaling
them can cause loss of con-
sciousness and death within a
short time. Always make sure
that there is adequate ventila-
tion.


Before starting out, make sure
that the sidestand is up. If the
sidestand is not raised com-
pletely, it could contact the
ground and distract the opera-
tor, resulting in a possible lossof control.
EAU39890
Starting the engine In order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:

The transmission is in the neutral
position.


The transmission is in gear with
the clutch lever pulled and the sid-
estand up.WARNING
EWA10290


Before starting the engine,
check the function of the igni-
tion circuit cut-off system ac-
cording to the procedure
described on page 3-30.


Never ride with the sidestanddown.
1. Turn the key to “ON” and make
sure that the engine stop switch is
set to “”.
CAUTION:
ECA15450
The following warning lights and in-
dicator light should come on for a
few seconds, then go off.

Oil level warning light


Engine trouble warning light


Immobilizer system indicator
light


ABS warning light
If a warning or indicator light does
not go off, see page 3-3 for the corre-
sponding warning and indicator
light circuit check.
2. Shift the transmission into the neu-
tral position.NOTE:When the transmission is in the neutral
position, the neutral indicator light
should be on, otherwise have a
Yamaha dealer check the electrical cir-cuit.
3. Start the engine by pushing the
start switch.NOTE:If the engine fails to start, release the
start switch, wait a few seconds, and
then try again. Each starting attempt
should be as short as possible to pre-
serve the battery. Do not crank the en-
gine more than 10 seconds on any oneattempt.
U3P6E0E0.book Page 1 Tuesday, January 24, 2006 10:46 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-36
6 Engine overheating
WARNING
EWA10400


Do not remove the radiator cap when the engine and radiator are hot. Scalding hot fluid and steam may be
blown out under pressure, which could cause serious injury. Be sure to wait until the engine has cooled.


After removing the radiator cap retaining bolt, place a thick rag, like a towel, over the radiator cap, and then
slowly rotate the cap counterclockwise to the detent to allow any residual pressure to escape. When the hissingsound has stopped, press down on the cap while turning it counterclockwise, and then remove the cap.
NOTE:If coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended coolantas soon as possible.
Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.Add coolant. (See NOTE.)
Start the engine. If the engine overheats again,
have a
Yamaha dealer check
and repair the cooling system.
There is
leakage.
There is
no leakage.
U3P6E0E0.book Page 36 Tuesday, January 24, 2006 10:46 AM

INDEX
AABS ...................................................... 3-16
ABS warning light ................................... 3-4
Accessory box ...................................... 3-24
Air filter element, cleaning .................... 6-15
Anti-theft alarm (optional) ..................... 3-13
Auxiliary DC jack .................................. 3-32
Auxiliary light bulb, replacing ................ 6-34BBattery .................................................. 6-28
Brake and clutch fluid levels,
checking ............................................. 6-22
Brake and clutch fluids, changing ......... 6-23
Brake and clutch levers,
checking and lubricating ..................... 6-25
Brake and shift pedals,
checking and lubricating ..................... 6-24
Brake lever ........................................... 3-16
Brake pedal .......................................... 3-16CCables, checking and lubricating .......... 6-23
Care ........................................................ 7-1
Catalytic converter ................................ 3-19
Centerstand and sidestand,
checking and lubricating ..................... 6-25
Clutch lever.................................. 3-15, 6-20
Coolant ................................................. 6-13
Cowlings, opening and closing ............. 3-25DDimmer switch ...................................... 3-13EEngine break-in ...................................... 5-3
Engine idling speed, checking .............. 6-16
Engine oil and oil filter cartridge ............. 6-9Engine stop switch ................................ 3-14
Engine trouble warning light .................... 3-4
FFinal gear oil.......................................... 6-12
Front and rear brake pads, checking .... 6-21
Front fork, adjusting .............................. 3-26
Front fork, checking...............................6-26
Front turn signal light............................. 6-32
Fuel ....................................................... 3-18
Fuel consumption, tips for reducing ........ 5-3
Fuel tank breather/overflow hose .......... 3-19
Fuel tank cap......................................... 3-17
Fuses, replacing .................................... 6-29HHandlebar position, adjusting ................ 3-25
Handlebar switches ............................... 3-13
Hazard switch........................................ 3-14
Headlight beams, adjusting ................... 3-24
Headlight bulb, replacing....................... 6-31
High beam indicator light......................... 3-4
Horn switch ........................................... 3-14IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-30
Immobilizer system .................................3-1
Immobilizer system indicator light ........... 3-4
Indicator and warning lights .................... 3-3KKey identification number ........................ 9-1LLicense plate light bulb, replacing ......... 6-33
Locks for optional sidecases and
travel trunk .......................................... 3-29
MMain switch/steering lock ........................ 3-2
Model label ............................................. 9-2
Multi-function display .............................. 3-6NNeutral indicator light .............................. 3-4OOil level warning light .............................. 3-4PPanels, removing and installing .............. 6-5
Parking.................................................... 5-4
Part locations .......................................... 2-1
Pass switch ........................................... 3-13
Periodic maintenance and lubrication
chart...................................................... 6-2
Pre-operation check list .......................... 4-2RRear brake light switch, adjusting ......... 6-21
Rear suspension, lubricating ................ 6-26
Rear view mirrors.................................. 3-26
Rider seat height, adjusting .................. 3-21SSafety information ................................... 1-1
Seats..................................................... 3-19
Shifting .................................................... 5-2
Shift pedal ............................................. 3-15
Shock absorber assembly, adjusting .... 3-28
Sidestand .............................................. 3-30
Spark plugs, checking............................. 6-8
Specifications.......................................... 8-1
Speedometer .......................................... 3-5
Starting the engine.................................. 5-1
Start switch ........................................... 3-14
Steering, checking ................................ 6-27
U3P6E0E0.book Page 1 Tuesday, January 24, 2006 10:46 AM
