Check state of the battery's charge.
Examine tires carefully (the spare tire as well), and replace those that are worn. Check tire pressures.
The brakes, front wheel alignment, and steering gear should be checked by a trained and qualified Volvo service
technician only.
Check all lights, including high beams.
Reflective warning triangles are legally required in some states/provinces.
Have a word with a trained and qualified Volvo service technician if you intend to drive in countries where it may
be difficult to obtain the correct fuel.
Consider your destination. If you will be driving through an area where snow or ice are likely to occur, consider
snow tires.
2. To prevent injury from contact with hot surfaces, do not inspect your vehicle's transmission fluid yourself. Have your vehicle's transmission fluid
level inspected by a trained and qualified Volvo service technician.
pg. 101 Starting and driving
Fuel requirements
Octane rating
Volvo engines are designed for optimum performance on unleaded premium gasoline with an AKI octane rating of 91
or above. AKI (ANTI KNOCK INDEX) is an average of the Research Octane Number, RON, and the Motor Octane
Number, MON. ((RON + MON)/2). The minimum octane requirement is AKI 87 (RON 91).
Deposit control gasoline (detergent additives)
Volvo recommends the use of detergent gasoline to control engine deposits. Detergent gasoline is effective in keeping
injectors and intake valves clean. Consistent use of deposit control gasolines will help ensure good driveability and
fuel economy. If you are not sure whether the gasoline contains deposit control additives, check with the service
station operator.
NOTE: Volvo does not recommend the use of store -bought fuel injector cleaning additives.
Unleaded fuel
Each Volvo has a three-way catalytic converter and must use only unleaded gasoline. U.S. and Canadian regulations
require that pumps delivering unleaded gasoline be labelled "UNLEADED". Only these pumps have nozzles which fit
your vehicle's filler inlet. It is unlawful to dispense leaded fuel into a vehicle labelled "unleaded gasoline only".
Leaded gasoline damages the three-way catalytic converter and the heated oxygen sensor system. Repeated use of
leaded gasoline will lessen the effectiveness of the emission control system and could result in loss of emission
warranty coverage. State and local vehicle inspection programs will make detection of misfueling easier, possibly
resulting in emission test failure for misfueled vehicles.
NOTE: Some U.S. and Canadian gasolines contain an octane enhancing additive called methyl-cyclopentadienyl
manganese tricarbonyl (MMT). If such fuels are used, your Emission Control System performance may be affected,
and the Check Engine Light (malfunction indicator lamp) located on your instrument panel may light. If this occurs,
please return your vehicle to a trained and qualified Volvo service technician for maintenance.
Gasoline containing alcohol and ethers
Some fuel suppliers sell gasoline containing "oxygenates" which are usually alcohols or ethers. In some areas, state or
local laws require that the service pump be marked indicating use of alcohols or ethers. However, there are areas in
which the pumps are unmarked. If you are not sure whether there is alcohol or ethers in the gasoline you buy, check
with the service station operator. To meet seasonal air quality standards, some areas require the use of "oxygenated"
fuel. Volvo allows the use of the following "oxygenated" fuels; however, the octane ratings listed on this page must
still be met.
Alcohol - Ethanol : Fuels containing up to 10% ethanol by volume may be used. Ethanol may also be referred to as
ProCarManuals.com

General description
The rear park assist system is designed to assist you when backing into parking spaces, garages, etc. It utilizes
ultrasound sensors located in the rear bumper to gauge distance, and provides an audible signal when the vehicle is
being backed close to another vehicle, object, or a person.
When is park assist active?
Front: the system is active from the time the engine is started until the car exceeds a speed of approximately 10 mph
(15 km/h).
Rear : the system is activated when reverse gear is selected. The indicator light in the button will light up.
When the system is actively working:
The audio system's volume will be reduced.
An intermittent signal will be audible from the speakers to indicate that you are approaching a person, object,
parked vehicle, etc. The signals begin when the distance between the bumper and the object is:
Rear : approximately 5 feet (1.5 meters).
Front : approximately 2.5 ft (0.8 meters)
At a distance of approximately 1 foot (30 cm), the signal will become constant.
Deactivating park assist, front/rear
Press the Exit button on the center control panel (see the illustration on page 51). PARK ASSIST DEACTIVATED,
ENTER TO ACTIVATE will be displayed.
Press Enter to reactivate the system.
NOTE:
Rear park assist : towing a trailer, carrying bicycles in a rear-mounted carrier, etc, could trigger the rear park assist
system's sensors.
NOTE: Rear park assist is deactivated automatically when towing a trailer if Volvo original connector wiring is used.
Front park assist : it may not be possible to combine auxiliary headlights. and front park assist since these lights
could trigger the system's sensors.
WARNING!
These systems are designed to be a supplementary aid when parking the vehicle. They are not, however, intended to
replace the driver's attention and judgement.
CAUTION!
In certain circumstances, the park assist system may give unexpected warning signals that can be caused by external
sound sources that use the same ultrasound frequencies as the system. This may include such things as the horns of
other vehicles, wet tires on asphalt, pneumatic brakes, motorcycle exhaust pipes, etc. This does not indicate a fault in
the system.
ProCarManuals.com

pg. 116 Starting and driving
Park assist (accessory)
Cleaning the sensors
For the system to function properly, the sensors in the rear bumpers should be kept clean. They can be cleaned with
car washing detergent and a sponge.
Faults in the system
If a fault should occur in the system, the Information symbol will light up and remain on and PARK ASSIST
SERVICE REQUIRED will be displayed.
pg. 117 Starting and driving
Towing
Emergency towing
The towing eyelet is located under the floor of the cargo area. This eyelet must be screwed into the positions provided
on the right sides of either the front or rear bumper (see illustrations).
To attach the towing eyelet:
Take out the towing eyelet, which is either stored under the floor panel in the trunk near the spare tire (if the vehicle
is so equipped), or in the bag holding the temporary cover behind the ski hatch.
Use a coin or screwdriver to pry open the lower edge of the cover (1) to access the hole for the towing eyelet (2).
ProCarManuals.com

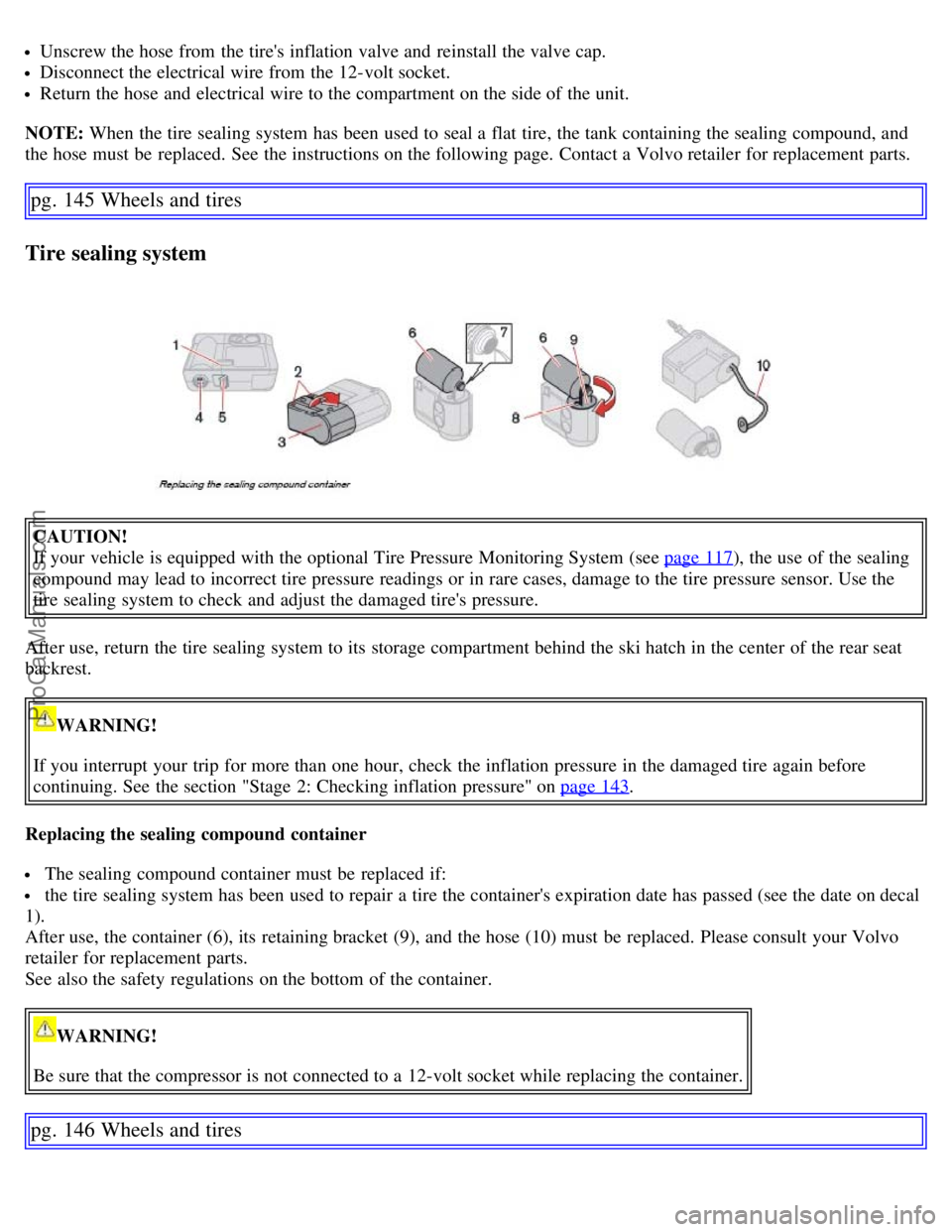

Unscrew the hose from the tire's inflation valve and reinstall the valve cap.
Disconnect the electrical wire from the 12-volt socket.
Return the hose and electrical wire to the compartment on the side of the unit.
NOTE: When the tire sealing system has been used to seal a flat tire, the tank containing the sealing compound, and
the hose must be replaced. See the instructions on the following page. Contact a Volvo retailer for replacement parts.
pg. 145 Wheels and tires
Tire sealing system
CAUTION!
If your vehicle is equipped with the optional Tire Pressure Monitoring System (see page 117
), the use of the sealing
compound may lead to incorrect tire pressure readings or in rare cases, damage to the tire pressure sensor. Use the
tire sealing system to check and adjust the damaged tire's pressure.
After use, return the tire sealing system to its storage compartment behind the ski hatch in the center of the rear seat
backrest.
WARNING!
If you interrupt your trip for more than one hour, check the inflation pressure in the damaged tire again before
continuing. See the section "Stage 2: Checking inflation pressure" on page 143
.
Replacing the sealing compound container
The sealing compound container must be replaced if:
the tire sealing system has been used to repair a tire the container's expiration date has passed (see the date on decal
1).
After use, the container (6), its retaining bracket (9), and the hose (10) must be replaced. Please consult your Volvo
retailer for replacement parts.
See also the safety regulations on the bottom of the container.
WARNING!
Be sure that the compressor is not connected to a 12-volt socket while replacing the container.
pg. 146 Wheels and tires
ProCarManuals.com

Automatic washing - simple and quick
We do NOT recommend washing your car in an automatic wash during the first six months (because the paint will
not have hardened sufficiently).
An automatic wash is a simple and quick way to clean your car, but it is worth remembering that it may not be as
thorough as when you yourself go over the car with sponge and water. Keeping the underbody clean is most important,
especially in the winter. Some automatic washers do not have facilities for washing the underbody.
pg. 149 Vehicle care
Washing and cleaning the car
CAUTION!
Before driving into an automatic carwash, turn off the optional rain sensor to avoid damaging the windshield wipers.
Make sure that side view mirrors, auxiliary lamps, etc, are secure, and that any antenna(s) are retracted or removed.
Otherwise there is risk of the machine dislodging them.
WARNING!
When the car is driven immediately after being washed, apply the brakes several times in order to remove any
moisture from the brake linings.
Engine cleaning agents should not be used when the engine is warm. This constitutes a fire risk.
Polishing and Waxing
Normally, polishing is not required during the first year after delivery, however, waxing may be beneficial.
Before applying polish or wax the vehicle must be washed and dried. Tar spots can be removed with kerosene or tar
remover. Difficult spots may require a fine rubbing compound.
After polishing use liquid or paste wax.
Several commercially available products contain both polish and wax.
Waxing alone does not substitute for polishing a dull surface.
A wide range of polymer-based waxes can be purchased today. These waxes are easy to use and produce a long-
lasting, high-gloss finish that protects the bodywork against oxidation, road dirt and fading.
Do not polish or wax your vehicle in direct sunlight (the surface of the vehicle should not be warmer than 113° F
(45° C).
CAUTION!
Volvo does not recommend the use of long-life or durable paint protection coatings, some of which may claim to
prevent pitting, fading, oxidation, etc. These coatings have not been tested by Volvo for compatibility with your
vehicle's clear coat. Some of them may cause the clear coat to soften, crack, or cloud. Damage caused by application
of paint protection coatings may not be covered under your vehicle's paint warranty.
pg. 150 Vehicle care
Washing and cleaning the car
Upholstery care
Fabric
ProCarManuals.com

12. Feed to heated rear window, 30A
13. Starter motor relay, 30A
14. Trailer connector, 40A
15. Power retractable hard top, 30A
16. Feed to audio system, 30A
17.Windshield wipers, 30A
18. Feed to passenger compartment fuse box, 40A
19. Not in use
20. Horn, 15A
21. Not in use
22. Subwoofer, 25A
23. Engine control module (ECM)/transmission control module (TCM), 10A
24. Not in use
25. Not in use
26. Ignition switch, 15A
27. A/C compressor 10A
28. Not in use
29. Front fog lights (option), 15A
30. Not in use
31. Not in use
32. Fuel injectors, 10A
33. Heated oxygen sensor, vacuum pump, 20A
34. Ignition coils, engine control module, climate unit pressure sensor, 10A
35. Engine sensor valves, A/C relay, 15A
36. Engine control module (ECM), throttle sensor, 10A
pg. 172 Maintenance and servicing
Fuses
Fuse box in the passenger compartment
The fuse box in the passenger compartment is located under the glove compartment.
To access the fuses:
1. Remove the upholstery covering the fuse box by first pressing in the center pins in the mounting clips approximately
0.5 in (1 cm) with a small screwdriver and then pulling the pins out.
2. Turn both retaining screws (2) counterclockwise until they release.
3. Fold down the fuse box (3) half way. Pull it toward the seat until it stops. Fold it down completely. The fuse box can
be unhooked completely.
4. Replace the blown fuse.
5. Close the fuse box in reverse order.
6. Pull the center pins fully out of the mounting clips, secure the upholstery with the mounting clips and press the pins
ProCarManuals.com

into the mounting clips again. The mounting clips then expand, holding the upholstery in position.
pg. 173 Maintenance and servicing
Fuses
Fuses in the passenger compartment
37. Not in use
38. Not in use
39. Not in use
40. Not in use
41. Not in use
42. Not in use
43. Audio system, Volvo Navigation system (option),15A
44. Supplemental Restrain System (SRS), 10A
45. 12-volt socket in passenger compartment, 15A
46. Lighting - glove compartment, instrument panel, and footwells, 5A
47. Interior lighting, 5A
48. Windshield washers, 15A
49. Supplemental Restrain System (SRS), Occupant Weight Sensor (OWS), 10A
50. Not in use
51. Park assist (option), 10A
52. Transmission control module (TCM), 5A
53. ABS, power steering, Bi -Xenon headlights (option), 10A
54. Engine control module, turbo (ECM), 10A
55. Not in use
56. Alarm siren control module, 10A
57. On-board diagnostic socket, brake light switch,15A
58. Right high beam, auxiliary lights relay, 7.5A
59. Left high beam, 7.5A
60. Heated driver's seat (option), 15A
61. Heated passenger's seat (option), 15A
62. Not in use
63. Power window - rear passenger's side, 20A
64. Lock indicator lights i door panels, Volvo Navigation system (option), 5A
65. Audio system, 5A
66. Audio system control module (ICM), climate system, 10A
67. Not in use
68. Cruise control, 5A
69. Climate system, rain sensor (option), 5A
70. Not in use
71. Not in use
ProCarManuals.com

Information symbol32, 33
Inspection readiness156
Instrument overview7
Instrument panel32
Instrument panel lighting38
Interior lighting77
ISOFIX/LATCH anchors29
J
Jack, positioning140
Jack, positioning correctly140
Jump starting119
K
Key blade88
Keylock2, 105
Kickdown109
L
Label information188
LATCH anchors29
License plate lighting, replacing169
Lighting panel38
Lighting, interior77
Load anchoring eyelets83
Loading the vehicle133
Locking (double locking feature)91
Long distance trips100
Low beam bulb, replacing165
Low beam headlights40
M
Maintenance154
Malfunction indicator light34
Manual front seat adjustment66
Manual shifting (Geartronic)108
Manual transmission107
Mirror, rearview49
Mirrors, door-mounted50
O
OBD II156
Occupant safety10
Occupant Weight Sensor (OWS), disabling front passenger's side airbag18
Octane rating101
Oil pressure warning light35
Oil, changing158
On Call Roadside Assistance195
Onboard Diagnostic System (OBD II)156
ProCarManuals.com
