2006 TOYOTA xA Owners Manual (in English)

217
—Headlights
1. Unplug the connector. Remove therubber cover.
If the connector is tight, wiggle it.2. Release the bulb retaining spring and remove the bulb. Install a new
bulb and the bulb retaining spring.
To install a bulb, align the tabs of the
bulb with the cutouts of the mounting
hole.3. Install the rubber cover as shown and fit it securely on the boss. Plug
in the connector.
Make sure the rubber cover fits securely
on the connector and the headlight body.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Scion dealer.

218

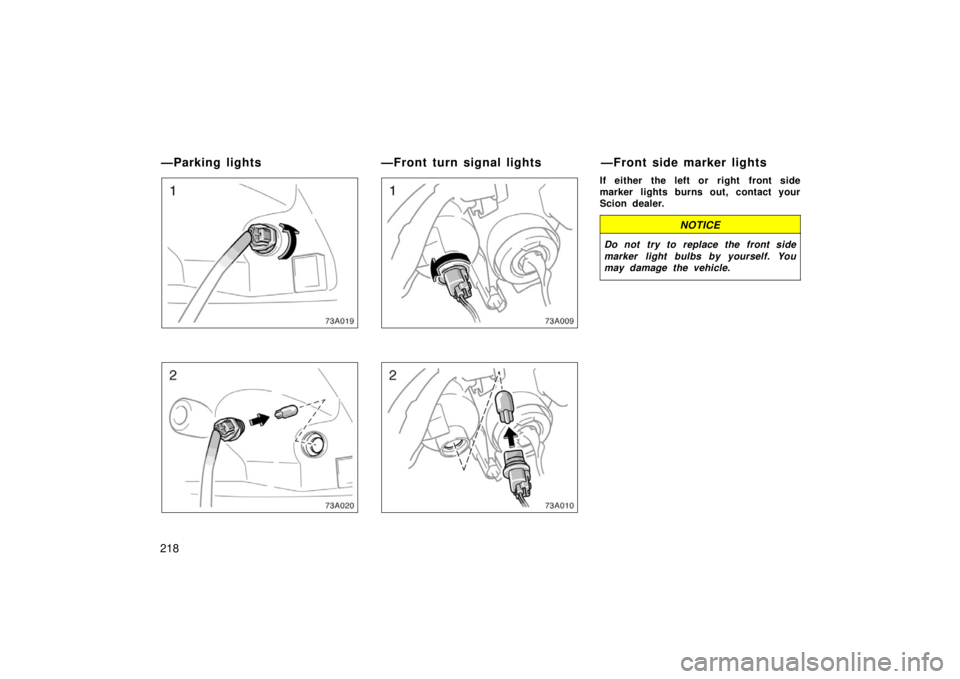

73A019
73A020
If either the left or right front side
marker lights burns out, contact your
Scion dealer.
NOTICE
Do not try to replace the front side
marker light bulbs by yourself. You
may damage the vehicle.

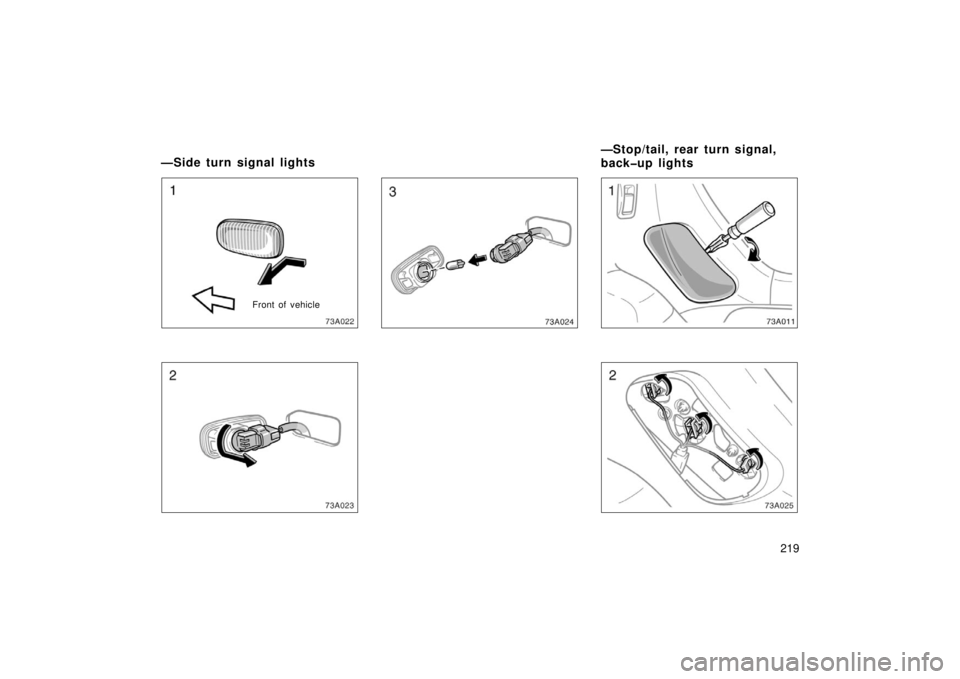

—Parking lights—Front turn signal lights —Front side marker lights

219
73a022
Front of vehicle
73a023
73a024
73a025
—Side turn signal lights—Stop/tail, rear turn signal,
backup lights

220
73a026
a: Rear turn signal light
b: Stop/tail light
c: Backup light

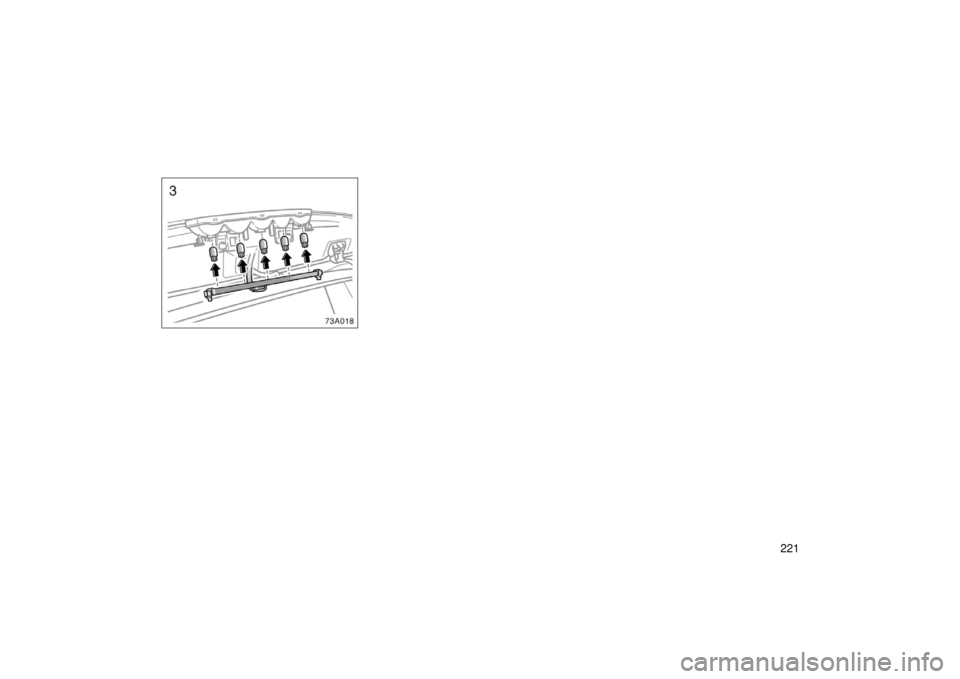

—License plate lights—High mounted stoplights

221

222

223
SPECIFICATIONS
Dimensions and weightss224
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine 224
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 224
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 225
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 227
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 228
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

224
Dimensions and weights
Overall length mm (in.):3915 (154.1)
Overall width mm (in.): 1695 (66.7)
Overall height mm (in.): 1530 (60.2)
Wheelbase mm (in.): 2370 (93.3)
Front tread mm (in.): 1455 (57.3)
Rear tread mm (in.):
1430 (56.3)
Vehicle capacity weight
(occupants+cargo) kg (lb.): 375 (825)
Engine
Model:1.5 L 4 −cylinder (1NZ− FE)
Type: 4 cylinder in line, 4 cycle, gasoline
Bore and stroke, mm (in.): 75.0  84.7 (2.95  3.33)
Displacement, cm
3 (cu. in.):
1497 (91.3)
Fuel
Fuel type: Unleaded gasoline, Octane Rating 87 (Re-search Octane Number 91) or higher
Fuel tank capacity, L (gal., Imp.gal.): 45 (11.9, 9.9)
