OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Instrument cluster overview 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Indicator symbols on the instrument cluster 5
. . . . . . . . . . . . . . . . . . . . . .
SECTION 1 1

2
Instrument panel overview

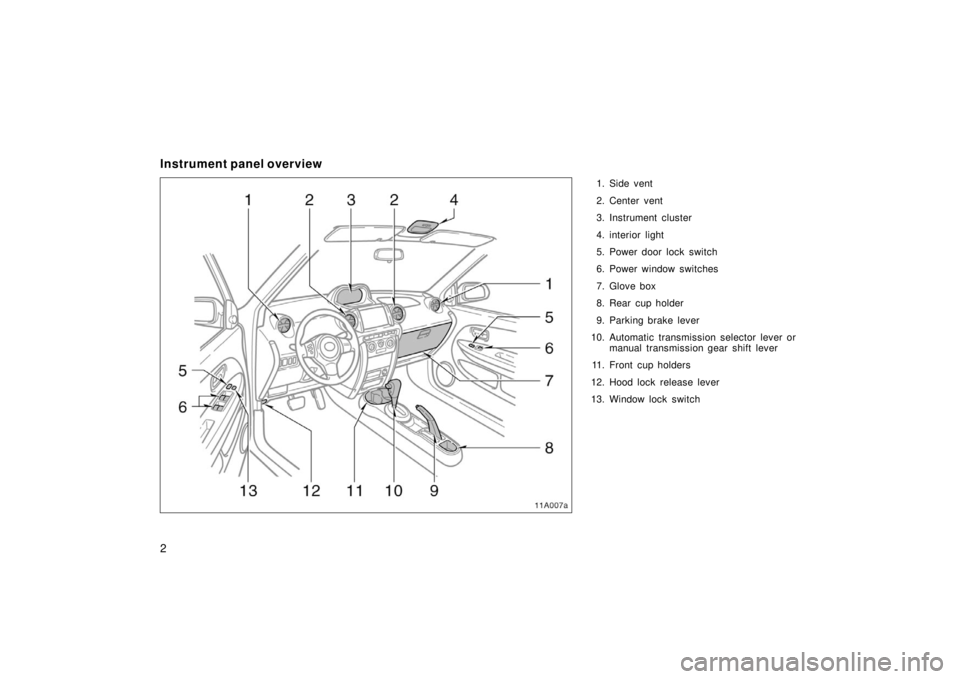

1. Side vent
2. Center vent
3. Instrument cluster
4. interior light
5. Power door lock switch
6. Power window switches
7. Glove box
8. Rear cup holder
9. Parking brake lever
10. Automatic transmission selector lever or manual transmission gear shift lever
11. Front cup holders
12. Hood lock release lever
13. Window lock switch
11A007a

3

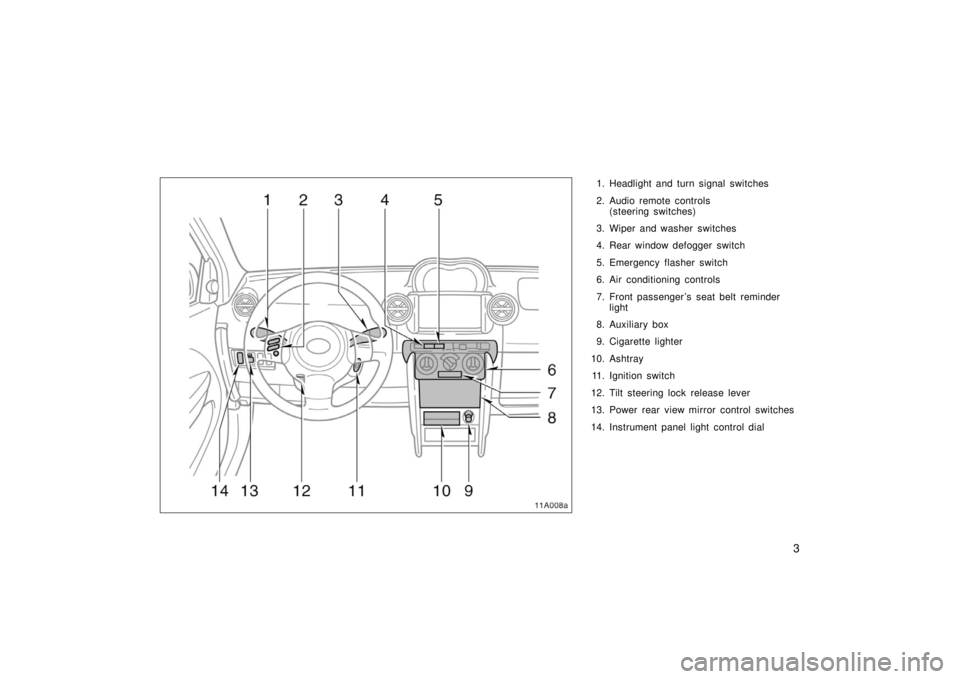

1. Headlight and turn signal switches
2. Audio remote controls(steering switches)
3. Wiper and washer switches
4. Rear window defogger switch
5. Emergency flasher switch
6. Air conditioning controls
7. Front passenger ’s seat belt reminder light
8. Auxiliary box
9. Cigarette lighter
10. Ashtray 11. Ignition switch
12. Tilt steering lock release lever
13. Power rear view mirror control switches
14. Instrument panel light control dial

4

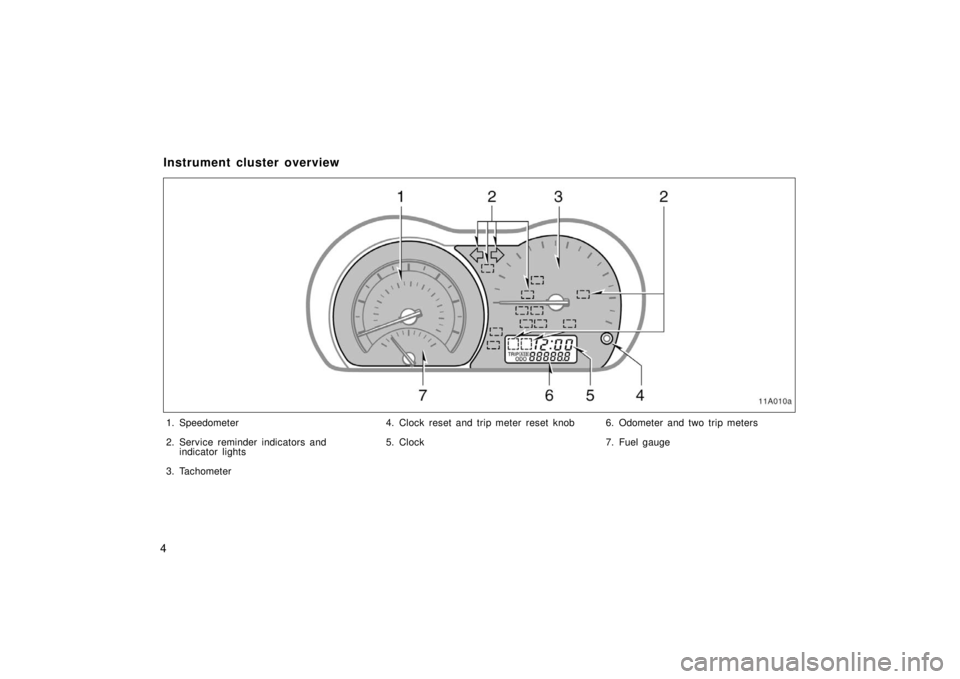

1. Speedometer
2. Service reminder indicators andindicator lights
3. Tachometer 4. Clock reset and trip meter reset knob
5. Clock
6. Odometer and two trip meters
7. Fuel gauge
Instrument cluster overview

5
Indicator symbols on the instrument cluster
Brake system warning light∗
Driver ’s seat belt reminder light∗
Charging system warning light∗
Malfunction indicator lamp∗
Low engine oil pressure warning light∗
Anti-lock brake system warning light∗
SRS warning light∗
Low fuel level warning light∗
Turn signal indicator lights
Headlight high beam indicator light
Overdrive−off indicator light
Low engine coolant temperature indicator light
∗
High engine coolant temperature warning light∗
Front passenger ’s seat belt reminder light∗Open door warning light∗
∗
: For details, see “Service reminder indicators and warning
buzzers” on page 83.
Engine oil replacement reminder light
(blue) (red)

6

7
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . .
Side doors 8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Power windows 11
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Back door 13
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Hood 14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Fuel tank cap 15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
SECTION 1 2

8
Keys
This key works in every lock.
Since the side doors can be locked with-
out a key, you should always carry a
spare key in case you accidentally lock
your keys inside the vehicle.
12A001
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Scion dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.
Side doors
12A002
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
All the side doors and back door lock and
unlock simultaneously with either front
door. In the driver ’s door lock, turning the
key once will unlock the driver’s door and
twice in succession will unlock all the side
doors and back door simultaneously.
