2006 TOYOTA PRIUS warning light

3
1. Headlight and turn signal switches 110 . . . . . . . . . . . . . . . . . . . . . . . . .
2. Wiper and washer switches 117 . . . . . . .
3. “POWER” switch 139 . . . . . . . . . . . . . . . . .
4. Clock 302 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5. Multi −information display or
navigation system including
multi −information display
(For the navigation system,
see the separate “Navigation
System Owner ’s Manual”.) 160 . . . . . . . .
6. Emergency flasher switch 114 . . . . . . . . .
7. Trip meter reset button 123 . . . . . . . . . . .
8. Km/h or MPH button 124 . . . . . . . . . . . . .
9. Audio system 242 . . . . . . . . . . . . . . . . . . . .
10. Power outlet 305 . . . . . . . . . . . . . . . . . . . . .
11. “P” position switch 144 . . . . . . . . . . . . . . .
12. Electronic shift lever (R, N, D, B) 144 . . . . . . . . . . . . . . . . . . . . .
13. Key slot 138 . . . . . . . . . . . . . . . . . . . . . . . . .
14. Cruise control switch 157 . . . . . . . . . . . . .
15. Tire pressure warning system reset switch 150 . . . . . . . . . . . . . . . . . . . . .
16. Smart entry and start system cancel switch 34 . . . . . . . . . . . . . . . . . . . . .
11p019

6
Indicator symbols on the instrument cluster and multiinformation display
orand
Brake system warning lights∗1
Driver ’s seat belt reminder light∗1
Front passenger ’s seat belt reminder light∗1
Malfunction indicator lamp∗1
Low fuel level indicator light∗1
Open door warning light∗1
Master warning light∗1
Anti −lock brake system warning light∗
1
SRS warning light∗1
Engine oil replacement reminder light∗1
(for vehicles sold in U.S.A.)
Vehicle stability control system warning light∗1
Charging system warning light∗2
High coolant temperature warning light∗2
Low engine oil pressure warning light∗2
Hybrid battery warning light∗2
or
(U.S.A)
(Canada)
Low tire pressure warning light
∗1

7
or
Hybrid vehicle immobilizer / Theft deterrent
system indicator light
Tail light indicator light Shift position indicator light
∗ 4
Driving ready light
Automatic air conditioner indicator light
Recirculate mode indicator light
Smart entry and start system warning light
∗ 5
Windshield air flow indicator light
Slip indicator light
Headlight high beam indicator light
Headlight indicator light Turn signal indicator lights
Cruise control indicator light∗3
Hybrid system warning light∗2
Automatic head light leveling system
warning light∗2
Electric power steering system warning light∗2
Front passenger occupant classification
indicator light
Rear window and outside rear view mirror
defoggers indicator light

8
∗1: For details, see “Service reminder indi-
cators and warning buzzers— —Instru-
ment cluster” on page 125.
∗2: For details, see “Service reminder indi-
cators and warning buzzers— —Multi −
information display” on page 132.
∗ 3: If this light flashes, see “Cruise con-
trol” on page 157.
∗4: For details, see “Hybrid transaxle” on
page 144.
∗5: For details, see “Smart entry and start
system” on page 24.

26

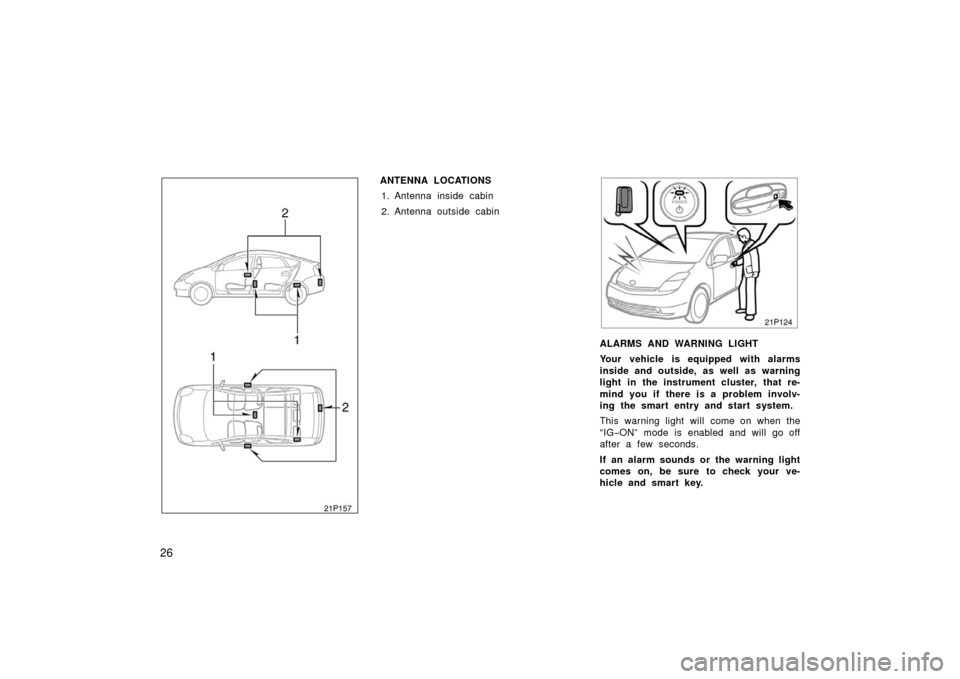

21p157
ANTENNA LOCATIONS1. Antenna inside cabin
2. Antenna outside cabin
ALARMS AND WARNING LIGHT
Your vehicle is equipped with alarms
inside and outside, as well as warning
light in the instrument cluster, that re-
mind you if there is a problem involv-
ing the smart entry and start system.
This warning light will come on when the
“IG −ON” mode is enabled and will go off
after a few seconds.
If an alarm sounds or the warning light
comes on, be sure to check your ve-
hicle and smart key.

27
(a) The hybrid system was not turnedoff and the transaxle was in a posi-
tion other than “P”.
When the driver ’s door is opened with the
hybrid system in “ACC” or “IG −ON” and
with the transaxle in a position other than
“P”.
Inside alarm: Beeps continuously
Multiinformation display: Warning mes-
sage
Alarms will be turned off by any of the
following operations:
Closing the driver ’s door
Pressing the “P” position switch
Turning off the hybrid system (b) The smart key was brought outside
the vehicle with the transaxle in a
position other than “P”.
When the driver ’s door is opened or
closed with the hybrid system not to be
turned off and with the transaxle in a
position other than “P”, it is determined
that the smart key is not in the vehicle.
Inside alarm: Beeps continuously
Outside alarm: Beeps continuously
Warning light: On
Alarms will be turned off by any of the
following operations:
Pressing the “P” position switch
Bringing the smart key inside the ve-
hicle
Turning off the hybrid system
(c) The hybrid system was not turned off with the transaxle in “P”.
When the driver ’s door is opened with the
hybrid system in “ACC” and with the
transaxle in “P”.
Inside alarm: 3 beeps
In the “IG −ON” mode, an alarm will not
sound. (d) The smart key was brought outside
the vehicle.
When the driver ’s door is opened or
closed with the hybrid system not to be
turned off (and with the transaxle in “P”),
it is determined that the smart key is not
in the vehicle.
Inside alarm: One beep
Outside alarm: 3 beeps
Warning light: On
(e) Locking with smart function was at- tempted with the hybrid system not
to be turned off.
When you attempt to lock all the doors
using smart locking function with the hy-
brid system not to be turned off and with
the transaxle in a position other than “P”.
Outside alarm: One beep (sounds for 2
seconds.)
Warning light: On
At this time, the doors cannot be
locked.

28
(f) The smart key was brought outsidethe vehicle.
When a door other than the driver ’s door
is opened or closed with the hybrid sys-
tem not to be turned off, it is determined
that the smart key is not in the vehicle.
Inside alarm: One beep
Outside alarm: 3 beeps
Warning light: On (g) Preventing the key from being
locked inside the vehicle
When you close the door with the hybrid
system off but with the smart key left in
the vehicle, and attempt to lock all the
doors using smart locking function, it is
determined that the smart key is in the
vehicle.
Outside alarm: One beep (sounds for 2
seconds)
INFORMATION
 This function may not operate when
the smart key is left on the instru-
ment panel, luggage cover, floor or
in the glove box.
 The function may operate if the
smart key is brought outside but it
is very close to the door window or
door handle.
(h) Low smart key battery
When the hybrid system is turned to
“ACC” or “OFF” about 20 minutes after
the hybrid system is turned on or to “IG −
ON”, it is determined that the smart key
battery voltage is low.
Inside alarm: One beep (i) Outside of effective range
When the “POWER” switch is pressed, it
is determined that the smart key is not in
the vehicle.
Inside alarm: One beep
Warning light: On (for 5 seconds)
(j) Open door warning
When you attempt to lock all the doors
using smart locking function with the hy-
brid system turned off but with any door
open.
Outside alarm: One beep (sounds for 10
seconds)
Alarms will be turned off by either of
the following operations:
Closing all the doors
Pressing the unlock button on the
smart key

29
Warning and its meaningInside warning alarm
Outside warning alarmWarning lightCauses
One beep
(sounds continuously)——The driver ’s door was opened when the hybrid system was in “ACC”
or “IG −ON” and when the transaxle was in a position other than “P”.
One beep
(sounds continuously)One beep
(sounds continuously)OnThe driver brought out the smart key from the vehicle with the hybrid
system not to be turned off and with the transaxle in a position other
than “P”.
Beeps
(sound intermittently)——The driver ’s door was opened when the hybrid system was in “ACC”
and when the transaxle was in “P”.
One beep3 beepsOnThe driver brought out the smart key from the vehicle with the hybrid
system not to be turned off and with the transaxle in “P”.
—One beep
(sounds for 2 seconds)OnThe lock switch was pressed with the hybrid system not to be turned
off and with the transaxle in “P”.
One beep3 beepsOnThe passenger brought out the smart key from the vehicle with the
hybrid system not to be turned off.
—One beep
(sounds for 2 seconds)—The lock switch was pressed when the hybrid system was off but with
the smart key left in the vehicle.
One beep——The key battery voltage become about 2 V. (3 V for normal operation)
One beep—On
(for 5 seconds)The “POWER” swi t c h was pr es s ed when the smar t key was not in the
effective range of the system.
—One beep
(sounds for 10 seconds)—The lock switch was pressed when the hybrid system was off but any
door was opened.
