2006 TOYOTA PRIUS EV mode

149
The slip indicator light comes on when the
“IG−ON” mode is enabled and will go off
after the “READY” light comes on. If the
indicator light does not come on when the
hybrid system is turned on, contact your
Toyota dealer.
25p117
“VSC” warning light
This light warns that there is a problem
somewhere in the vehicle stability control
system.
The light will come on when the “IG −ON”
mode is enabled and will go off after the
“READY” light comes on.
If the light comes on while driving, the
system does not work. However, because
the conventional braking still operates, you
can drive your vehicle without damaging
it. Contact your Toyota dealer. In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the “IG
−ON” mode is enabled.
The warning light remains on after the
“READY” light comes on.
The warning light comes on while driv-
ing.

150

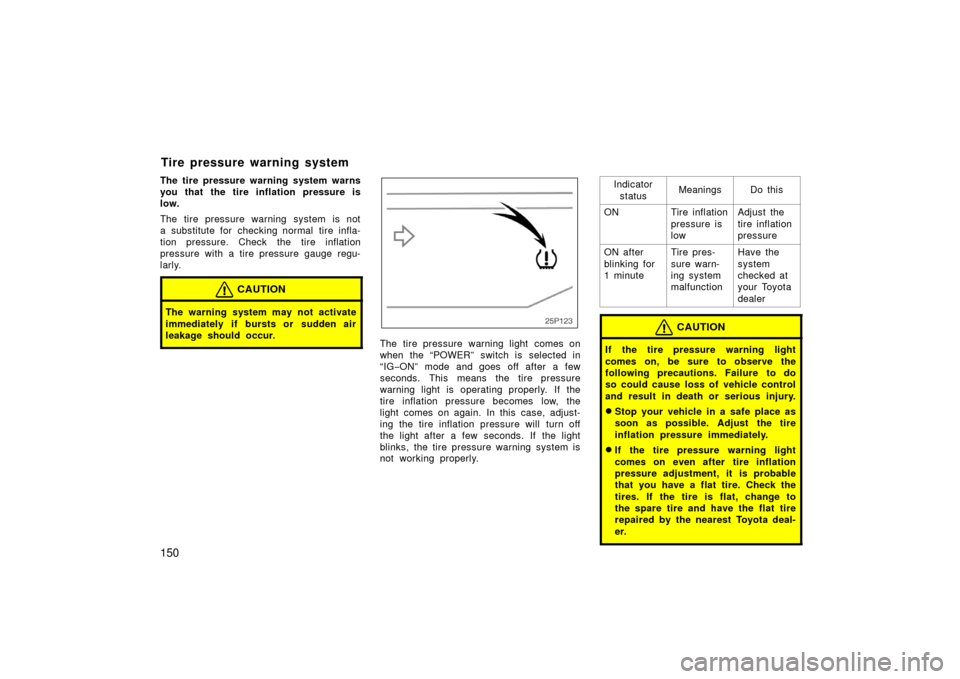

The tire pressure warning system warns
you that the tire inflation pressure is
low.
The tire pressure warning system is not
a substitute for checking normal tire infla-
tion pressure. Check the tire inflation
pressure with a tire pressure gauge regu-
larly.
CAUTION
The warning system may not activate
immediately if bursts or sudden air
leakage should occur.
The tire pressure warning light comes on
when the “POWER” switch is selected in
“IG−ON” mode and goes off after a few
seconds. This means the tire pressure
warning light is operating properly. If the
tire inflation pressure becomes low, the
light comes on again. In this case, adjust-
ing the tire inflation pressure will turn off
the light after a few seconds. If the light
blinks, the tire pressure warning system is
not working properly. Indicator
status
MeaningsDo this
ONTire inflation
pressure is
lowAdjust the
tire inflation
pressure
ON after
blinking for
1 minuteTire pres-
sure warn-
ing system
malfunctionHave the
system
checked at
your Toyota
dealer
CAUTION
If the tire pressure warning light
comes on, be sure to observe the
following precautions. Failure to do
so could cause loss of vehicle control
and result in death or serious injury.
Stop your vehicle in a safe place as
soon as possible. Adjust the tire
inflation pressure immediately.
If the tire pressure warning light
comes on even after tire inflation
pressure adjustment, it is probable
that you have a flat tire. Check the
tires. If the tire is flat, change to
the spare tire and have the flat tire
repaired by the nearest Toyota deal-
er.
Tire pressure warning system

153
IF THE TIRE PRESSURE WARNING
LIGHT BLINKS...
If the tire pressure warning light blinks
when the “POWER” switch is selected
in “IGON” mode, the tire pressure
warning system is not working properly.
The system will be disabled in the follow-
ing conditions:
(When the condition becomes normal, the
system will work properly.)
If tires not equipped with tire pressure
warning valves and transmitters are
used.
If the ID code on the tire pressure
warning valves and transmitters is not
registered.
If electronic devices or facilities using
similar radio wave frequencies are
nearby.
If a radio set at similar frequencies is
in use in the vehicle.
If a window tint that affects the radio
wave signals is installed.
If there is a lot of snow or ice on the
vehicle, in particular around the wheels
or wheel housings.
If non−genuine Toyota wheels are used.
If tire chains are used.
If the tire inflation pressure is 50 kpa
(0.5 kgf/cm2 or bar, 7.3 psi) or more
higher than the specified level.
If the tire pressure warning light blinks
frequently when “POWER” switch is se-
lected in “IG −ON” mode, have it checked
by your Toyota dealer.
Even if you use genuine wheels, the tire
pressure warning system may not work
properly with some types of tires.
Pushing the tire pressure warning reset
switch should not turn off the tire pressure
warning light. For vehicles sold in U.S.A.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.

155
Tire pressure warning reset switch
25p122
When initializing the system, the present
tire inflation pressure is stored as stan-
dard. The tire pressure warning system
determines decreased air pressure by
comparing the present and the standard
tire inflation pressures. When you change
the set tire inflation pressure, it is neces-
sary to initialize the tire pressure warning
system.
When rotating the tires on vehicles dif-
fering with front and rear tire inflation
pressures.
When changing the tire size.To initialize the system, perform the fol-
lowing:
1. Park the vehicle in a safe place and the hybrid system is off.
2. Adjust the pressure of all the installed tires to the specified cold tire inflation
pressure level.(See “Tires” on page
429.)
3. Turn the “POWER” switch is selected in “IG −ON” mode.
4. Push and hold the tire pressure warn- ing reset switch until the tire pressure
warning light blinks slowly three times.
5. Wait for a few minutes with the “POW- ER” switch is selected in “IG −ON”
mode, and then turn the hybrid system
is off.
If you push the tire pressure reset switch
while vehicle is moving, initialization is not
performed.
If you push the tire pressure reset switch
accidentally and initialization is performed,
adjust the tire inflation pressure to the
specified level and initialize the system
again.
25p124
If the tire pressure warning light does not
blink slowly three times when you push
and hold the reset switch, initialization has
failed and the tire pressure warning sys-
tem may not work properly. In this case,
initialize the system again. If initialization
cannot be performed, have the system
checked at your Toyota dealer.

163
27p178
Type 1 and Type 2
26p049b
Ty p e 3
When the “ACC” mode is enabled, the
initial screen appears and the system be-
gins operating.
After a few seconds, the previous mode
display will appear.
If the electrical power source has been
disconnected from the multi−information
display, the display will be automatically
set to the initial mode.
CAUTION
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
Switch operation
This system operates mainly by the
switches on the screen. To protect the
screen, lightly touch switches on the
screen with your finger. When you touch
a switch on the screen or on the bezel,
a beep sounds.
If the system does not respond to a
touch of a switch, move your finger
away from the screen and then touch
it again.
You cannot operate dimmed switches.
Wipe off fingerprints on the surface of
the display using a glass cleaning
cloth.
The displayed image may become
darker and moving images may be
slightly distorted when the display is
cold.
When you look at the screen through
polarized material such as polarized
sunglasses, the screen may be dark
and hard to see. If so, change the
angle of the screen or take off your
sunglasses.
Before using
the multiinformation display

178
Connecting a Bluetooth phone
(a) automatically
27p188
When you register your phone, auto
connection will be turned on. Always
set it to this mode and leave the Blue-
tooth phone in a condition where con-
nection can be established.
Each time you touch the “Auto Connect”
switch, auto connection will be switched
on or off.
27p189
When the “ACC” or “IGON” mode is
enabled, the selected Bluetooth phone
will be automatically connected and the
connection result is displayed.
This screen appears when the Bluetooth
phone is first connected after the “ACC”
or “IG −ON” mode is enabled. (b) manually
When the auto connection failed or
turned off, you have to connect Blue-
tooth manually.
27p190
Touch the “Connect” switch after hav-
ing enabled the Bluetooth connection
on the phone.

179
27p191
When the connection is completed, this
screen is displayed.
Now you can use the Bluetooth phone.
Reconnecting the Bluetooth phone
If the Bluetooth phone is disconnected
with a poor reception from the Blue-
tooth network when the “ACC” or “IG
ON” mode is enabled, the system auto-
matically reconnects the Bluetooth
phone. In this case, the connection
result is not displayed.
If the Bluetooth is disconnected on pur-
pose such as you turned your cellular
phone off, this does not happen. Recon-
nect it by the following methods.
Select the Bluetooth phone again.
Enter the Bluetooth phone.
(b)Calling on the Bluetooth phone
After you enter the Bluetooth phone,
you can call by using handsfree sys-
tem. You can call using the 7 methods
described below.
(i) By dial
You can call by inputting the telephone
number.
This cannot be operated while you are
driving.
27p192
Touch the desired key to input the tele-
phone number.

201
(iii) Setting the screen
27p243
1. Touch the “Screen” switch to displaythe “Screen Settings” screen.
27p244
2. Do the detailed settings of thescreen and touch “OK”.
Receiving Call Display
You can select the method of the re-
ceiving call display.
27p245
Touch the “Full” or “Icon” switch.
Full mode When a call is received, . . . . . .
the hands −free screen is
displayed and you can
operate it on the screen.
Icon mode The message is . . . . .
displayed on the upper
side of the screen. You
can only operate the
steering switch.
