2006 TOYOTA CAMRY Owners Manual

’06Camry_U (L/O 0507)
209
2006 CAMRY from July ‘05 Prod. (OM33708U)
6. Repeat steps 2 through 5 for each re-maining HomeLink button to program
another device.
Programming a rolling code system
If your device is “Rolling Code”
equipped, it is necessary to follow
steps 1 through 4 under the heading
“Programming the HomeLink
” before
proceeding with the steps listed below.
1. Locate the “training” button on the ceil- ing mounted garage door opener motor.
The exact location and color of the
button may vary by brand of garage
door opener. Refer to the owner ’s
guide supplied by the garage door
opener manufacturer for the location of
this “training” button.
2. Press the “training” button on the ceil- ing mounted garage door opener motor.
Following this step, you have 30 seconds
in which to initiate step 3 below. 3. Press and release the vehicle’s pro- grammed HomeLink
 button twice. The
garage door may open. If the door
does open, the programming process is
complete. If the door does not open,
press and release the button a third
time. This third press and release will
complete the programming process by
opening the garage door. The ceiling mounted garage door opener
motor should now recognize the
HomeLink
 unit and be able activate the
garage door up/down.
4. Repeat steps 1 through 3 for each re- maining HomeLink
 button to program
another rolling code system.
Programming an entrance gate/program-
ming all devices in the Canadian market 1. Decide which of the 3 HomeLink
 but-
tons you want to program.
2. Place your hand −held gate/device
transmitter 25 to 75 mm (1 to 3 in.)
away from the surface of the
HomeLink
.
Keep the indicator light on the HomeLink

in view while programming. 3. Press and hold the selected HomeLink
 button.
4. Continuously press and release ( cycle)
the hand− held gate/device transmitter
button every two seconds until step 5
is complete.
5. When the indicator light on the HomeLink
 changes from a slow to a
rapid flash after 20 seconds, you can
release both buttons. 6. Test the operation of the HomeLink
 by
pressing the newly programmed button.
Check to see if the gate/device oper-
ates correctly.
7. Repeat steps 1 through 6 for each re- maining HomeLink
 button to program
another device.
Programming other devices
To program other devices such as home
security systems, home door locks or
lighting, contact your authorized Toyota
dealer for assistance.
Reprogramming a button
Individual HomeLink
 buttons cannot be
erased, however, to reprogram a single
button, follow the procedure “Programming
the HomeLink
”.
(b) Operating the HomeLink

To operate the HomeLink, press the
appropriate HomeLink button to activate
the programmed device. The HomeLink
indicator light should come on. The
HomeLink continues to send the signal
for up to 20 seconds as long as the
button is pressed.

’06Camry_U (L/O 0507)
210
2006 CAMRY from July ‘05 Prod. (OM33708U)
(c) Erasing the entire HomeLink
memory (all three programs)
To erase all previously programmed codes
at one time, press and hold down the 2
outside buttons for 20 seconds until the
indicator light flashes.
If you sell your vehicle, be sure to erase
the programs stored in the HomeLink

memory.
For additional programming assistance
with your HomeLink
 Universal
Transceiver call the:
Toyota Customer Experience Center at
1 −800− 331−4331 (U.S.A.)
Toyota Canada Customer Interaction
Centre at 1 −888− 869−6828 (Canada) Refer to HomeLink
 on the internet at:
WWW.HOMELINK.COM
CAUTION
When programming the HomeLink
Universal Transceiver, you may be
operating a garage door or other
device. Make sure people and ob-
jects are out of the way of the ga-
rage door or other device to pre-
vent potential harm or damage.
Do not use this HomeLink Univer-
sal Transceiver with any garage
door opener that lacks the safety
stop and reverse feature as re-
quired by federal safety standards.
(This includes any garage door
opener model manufactured before
April 1, 1982.) A garage door open-
er which cannot detect an object
(signaling the door to stop and re-
verse), does not meet current feder-
al safety standards. Using a garage
door opener without these features
increases risk of serious injury or
death.
This device complies with Part 15 of the
FCC Rules and with RSS −210 of the IC
Rules. Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.
WARNING: This transmitter has been
tested and complies with FCC and IC
rules. Changes or modifications not
expressly approved by the party re-
sponsible for compliance could void
the user’s authority to operate the
device.

’06Camry_U (L/O 0507)
211
2006 CAMRY from July ‘05 Prod. (OM33708U)
To use the glove box:
Open by pulling the lever.
Lock by inserting the master key and turn-
ing it clockwise.
Unlock by inserting the master key and
turning it counterclockwise.
With the instrument panel lights on, the
glove box light will come on when the
glove box is open.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
Type A (over head console)
Type B (instrument panel)
Glove boxAuxiliary boxes

’06Camry_U (L/O 0507)
212
2006 CAMRY from July ‘05 Prod. (OM33708U)
Type C (center console, without ashtray)
Type D (center console, with ashtray)
To use the box, open it as shown
above.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the auxiliary box closed
while driving.
NOTICE
Type A—During hot weather, the inte-
rior of the vehicle becomes very hot.
Do not leave anything flammable or
deformable such as a lighter, glasses,
etc. inside.

’06Camry_U (L/O 0507)
213
2006 CAMRY from July ‘05 Prod. (OM33708U)

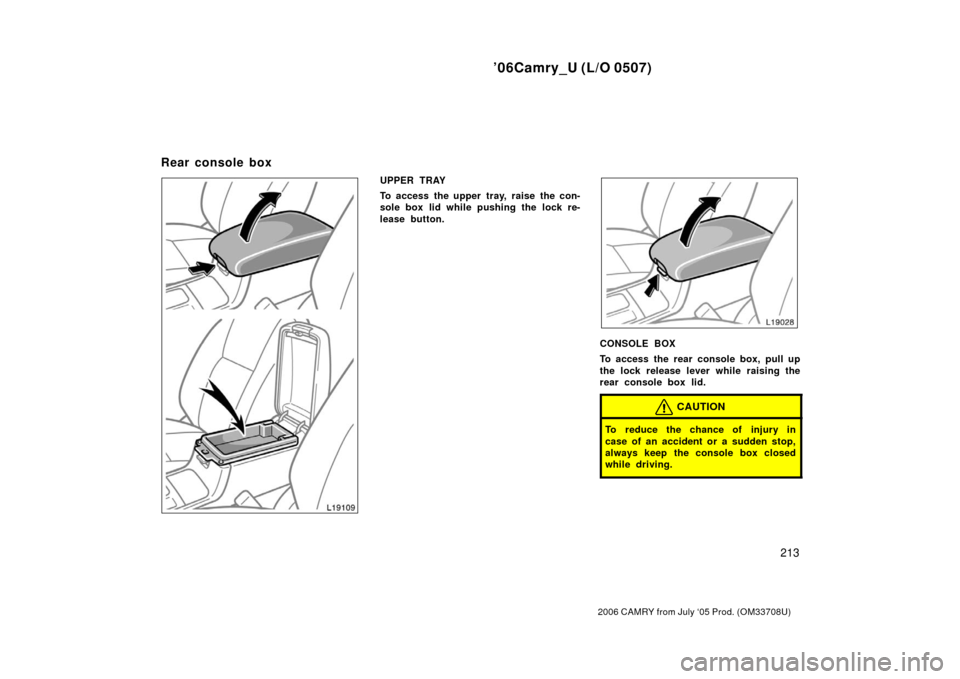

UPPER TRAY
To access the upper tray, raise the con-
sole box lid while pushing the lock re-
lease button.
CONSOLE BOX
To access the rear console box, pull up
the lock release lever while raising the
rear console box lid.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the console box closed
while driving.
Rear console box

’06Camry_U (L/O 0507)
214
2006 CAMRY from July ‘05 Prod. (OM33708U)
With lever type parking brake
With pedal type parking brake
The cup holder is designed for holding
cups or drinkcans securely.
With lever type parking brake: To use the
cup holder, open the lid.
With pedal type parking brake: To use the
cup holder, push on the lid.
To hold the cups or drink−cans securely,
adjust the size with the adapter.
CAUTION
Do not place anything else other
than cups or drinkcans in the cup
holder, as such items may be
thrown about in the compartment
and possibly injure people in the
vehicle during sudden braking or in
an accident.
To reduce the chance of injury in
case of an accident or sudden stop
while driving, keep the cup holder
closed when it is not in use.
The cup holder is designed for holding
cups or drinkcans securely.
To use the cup holder, pull down the arm-
rest.
Front cup holder Rear cup holder

’06Camry_U (L/O 0507)
215
2006 CAMRY from July ‘05 Prod. (OM33708U)
CAUTION
Do not place anything else other
than cups or drinkcans in the cup
holder, as such items may be
thrown about in the compartment
and possibly injure people in the
vehicle during sudden braking or in
an accident.
Do not lift the armrest upright when
the cup holder is in use.
This box is designed to hold things like
bottles.This hook is designed to hang things
like grocery bags.
NOTICE
To prevent damage to the hook, avoid
hanging heavy loads on it.
Storage boxGrocery bag hooks

’06Camry_U (L/O 0507)
216
2006 CAMRY from July ‘05 Prod. (OM33708U)
To secure belongings, hang the cargo
net on the hooks.
NOTICE
Do not use the net to secure sharp
or heavy objects. The net will tear
off.
 Be sure not to twist the net when
hooking.
To raise the rear sun shade, pull the
tab of the shade and hook it on the
anchors. To lower the shade, pull the
tab slightly to unhook the shade, and
lower it slowly.
NOTICE
Observe the following, otherwise dam-
age and/or failure may result:
Do not place anything where they
may hinder the opening/closing of
the shade.
 Do not place things on the shade.
Use a floor mat of the correct size.
If the floor carpet and floor mat have 2
holes, then they are designed for use with
locking clips. Fix the floor mat with lock-
ing clips into the holes in the floor carpet.
Cargo net Rear sun shadeFloor mat
