2006 TOYOTA AVALON set clock

’06 AVALON_U (L/O 0508)
51
3. The removed cap can be stored onthe back side of the fuel filler door.
Position the cap so that the hooks point
to the left and right, and set it in the
receptacle on the back side of the door. When installing the cap, turn the cap
clockwise until you hear a click. When
you hear the click, the cap is fully
closed.
If the cap is not installed securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
CAUTION
Make sure the cap is tightened se-
curely to prevent fuel sp
illage in
the event of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It is designed
to regulate fuel tank pressure.
NOTICE
To prevent damage to the cap, apply
force only in the turning direction to
the cap. Do not pull or pry it.
Sliding operation
Tilting operation
Electric moon roof

’06 AVALON_U (L/O 0508)
66
To use the armrest, pull it down as
shown above.
With seat ventilator
Without seat ventilator
The front seat heater has two switches:
one marked “L” (for driver’s seat) and
the other marked “R” (for front passen-
ger’s seat).
To turn on the seat heater, push the
knob to pop it out and turn the knob
clockwise.
At this time, the indicator light will illumi-
nate to indicate the seat heater is operat-
ing.
The ignition switch must be set at ON to
operate seat heaters.
With seat ventilator: Three setting levels
are available.
To disable this function, turn the knob to
the center position. The indicator light
goes off.
Without seat ventilator: To adjust tempera-
ture, turn the knob.
To disable this function, turn the knob to
the leftmost position. The indicator light
goes off.
Push the knob into the recessed position
when not in use.
Seat ventilators/heaters—
—Seat heater

’06 AVALON_U (L/O 0508)
67
CAUTION
Occupants must use caution when op-
erating the seat heater because it
may make them feel too hot or cause
burns at low temperatures (erythema,
varicella). Use extra caution for;
Babies, small children, elderly per-
sons, sick persons or persons with
physical disabilities
Persons who have sensitive skin
Persons who are exhausted
Persons who have taken alcohol or
drugs which induce sleep (sleeping
drug, cold remedy, etc.)
To prevent the seat overheating, do
not use the seat heater with a blan-
ket, cushion, or other insulating ob-
jects which cover the seat.
NOTICE
 Do not put unevenly weighed ob-
jects on the seat and do not stick
sharp objects (needles, nails, etc.)
into the seat.
 When cleaning the seats, do not
use organic substances (paint thin-
ner, benzine, alcohol, gasoline,
etc.). They may damage the heater
and seat surface.
 Before cleaning the seats, fully
wring out the towel that will be
used. Water entering the seats may
cause the seat ventilation/heating
system to malfunction.
 To prevent the battery from being
discharge, turn the switch off when
the engine is not running.
The front seat ventilator has two
switches: one marked “L” (for driver ’s
seat) and the other marked “R” (for
front passenger ’s seat).
To turn on the seat ventilator, push the
knob to pop it out and then turn the
knob counterclockwise.
At this time, the indicator light will illumi-
nate to indicate the seat ventilator is oper-
ating.
The ignition switch must be set at ON to
activate seat ventilators.
Three setting levels are available.
To disable this function, turn the knob to
the center position. The indicator light
goes off.
—Seat ventilator

’06 AVALON_U (L/O 0508)
205
Compact disc player
Use this button to skip up or down to a
different track.
Push “” or “ ” side of the “SEEK/
TRACK” button until the number of the
track you want to listen to appears on the
display. If you want to return to the begin-
ning of the current track, quickly push the
down side of the button one time.
ST (Stereo reception) display
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the display. If the
signal becomes weak, the radio reduces
the amount of channel separation to prev-
ent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion.
TA P E
Push the “TAPE” button to play a cassette
tape. The indicator light will come on. TEXT
This button is used to change the display
for the compact disc that contains text
data.
To change the display, quickly push and
release the “TEXT” button while the com-
pact disc is playing. The display changes
in the order from the elapsed time to disc
title to track title, then back to the
elapsed time.
If this button is pushed while a compact
disc that does not contain text data is
playing, “NO TITLE” will appear on the
display.
If the entire disc or track title does not
appear on the display, push and hold the
button until you hear a beep. The rest of
the title will appear.
TUNE (Tuning)
Turn the “TUNE” knob clockwise to step
up the frequency. Turn the knob counter-
clockwise to step down the frequency.

’06 AVALON_U (L/O 0508)
241

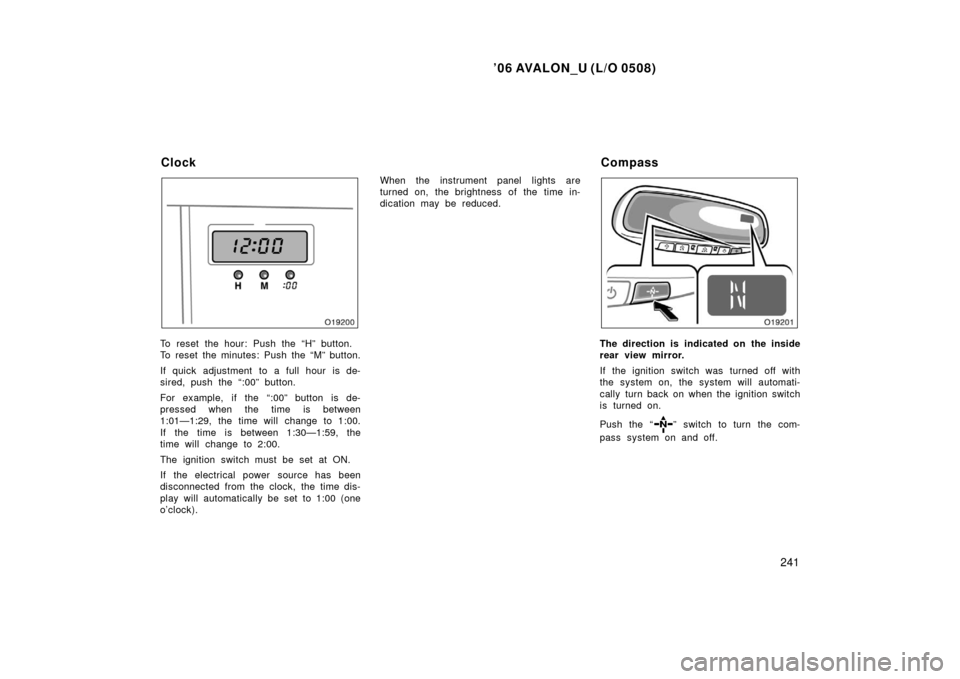

To reset the hour: Push the “H” button.
To reset the minutes: Push the “M” button.
If quick adjustment to a full hour is de-
sired, push the “:00” button.
For example, if the “:00” button is de-
pressed when the time is between
1:01—1:29, the time will change to 1:00.
If the time is between 1:30—1:59, the
time will change to 2:00.
The ignition switch must be set at ON.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock).When the instrument panel lights are
turned on, the brightness of the time in-
dication may be reduced.The direction is indicated on the inside
rear view mirror.
If the ignition switch was turned off with
the system on, the system will automati-
cally turn back on when the ignition switch
is turned on.
Push the “
” switch to turn the com-
pass system on and off.
Clock Compass
