Reference Waveform
NOTE
When ECM cannot read the transponder code at the first try, ECM tries to read the transponder code
repeatedly up to 8 times. The second waveform is the example showing that ECM read the transponder
code successfully at the second try.
Terminal Circuit Normal Voltage Condition
G17-1 Power supplyAbout 12.0 V Ignition switch at ON position
0.0 V Ignition switch at OFF position
G17-2 Ground 0.0 V —
G17-3 Serial communication lineSee the reference
waveform.—
0.0 V Ignition switch at OFF position
G17-4 Clock lineSee the reference
waveform.—
0.0 V Ignition switch at OFF position
G17-5 Illumination ring control (if equipped)0 V• Ignition key not inserted to the key cylinder
• Door opened
0 V → 12 V• Ignition key at OFF position
• From the time door is closed to the time
interior light faded out completely
(As the interior light fades out, the voltage
increases.)
0 V → 12 V• Door closed
• From the ignition switch is turned ON to the
time interior light is completely faded out
(As the interior light fades out, the voltage
increases.)
G17-6Illumination ring power supply
(if equipped)About 12.0 V —
I6RW0CA30003-01
[A]: The transponder code read successfully at the first try. 2. Clock line
[B]: The transponder code read successfully at the second try. 3. First try
1. Serial communication line 4. Second try
Measurement terminals CH1: G17-3 to G17-2
CH2: G17-4 to G17-2
Oscilloscope settings CH1: 5 V/DIV
CH2: 5 V/DIV
TIME: 20 ms
Measurement condition Right after the ignition switch is turned ON, the waveform can be read.
Downloaded from www.Manualslib.com manuals search engine 10E-8 Keyless Start System:
Diagnostic Information and Procedures
Precautions in Diagnosing TroublesS6RW0DA504001
• The keyless start system executes data transmission/
reception by means of the radio wave. Therefore,
proper operation may not be obtained if use of the
door lock function and engine start function of the
keyless start system is attempted near the place
where strong radio wave is emitted (TV and radio
broadcasting stations, etc.).
• Diagnostic information stored in keyless start control
module memory can be checked only by key indicator
light.
• Be sure to use the trouble diagnosis procedure as
described in “Keyless Start System Check”. Failure to
follow it may result in incorrect diagnosis. (Some other
DTC may be stored by mistake in the memory of
keyless start control module during inspection.)
• Be sure to read“Precautions for Electrical Circuit
Service in Section 00” before inspection and observe
what is written there.
• Communication of ECM, TCM (A/T model), BCM,
ABS control module, 4WD control module (if
equipped), keyless start control module and
combination meter is established by CAN (Controller
Area Network). (For detail of CAN communication for
keyless start control module, refer to “CAN
Communication System Description”). Therefore,
handle CAN communication line with care referring to
“Precaution for CAN Communication System in
Section 00”.
• Replacement of the keyless start control module
When keyless start control module is replaced with
new one, make sure that register remote controller ID
code to keyless start control module correctly
according to “Registration Procedure for Remote
Controller ID Code”.• Keyless start control module substitution
When the keyless start control module used in
another vehicle was installed in the vehicle being
serviced, register the ID code of the remote controller
to the keyless start control module first and then the
following code.
– With immobilizer control system, register the
ignition key transponder code for the immobilizer
control system in ECM. For registration procedure
of that, refer to “Registration of the Ignition Key in
Section 10C”.
– Without immobilizer control system, register the
steering lock unit ID code in keyless start control
module. For registration procedure of that, refer to
“Keyless Start Registration”.
Self-Diagnosis FunctionS6RW0DA504002
The keyless start control module has self-diagnosis
function to monitor the system components and circuits
while the keyless start system is at work. When the
keyless start control module detects an abnormality in
the system, it saves the area where such abnormality
has occurred as a DTC in its memory. The DTC stored in
memory of the keyless start control module is indicated
by the key indicator light in the combination meter
flashing in a specific pattern. For DTC indication, refer to
“DTC Check” and for the clearing procedure, to “DTC
Clearance”.
Keyless Start System Diagnosis IntroductionS6RW0DA504003
To ensure that the trouble diagnosis is done accurately
and smoothly, observe “Precautions in Diagnosing
Troubles” and follow “Keyless Start System Check”.
4. Ignition knob switch 13. Rear end door request switch 22. Ignition Switch
5. Key reminder switch 14. Driver side door lock switch
6. Driver side door antenna 15. Passenger side door lock switch

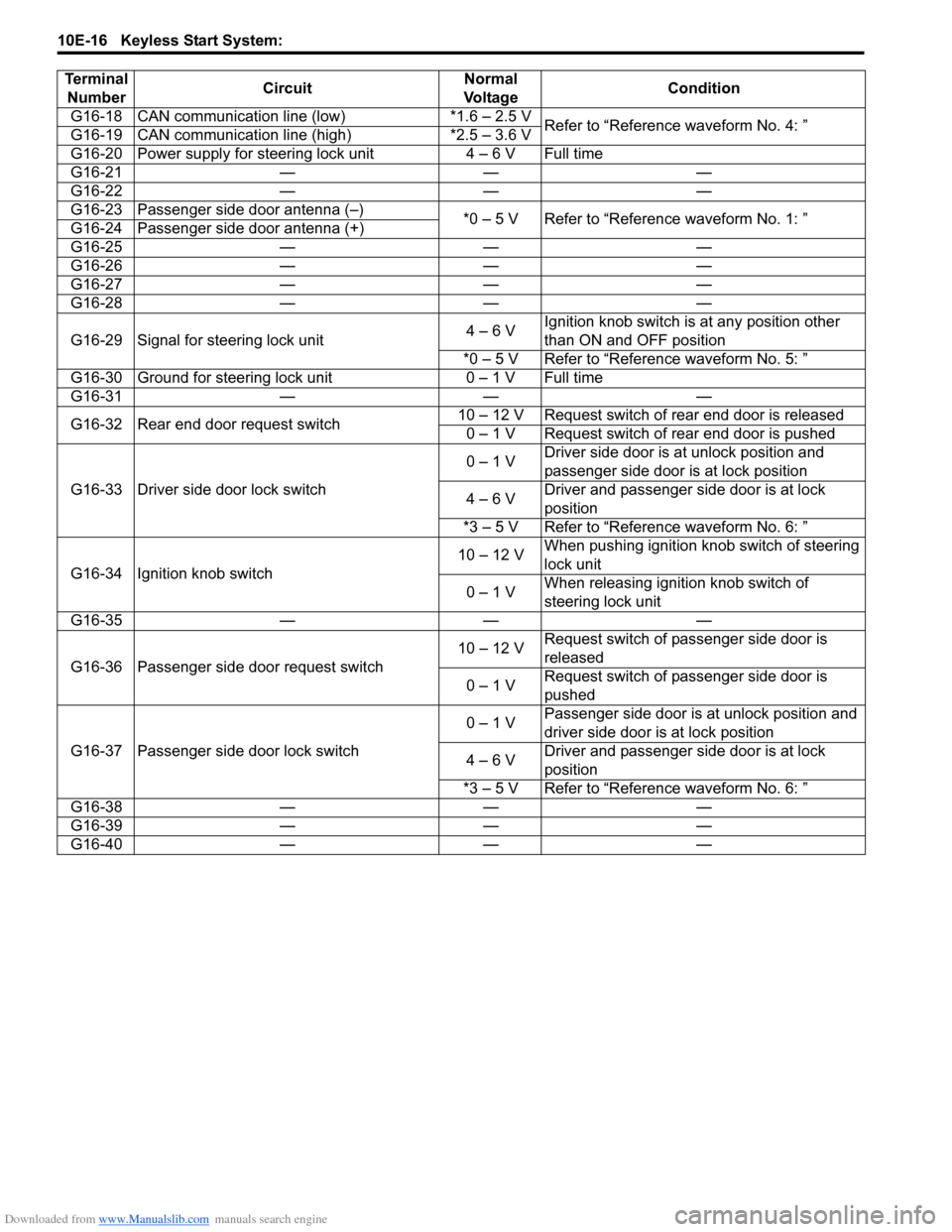

Downloaded from www.Manualslib.com manuals search engine 10E-16 Keyless Start System:
G16-18 CAN communication line (low) *1.6 – 2.5 V
Refer to “Reference waveform No. 4: ”
G16-19 CAN communication line (high) *2.5 – 3.6 V
G16-20 Power supply for steering lock unit 4 – 6 V Full time
G16-21 — — —
G16-22 — — —
G16-23 Passenger side door antenna (–)
*0 – 5 V Refer to “Reference waveform No. 1: ”
G16-24 Passenger side door antenna (+)
G16-25 — — —
G16-26 — — —
G16-27 — — —
G16-28 — — —
G16-29 Signal for steering lock unit4 – 6 VIgnition knob switch is at any position other
than ON and OFF position
*0 – 5 V Refer to “Reference waveform No. 5: ”
G16-30 Ground for steering lock unit 0 – 1 V Full time
G16-31 — — —
G16-32 Rear end door request switch10 – 12 V Request switch of rear end door is released
0 – 1 V Request switch of rear end door is pushed
G16-33 Driver side door lock switch0 – 1 VDriver side door is at unlock position and
passenger side door is at lock position
4 – 6 VDriver and passenger side door is at lock
position
*3 – 5 V Refer to “Reference waveform No. 6: ”
G16-34 Ignition knob switch10 – 12 VWhen pushing ignition knob switch of steering
lock unit
0 – 1 VWhen releasing ignition knob switch of
steering lock unit
G16-35 — — —
G16-36 Passenger side door request switch10 – 12 VRequest switch of passenger side door is
released
0 – 1 VRequest switch of passenger side door is
pushed
G16-37 Passenger side door lock switch0 – 1 VPassenger side door is at unlock position and
driver side door is at lock position
4 – 6 VDriver and passenger side door is at lock
position
*3 – 5 V Refer to “Reference waveform No. 6: ”
G16-38 — — —
G16-39 — — —
G16-40 — — — Terminal
NumberCircuitNormal
Vo l ta g eCondition
Downloaded from www.Manualslib.com manuals search engine 10E-18 Keyless Start System:

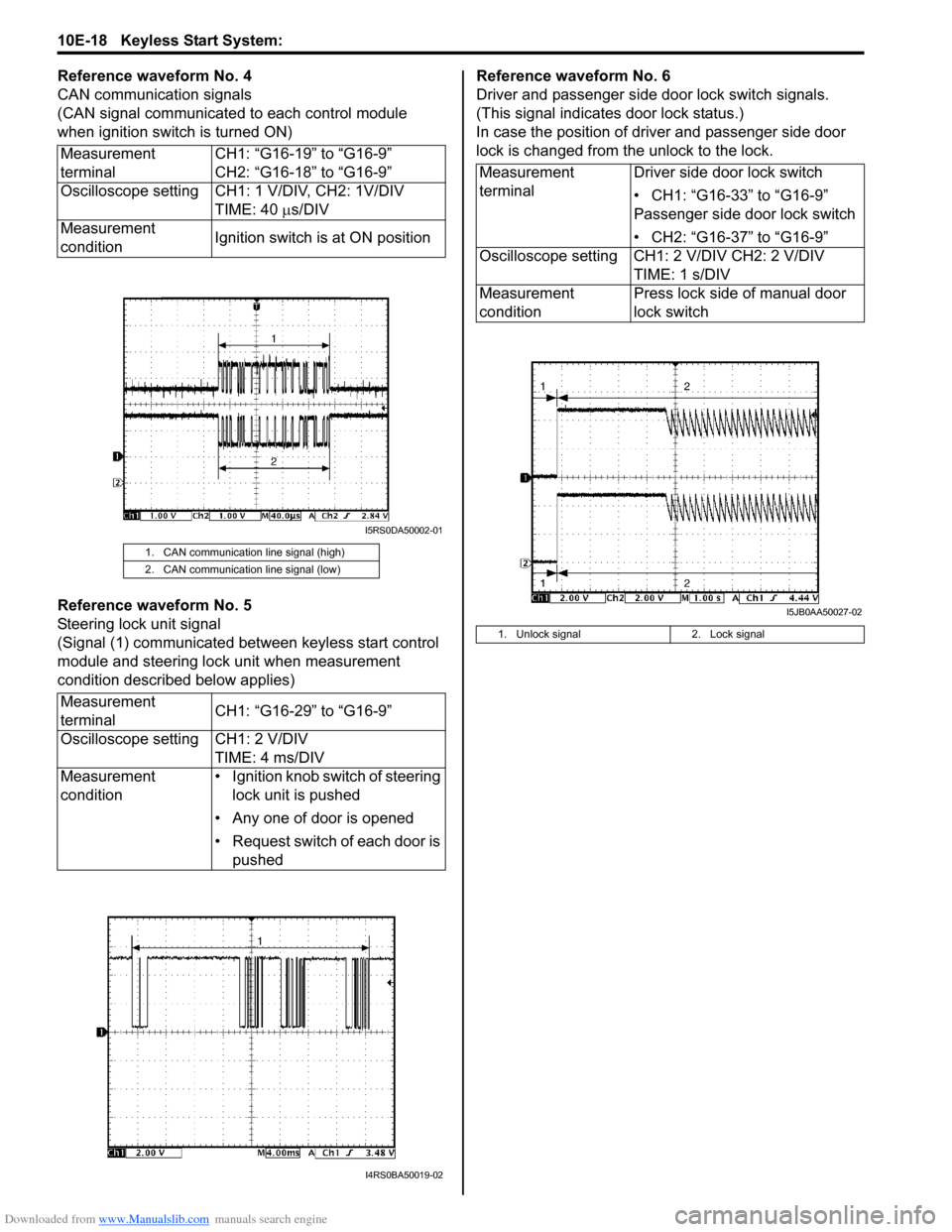

Reference waveform No. 4
CAN communication signals
(CAN signal communicated to each control module
when ignition switch is turned ON)
Reference waveform No. 5
Steering lock unit signal
(Signal (1) communicated between keyless start control
module and steering lock unit when measurement
condition described below applies)Reference waveform No. 6
Driver and passenger side door lock switch signals.
(This signal indicates door lock status.)
In case the position of driver and passenger side door
lock is changed from the unlock to the lock.
Measurement
terminalCH1: “G16-19” to “G16-9”
CH2: “G16-18” to “G16-9”
Oscilloscope setting CH1: 1 V/DIV, CH2: 1V/DIV
TIME: 40 µs/DIV
Measurement
conditionIgnition switch is at ON position
1. CAN communication line signal (high)
2. CAN communication line signal (low)
Measurement
terminalCH1: “G16-29” to “G16-9”
Oscilloscope setting CH1: 2 V/DIV
TIME: 4 ms/DIV
Measurement
condition• Ignition knob switch of steering
lock unit is pushed
• Any one of door is opened
• Request switch of each door is
pushed
I5RS0DA50002-01
I4RS0BA50019-02
Measurement
terminalDriver side door lock switch
• CH1: “G16-33” to “G16-9”
Passenger side door lock switch
• CH2: “G16-37” to “G16-9”
Oscilloscope setting CH1: 2 V/DIV CH2: 2 V/DIV
TIME: 1 s/DIV
Measurement
conditionPress lock side of manual door
lock switch
1. Unlock signal 2. Lock signal
I5JB0AA50027-02
