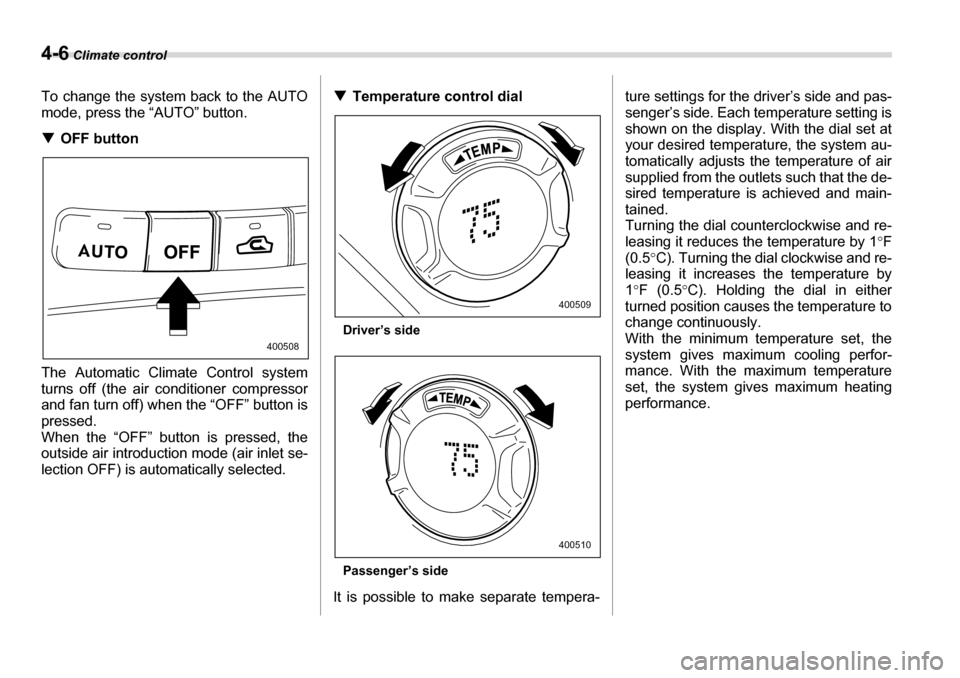

4-6 Climate control
To change the system back to the AUTO
mode, press the “AUTO” button. TOFF button
The Automatic Climate Control system
turns off (the air conditioner compressor
and fan turn off) when the “OFF” button is
pressed.
When the “OFF” button is pressed, the
outside air introduction mode (air inlet se-
lection OFF) is automatically selected. T
Temperature control dial
Driver’s side
Passenger’s side
It is possible to make separate tempera- ture settings for the driver’s side and pas-
senger’s side. Each temperature setting is
shown on the display. With the dial set at
your desired temperature, the system au-
tomatically adjusts the temperature of air
supplied from the outlets such that the de-
sired temperature is achieved and main-
tained.
Turning the dial counterclockwise and re-
leasing it reduces the temperature by 1
°F
(0.5 °C). Turning the dial clockwise and re-
leasing it increases the temperature by1 °F (0.5 °C). Holding the dial in either
turned position causes the temperature to
change continuously.
With the minimum temperature set, the
system gives maximum cooling perfor-
mance. With the maximum temperature
set, the system gives maximum heating
performance.
400508
400509
400510
